L feet-wood screw can be used for both wooden beams and steel beams, where the tip of the wood screw for the steel beam needs to be drilled,and the bottom of the L foot pasted with rubber pad to prevent the color steel tile from leaking.
Technical Parameters
|
Installation Angle
|
Flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

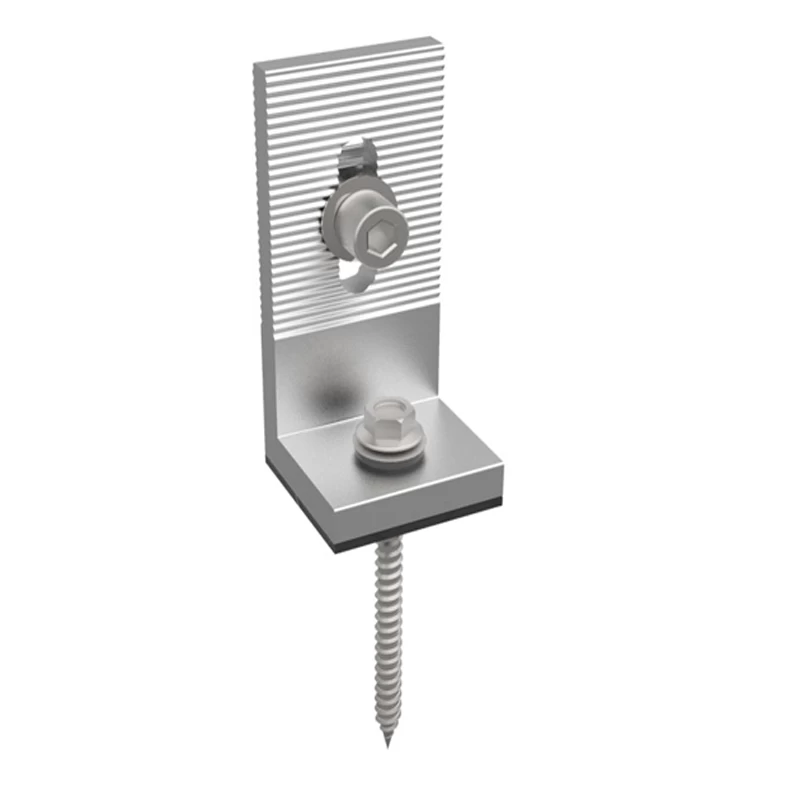

L feet-wood screw
Feature:
1.L foot is suitable for most of the
trapezoidal roof, with certain versatility;
2. L-wood screws can be used for both wooden
beams and steel beams, where the tip of the wood screw for the steel beam needs
to be drilled;
3. The bottom of the L foot pasted with
rubber pad to prevent the color steel tile from leaking.
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

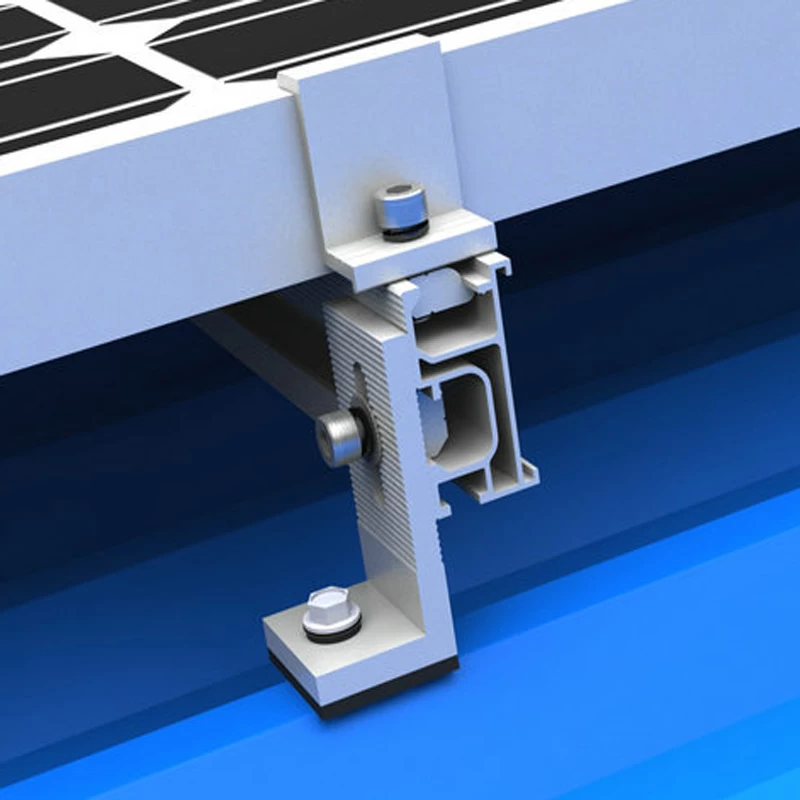

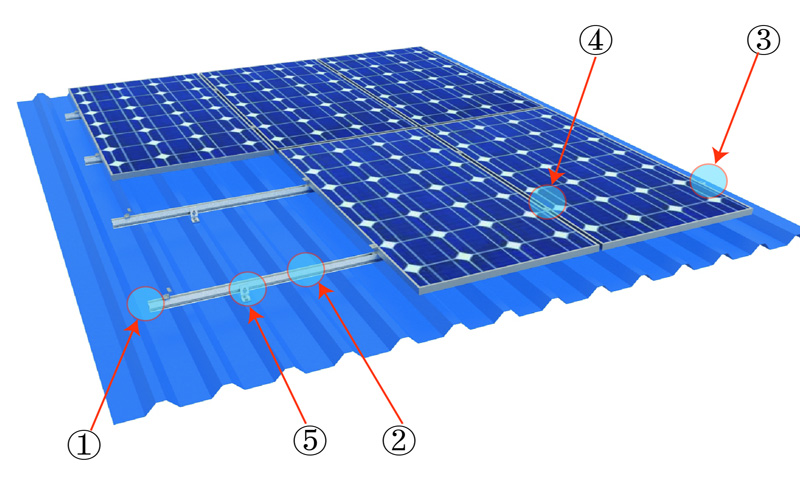

Component photos of L feet-wood screw
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. L feet+wood screw

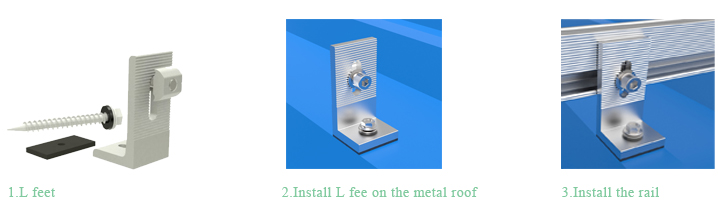

Installation steps of L feet-wood screw

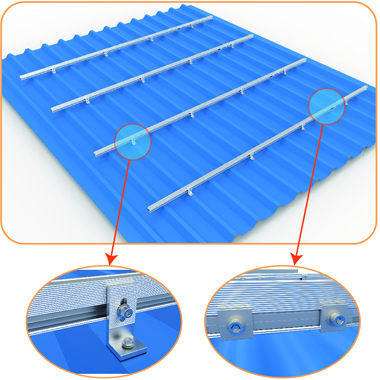

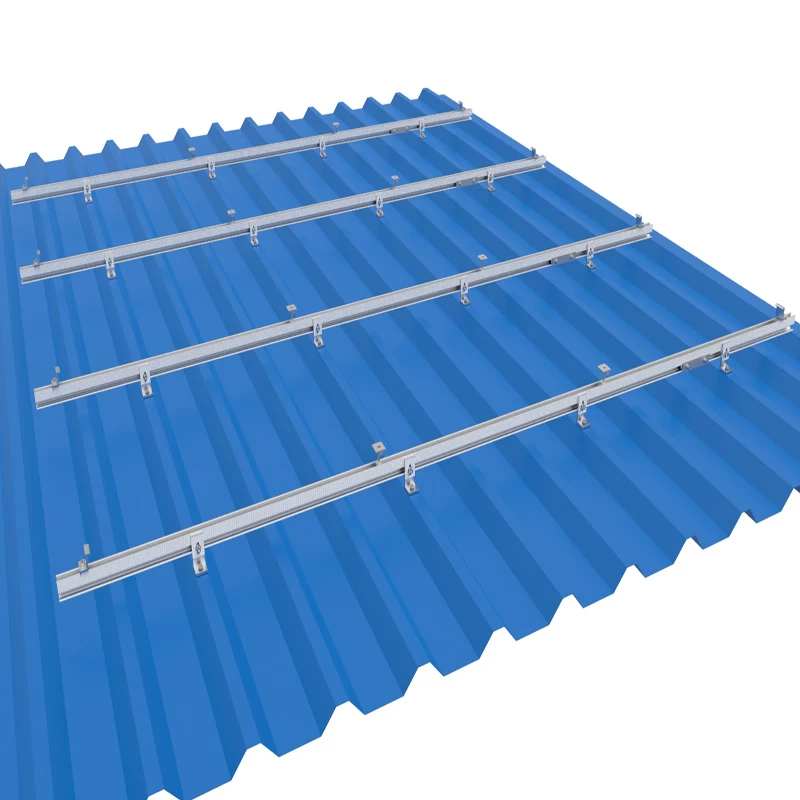

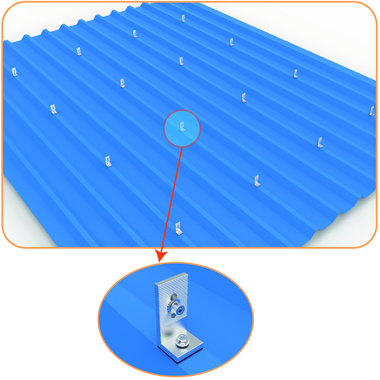

Step1：Install L feet according to the drawing Step2：Install roof rails and rail splices
Install L feet L feet+rail Rail splice

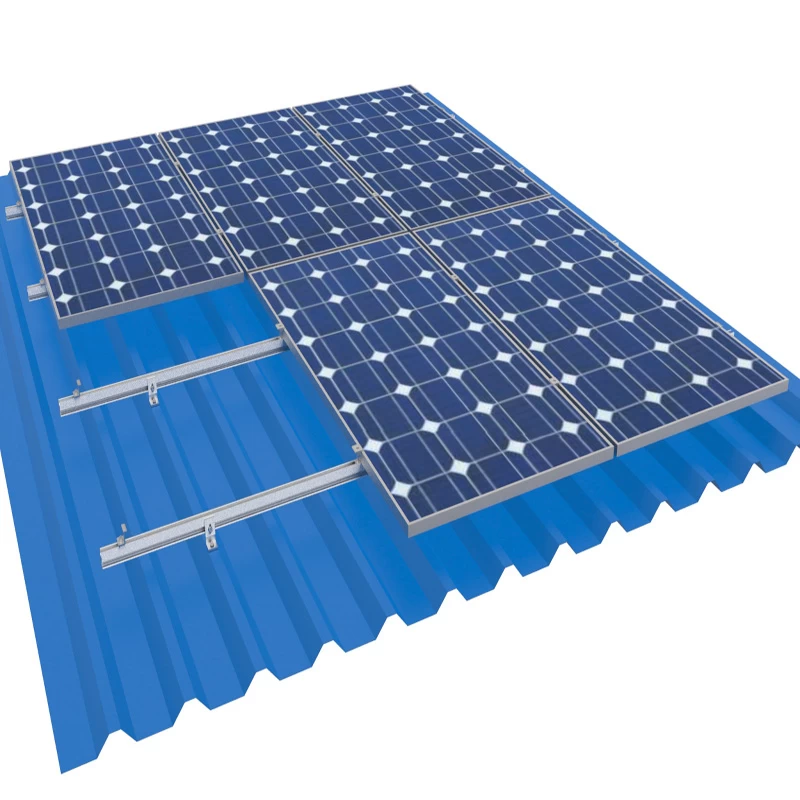

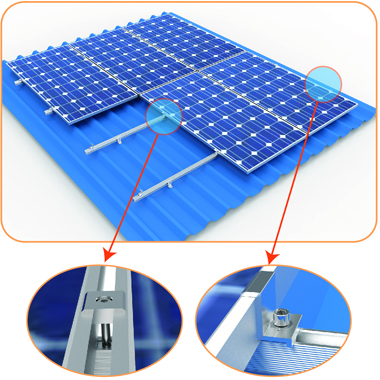

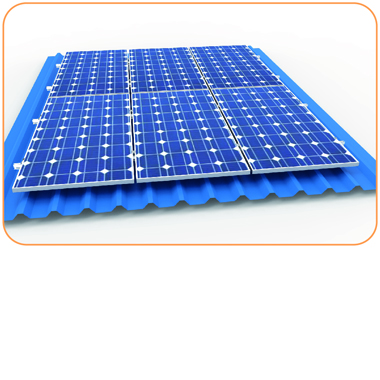

Step3：Fasten panel by inter clamp Step4：Installation completion diagram
and end clamp
Inter clamp End clamp
Installation steps:

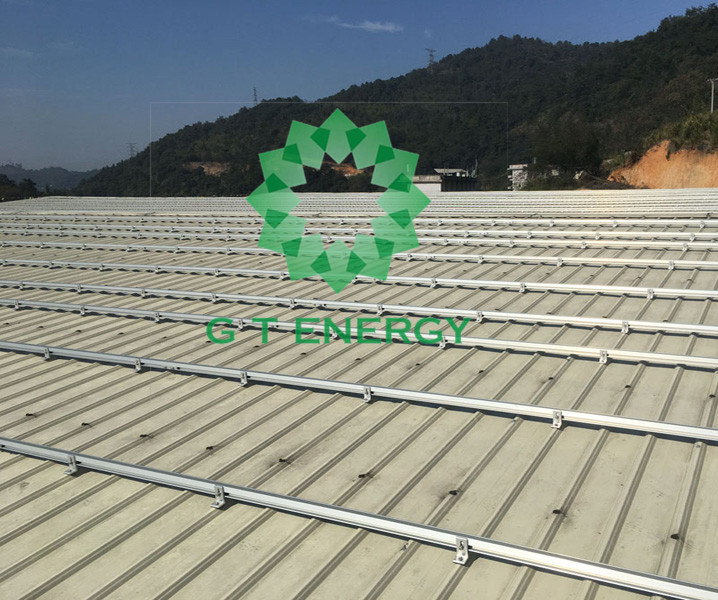

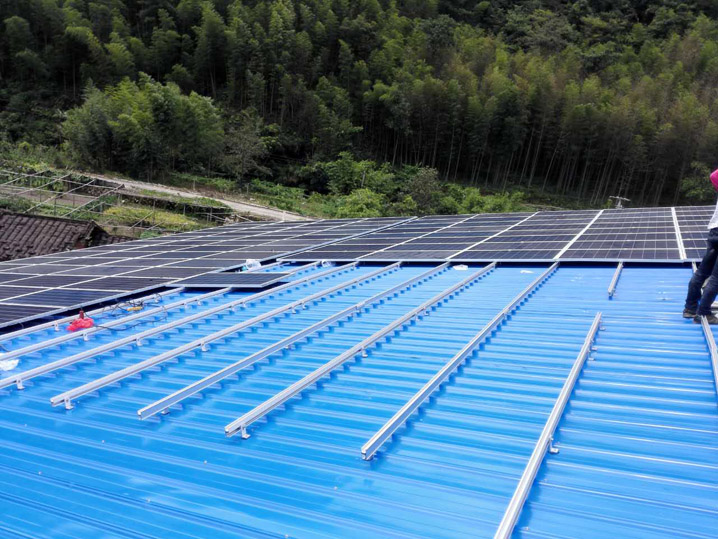

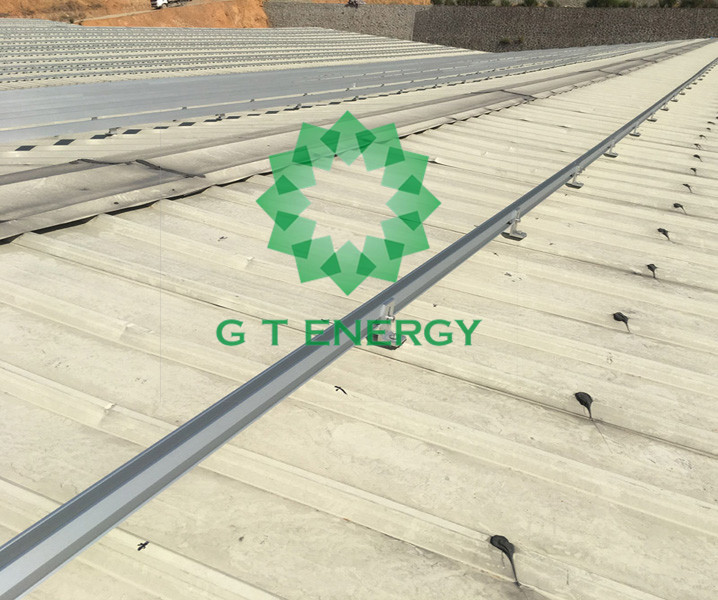

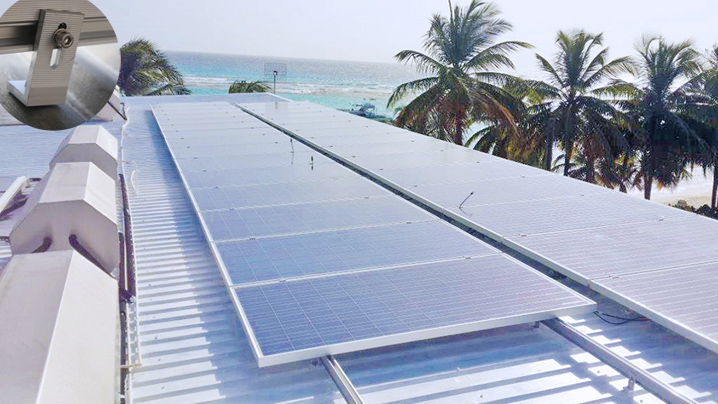

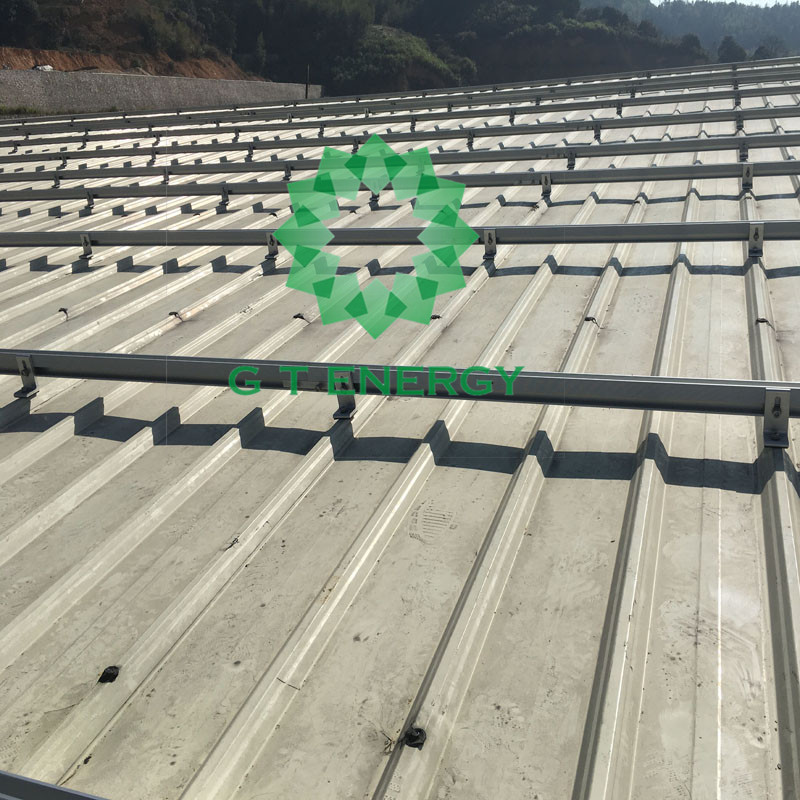

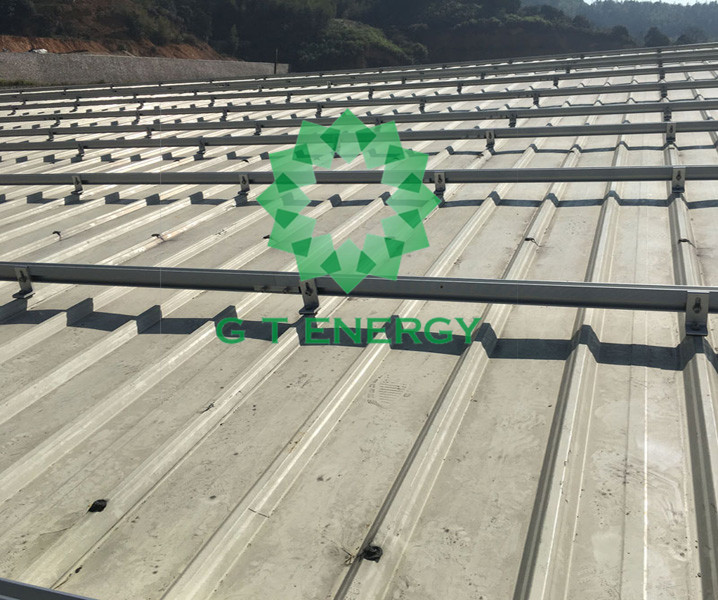

Installation effect photo
