L feet-double head
screw is suitable for most of the trapezoidal roof. And this roof mounting system is designed with perfect waterproof item-rubber.This rubber would prevent water leak into
to steel roof.
Technical Parameters
|
Installation Angle
|
Flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

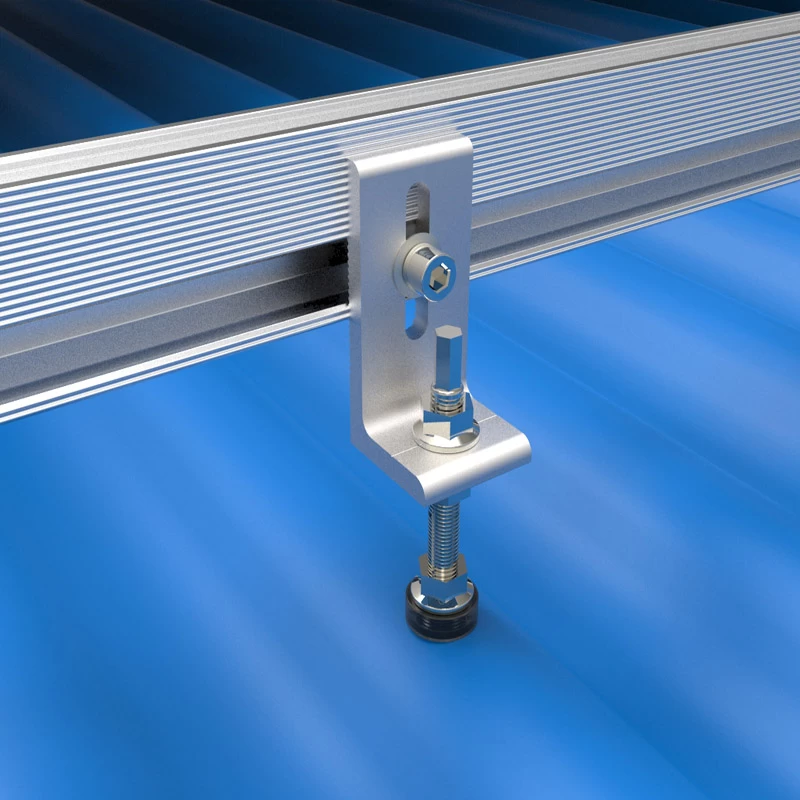

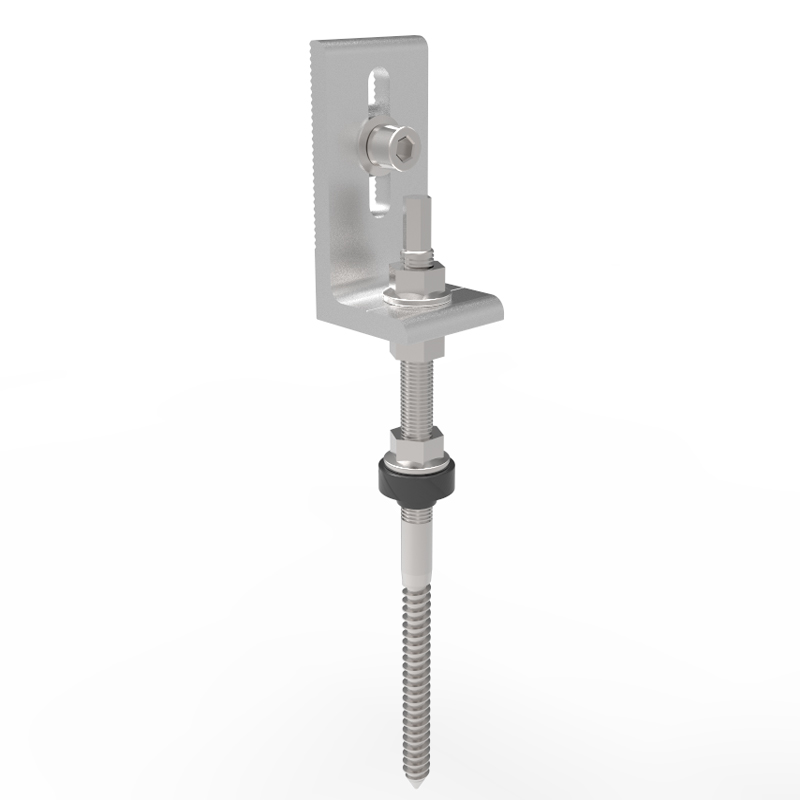

Solar roof L feet with double head screw
Feature:
1. L-double-headed
wood screws are mainly used for wooden beams, and the bottom of L-legs is not
attached to color tiles, so it is
suitable for a variety of colorful tiles;
2. Double-headed wood screws have a longer length, the bottom is fixed on the
wooden beam, and the upper section is fixed with a nut to fix the L-foot;
3. After
installation, the distance between the solar panel and the color steel tile is
larger, which is more convenient for installation.
4. The bottom of
the wood screw stick a round rubber pad, to prevent the color steel tile from
leaking.
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.
Component photos of L feet with double head screw
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. L feet with double
head screw

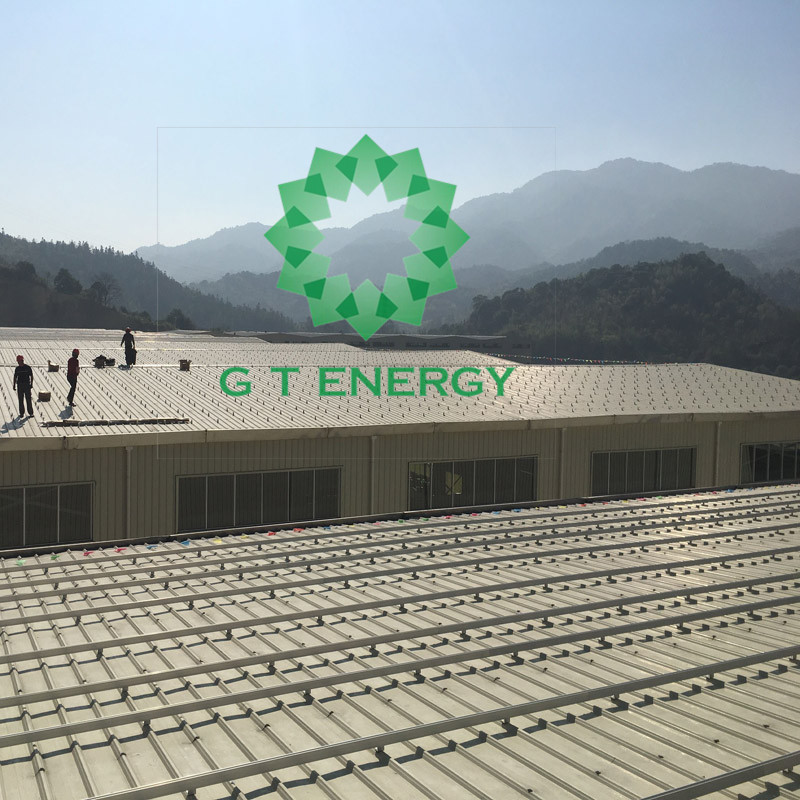

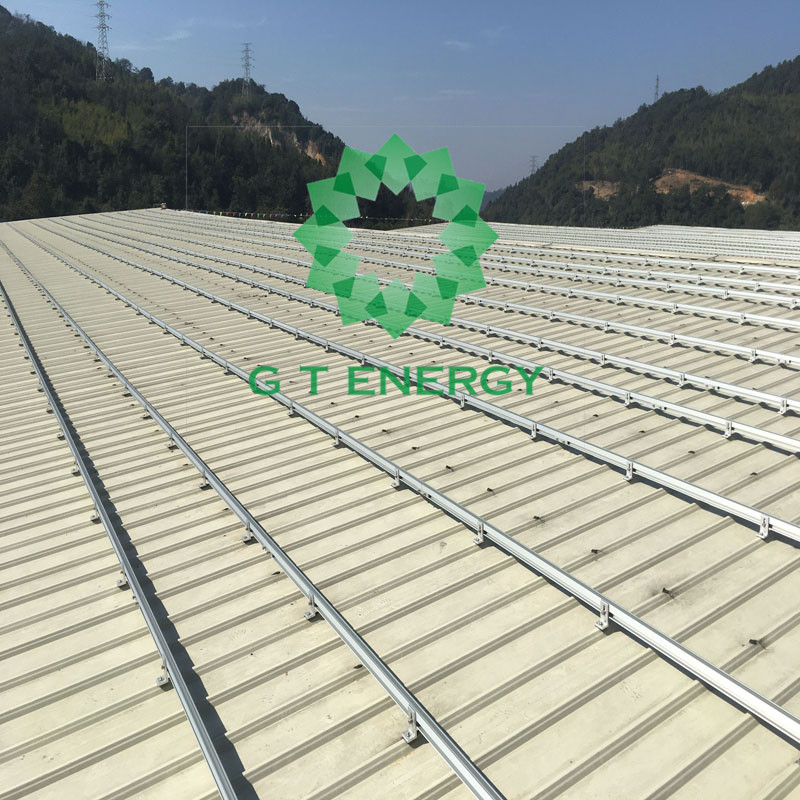

Installation photos of L feet with double head screw

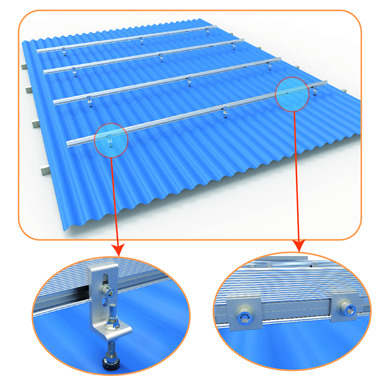

Step1：Install L feet according to the drawing Step2：Install roof rails and rail splices
L feet+double head screw installation L feet+rail Rail splice
Step3：Fasten panel by inter clamps Step4： Installation completion diagram
and end clamps
Inter clamp End clamp
