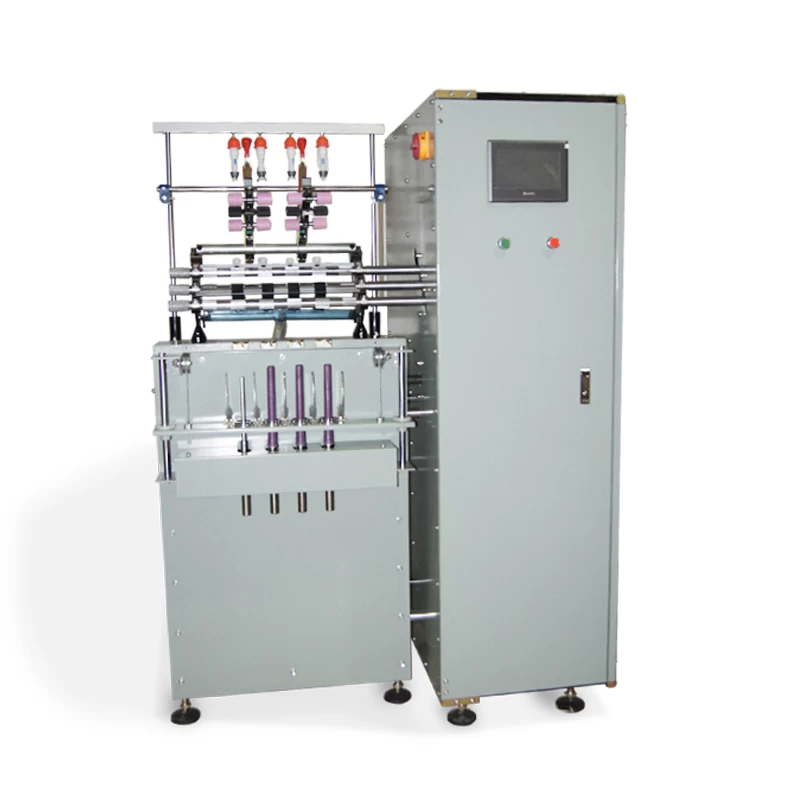

Lab Small Yarn Spinning Machine (Ring Spinning Tester) GT-AB19
Product Introduction
|
Application:
Small Yarn Spinning Machine (Ring Spinning Tester). a range of ring-spinning test units for spinning cotton, wool, synthetics or blends. Available in various configurations to reproduce all standard ring-spinning conditions.
|
Key Specifications
Model
|
GT-AB19-6
|
GT-AB19-12
|
Spindles
|
6
|
12
|
Control Mode
|
Touch Screen + PLC
|
Twist of Yarn
|
200-2000pcs/m
|
Drafting Range
|
2-50
|
Fiber Length
|
22 to 42mm
|
Capacity
|
0.25-1 kg
|
Spindle Speed (rpm)
|
12000rpm
|
Roller Diameter
|
Φ25/25/25mm
|
Ring Diameter
|
Φ42 mm
|
Power
|
1200W
|
Power Supply
|
220/3*380V AC 50/60Hz
|
Dimension
|
1.2m×0.8m×1.6m
|
Application Industry
All kinds of yarns can be tested on The GT-AB19 Small Yarn Spinning Machine.
