Large Current DIP Inductor low Resistance and High Frequency

DIP type high current inductor has very low DC resistance, mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems. Inductor for general purpose use.



Hefei Mycoil Technology Co., LTD is skilled at producing and designing different types large current inductors, such as PQ series current inductors, RM series current inductors, DIP type current inductors, SMD type current inductors. We accept custom design and OEM services.

Our DIP type high current inductors mainly used in high frequency SMP, EMI filters, switching power suppliers, DC-DC converters in distributed power systems, high frequency SMPS, inductor for general purpose use, etc. All DIP high current inductor products we produced were double tested, also with advanced manufacturing process, we have our own quality control department, strict quality control links.


Quick Details

Part No: MCTLC Series High Current DIP Type Inductor


Brand name: MCT

Inductance at IDC is a typical value for the component taken at IDC


Custom made: Available

L0 test condition: 100KHz/1.0Vrms, 0ADC


Logo: Can be customized

Testing ambient temperature is referenced to 25°C


Packing: Carton,can custom

Operating temperature range: -40°C~+120°C


MOQ: Any quantity

Certification: ISO9001,ROHS,CE


OEM: Available

Lead time: 25 days after payment


Shipping: Air, Ship, etc


Part Information

Product Name: Large Current DIP Inductor low Resistance and High Frequency

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Home appliance, Automotive electronics.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging,protect DIP large current inductor performance. )

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected and UL certified. We accept custom made and design service.


Product Specification

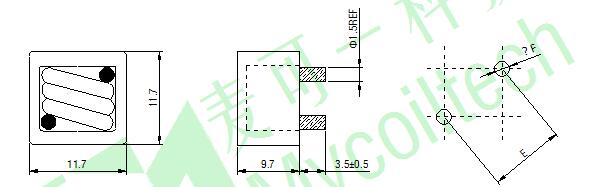

Mechanical dimension: Unit: mm

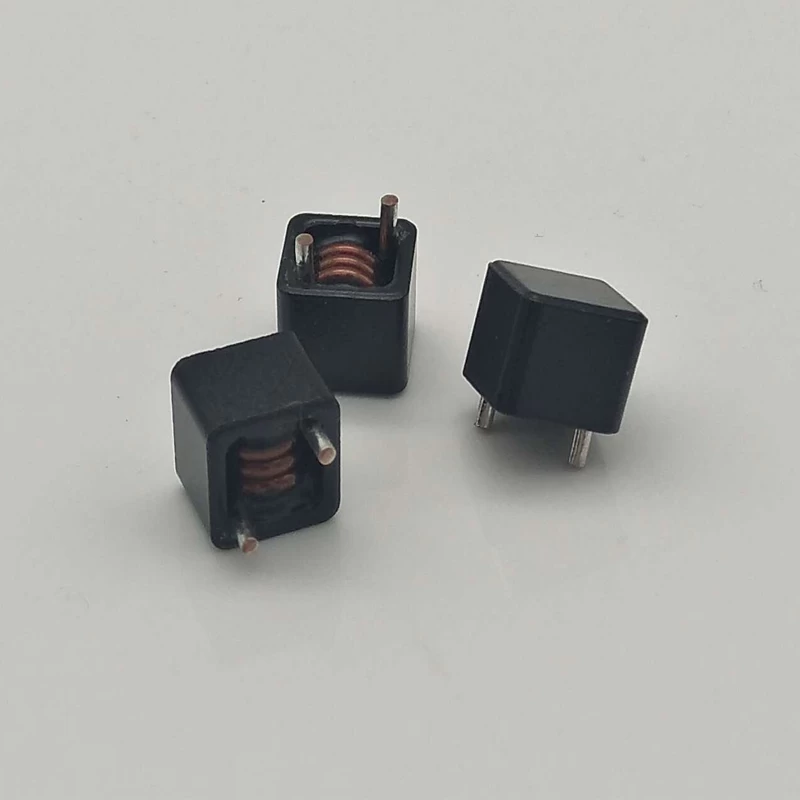

New design DIP large current inductor from China factory


Electrical Characteristics:

MCT PN

L(0A)

uH±20%

DCRmΩ)

max

Lrms

uH±20%

Irms

A

Isat

A

E

F

MCTLCR47M

0.47

0.90

0.41

34

50

8.7±1

1.5±0.1

MCTLCR60M

0.60

0.90

0.56

33

50

8.7±1

1.5±0.1

MCTLCR80M

0.80

1.50

0.73

32

45

8.4±1

1.3±0.1

MCTLC1R0M

1.00

1.50

0.92

30

45

8.4±1

1.3±0.1


Note:

1.L0 test condition:100KHz/1.0Vrms0ADC

2.Inductance at IDC is a typical value for the component taken at IDC

3.Heating current will cause an approximate ΔT of 40°C without core loss

4.Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature

5.Testing ambient temperature is referenced to 25°C

6.Operating temperature range -40°C~+120°C
