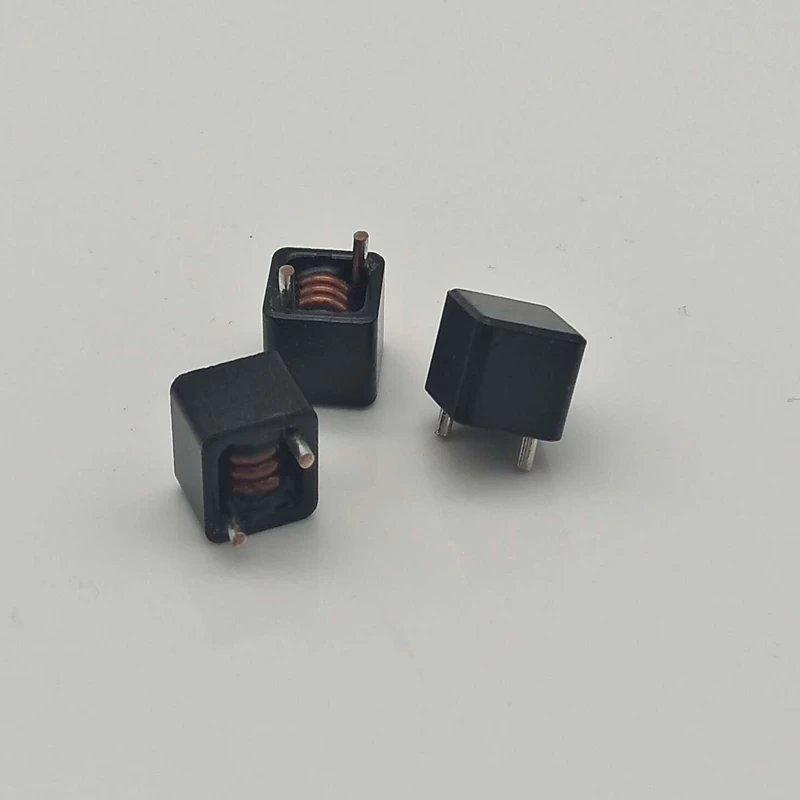

Large Current Inductor DIP Shielded Power Inductor

DIP large current inductor has low resitance and high frequency. mainly for motherboards, laptop, desktop computers. DC/DC converter in distributed power systems.



Hefei Mycoil Technology Co., LTD is skilled at producing designing and selling electronic components, we offer different types large current inductors, such as PQ series current inductors, RM series current inductors, DIP type current inductors, SMD type current inductors and other type large current inductors.

We are professional large current inductor factory, our DIP large current inductors mainly used in high frequency SMP, EMI filters, motherboards for laptop and desktop computers, DC converters in distributed power systems, inductor for general purpose use, etc. All large current inductors are RoHS certification products.


Quick Details

Part No: MCTLE Series High Current DIP Type Inductor

Brand name: MCT

Inductance at IDC is a typical value for the component taken at IDC

Custom made: Available

L0 test condition: 100KHz/1.0Vrms, 0ADC

Logo: Can be customized

Testing ambient temperature is referenced to 25°C

Packing: Carton,can custom

Operating temperature range: -40°C~+120°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: Large Current Inductor DIP Shielded Power Inductor

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Switching power supplies, High frequency SMPS, EMI filters, High current DC/DC converters, Automotive electronics.

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray(Available in tape and reel package, three-layer carton packaging, protect high current inductor products)

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected and UL certified. We accept custom made and design service.


Product Specification

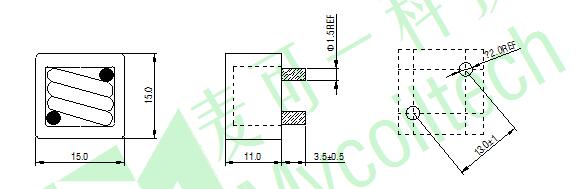

Mechanical dimension: Unit: mm

RoHS Large Current DIP Inductors


Electrical Characteristics:

MCT PN

L(0A)

uH±20%

DCRmΩ)

max

Lrms

uH±20%

Irms

A

Isat

A

E

F

MCTLER42M

0.42

0.90

0.42

20

32

13.0±1

2.0

Note:

1.L0 test condition:100KHz/1.0Vrms0ADC

2.Inductance at IDC is a typical value for the component taken at IDC

3.Heating current will cause an approximate ΔT of 40°C without core loss

4.Saturation current that will cause L0 approximate 20% rolloff with 25°C ambient temperature

5.Testing ambient temperature is referenced to 25°C

6.Operating temperature range -40°C~+120°C
