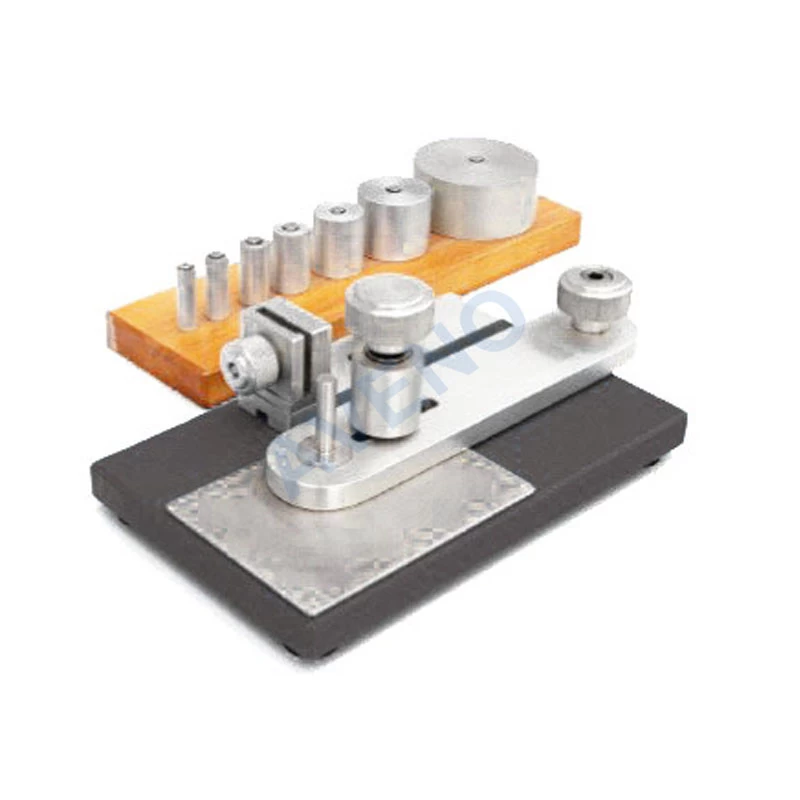

AF63-Leather Grain Crack Index Tester
Application Of Leather Grain Crack Index Tester
Leather Grain Crack Index Tester is used to the leather resistance grain crack after bending.
Principle Of Leather Grain Crack Index Tester
Put the leather grain out, the leather and round bar contact then bending along the rod of certain diameter, observation of cracks in Leather particles.
Standards Of Leather Grain Crack Index Tester
QB/T 2001, QB/T 1618, SATRA TM48, EN ISO 3378
Key Specification Of Leather Grain Crack Index Tester
|
Model
|
AF63 Leather Grain Crack
Index Tester
|
|
Sample
dimension
|
150mm×25mm
|
|
Test cylinder
|
φ25mm
|
|
Circular
diameter
|
NO.1
|
61.67±0.03 mm
|
|
NO.2
|
35.00±0.03 mm
|
|
NO.3
|
23.57±0.03 mm
|
|
NO.4
|
17.22±0.03 mm
|
|
NO.5
|
13.18±0.03 mm
|
|
NO.6
|
10.38±0.03 mm
|
|
NO.7
|
8.33±0.03 mm
|
|
NO.8
|
6.76±0.03 mm
|
|
NO.9
|
30.00±0.03 mm
|
|
Dimension
|
40*20*15cm
|
|
Weight
|
8kg
|
