PRODUCT DESCRIPTION:

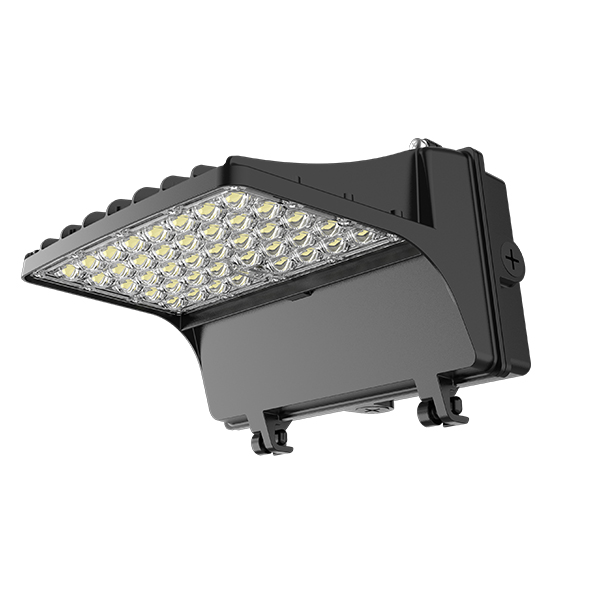

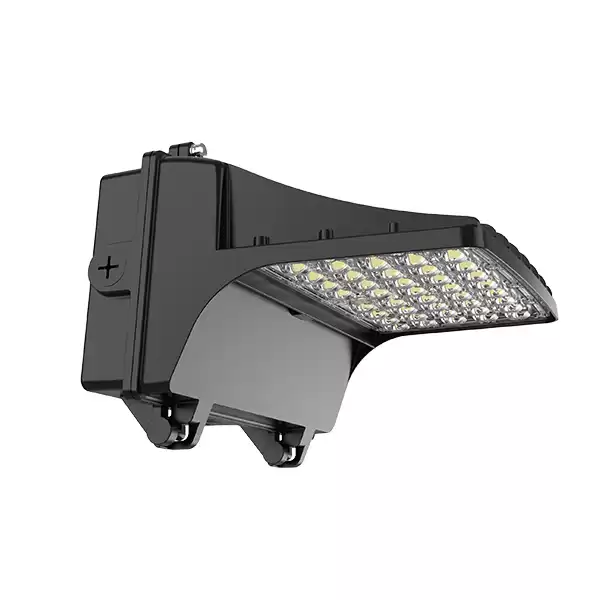

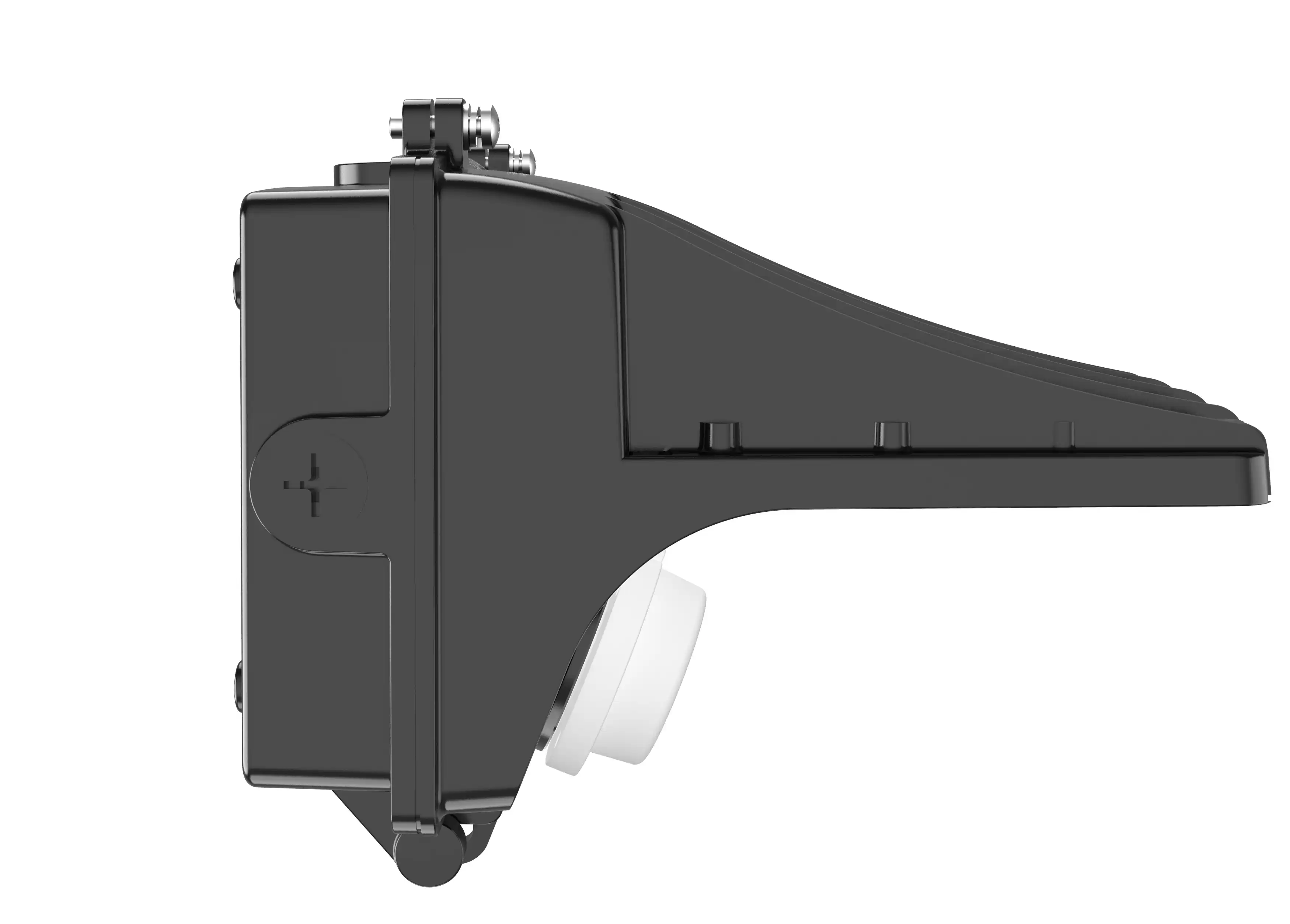

Light up your outdoor area with LED Full Cut-Off Wall Pack. It
is a high efficient lighting solution that provides a long-lasting
and energy-saving. The rugged housing offers advanced
thermal management and protection against outdoor environments without compromising aesthetics.
FEATURES:
• Easy installation
• ETL/cETL/DLC premium certificate
• Wet location rated IP65
• Emergency power 4W & operating time 1.5 hours
• Photocell and motion sensor options
• Type III distribution optics standard/Other optics available by
request
CONSTRUCTION:
• UV-resistant polycarbonate refractor lens
• Durable die-cast aluminum housing
• light weight, and low transportation cost
RECOMMENDED USE:
• Building facade, commercial
• Industrial, retail
• Hospitality buildings
WARRANTY:
7-year standard warranty with labor allowance* (further details
available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application
per the Product Data Sheet (PDS); operated <16 hrs; in ambient of
-40°F to 113°F.
DIMENSION DRAWING:
|
MODEL
|
A (INCH)
|
B (INCH)
|
C (INCH)
|
|
30W
|
8.70″
|
6.73″
|
9.08″
|
|
40W
|
8.70″
|
6.73″
|
9.08″
|
|
50W
|
8.70″
|
6.73″
|
9.08″
|
|
60W
|
8.70″
|
6.73″
|
9.08″
|
|
80W
|
8.70″
|
6.73″
|
9.08″
|
|
100W
|
9.21″
|
7.22″
|
11.04″
|
|
120W
|
9.21″
|
7.22″
|
11.04″
|
SPECIFICATION:
|
|
ITEM
|
SPECIFICATION
|
Normal Type
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
30W
|
40W
|
50W
|
60W
|
80W
|
100W
|
120W
|
|
Equivalent Wattage
|
100W MH
|
150W MH
|
150W MH
|
200W MH
|
250W MH
|
250W MH
|
400W MH
|
|
Lumens Delivered
|
3900lm
|
5200lm
|
65000lm
|
7800lm
|
10400lm
|
13000lm
|
15600lm
|
|
Efficacy
|
130LM/W (±10%)
|
|
CRI
|
Ra>80
|
|
Color Temperature
|
4000K/5000K/5700K adjustable
|
|
L70 Lumen maintenance
|
50,000hrs
|
|
ELECTRICAL
|
Power Factor
|
≥0.90
|
|
Input Voltage
|
120-277VAC/120-347VAC
|
|
Dimming
|
0-10V
|
|
PHYSICAL
|
Mounting
|
wall-mounted
|
|
Operating Temperature
|
-22°F to 113°F
|
|
Humidity
|
Operating Humidity: RH<90%
|
|
QUALIFICATION
|
Qualifications
|
ETL/cETL DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Outdoor IP65
|
|
Warranty
|
7 Years Warranty
|
|
|
|

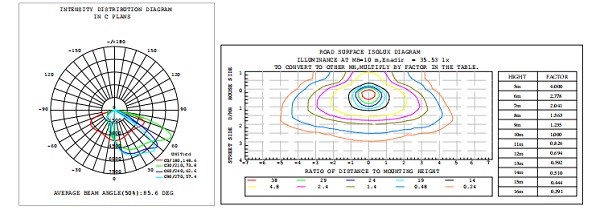

LUMINOUS INTENSITY DISTRIBUTION CURVE:
MORLINK CONTROLS:

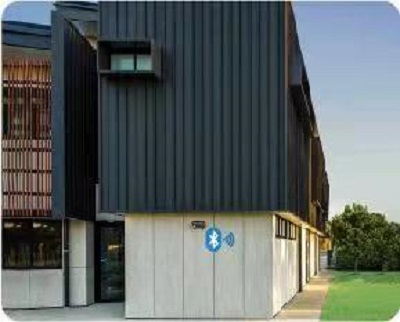

Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use.
Some networks want simple solutions that reduce energy consumption and meet code compliance while others are
more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of
things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and
high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future,
easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your
business.
• Morlink® Lite: Local area wireless controls
• Morlink® Home: Wireless lighting controls based on smart home
• Morlink® Pro: Networked Lighting Controls for Smart Building & IoT Enablement.
Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor
Main Functions of Morlink Commercial Lighting Solution
|
Energy Management
• Create actions and scenes that can be automatically executed to implement energy-saving strategies.• Link single devices or group actions with sensors, schedules, sunrise and sunset times, weather conditions, etc.
• View, compare and analyze the power consumption of devices and groups by day, month or year.
Device Control
• View and control devices from a map of the lighting layout.
• Monitor device conditions including, status, operation time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal status” and notification to maintenance team.
|
Human Centric Lighting
• Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
ACCESSORIES：
|
MODEL NUMBER
|
DESCRIP TION
|
|
|

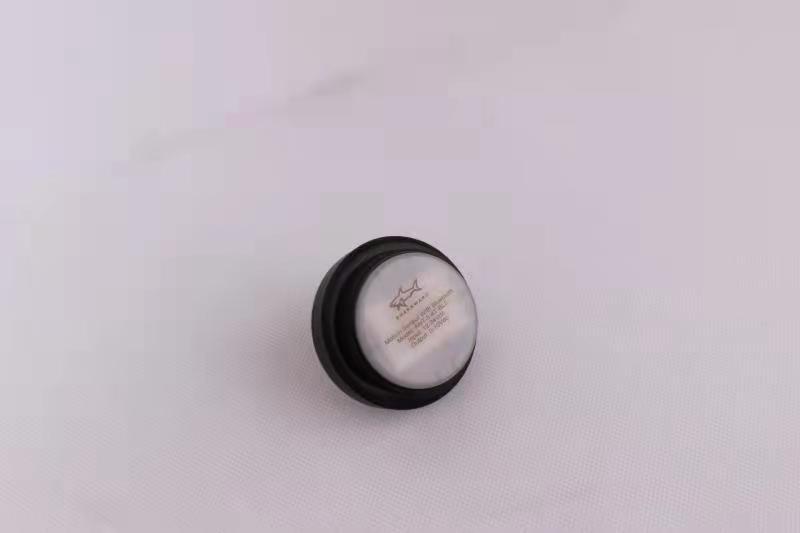

Photocell
|
Photocell Dusk to dawn 120-277V
|
|
|
Battery
|
Emergency battery back up
|
|
|
Switch
|
DIP Switch
|
|
ACCESSORIES (For APP Smart Fixture):
|
MODEL NUMBER
|
DESCRIPTION
|
|
|
Motion sensor
|
Bluetooth Microwave motion sensor
|
|
