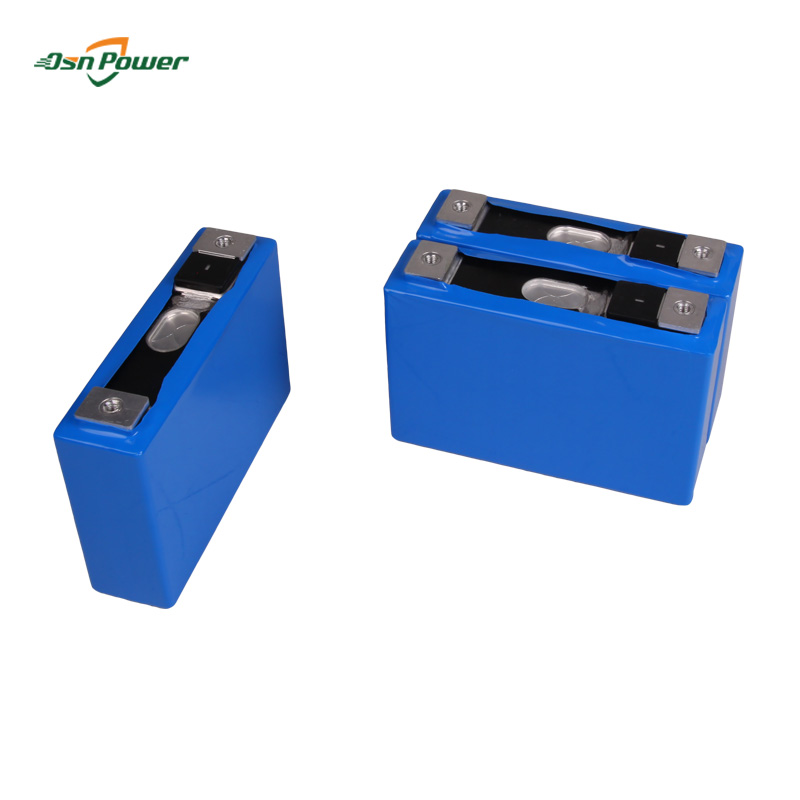

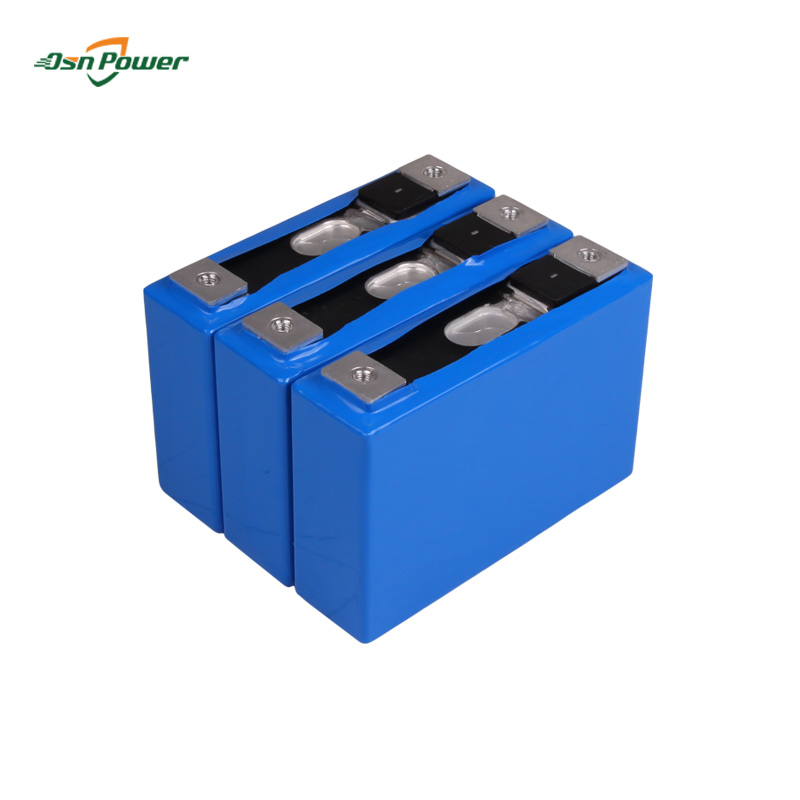

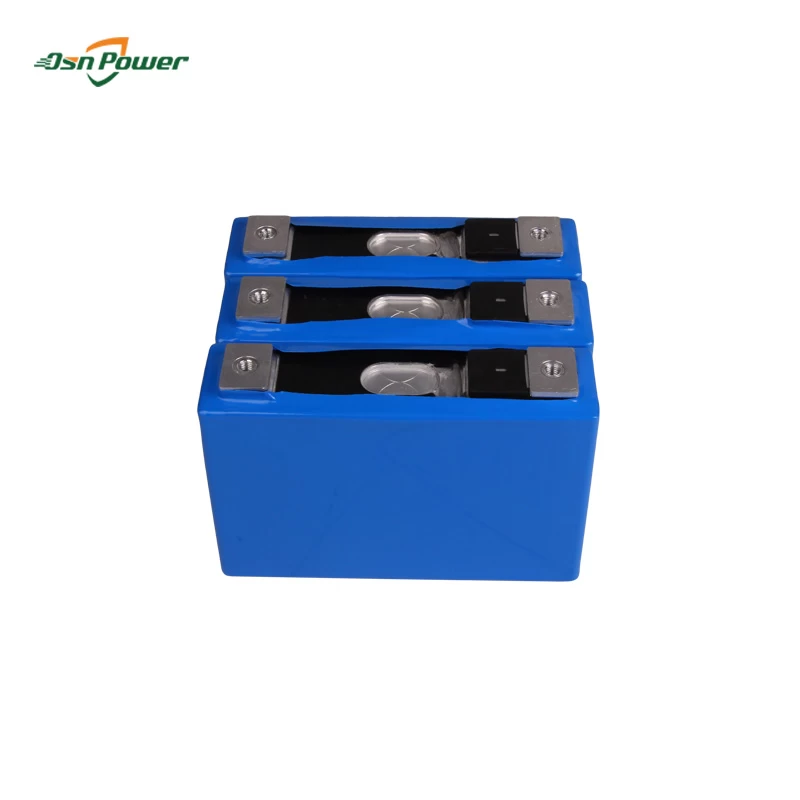

Li-ion 3.7V 70Ah NCM Prismatic Battery Cell For Electric Forklift

High energy density, quick charge, space optimization, long life span.

Mainly design for EV, HEV, automotive, ESS.



Product Name


Li-ion 3.7V 70Ah NCM Prismatic Battery Cell For Electric Forklift

NCM 70AHCATL 70AH



Highlights

  • High energy density ,lower self discharge
  • Outstanding cycle life with maximum reliability
  • Possible to form modules that are suitable for various pack structures
  • Wide application :EV,UPS,Electric fork lift,back-up power ,solar storage etc.
  • Easily to assemble battery pack,we provide cells connectors and technical support ,or we can customize battery pack according to your requirements .

Technical Parameters


No.

Items

Specifications

1

Nominal Voltage

3.6V

2

Nominal Capacity

70Ah(up to 72Ah)

3

Standard Charge Current

0.2C-0.5C

4

Max. Charge Current

1C

5

Continuous Discharge current

2C

6

Peak Discharge Current

3C

7

Charge Cut-off Voltage

4.2V

8

Discharge Cut-off Voltage

2.8V

9

Inner Resistance

(Impedance)

0.5mΩ-1mΩ

10

Weight

1.25kg


11

Dimensions

Length: 91mm

Width: 149mm

Thickness:  38mm



12

Operating Temperature

Charging: 0°C ~ 45°C

Discharging: -20°C ~ 60°C

(The cell surface temperature cannot exceed 70°C)

13

Storage Temperature/Humidity

Temperature: -10°C ~ +35°C

Humidity:65%±20%RH

(optimal store temperature of 23 ± 5°C for long term storage)

14

Cycle Life

1000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)


We offer all kinds of NCM battery cells 3.7v40Ah ,3.7V50Ah ,3.7v60Ah ,3.7v70Ah ,3.7v100Ah etc.
