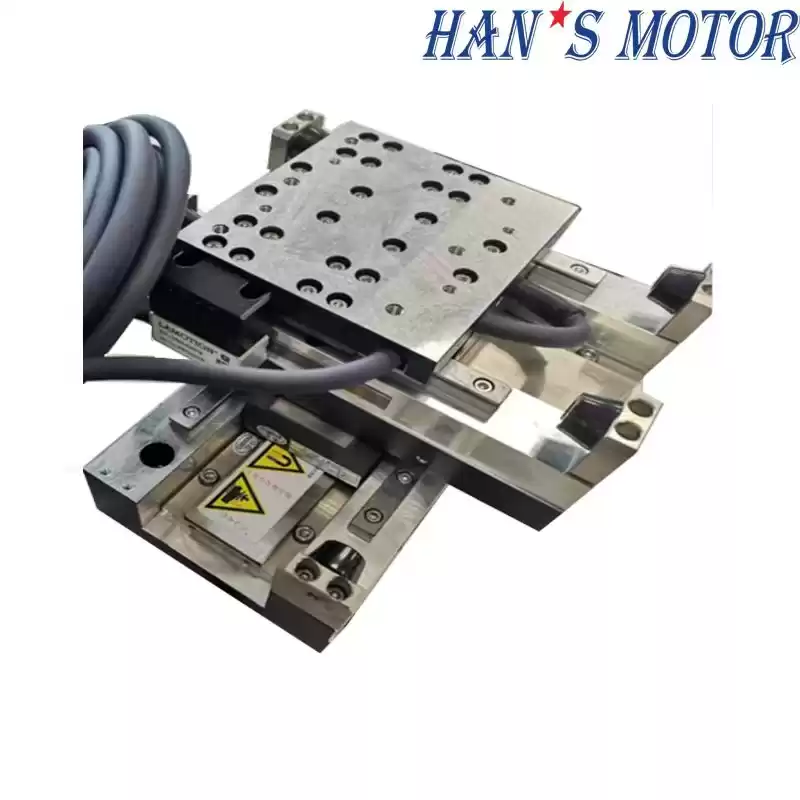

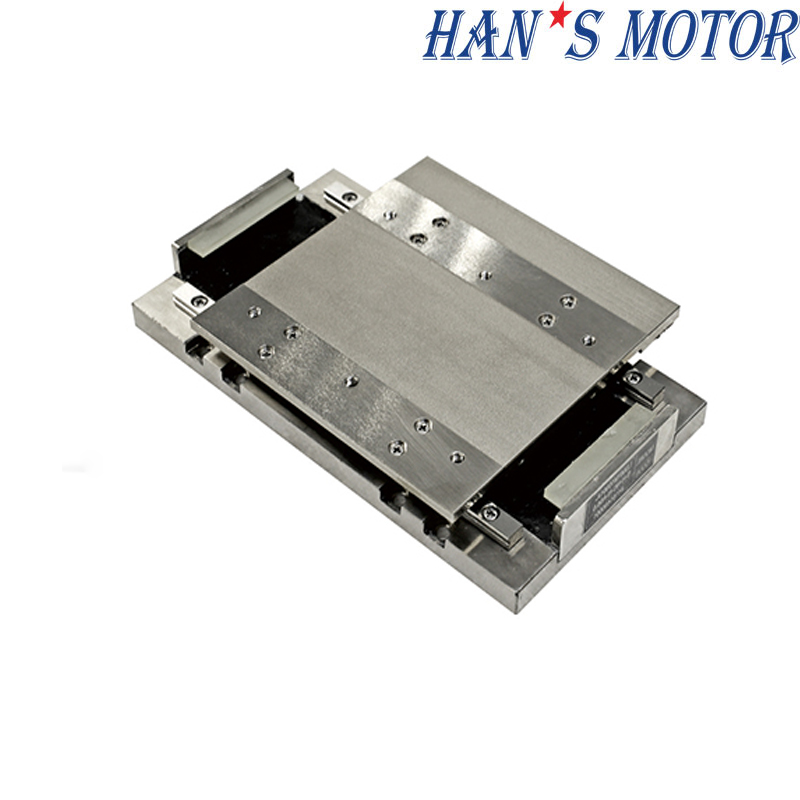

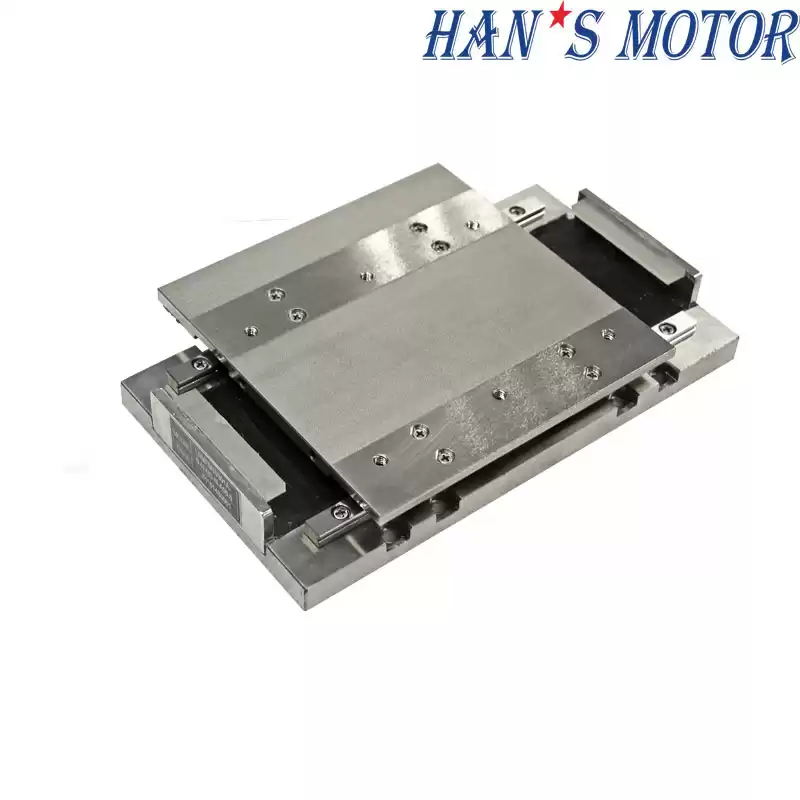

Product name：Linear motor direct drive miniature stage for short travel and fast repetitive motion
Characteristic:
1. Adopt moving magnet flat linear motor;
2. Repeat accuracy up to ±1um;
3. XY cross stage can be assembled arbitrarily;
4. Built-in grating or magnetic grating, 0.1μm, 0.5μm, 1μm resolutions for selection;
5. Small size and open structure, suitable for light load and high precision occasions;
Motor and Stage Specifications
|
Model：
|
LMA55-25-XXX-A
|
G01
|
Grating feedback, resolution: 0.1μm
|
G05
|
Grating feedback, resolution: 0.5μm
|
Motor specifications
|
|
Units
|
Value
|
Continuous Force (Tmax）
|
N
|
8
|
Peak Force
|
N
|
32
|
Motor Constant
|
N√W
|
1.74
|
Max.Continuous Power Dissipation
|
W
|
21.1
|
Continuous Current (Tmax）
|
Arms
|
0.8
|
Peak Current (1S)
|
Arms
|
3.2
|
Force Constant (25℃，±5%）
|
N/Arms
|
10.0
|
Back EMF Constant (25℃，±5%）
|
Vrms/m/s
|
3.3
|
Electrical Resistance(25℃，±5%）P-P
|
Ω
|
15.7
|
Inductance(25℃，±20%）P-P
|
μm
|
0.43
|
Max Coil Temperature
|
℃
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
36
|
Magnetic Attraction
|
N
|
84
|
Stage specifications
|
|
Units
|
Value
|
Max. Load
|
kg
|
3.5
|
Effective Stroke
|
mm
|
25
|
Resolution
|
μm
|
0.1
|
Max.Speed（1）
|
mm/s
|
700
|
Repeat accuracy
|
μm
|
±0.5
|
Weight
|
kg
|
0.5
|
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH
|

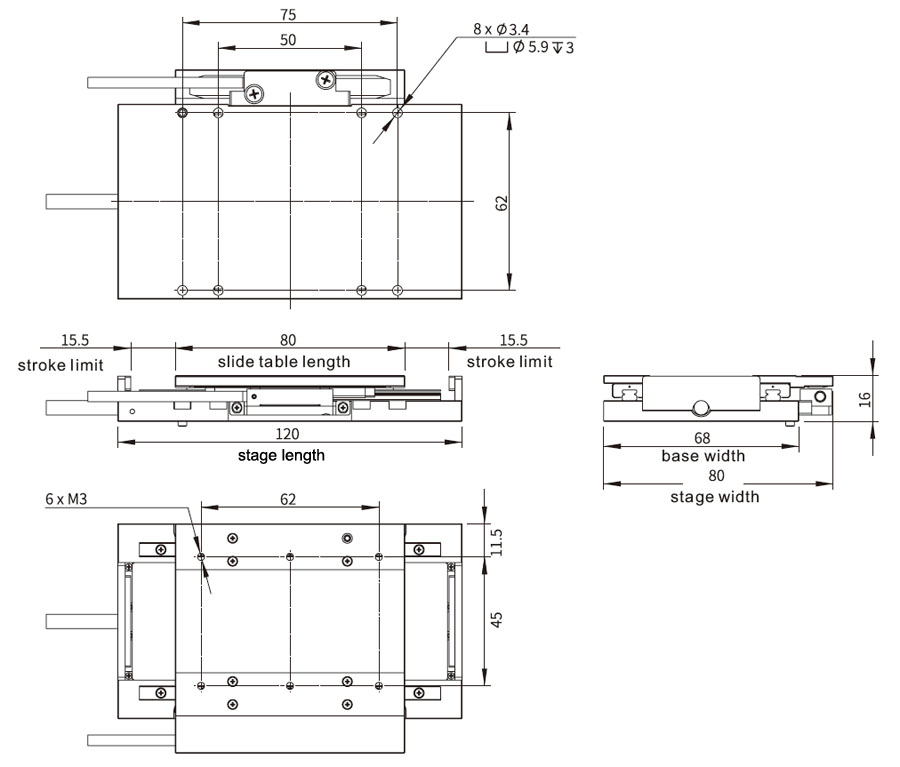

Installation dimensions

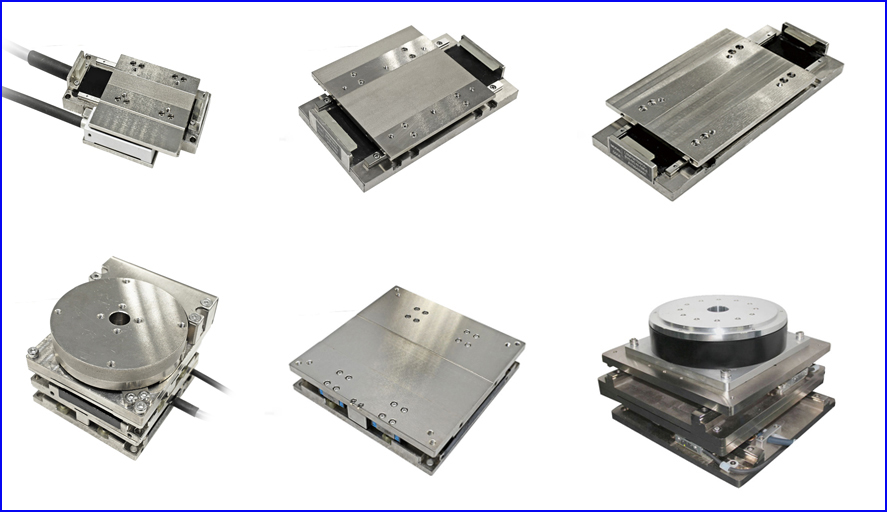

Picture Show
Laser Group Show
Our Company Show
Production Center Show
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
