Linear Slider Motion System Positioning Stage Robot Arm LMB130

HAN'S MOTOR High Load Linear Module Motorized Linear Stage LMB130 series

Features:

1. A linear motor actuator that is developed to respond to the long-stroke, high-speed, and high-precision requirements as the manufacture equipment is made larger and the speed of the transfer equipment is made faster.

2. It can be used in a wide variety of applications, such as semiconductor equipment, 3D printer, laser machines,CNC machines, glue dispenser, soldering machine, screw machine, laser cutting & engraving machines,CNC machining center, material handling equipment etc.

Advantages:

1. High rigidity and heavy load, energy consumption

2. Smooth running, low noise and high speed

3. High accurancy and easy setting up

4. High positioning accuracy and repeat positioning accuracy

Facebook Twitter Pinterest LinkedIn 分享

Description

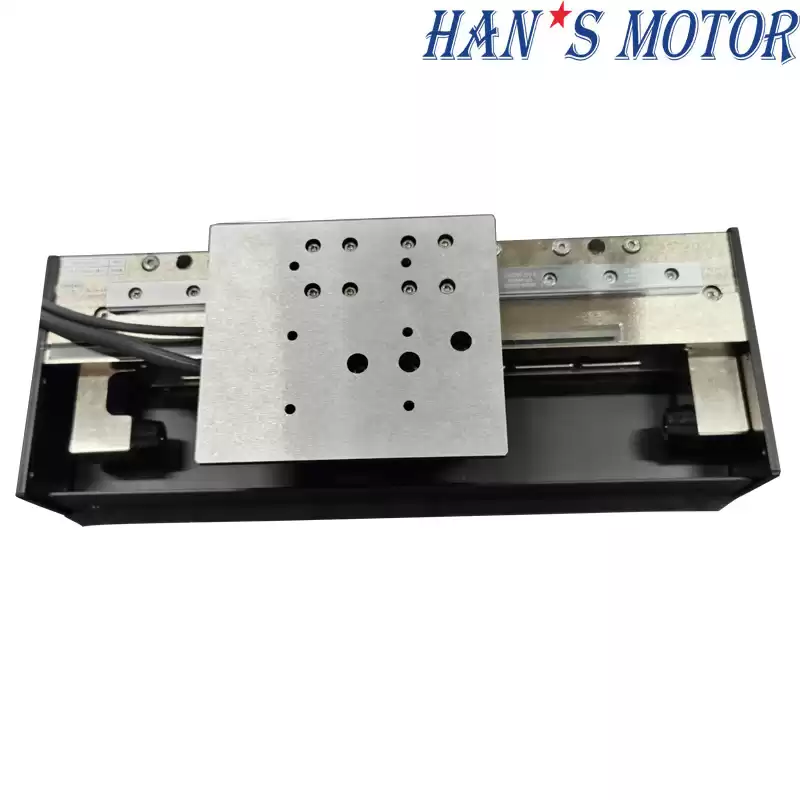

Products Name: HAN'S MOTOR CNC Linear Guide Stage Motion Slide Table Linear Stage LMB130 series

Product Specifications

Motor Model/Parameter

Motor Parameters
Performance	Unit	Data
Continuous Force (Tmax）	N	15
Peak Force	N	150
Max. Load	kg	5
Effective Stroke	mm	100-2200
Resolution	μm	0.5
Max.Speed (1)	mm/s	1500
Repeat accuracy	μm	±1
Weight	kg	1.8
Working environment temperature and humidity	0-40℃、20-80%RH

Stage Performance Paramater

Parameter\ Stroke (mm)	100	200	300	400	500	600	700	800	900	1000	1100	1200
K	6	8	10	12	14	14	16	26	18	20	24	24
N	2	3	5	5	6	6	7	5	8	9	11	11
Stage Total Length (mm)	380	480	580	680	780	880	980	1080	1180	1280	1380	1480

Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer

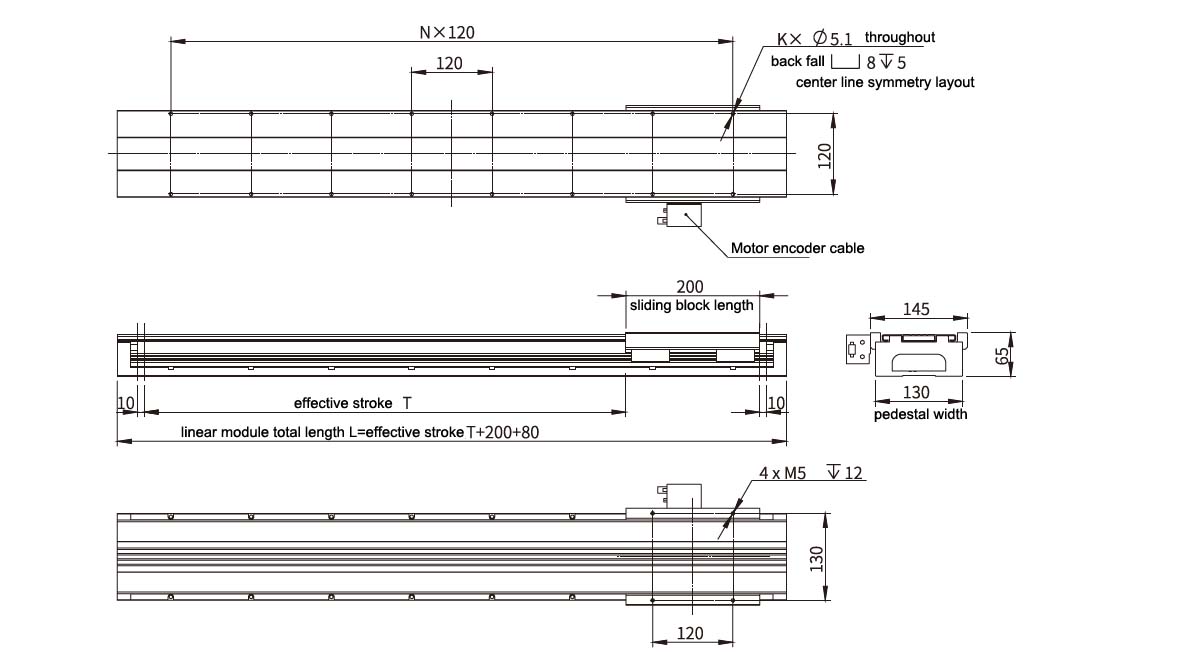

Dimension

HAN'S MOTOR CNC Linear Guide Stage

Characteristics:

1. Aluminum extrusion molding, integrated pedestal

2. High positioning accuracy with long service life, repeated positioning accuracy ±1μm

3. High motion speed, lightweight compact design

4. Easy to install and disassemble

5. Smooth ball screw and good lubrication design

HAN'S MOTOR CNC Linear Guide Stage
