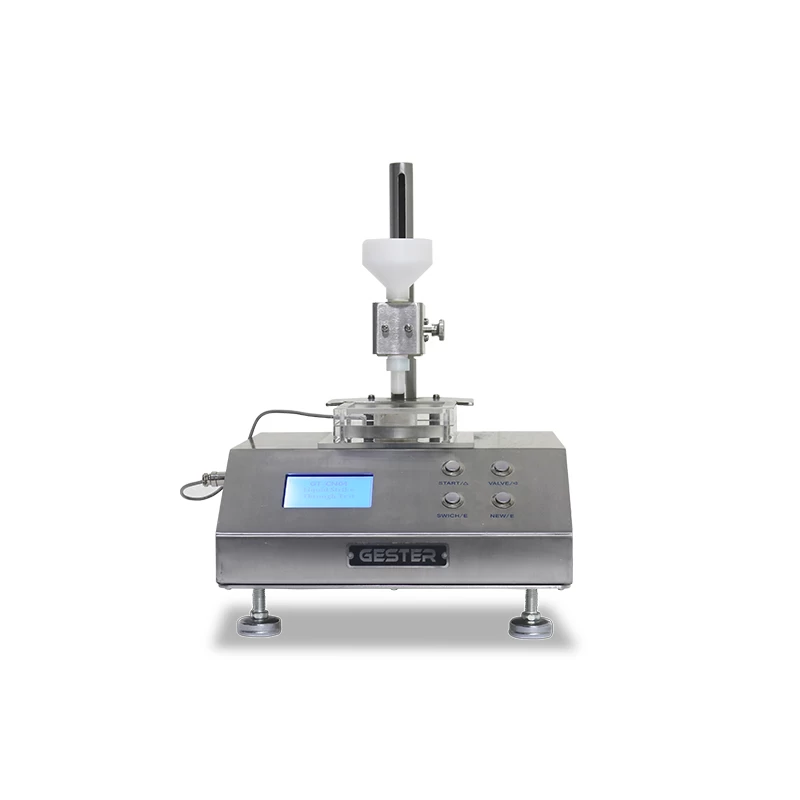

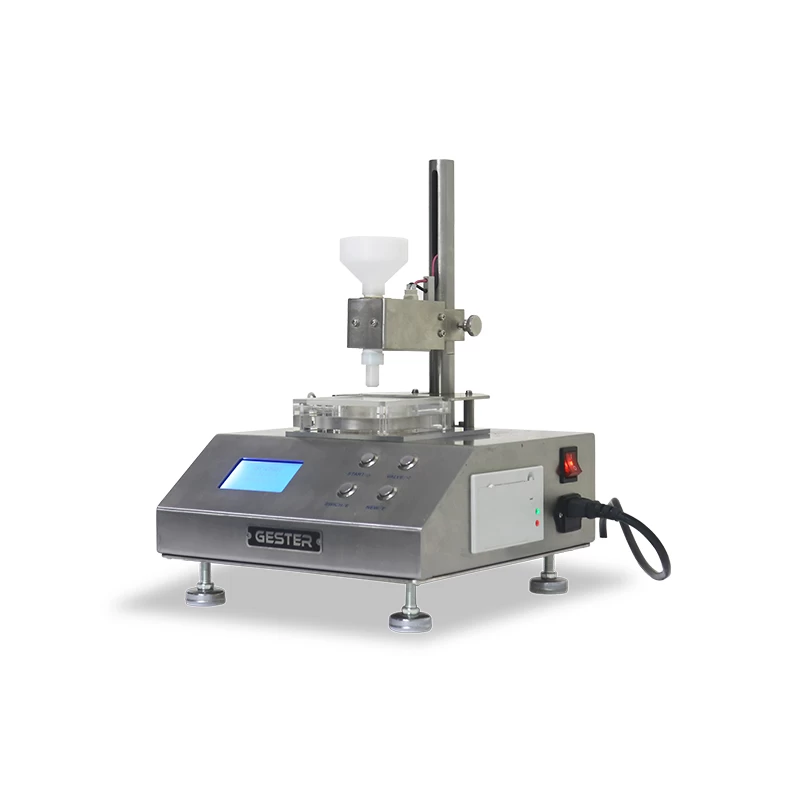

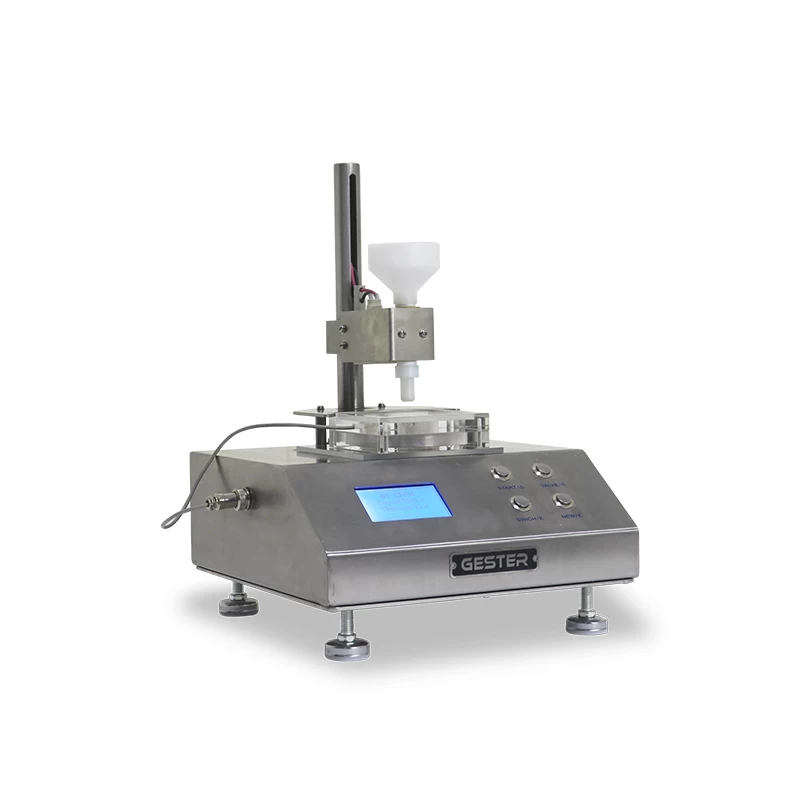

Liquid Strike-Through Tester GT-CN04
Product Introduction
Application:
Liquid Strike-through tester can be used to determine the liquid strike-through test of nonwovens such as sanitary napkins, diaper covering materials and so on.
Principle:

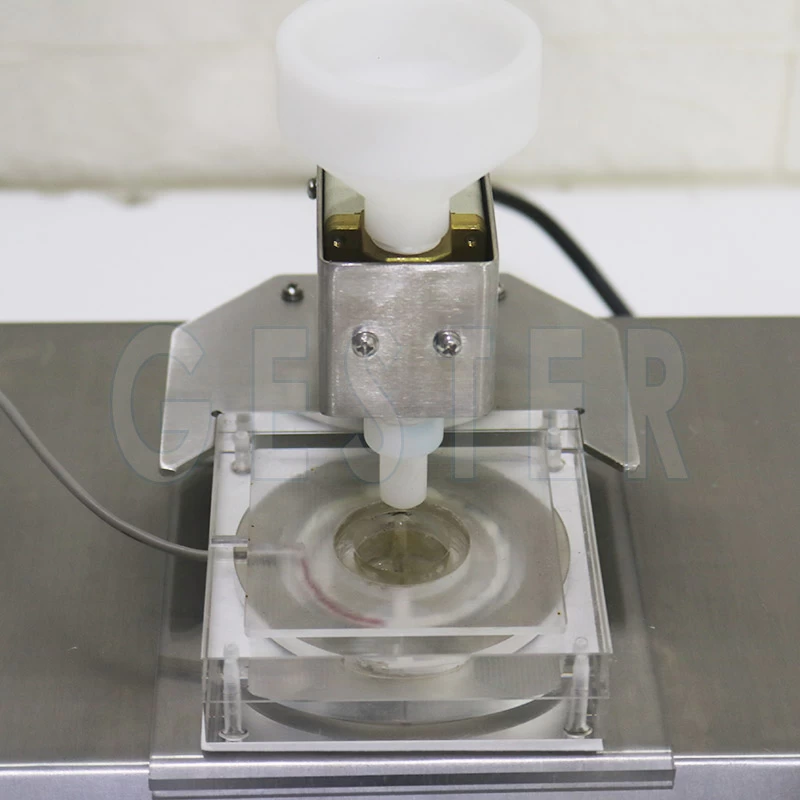

With a certain amount of artificial urine to flow to the non-woven on the standard absorbent pad, and the time required to measure all the liquid through the non-woven sample was measured by electrically.
|
Feature
- 304 stainless steel shell, simple and elegant appearance.
- Adopt 24V DC low pressure solenoid valve, the instrument is safer to use.

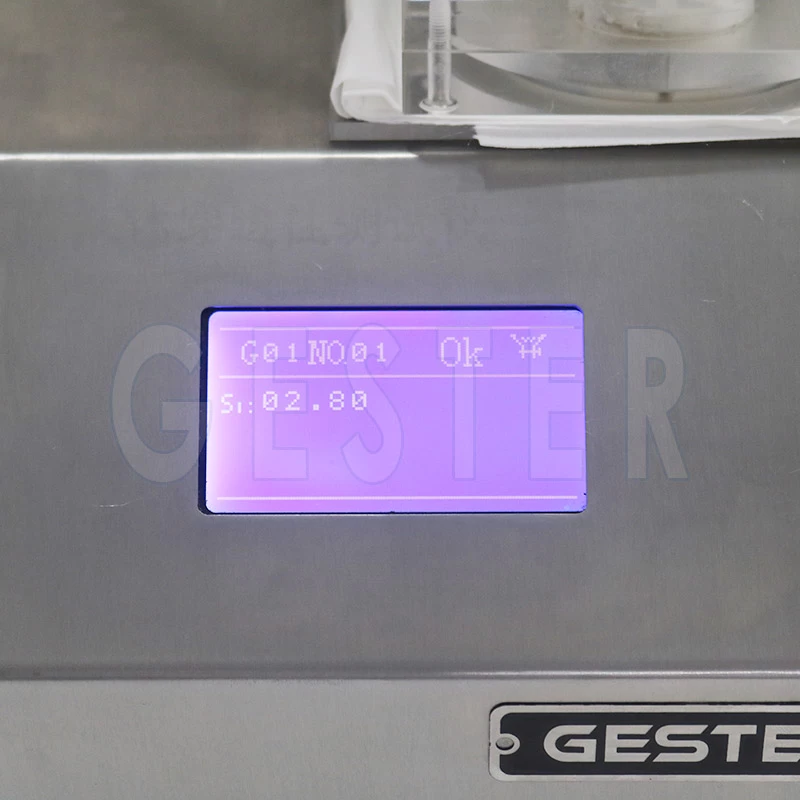

- Adopt microprocessors, LCD screens, thermal printers, the instrument has an automatic timing; automatically save experimental data; and can print experimental reports, simple operation.
- The electrode adopts medical 306 stainless steel, and the test is sensitive and reliable.
Key Specifications
Model
|
GT-CN04
|
Timing Range
|
0~99.99s
|
Timing Resolution
|
0.01s
|
Interval Time Range
|
1~99s
|
Penetration Number
|
1~5times
|
Power Supply
|
AC220V 50Hz 30W
|
Dimensions
|
615×320×340mm
|
Weight
|
15kg
|
Standards
|
FZ/T 60017
|
