Factory hot selling low EMI powder core inductor, fast delivery time and goos after-sale service, we can design to meet different applications, samples can be provided in 5 days. If you have any requests, welcome to contact us.
Quick Details
|
Part No: MCT-Low EMI Toroidal Inductor Series
|
Brand name: MCT
|
|
High saturation current up to 10A
|
Custom made: Available
|
|
High efficiency powder iron core
|
Logo: Can be customized
|
|
Operating temperature: -40°C to 105°C
|
Pay terms: T/T
|
|
Packing: Carton, can custom
|
MOQ: Any quantity
|
|
Lead time: 25 days after payment
|
OEM: Available
|
|
Type: Vertical, horizontal
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
Certification: ISO9001,ROHS,CE
|
Part Information

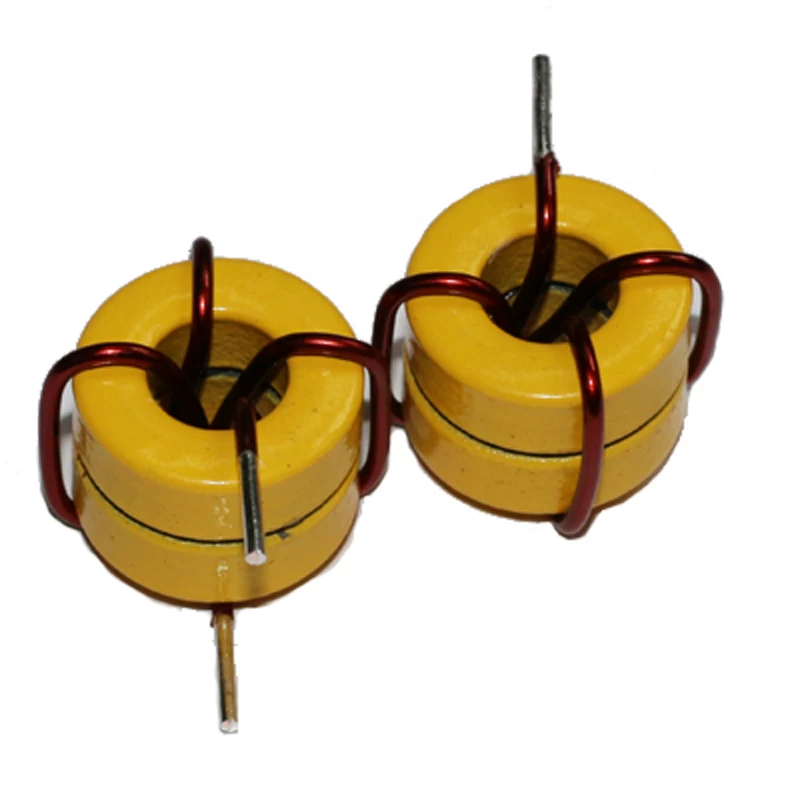

Product Name: Low EMI Toroidal Inductor for High power LED Ballasts
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: High power switch-mode power supplies. Power line filters. High power audio filters. Solar inverter. White goods. Motor drivers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Product Specification
|
MCT PN
|
L（uH）
|
Tolerance
|
DCR（Ω）max
|
IDC(A)
|
DIMENSION:E
|
|
MCT-01-200M
|
20
|
±20%
|
0.021
|
3.0
|
0.70
|
|
MCT-01-300M
|
30
|
±20%
|
0.035
|
2.0
|
0.60
|
|
MCT-01-600M
|
60
|
±20%
|
0.038
|
3.0
|
0.70
|
|
MCT-01-680M
|
68
|
±20%
|
0.101
|
1.0
|
0.45
|
|
MCT-01-101M
|
100
|
±20%
|
0.081
|
2.0
|
0.60
|
|
MCT-01-221M
|
220
|
±20%
|
0.190
|
1.0
|
0.45
|
|
MCT-02-220M
|
22
|
±20%
|
0.014
|
5.0
|
0.95
|
|
MCT-02-290M
|
29
|
±20%
|
0.020
|
4.0
|
0.85
|
|
MCT-02-350M
|
35
|
±20%
|
0.026
|
3.0
|
0.80
|
|
MCT-02-580M
|
58
|
±20%
|
0.061
|
2.0
|
0.60
|
|
MCT-02-900M
|
90
|
±20%
|
0.044
|
3.0
|
0.80
|
|
MCT-02-111M
|
110
|
±20%
|
0.069
|
2.0
|
0.65
|
|
MCT-02-131M
|
130
|
±20%
|
0.146
|
1.0
|
0.45
|
|
MCT-02-471M
|
470
|
±20%
|
0.286
|
1.0
|
0.45
|
|
MCT-03-250M
|
25
|
±20%
|
0.016
|
5.0
|
1.00
|
|
MCT-03-320M
|
32
|
±20%
|
0.021
|
4.0
|
0.90
|
|
MCT-03-430M
|
43
|
±20%
|
0.030
|
3.0
|
0.80
|
|
MCT-03-650M
|
65
|
±20%
|
0.055
|
2.0
|
0.65
|
|
MCT-03-111M
|
110
|
±20%
|
0.042
|
4.0
|
0.85
|
|
MCT-03-131M
|
130
|
±20%
|
0.055
|
3.0
|
0.80
|
|
MCT-03-151M
|
150
|
±20%
|
0.159
|
1.0
|
0.45
|
|
MCT-03-231M
|
230
|
±20%
|
0.108
|
2.0
|
0.65
|
|
MCT-04-500M
|
50
|
±20%
|
0.022
|
5.0
|
1.00
|
|
MCT-04-600M
|
60
|
±20%
|
0.030
|
4.0
|
0.90
|
|
MCT-04-750M
|
75
|
±20%
|
0.039
|
3.0
|
0.80
|
|
MCT-04-820M
|
82
|
±20%
|
0.042
|
3.0
|
0.80
|
|
MCT-04-101M
|
100
|
±20%
|
0.033
|
5.0
|
1.00
|
|
MCT-04-151M
|
150
|
±20%
|
0.042
|
5.0
|
1.00
|
|
MCT-04-221M
|
220
|
±20%
|
0.059
|
4.0
|
0.90
|
|
MCT-04-271M
|
270
|
±20%
|
0.081
|
3.0
|
0.80
|
|
MCT-04-321M
|
320
|
±20%
|
0.131
|
2.0
|
0.65
|
|
MCT-04-431M
|
430
|
±20%
|
0.150
|
2.0
|
0.64
|
|
MCT-04-961M
|
960
|
±20%
|
0.438
|
1.0
|
0.50
|
|
MCT PN
|
L（uH）
|
Tolerance
|
DCR（Ω）max
|
IDC(A)
|
DIMENSION:E
|
|
MCT-05-900M
|
90
|
±20%
|
0.034
|
5.0
|
1.00
|
|
MCT-05-900M
|
140
|
±20%
|
0.064
|
3.0
|
0.80
|
|
MCT-05-900M
|
200
|
±20%
|
0.114
|
2.0
|
0.65
|
|
MCT-05-900M
|
320
|
±20%
|
0.068
|
5.0
|
1.00
|
|
MCT-05-900M
|
450
|
±20%
|
0.174
|
2.0
|
0.65
|
|
MCT-05-900M
|
470
|
±20%
|
0.354
|
1.0
|
0.45
|
|
MCT-05-900M
|
1800
|
±20%
|
0.680
|
1.0
|
0.45
|
|
MCT-06-820M
|
82
|
±20%
|
0.033
|
5.0
|
1.00
|
|
MCT-06-101M
|
100
|
±20%
|
0.042
|
4.0
|
1.01
|
|
MCT-06-131M
|
130
|
±20%
|
0.061
|
3.0
|
0.85
|
|
MCT-06-221M
|
220
|
±20%
|
0.121
|
2.0
|
0.70
|
|
MCT-06-301M
|
300
|
±20%
|
0.064
|
5.0
|
1.00
|
|
MCT-06-391M
|
390
|
±20%
|
0.088
|
4.0
|
0.90
|
|
MCT-06-471M
|
470
|
±20%
|
0.342
|
1.0
|
0.50
|
|
MCT-06-501M
|
500
|
±20%
|
0.124
|
3.0
|
0.80
|
|
MCT-06-781M
|
780
|
±20%
|
0.225
|
2.0
|
0.70
|
|
MCT-06-132M
|
1300
|
±20%
|
0.585
|
1.0
|
0.50
|
|
MCT-07-300M
|
30
|
±20%
|
0.009
|
10.0
|
1.60
|
|
MCT-07-350M
|
35
|
±20%
|
0.010
|
10.0
|
1.60
|
|
MCT-07-560M
|
56
|
±20%
|
0.020
|
7.0
|
1.30
|
|
MCT-07-680M
|
68
|
±20%
|
0.021
|
7.0
|
1.30
|
|
MCT-07-820M
|
82
|
±20%
|
0.023
|
7.0
|
1.30
|
|
MCT-07-101M
|
100
|
±20%
|
0.036
|
5.0
|
1.00
|
|
MCT-07-151M
|
150
|
±20%
|
0.053
|
4.0
|
1.00
|
|
MCT-07-201M
|
200
|
±20%
|
0.078
|
3.0
|
0.85
|
|
MCT-07-301M
|
300
|
±20%
|
0.142
|
2.0
|
0.70
|
|
MCT-07-851M
|
850
|
±20%
|
0.211
|
2.0
|
0.70
|
|
MCT-08-750M
|
75
|
±20%
|
0.014
|
10.0
|
1.60
|
|
MCT-08-131M
|
130
|
±20%
|
0.031
|
7.0
|
1.30
|
|
MCT-08-201M
|
200
|
±20%
|
0.056
|
5.0
|
1.00
|
|
MCT-08-251M
|
250
|
±20%
|
0.027
|
10.0
|
1.60
|
|
MCT-08-471M
|
470
|
±20%
|
0.064
|
7.0
|
1.30
|
|
MCT-08-681M
|
680
|
±20%
|
0.105
|
5.0
|
1.00
|

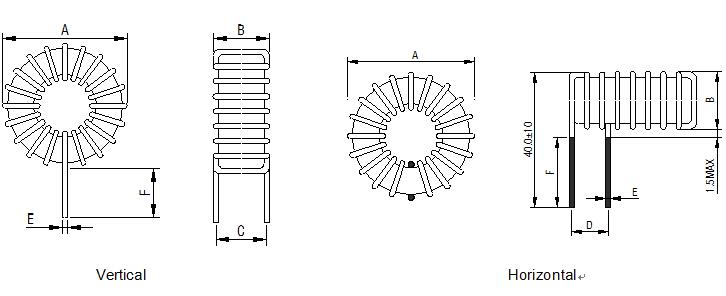

MECHANICAL DIMENSIONS (ALL DIMENSIONS ARE IN mm)
|
Series
|
A
|
B
|
C
|
D
|
F
|
|
1
|
18.0
|
11.5
|
11.0
|
17.5
|
15.0
|
|
2
|
22.0
|
12.5
|
12.0
|
21.5
|
15.0
|
|
3
|
24.0
|
11.5
|
10.5
|
23.0
|
15.0
|
|
4
|
27.0
|
13.5
|
12.5
|
26.0
|
15.0
|
|
5
|
30.0
|
17.0
|
16.
|
29.0
|
15.0
|
|
6
|
32.0
|
16.0
|
15.0
|
30.0
|
15.0
|
|
7
|
36.0
|
19.5
|
18.0
|
34.5
|
15.0
|
|
8
|
42.5
|
21.5
|
20.0
|
41.0
|
15.0
|
