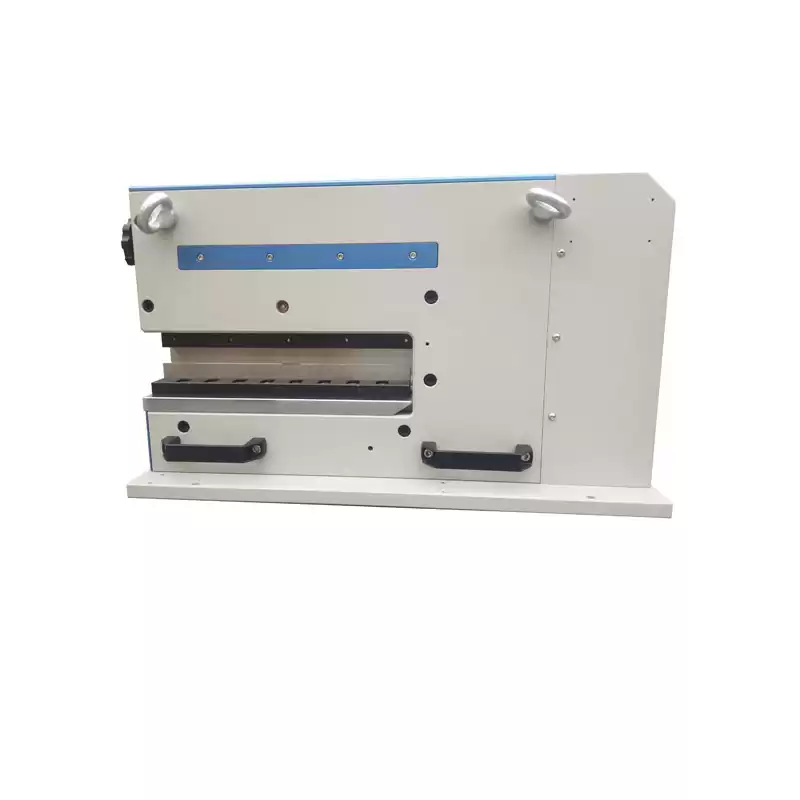

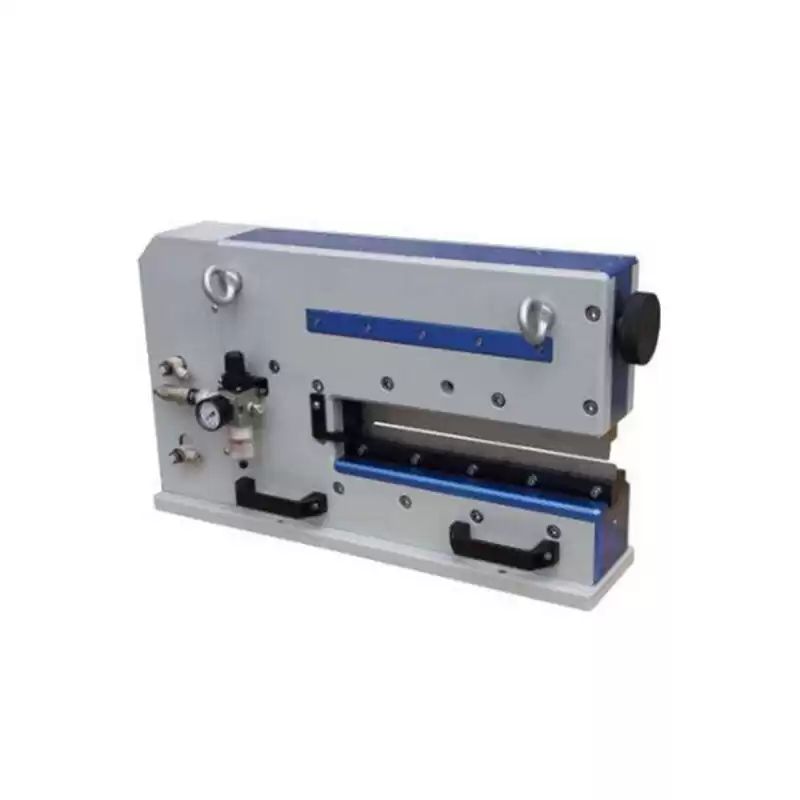

Low Stress Guillotine Cutter Air Driven PCB Depaneler Machine

Air driven PCB depaneler uses 2 linear blades to separate with lowest stress, it allows 0.1mm components as close as scoring line-and operator will not misfeed the boards.



Low Stress Guillotine Cutter Air Driven PCB Depaneler Machine


Air Driven PCB Depaneler Features:

The Air driven ;PCB depaneler uses dual V shape blades for a perfect board cut without bending or tension.

Pneumatic footpedal control.

This Air driven ;PCB depaneler shears boards safely with parts as close 0.02" to score line, including ceramic capacitors.

The system only allow correct board placement to avoid mistakes.


Air Driven ;PCB Depaneler Specification:

Model SMTPD2 
Machine Dimension 720x300x440mm
Max Cutting Length 330mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 130kgs

;

Air Driven ;PCB Depaneler Application:

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.

Guillotine cutter

Our Certificate:

PCB Separator certificate


Company Profile:

pcb depaneler factory

2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.

2010, Our products are widely sold in local market.

2012, Start producing customized v-cut depaneling and PCB router.

2014, ;Expand our sales team for providing better service to more customers.

2015, Start manufacturing laser depaneling machines.

2017, Start manufacturing ;soldering robot and screwdriver machines.

2018, HK company established.
2019, Huizhou factory established, due to expansion.

2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;

2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.


Our Service:

1. Guarantee for 12 months.

2. Maintenance for whole life.

3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.

4. 24 ;hours x 7days online ;service, ;free ;technical ;support.

5. Machine ;has ;been tested before ;delivery.

6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.

7. Oversea on-site installation and trainning is available.

8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
