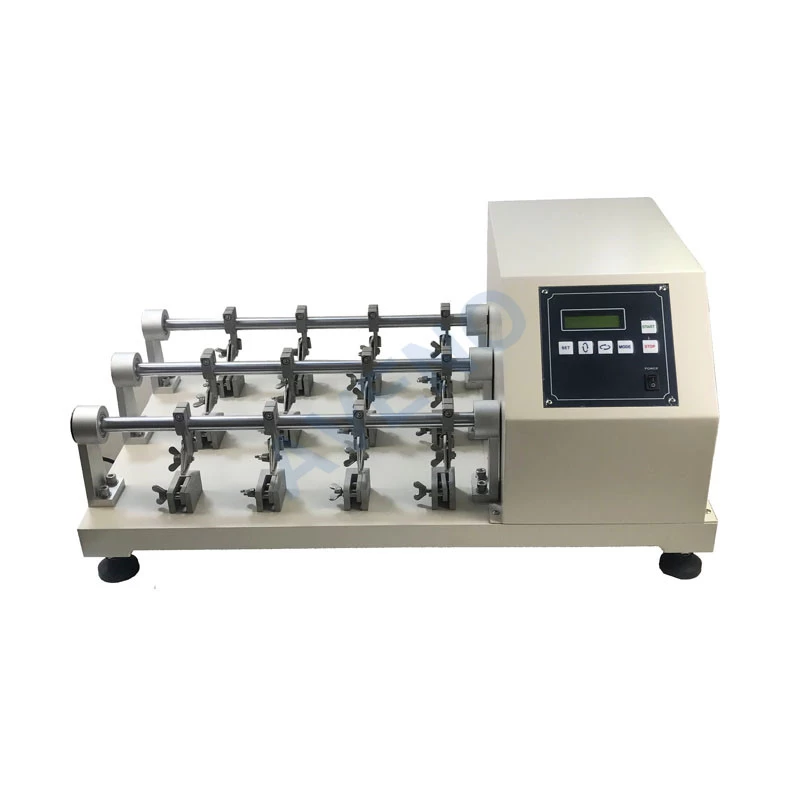

AF17B-Low Temperature Bally Leather Flexing Tester
Application Of Low Temperature Bally Leather Flexing Tester
Low Temperature Bally Leather Flexing Resistance Tester is designed for determining the flexing resistance of materials under low temperature situation, such as leather, fabric and other materials. By checking the damage degree flexing a certain time, to determine its flexibility.
Feature Of Low Temperature Bally Leather Flexing Tester
-
The interior of the chamber is made of SUS 304# mirror stainless steel
-
The outside of the chamber is baking finish (can choose SUS 304 stainless steel)
-
Whole machine equipped with a safety protection system, the end of the test automatically stop
Standards Of Low Temperature Bally Leather Flexing Tester
SATRA TM55, ISO5402-1, ISO 17694, EN 13512, EN344-1, EN ISO 20344, GB/T 20991, ASTM 6182, AS/NZS 2210.2, GE-24, JIS-K 6545, IULTCS/IUP 20-1
Key Specification Of Low Temperature Bally Leather Flexing Tester
|
Model
|
AF17B-Low Temperature Bally Leather
Flexing Tester
|
|
Test
position
|
12position
|
24position
|
|
Control
mode
|
Programmable microprocessor control
|
|
Temperature
range
|
-30~100℃
|
|
Sample
size
|
70×45mm
|
|
Flexing
angle
|
22.5°±0.5°
|
|
Flexing
speed
|
100±5 cycles/flexes per mintue
|
|
Counter
|
LCD,0~999,999
|
|
Power
supply
|
AC220V, 50/60HZ
|
|
|
Dimension
|
100*100*150cm
|
120*120*150cm
|
|
Weight
|
190kg
|
220kg
|
