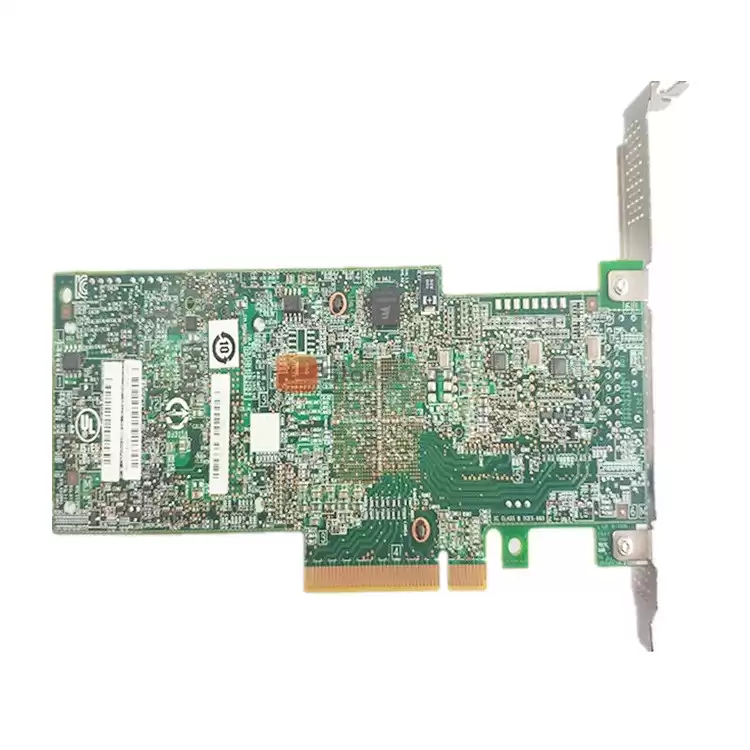

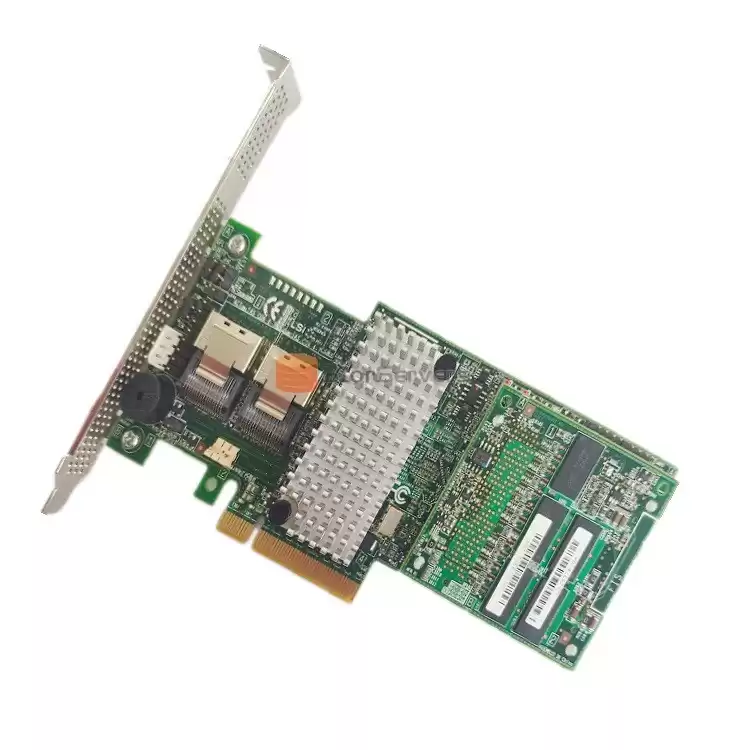

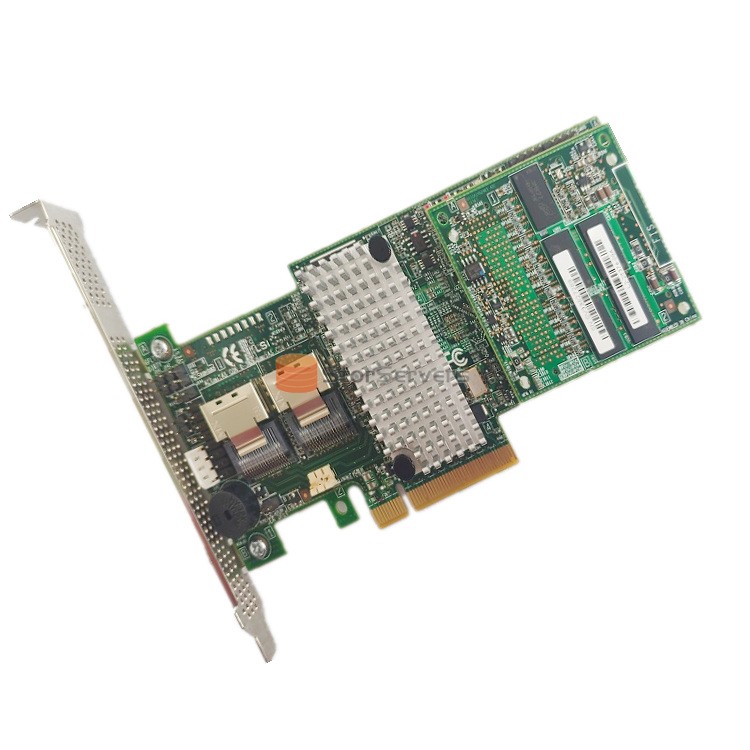

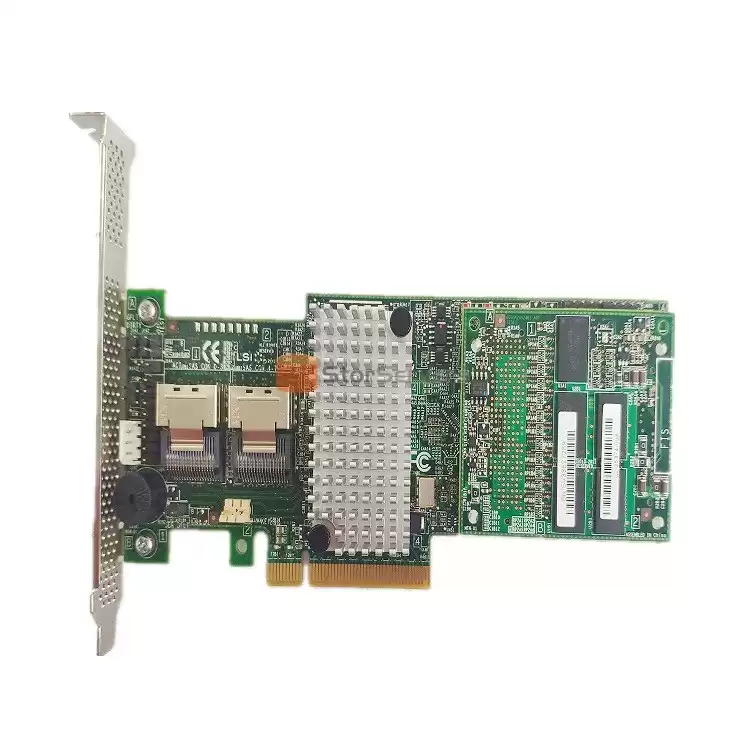

LSI SAS 9270-8i L5-25422-19 LSI00326 6GB/s RAID CARD
Key Features
■ Eight internal 6Gb/s SATA+SAS ports
■ Two Mini-SAS internal connectors (SFF8087)
■ LSI SAS 2208 Dual- core 6Gb/s ROC
–x2 800MHz PowerPC Processors
■ PCI Express 3.0 Host Interface
■ 1GB DDRIII cache memory
■ RAID Levels 0, 1, 5, 6, 10, 50 and 60
■ Support for optional heat-tolerant battery backup
Key Advantages
■ Unmatched RAID performance
■ Connect up to 128 3Gb/s and 6Gb/s SATA and SAS hard drives or SSDs
■ Helps users realize potential of solidstate storage deployments
■ Heat-tolerant battery backup option (LSIiBBU09)
■ Support for Advanced Software Options
Specification
| Model |
LSl 9270-8i |
| MPN |
L5-25422-19 |
OPN
|
LSI00326
|
| Connectors |
Two Mini-SAS SFF8087 internal connectors (top mount) |
| Device Support |
Up to 128 SAS and/or SATA hard drives and SSDs |
| Data Transfer Rates |
Up to 6 Gb/s per port |
Cache Memory
|
1 GB 1333MHz DDRIII SDRAM
|
Cache Protection
|
MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
|
| Host Bus Type |
x8 lane PCI Express 3.0 compliant |
| l/0 Processor/SAS Controller |
LSI SAS 2208 Dual-Core RAID on Chip (ROC) |
| RAID levels |
0，1，5，6，10，50，60 |
Physical Dimensions
|
MD2 Low profile (6.6” X 2.536”)
|
| Availability |
In Stock |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
