Manual Fire Water Monitor (PS30/PS40/PS50)

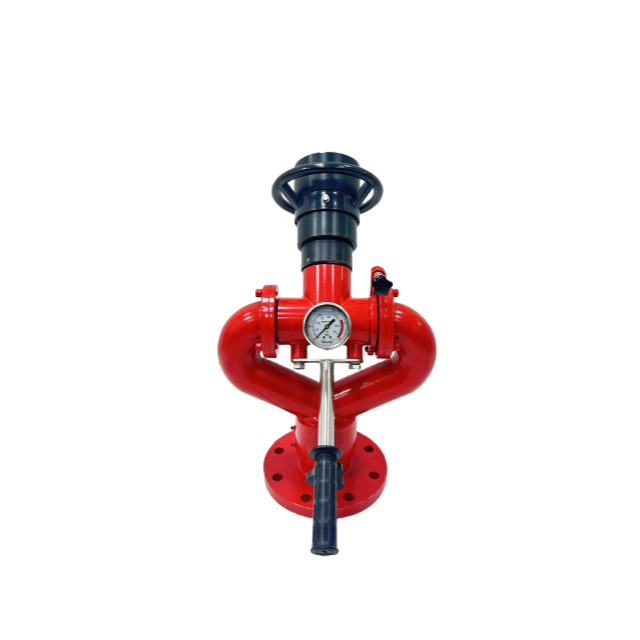

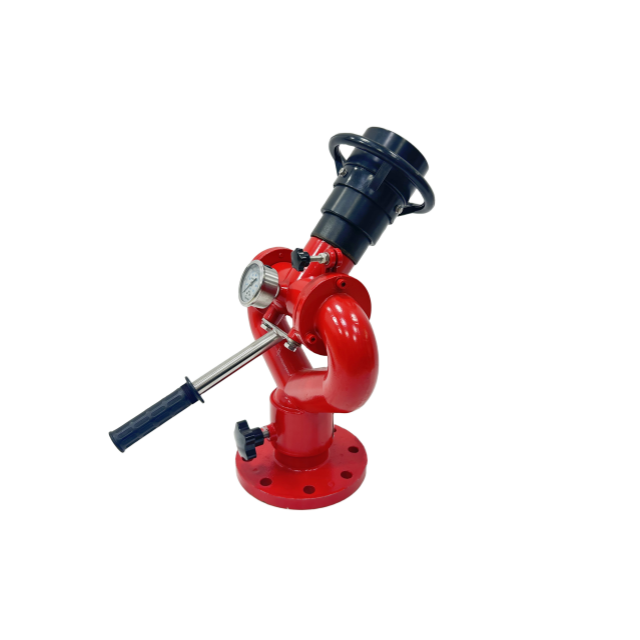

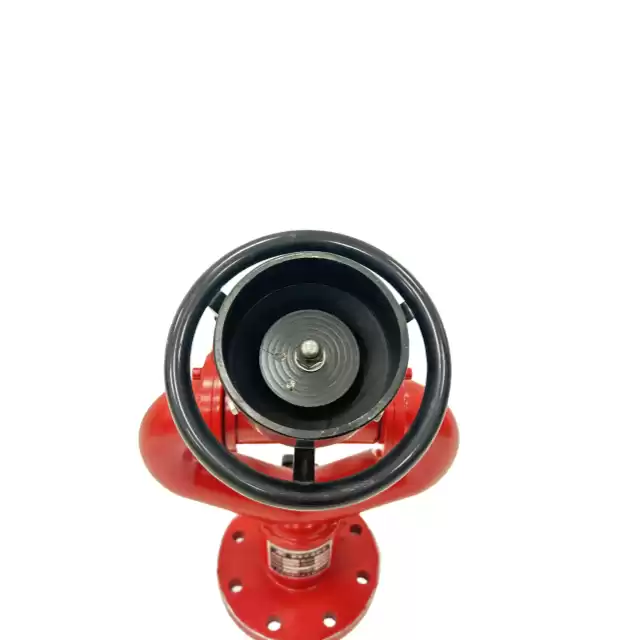

The Manual Fire Water Monitor (Models PS30/PS40/PS50) is a high-precision long-range fire suppression device, equipped with a built-in pressure gauge for real-time pressure monitoring—ideal for industrial areas, storage tank farms, ports, and large warehouses.

Facebook Twitter Pinterest LinkedIn 分享

Product Description



The Manual Fire Water Monitor is a professional long-distance fire-fighting equipment, designed to deliver targeted high-pressure water jets while enabling real-time pressure tracking via its integrated gauge. Available in 3 models (30–50 L/s flow), it features a manual handle + locking mechanism for precise positioning, supporting 360° horizontal rotation and -40°–80° vertical tilt to cover large spaces.
Constructed with a durable red-painted metal body and black anti-corrosion nozzle, this monitor operates reliably in harsh environments (-10℃–50℃, 95% RH). Its DN100 flange connection integrates seamlessly with existing fire water systems, and the 100° spray angle allows switching between concentrated jet (for long-range) and wide mist (for large-area) suppression, adapting to diverse fire hazards.

Feature

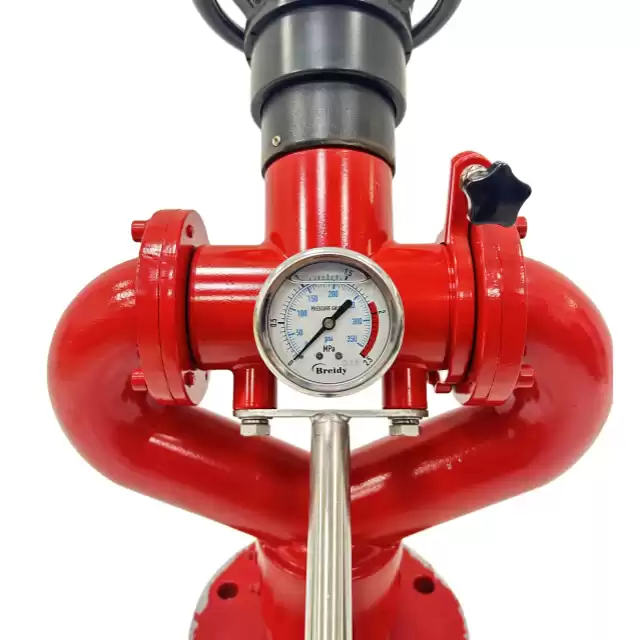

  • Built-in Pressure Gauge: Real-time pressure monitoring (0–250 PSI) for precise fire-fighting control.
  • Long-Range Coverage: Jet radius up to 65m, suitable for large-scale industrial/storage space fires.
  • Full-Angle Adjustment: 360° horizontal rotation + -40°–80° vertical tilt for no-dead-angle coverage.
  • Dual Spray Modes: 100° spray angle supports concentrated jet or wide mist for flexible suppression.
  • Harsh Environment Adaptability: Operates in -10℃–50℃, 95% RH conditions (outdoor/industrial use).
  • Stable Operation: Manual handle + locking mechanism ensures fixed positioning during high-pressure discharge.

Product Parameter



Item PS30 PS40 PS50
Flow Rate(L/s) 30 40 50
Rated Working Pressure(MPa） 0.8 0.9 0.95
Working Pressure Range（Mpa） 0.6-1.2
Jet (m) - Water ≥55 ≥60 ≥65
Connecting flange DN100
Horizontal rotation angle (°) 360
Vertical rotation angle (°) -40~80
Spray angle（°） 100
Installation method Seat
Operation method Handle
Use environment

-10℃–50℃, 95%RH



FAQ
Q: Can the spray mode be adjusted?
A: Yes, the adjustable nozzle supports switching between direct jet and water mist for different fire types.
Q: Why choose this manual fire water monitor?
A: It offers long-range coverage (up to 65m), wide angle adjustment, and dual spray modes—ideal for large industrial spaces, with durable construction for harsh environments.
Q: What is your payment terms?
A: Payment supports TT, LC.
Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.
Q: Why choose us?
A: We serve customers for over 30 years—so we’ve got the knowledge and industry experience to help you get it right. Let the professionals at Jinyuan Fire help you select the products that meet your exact needs.
