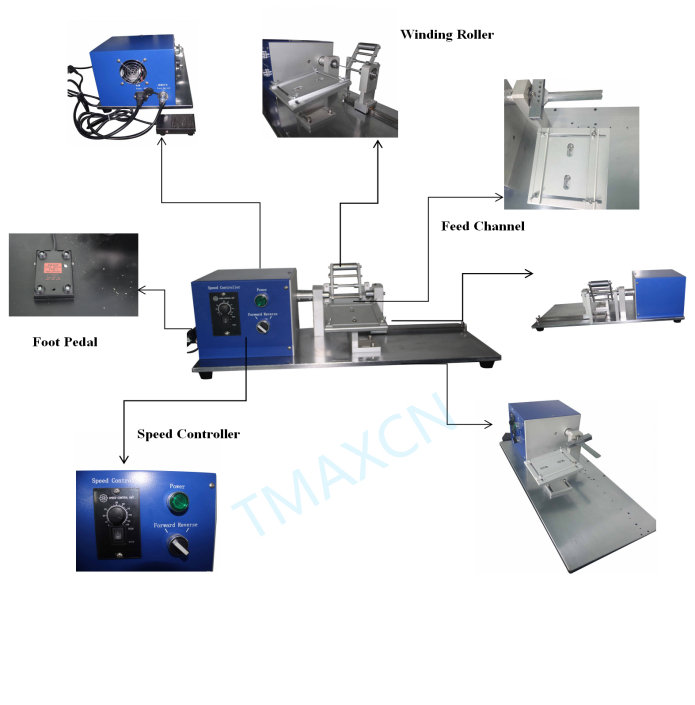

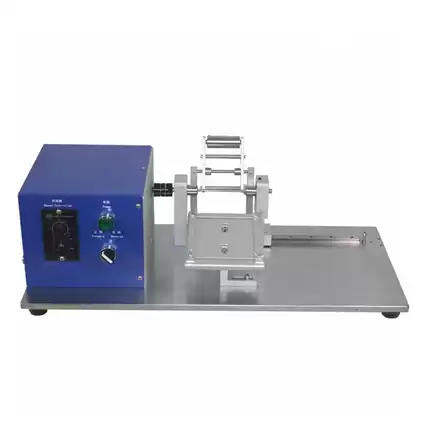

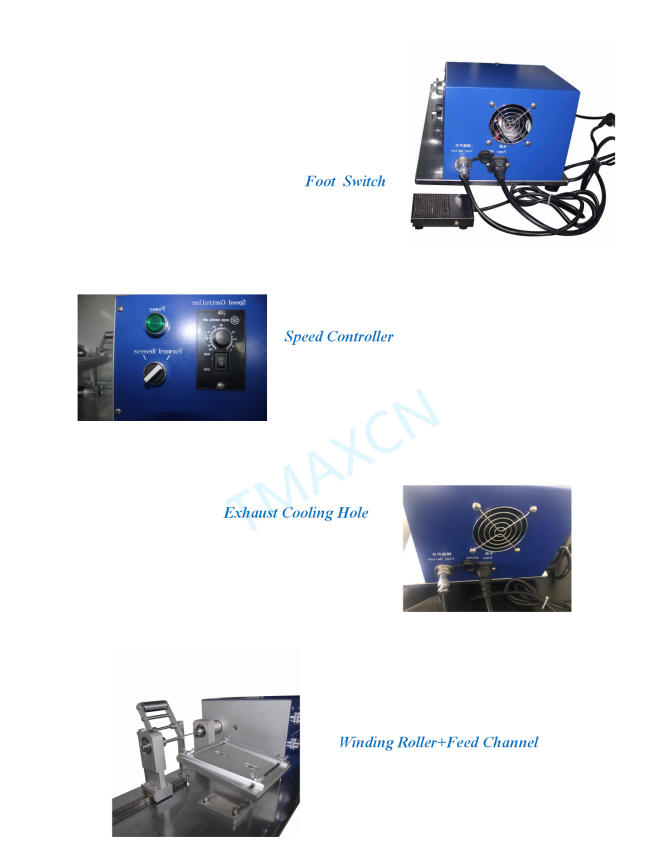

Manual Winding Machine for Super Capacitor

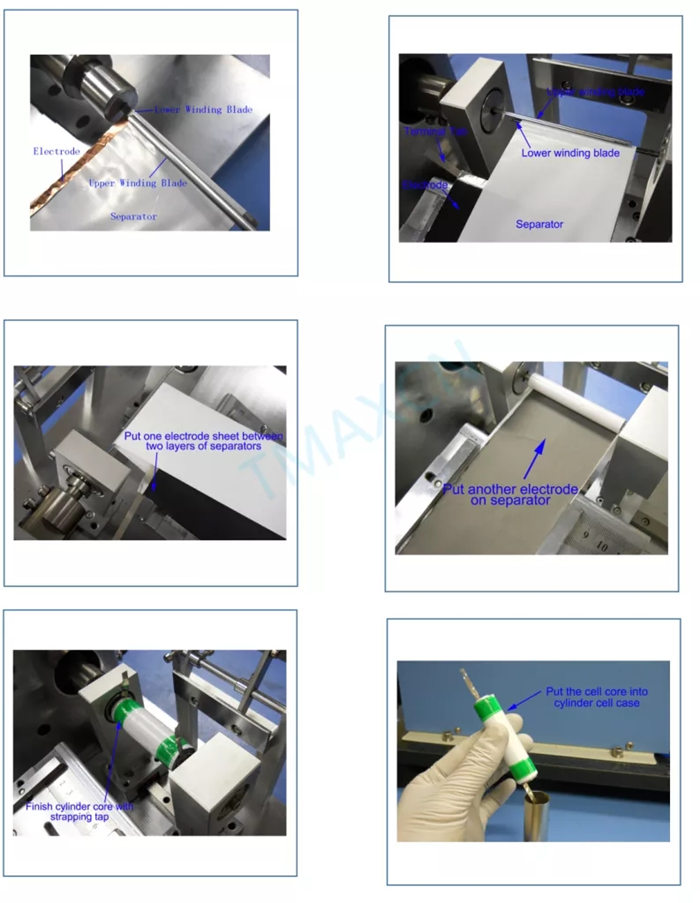

TMAX-JR135 Manual winding machineis used for winding battery anode/cathode electrodes with separator together in the research of super capacitor
|
Model
|
Manual Winding Machine for Supercapacitor TMAX-JR135
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
1000W
|
|
Warranty
|
·One Year limited warranty with lifetime support
|
|
Winding Speed
|
0 - 170 RPM Adjustable
|
|
Suitable battery height
|
10-150mm customized
|
|
Winding Mode
|
Switchable between clockwise and counterclockwise
|
|
Output
|
70-100EA/h, according to battery size and maunal
|
|
Product Dimensions
(L*W*H)
|
1000*380*250mm
|
|
Net weight
|
About 30kg
|

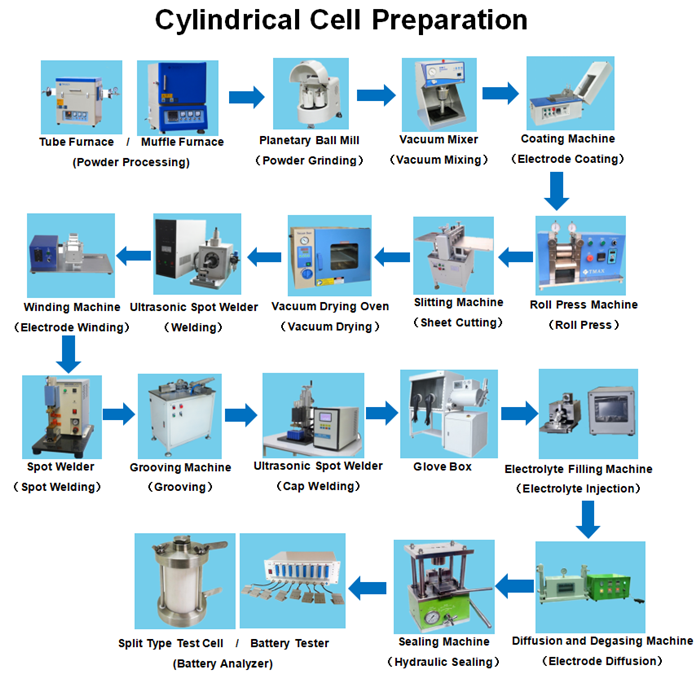

Related Machine for Cylindrical Cell Making
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
