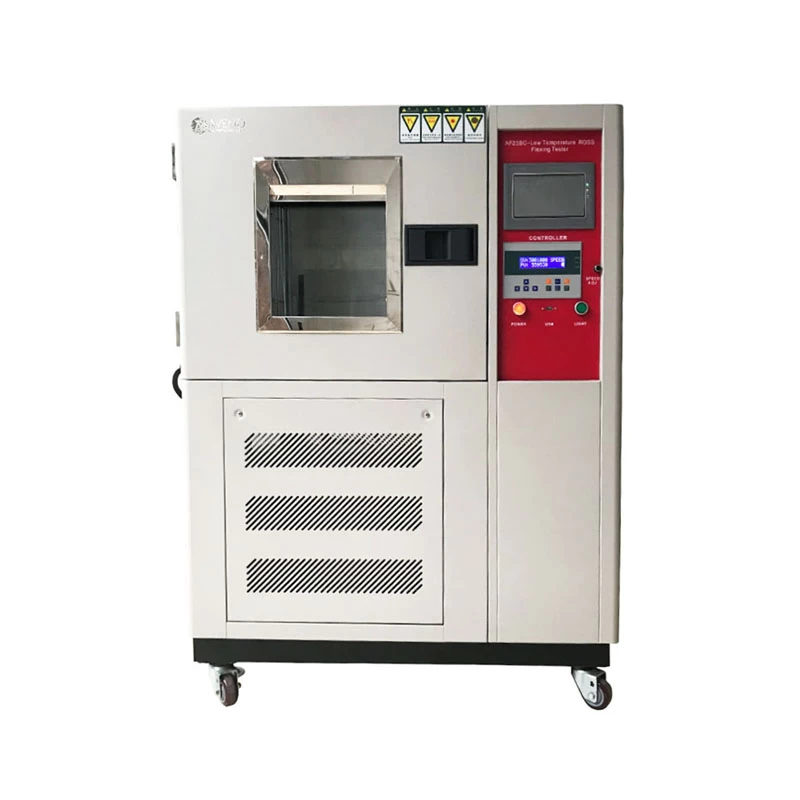

AF67-Multifunction Low Temperature Footwear Flexing Tester
Application Of Multifunction Low Temperature Footwear Flexing Tester

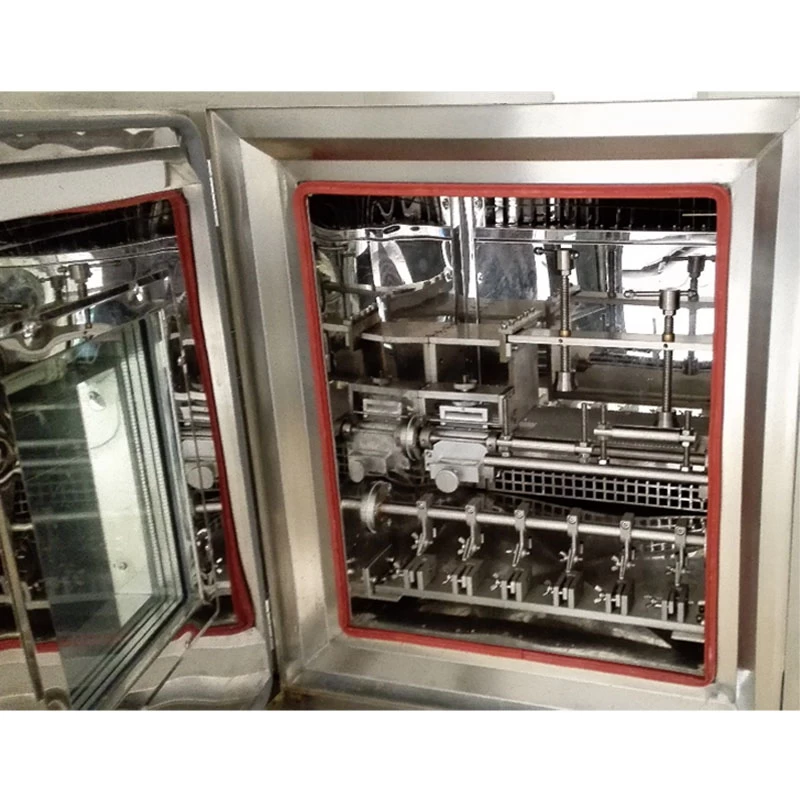

Multifunction Low Temperature Footwear Flexing Tester is a low temperature chamber with 3kinds of gripers including ROSS flexing gripers, BALLY flexing gripers and whole shoe flexing gripers, can doing 3 kinds of test at the same time.
Feature Of Multifunction Low Temperature Footwear Flexing Tester
-
Whole chamber inside and gripers made up of stainless steel, anti-corrosion.
-
Outside of the chamber is baking finish (can choose SUS 304 stainless steel)
-
Can doing 3 kinds of test at the same time, save time, space and energy.
-
Whole machine equipped with a safety protection system, the end of the test automatically stops
Standards Of Multifunction Low Temperature Footwear Flexing Tester
|
ROSS
Flex
|
ASTM-D1052, ISO5423, 4643,
HG/T2411, BS513, ASTRA TM60
|
|
BALLY Flex
|
SATRA TM55, ISO5402-1,
ISO 17694, EN 13512, EN344-1, EN ISO 20344, GB/T 20991, ASTM 6182, AS/NZS
2210.2, GE-24, JIS-K 6545, IULTCS/IUP 20-1
|
|
Whole
Shoe Flex
|
SATRA TM92
|
Griper Configuration Of Multifunction Low Temperature Footwear Flexing Tester
|
Griper
|
ROSS flex
|
BALLY flex
|
Whole shoe flex
|
|
Test position
|
4 position
|
6 position
|
2 position
|
|
Bending
speed
|
100±5 cpm
60±5 cpm
(optional)
|
100±5
|
60～300 times/min（0～15°）
60～200 times/min（0～50°）
60～140 times/min（0～90°）
|
|
Bending
angle
|
90±2°
|
22.5 ± 0.5°
|
45-90°，can be adjust
|
Key Specification Of Multifunction Low Temperature Footwear Flexing Tester
|
Model
|
AF67 Multifunction Low
Temperature Footwear Flexing Tester
|
|
Control
mode
|
Touch screen with LCD
control
|
|
Test
position
|
ROSS flexing test:
4position
BALLY flexing test:
6position
Whole shoe flexing test:
2position
(the number of test
position can be custom made)
|
|
Temperature
range
|
-30~100℃
|
|
Dimension
|
100*100*150cm
|
|
Weight
|
200kg
|
