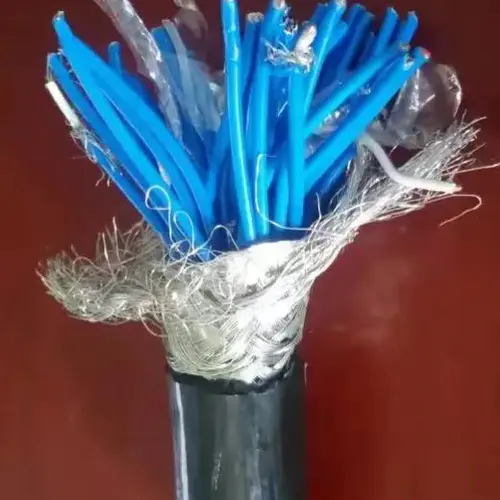

CITCABLE: Multi-core PEEK screened Jacket cable

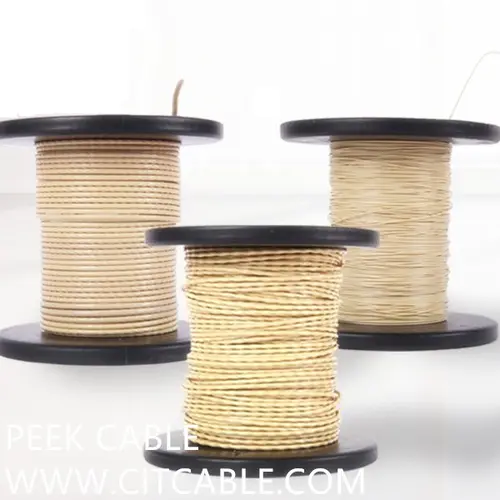

PEEK insulated wires with Silver-plated or Nickel-plated conductors or others.
Customized design solutions are available to suit the specific needs of individual applications and specifications such as temperature performance, chemical resistance and voltage rating.
Product Data Cables can be designed from the individual components below to form multi-core cables up to a maximum of 60 twisted pairs.
Composite constructions using different conductor sizes and insulations are also available
The product data tables above cover single core cables. Multi-core cables with or without overall shield and jacket are also available. For more information, please refer to the Multi-Core Cable section
Key Features
Halogen free and low toxicity
Excellent radiation resistance
PEEK cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion
A semi-crystalline thermoplastic, PEEK offers excellent mechanical properties and chemical resistance coupled with outstanding thermal and combustion characteristics.
single core cables. Multi-core cables with or without overall shield and jacket are also available. For more information, please refer to the Multi-Core Cable section.
Key Characteristics
» Operating temperature: -75°C to 200°C » 600V Rating
» Available with Silver-Plated or Nickel-Plated Conductors
» Range of 11 standard colors and striped color options for ease of identification
» Halogen free and low toxicity
» Toxicity index > 0.2 < 1.5
» Excellent radiation resistance
