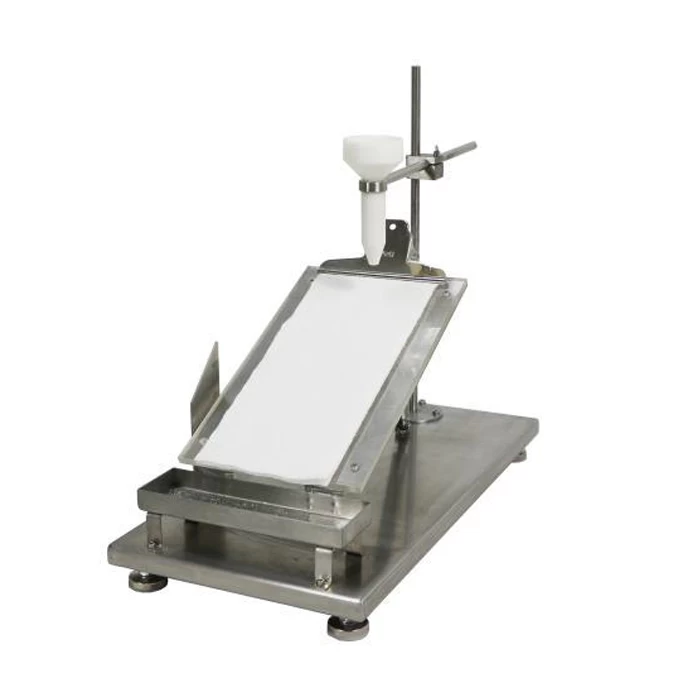

Nonwovens Run-off Tester GT-CN03
Product Introduction
Application:
This Nonwovens Run-off Tester GT-CN03 is used to test the overflow quantity of thin nonwoven, such as sanitary towel and diaper coating material.
|
Principle
A specified quantity of simulated urine is discharged at a prescribed rate under specified conditions on to a test piece of nonwoven that is superimpossed on a standard absorbent media and placed on an inclined table. Any excess liquid that runs down the test piece is collected by a standard receiver pad placed below the lower end of the nonwoven test piece.
Key Specifications
Model
|
GT-CN03
|
Size of the Test Stand
|
303×180mm
|
Angel of the Test Stand
|
Adjustable
|
Distance between 2 Lines of Reference
|
250±0.2mm
|
Position of the Up Line of Reference
|
3±0.2mm from the lower end of the table to define the position of the lower end absorbent medium
|
Position of the Up Line of Reference
|
Approximately 25mm from the upper end of the test piece to define the position of the discharge tube axis.
|
Inner Diameter of the Bleeder Tube
|
5mm
|
Dimension
|
5450×280×400mm
|
Weight
|
10kg
|
Standards
|
Edana 152.0-99, ISO 9073-11, GB/T 24218.11
|
