Overview
Optical Fiber Cables transmit data via light over glass fibers, providing high bandwidth, low latency, and long‑distance performance for telecom backbones, access networks, campuses, data centers, and industrial automation. Designs cover outdoor (duct, direct‑buried, aerial), indoor riser/plenum, and universal indoor/outdoor types. Options include loose‑tube or tight‑buffer constructions, armored or all‑dielectric designs, and flame‑retardant/LSZH jackets for different installation environments.
Fiber types: Single‑mode G.652D, bend‑insensitive G.657A1/A2, dispersion‑shifted (on request), multimode OM2/OM3/OM4/OM5
Fiber counts: 2–432F (higher counts/ribbon on request)
Constructions: Loose‑tube (central/stranded), micro‑duct/blown fiber, tight‑buffer distribution/breakout
Strength members: FRP/GRP or steel (as required)
Water‑blocking: Gel‑filled tubes and/or water‑swellable yarn/tape
Armour: Corrugated steel tape (STA), steel wire armour (SWA), or all‑dielectric (ADSS/FRP) options
Outer sheath: PE/PVC/LSZH; UV‑resistant, anti‑termite/rodent options
Applications: Backbone/metro, FTTx, campus, data center, rail/transit, industrial and security networks
Standards: IEC 60794 series, ITU‑T G.65x/OMx, ISO/IEC 11801, TIA‑568; RoHS/REACH compliance
Key Features
High bandwidth, low attenuation, and long‑reach transmission
Bend‑insensitive single‑mode options (G.657A1/A2) for dense routing and MDU/FTTx
Comprehensive water‑blocking and ruggedized sheath/armour for outdoor and direct‑buried use
Flame‑retardant and LSZH options for indoor/public‑area safety compliance
All‑dielectric and metallic‑armored designs to suit EMI and mechanical protection needs

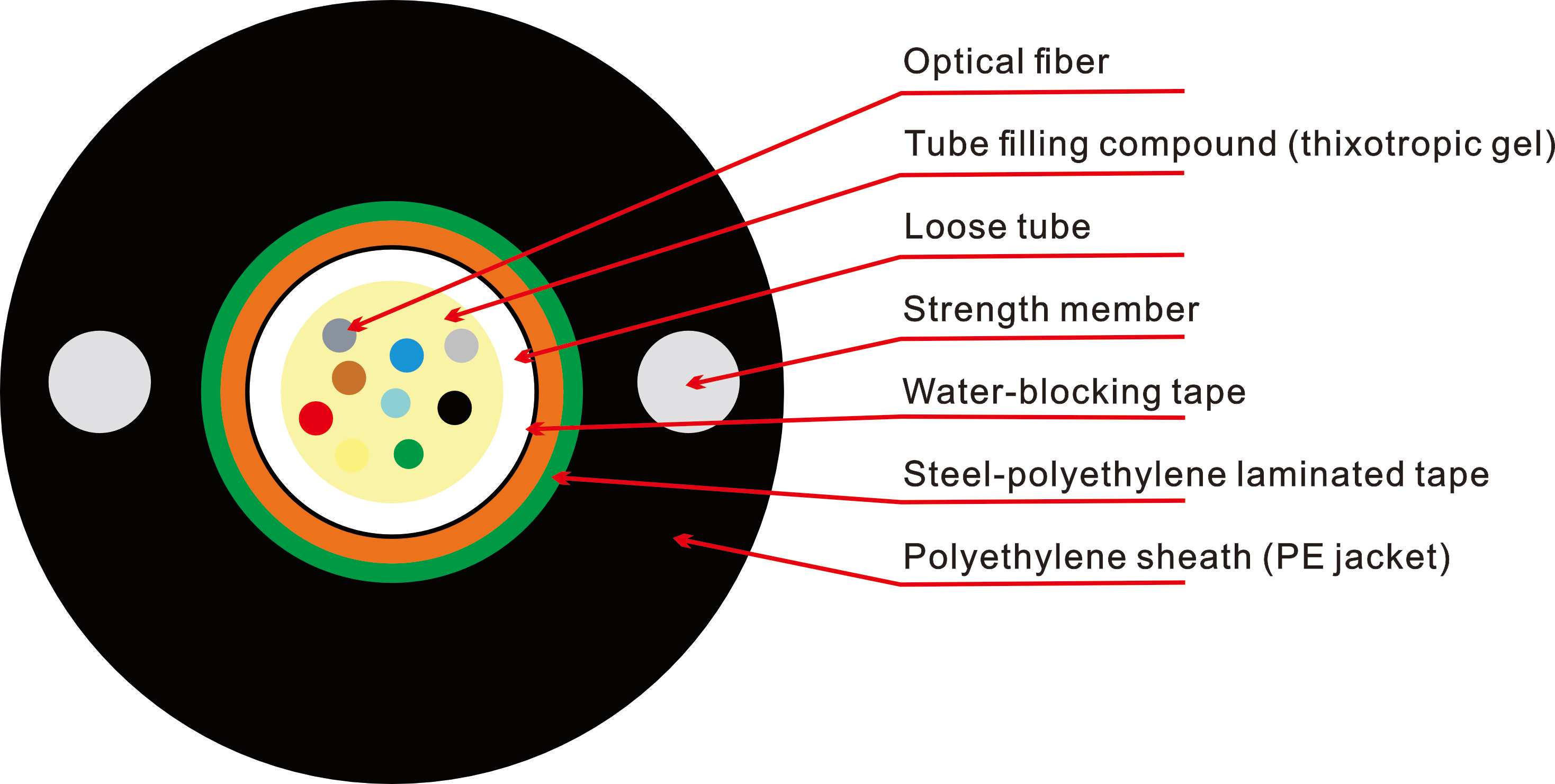

Layered from inside to outside

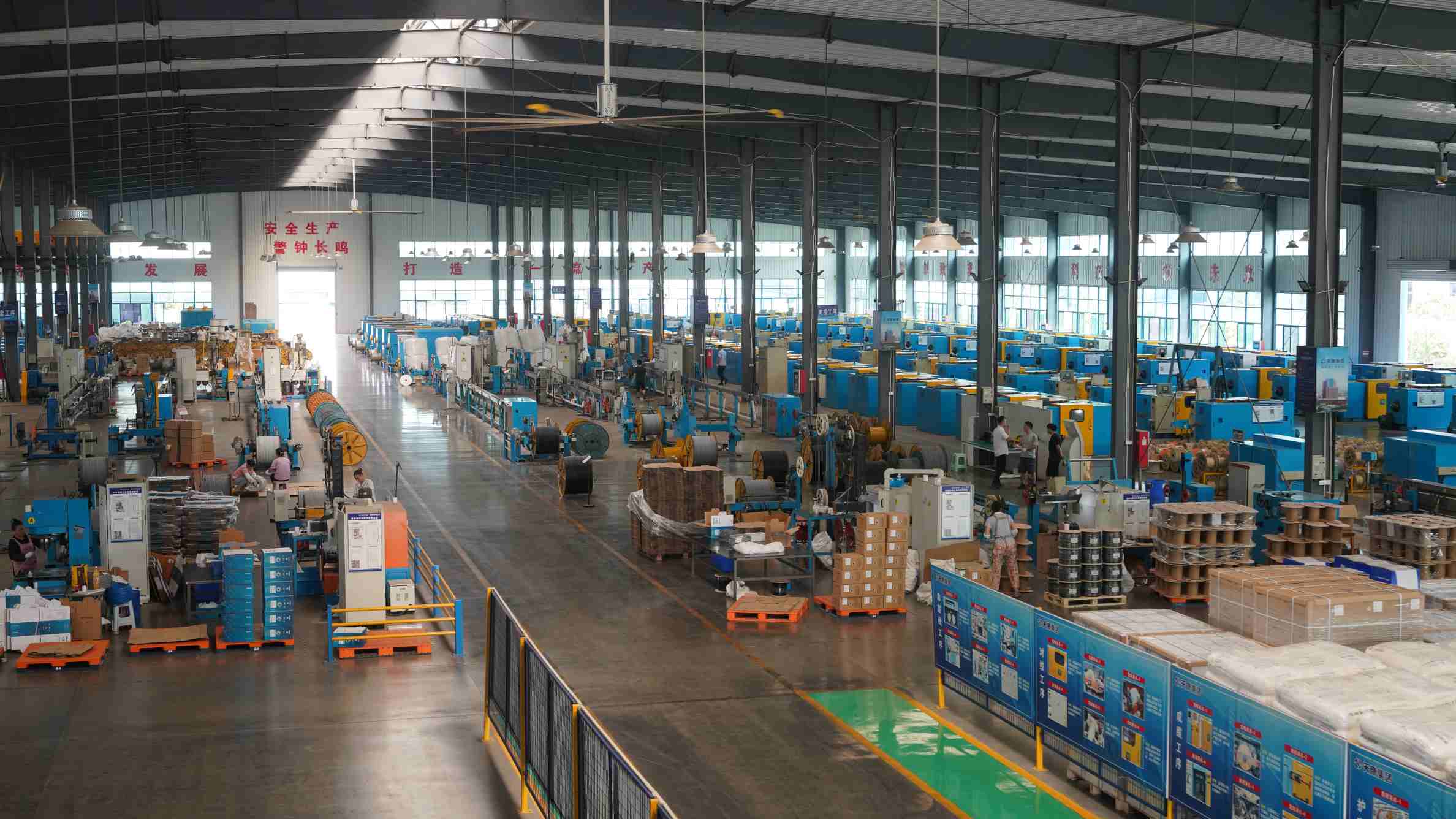

Factory photos
If you need technical support, please feel free to contact us.
Customization & Technical Support
