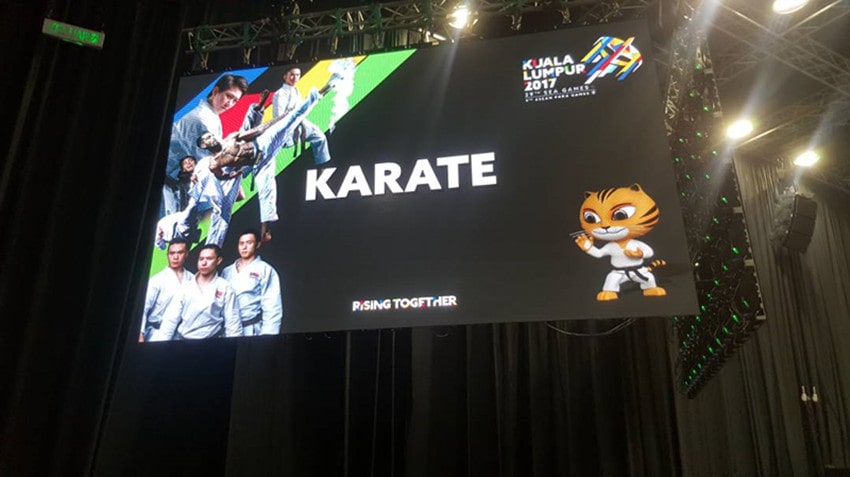

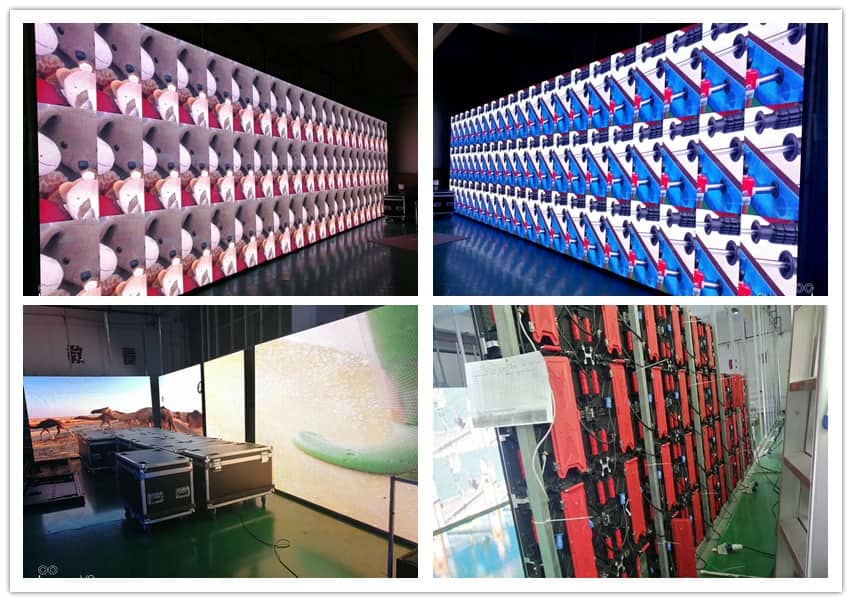

The full color P3.91 stage concert LED Display is widely indoor stage
screen,perfectly as mian background for various stage shows,trade
shows,concerts,etc,with brilliant video quality,HD image viewing and
best viewing distance. It's equipped with fast-locking system,100% no
tools installation, very easy to assemble,dismantle and maintenance.
P3.91 Indoor hd Concert LED Video Wall Features:

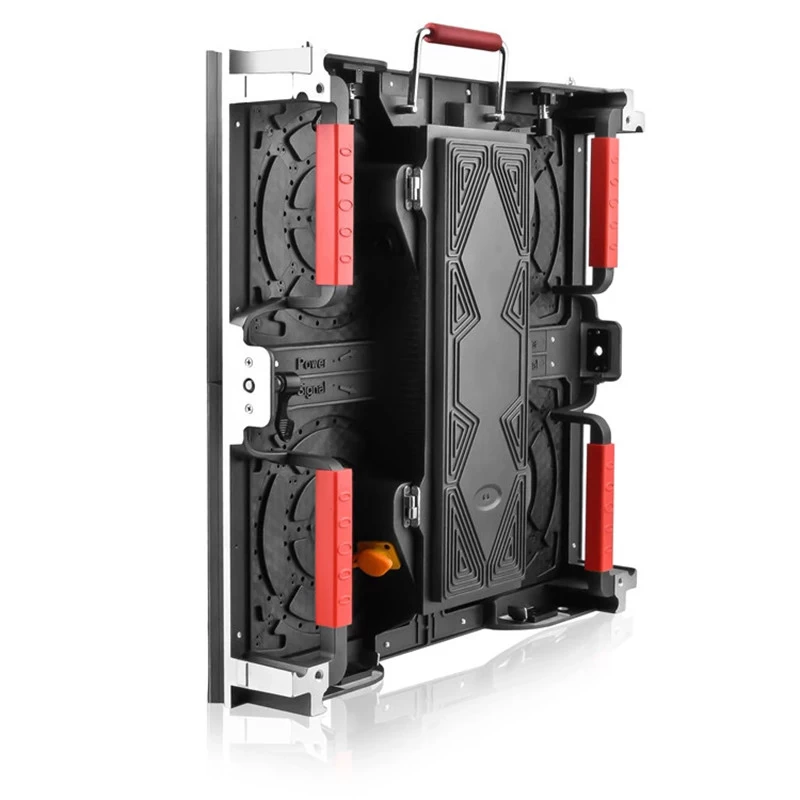

1. Cabinet is made with die-casting aluminum material, strong and durable,long life time up to 100,000 hours
2. Light weight and super thin, less than 80mm thickness and only 8kgs per panel for 500x500mm,13.5kgs per panel for 500x1000mm, it is portable and easy to move

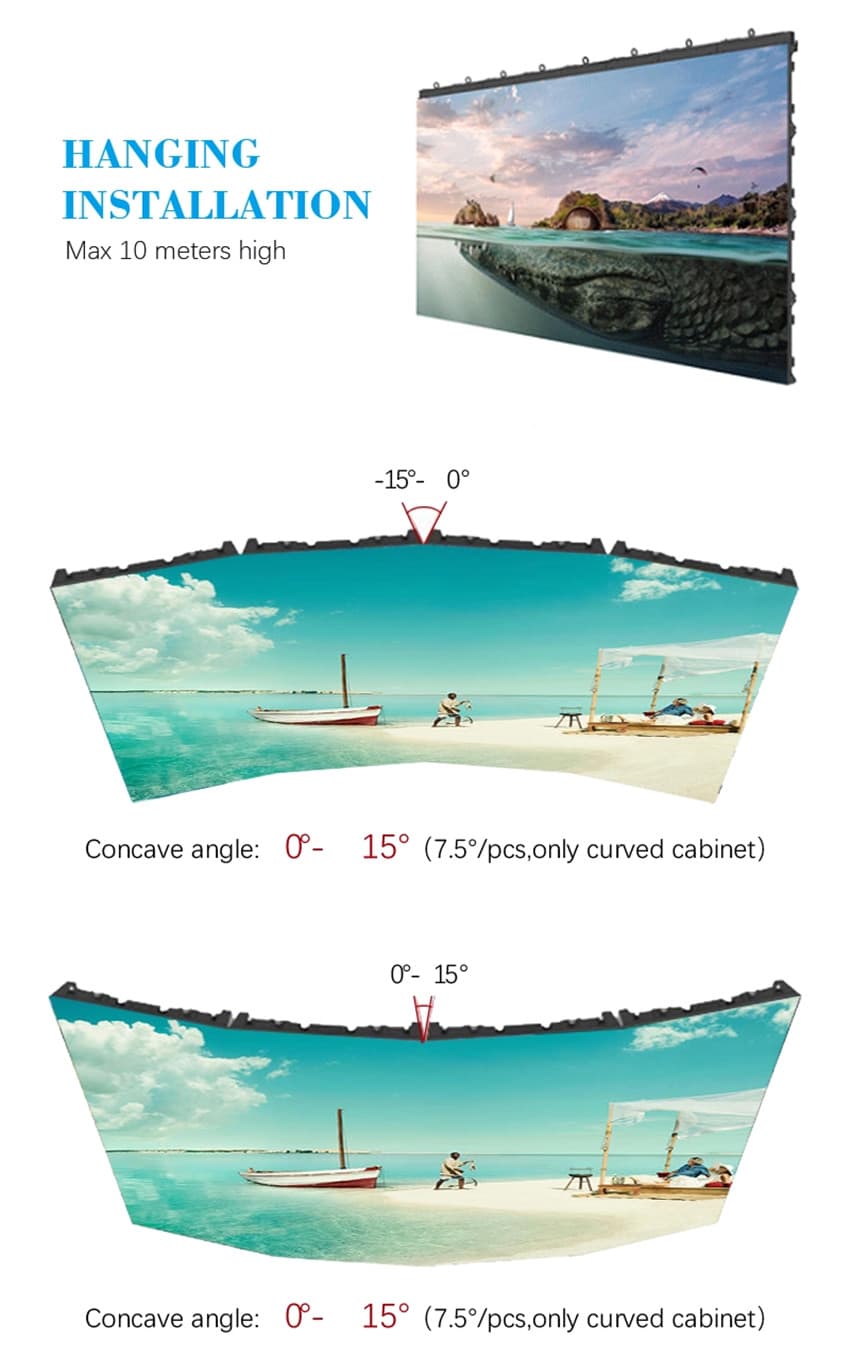

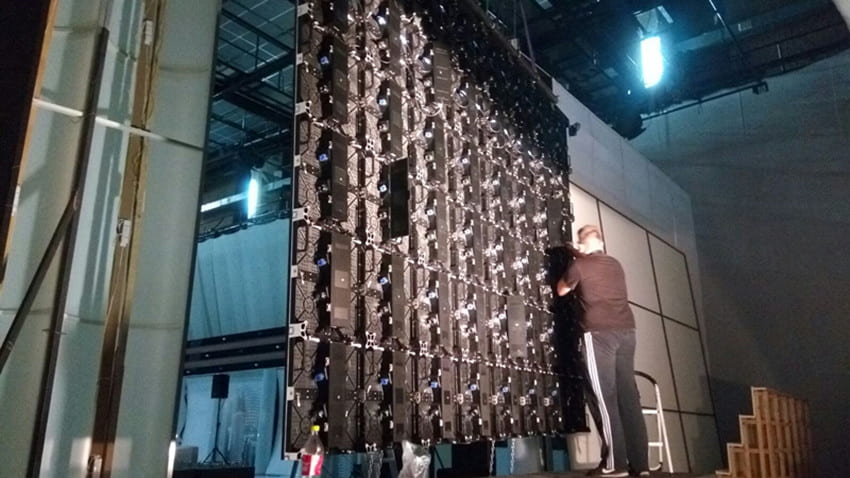

3. Rental design cabinet, can be fixed or hang,and easy to install and dismantle with fast lock and aviation plugs

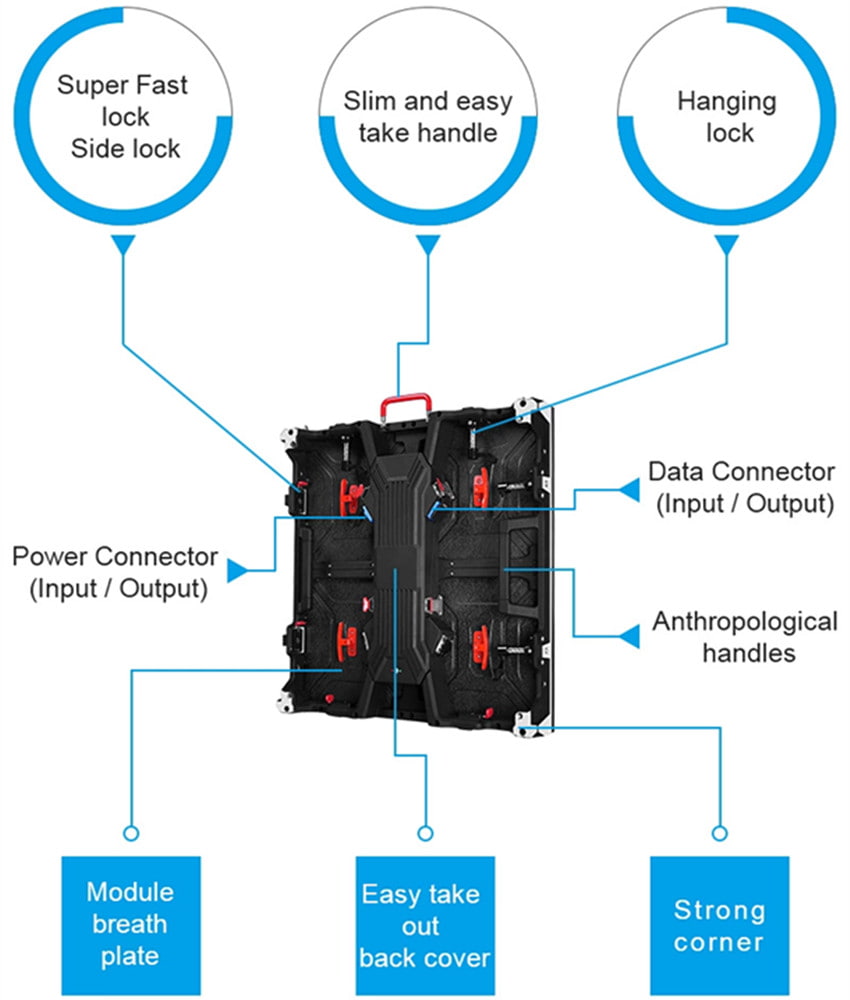

4. Exquisite and tasteful appearance due to structural wire layout, with red/green intruction lights,and test click button
5. High refresh rate up to 3840Hz,and high contrast ratio of 5000:1,real and rich colors and perfect vision effect
6. Packed with flight case, convenient to be collected and transportation,better for rental use

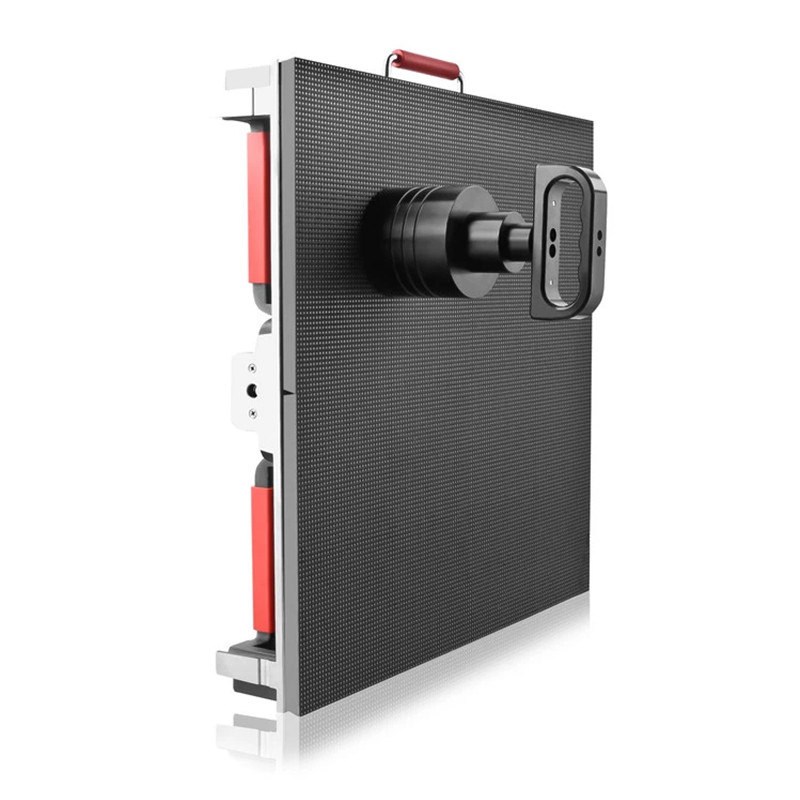

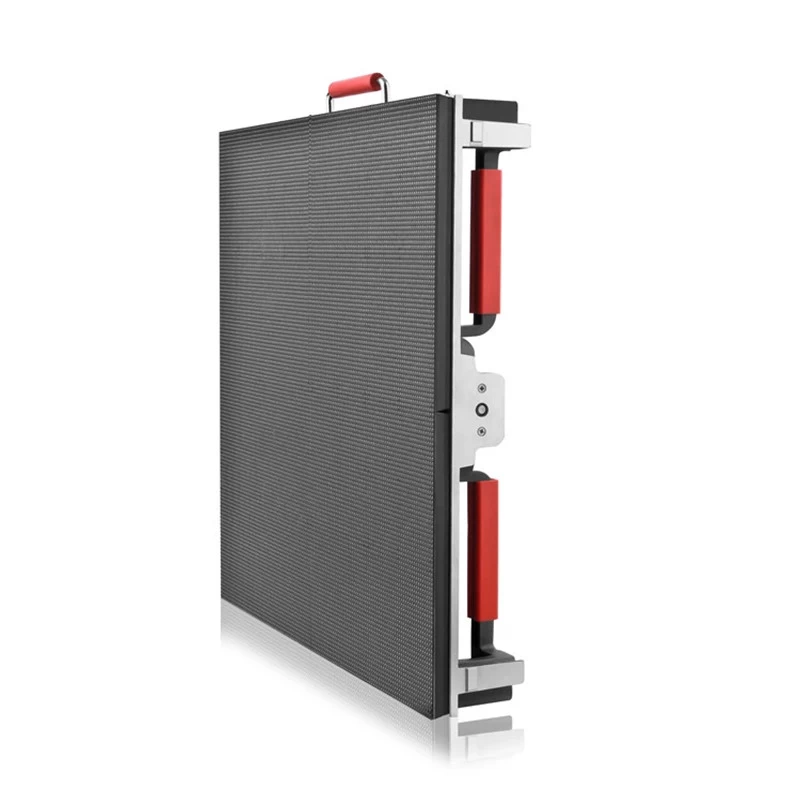

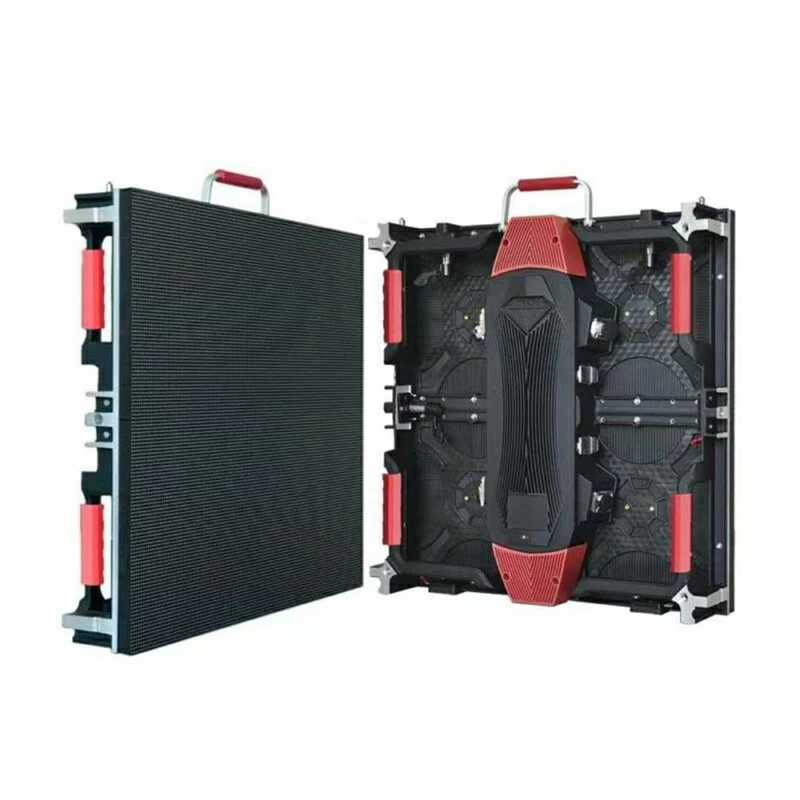

7. This kind of cabinet can be with front and rear maintenance
Indoor P3.91 LED Video Wall Specification
|
Pixel
|
Dot Pitch
|
3.91 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
65,536 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 2020 / 2121
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|
Module
|
Module Resolution
|
64 Pixel * 64 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/16 Scanning
|
|
Module Dimension
|
250 mm(Width)x250 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|
Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|

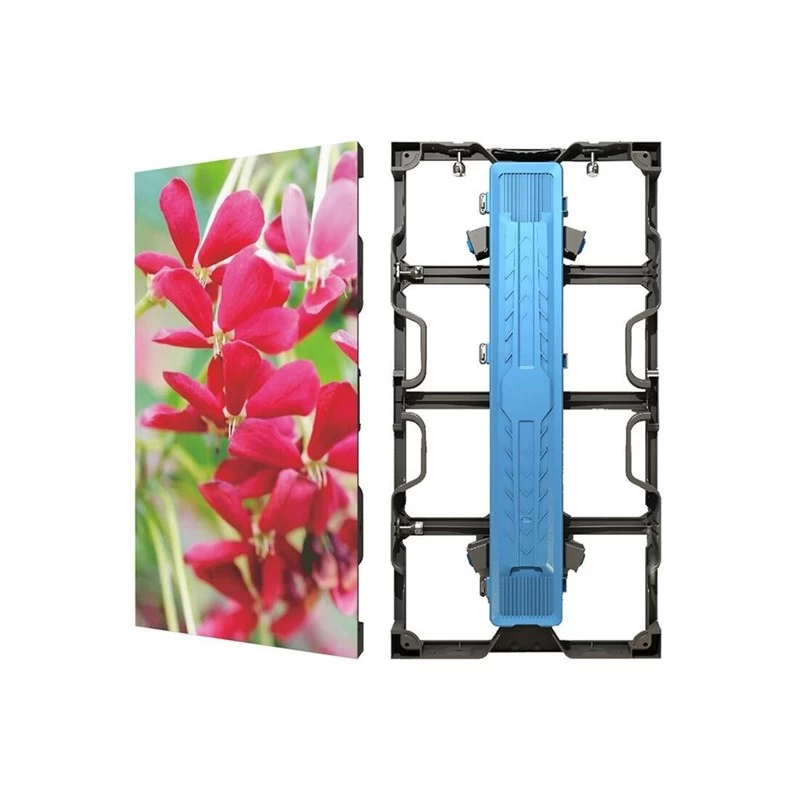

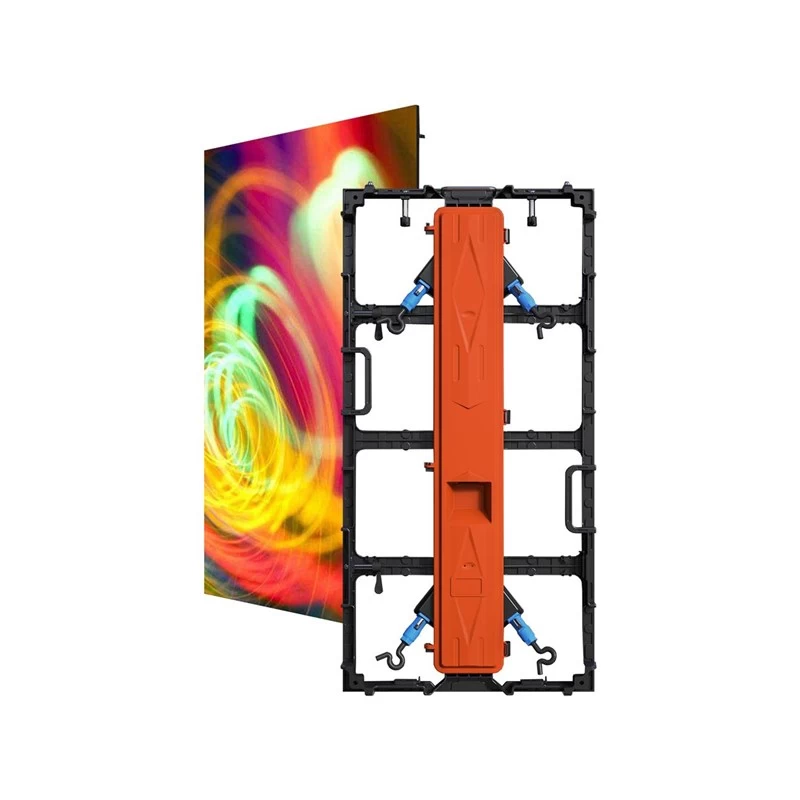

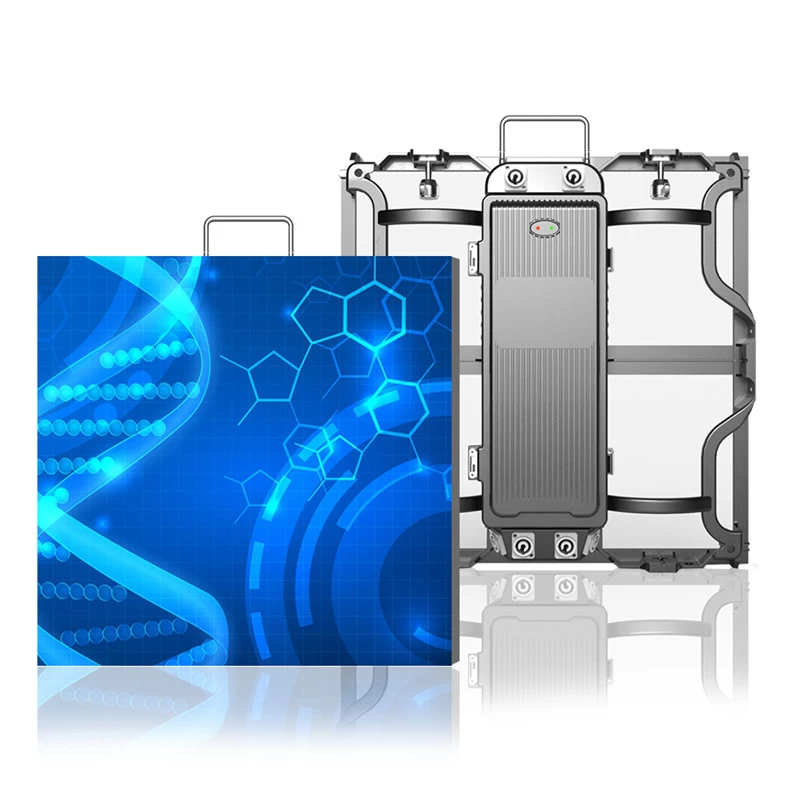

500*1000mm /500*500mm
|
|
Module QTY
|
2(Width)X4(Height) or 2(Width)X2(Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1500cd/m²
|
|
Best Viewing Distance
|
3~30m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Screen Weight
|
7.5 kg/cabinet (small ) or 15kg /cabinet (big)
|
Why Choose us :
1. Lightweight, space-saving and labour-saving.
2. Nice appearance and simple structures.
3. Quick locking methods, no tools installation.

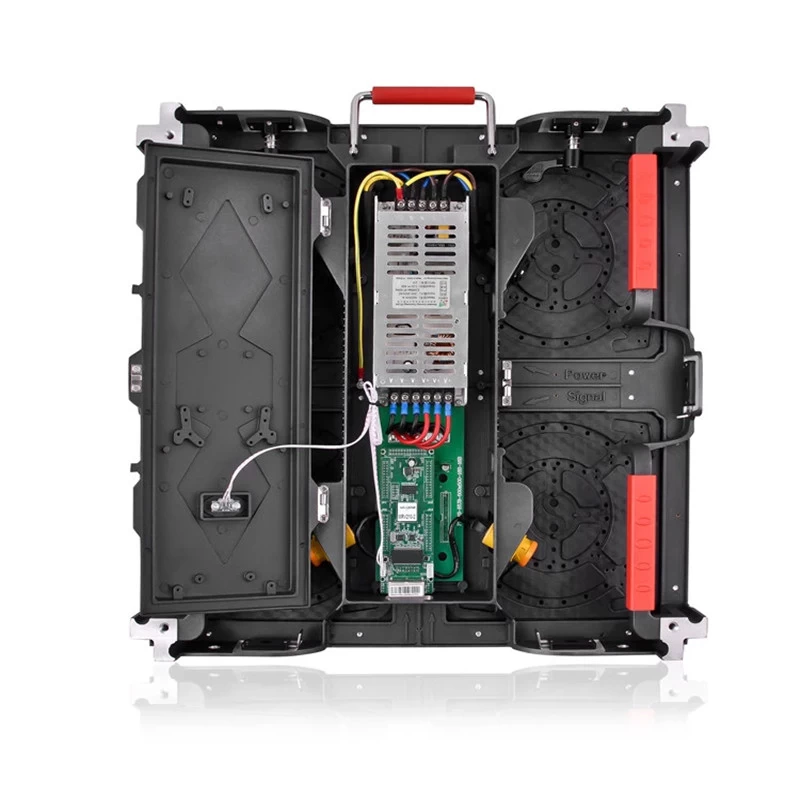

4. With indicator lights and backside flexible door, easy to test and maintain.
5. High refresh rate, HD video performance.
6. Good prices and good after-sales services.
7.Prices are very competitive, reaching good performance with limited budget.
