Pixel
|
Dot Pitch
|
4 mm
|
|
Pixel Configure
|
1R1G1B SMD 3IN1
|
|
Pixel Density
|
62,500 Pixel/m²
|
|
LED Lamp
|
LED TYPE
|
SMD 2121
|
|
Chip Brand
|
EPISTAR
|
|
Wavelength & Brightness
|
Red:620-625nm;>270mcdGreen:520-525nm;>550mcd
Blue:470-475nm;>90mcd
|
|
Module
|
Module Resolution
|
64 Pixel * 32 Pixel
|
|
Drive Mode
|
Constant Current Drive
|
|
Scanning Method
|
1/16 Scanning
|
|
Module Dimension
|
256 mm(Width)x128 mm(Height)
|
|
Drive IC
|
MBI5124/MBI 5153 /ICN2038S /ICN2053
|
|
LED & Drive Composition
|
Light-Drive Combo
|
|
Refresh Rate
|
>1920HZ
|
|
Cabinet
|
Cabinet Thickness
|
80 mm
|
|
Cabinet Assembly
|
Connecting Sheet
|
|
Cabinet Color(Front/Back)
|
Customized
|
|
Aviation Plug
|
wp20
|
|
Maintenance Mode
|
Front / Back Maintenance
|
|
Cabinet Material
|
Die Casting Aluminum
|
|
Cabinet Dimension
|
512*512mm
|
|
Module QTY
|
2(Width)X4(Height)
|
|
Power Supply
|
G-energy /Mean well
|
|
LED Screen
|
Viewing Angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
Brightness
|
800-1500cd/m²
|
|
Best Viewing Distance
|
4~50m
|
|
LED Life
|
100,000Hours
|
|
Maximum Power
|
600w/m²
|
|
Average Power
|
300w/m²
|
|
Input Voltage
|
220V±10% Or 110V±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Protection Grade
|
IP 43
|
|
LED Screen Weight
|
8 kg/cabinet
|

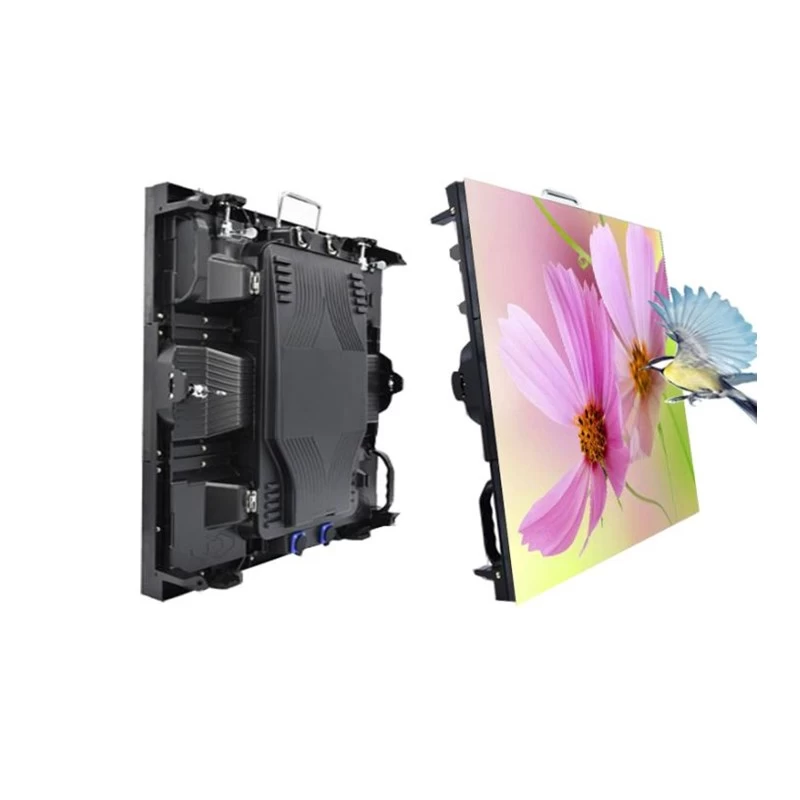

Die Casting Aluminium Cabinet Light Weight P4 Rental LED Video Panel :

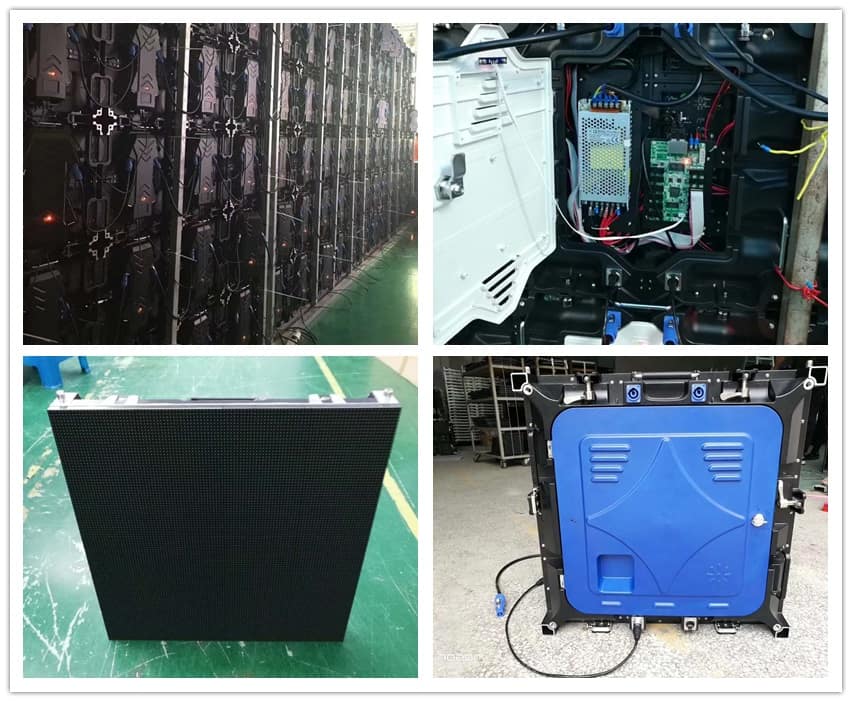

1. Light weight: single box weighs 8 KG, single person can be a single hand, saving installation time
2. Thin box: box with die casting aluminum, high strength, toughness, high precision, easy deformation,its thickness is only 80mm
3. Screen Ping: surface flatness error less than 0.2mm, the effective elimination of mosaic

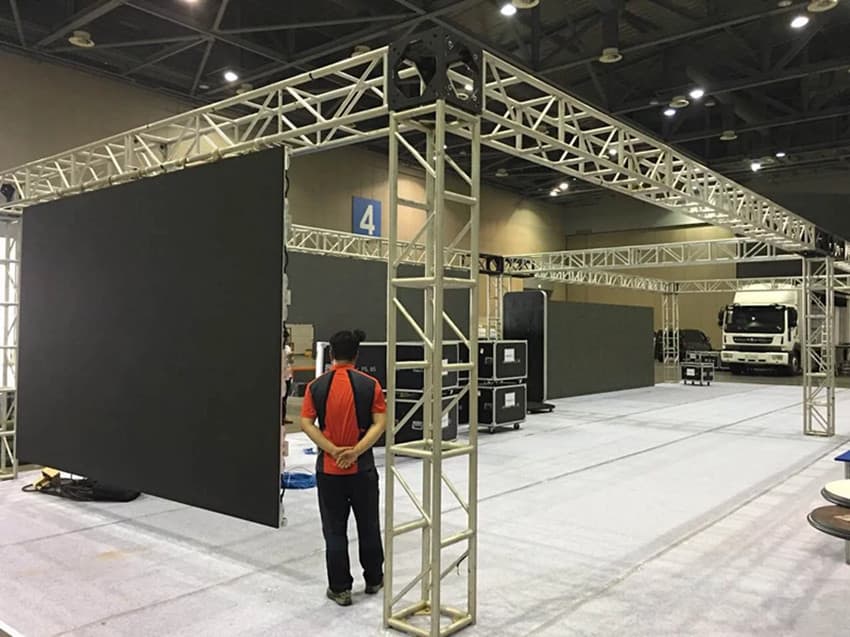

4. Disassembly fast: the box is connected up and down with fast locking mechanism, pull the two handles 90 degrees to lock the two cabinet, 10s to complete a cabinet installation, high mounting accuracy. Enclosure and wiring connection fast and reliable, that is beautiful in appearance but also to achieve a real sense of the rapid disassembly
5. Easy maintenance: modular design, installation and removal easy assembly Screen anywhere,simple to maintain
6. Tolerance: a new structure designed to meet the lifting of laminated requirements to meet indoor and outdoor requirements. Box single, compatible with a variety of pitch, indoor-outdoor module compatibility

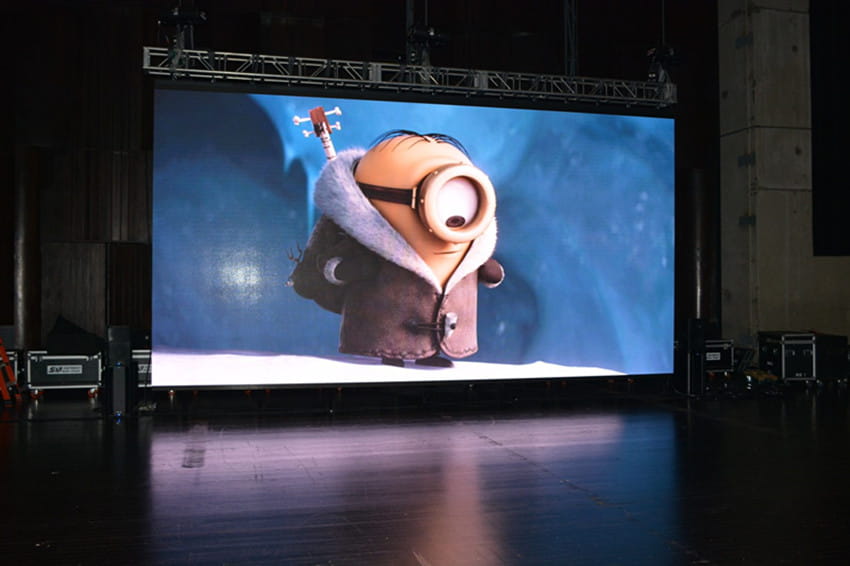

7.Play clear and non-flickering video image in video camera to realize live broadcast of different kinds of programs
8.Display a variety of computer information, graphs, two-dimensional animation and three-dimensional animation and etc, have abundant display methods, display moving messages, notices and slogans and etc, and have large capacity to store data and information
9.Network function With the network interface, it can be connected with the Internet to play information on the Internet at the same time and realize network control
