PCB

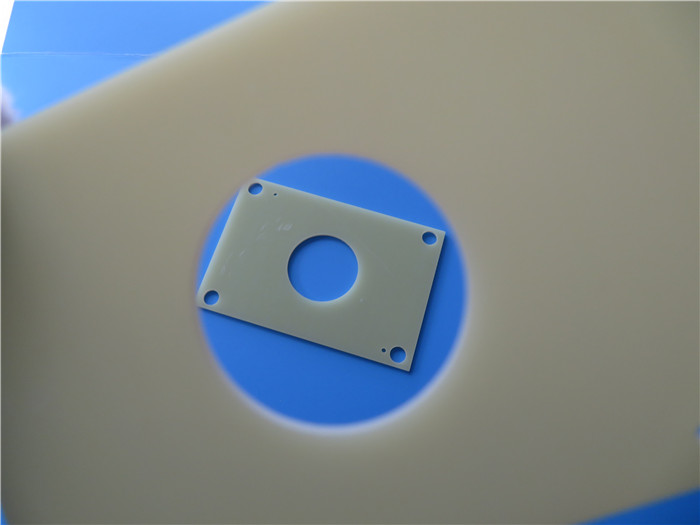

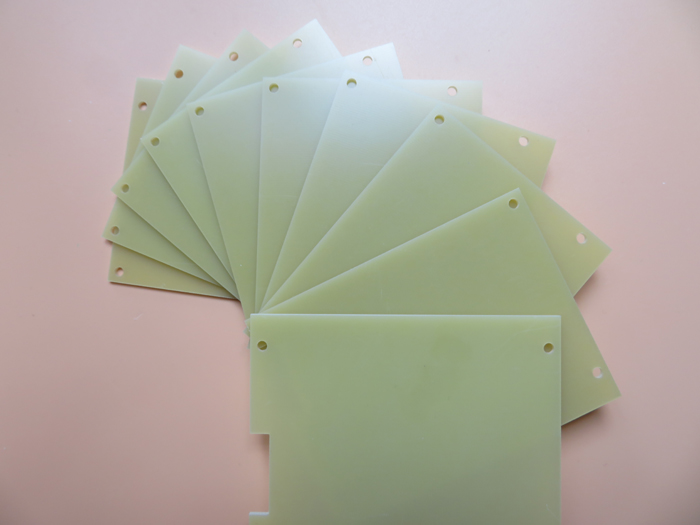

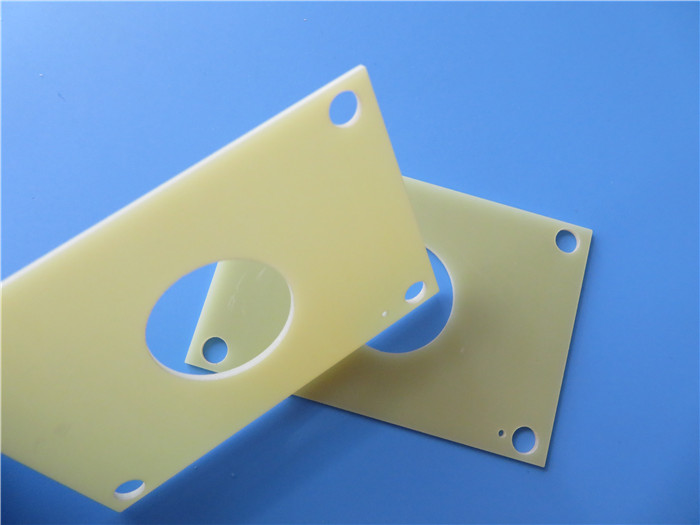

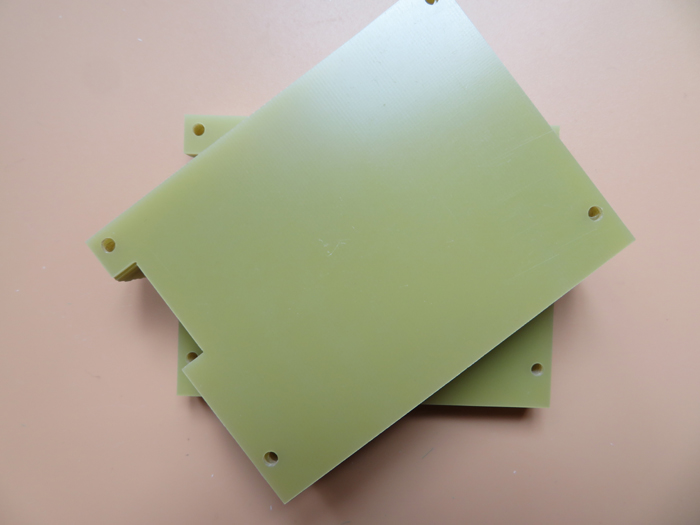

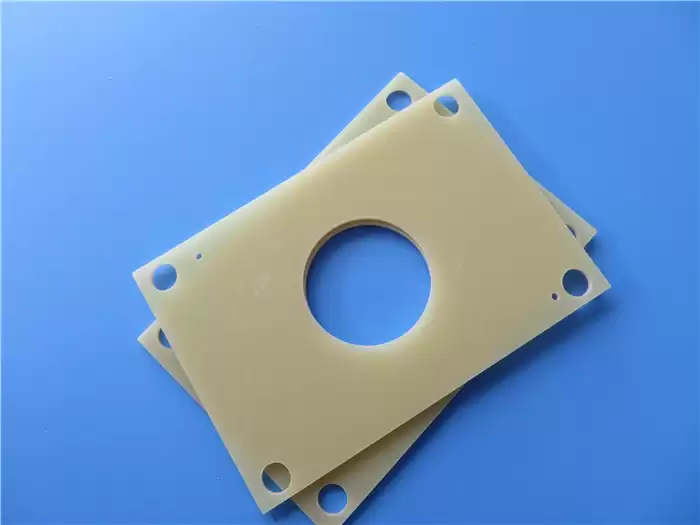

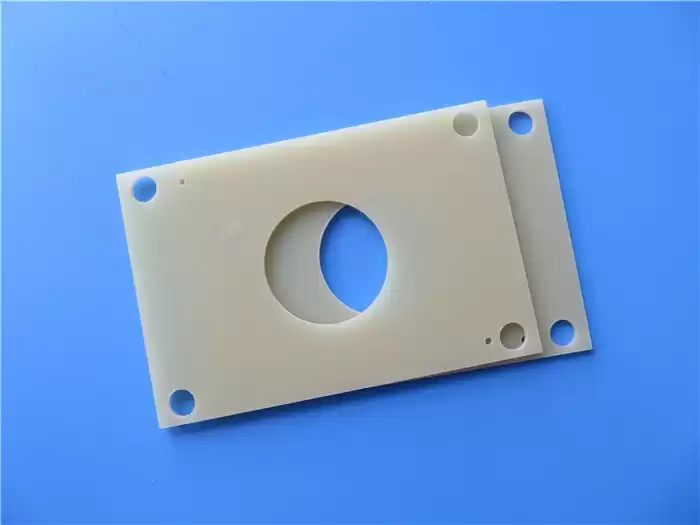

Spacer FR-4 Spacer Block Space Bar On 1.5mm FR4 with Drill Holes
(Printed
circuits boards are custom-made products, the picture and parameters shown are
just for reference)
1.1
General description
It's 1.57 mm thick without mask. The
base material is from ILM supplying 1 up single board. They're fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for
shipment.
1.2
Features and benefits
1.
FR-4 shows excellent dimensional stability;
2.
16000㎡workshop and 30000㎡output capability per month;
3. PCB
manufacturing on required specifications;
4. Delivery
on time. Higher than 98% on-time-delivery rate.
5.
8000 types of PCB's per month;
6. Experienced
sales persons and skilled customer services
7.
Quick CADCAM checking and free PCB quotation;
8.
Small quantity order is available;
9.
ISO9001, ISO14001, IATF16949, ISO13485, UL Certified.
1.3
Parameter and data sheet
|
Number
of Layers
|
N/A
|
|
Board Type
|
Blank
Spacer
|
|
Board Size
|
78.36
x 52.83mm=1UP
|
|
Board Thickness
|
1.5mm
|
|
Board Material
|
FR-4
|
|
Board Material Supplier
|
ILM
|
|
Tg Value of Board Material
|
TG135℃
|
|
|
|
PTH Cu thickness
|
N/A
|
|
Inner Iayer Cu thicknes
|
N/A
|
|
Surface Cu thickness
|
N/A
|
|
|
|
Solder Mask Type and Model No.
|
N/A
|
|
Solder Mask Supplier
|
N/A
|
|
Solder Mask Colour
|
N/A
|
|
Number of Solder Masks
|
N/A
|
|
Thickness of Solder Mask
|
N/A
|
|
|
|
Type of Silkscreen Ink
|
N/A
|
|
Supplier of Silkscreen
|
N/A
|
|
Color of Silkscreen
|
N/A
|
|
Number of Silkscreen
|
N/A
|
|
|
|
Mininum Trace (mil)
|
N/A
|
|
Minimum Gap(mil)
|
N/A
|
|
|
|
Surface Finish
|
N/A
|
|
RoHS Required
|
Yes
|
|
Warpage
|
0.15%
|
|
|
|
Thermal Shock Test
|
Pass, 288±5℃,10 seconds, 3 cycles. No delamination, no blistering.
|
|
Solderablity Test
|
N/A
|
|
Function
|
visual
inspection
|
|
Workmanship
|
Compliance
with IPC-A-600H & IPC-6012C Class 2
|
1.4FR-4 Material
FR-4 (or FR4) is a kind of material grade
designation, which means that the resin material is flame resistant
(self-extinguishing). FR-4 is a kind of material specifications, not a material
name, but a material grade. "FR" stands for flame retardant, and
denotes that safety of flammability of FR-4 is in compliance with the standard
UL94V-0.
FR-4 glass epoxy is a popular and versatile
high-pressure thermoset plastic laminate with good strength to weight ratios.
With near zero water absorption, FR-4 is most commonly used as an electrical
insulator possessing considerable mechanical strength. The material is also
known to retain its high mechanical values and electrical insulating qualities
in both dry and humid conditions. These attributes, along with good fabrication
characteristics, lend utility to this grade for a wide variety of electrical
and mechanical applications.

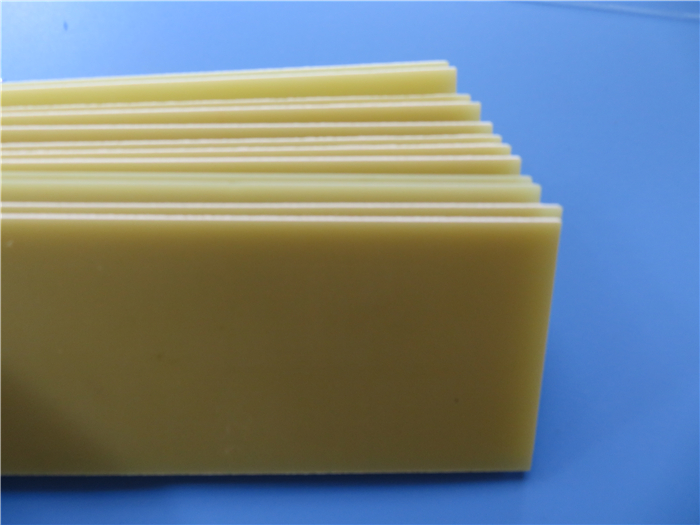

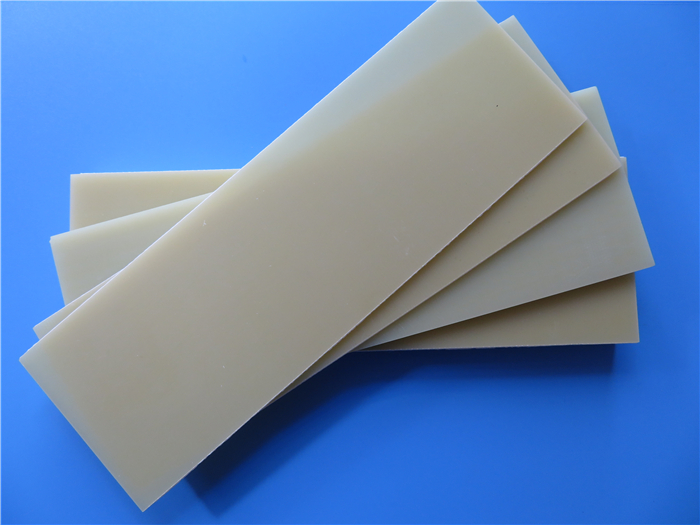

More Displays of FR-4
1.5 Our PCB Capability (2022)
|
Parameter
|
Value
|
|
Layer Counts
|
1-32
|
|
Substrate Material
|
RO4350B, RO4003C, RO4730G3, RO4360G2,
RO4533, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880;
RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; TMM4,
TMM10, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10,
TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5; PTFE F4B (DK2.2
DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15,
DK10.2); AD450, AD600, AD1000, TC350; Nelco N4000, N9350, N9240; FR-4 ( High
Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V;
Polyimide, PET; Metal Core etc.
|
|
Maximum Size
|
Flying test: 900*600mm, Fixture
test 460*380mm, No test 1100*600mm
|
|
Board Outline Tolerance
|
±0.0059"
(0.15mm)
|
|
PCB Thickness
|
0.0157"
- 0.3937" (0.40mm--10.00mm)
|
|
Thickness Tolerance(T≥0.8mm)
|
±8%
|
|
Thickness Tolerance(t＜0.8mm)
|
±10%
|
|
Insulation Layer Thickness
|
0.00295"
- 0.1969" (0.075mm--5.00mm)
|
|
Minimum Track
|
0.003"
(0.075mm)
|
|
Minimum Space
|
0.003" (0.075mm)
|
|
Outer Copper Thickness
|
35µm--420µm (1oz-12oz)
|
|
Inner Copper Thickness
|
17µm--350µm (0.5oz - 10oz)
|
|
Drill Hole(Mechanical)
|
0.0059"
- 0.25" (0.15mm--6.35mm)
|
|
Finished Hole(Mechanical)
|
0.0039"-0.248"
(0.10mm--6.30mm)
|
|
DiameterTolerance(Mechanical)
|
0.00295"
(0.075mm)
|
|
Registration (Mechanical)
|
0.00197"
(0.05mm)
|
|
Aspect Ratio
|
12:1
|
|
Solder Mask Type
|
LPI
|
|
Min Soldermask Bridge
|
0.00315"
(0.08mm)
|
|
Min Soldermask Clearance
|
0.00197"
(0.05mm)
|
|
Plug via Diameter
|
0.0098"
- 0.0236" (0.25mm--0.60mm)
|
|
Impedance Control Tolerance
|
±10%
|
|
Surface Finish
|
HASL,HASL
LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger
|
