PCB Transformer EF25 Vertical Bobbin

Switching power transformer design. Horizontal bobbin EF25. Bobbin Size=26.0mmX25.6mmX25.1mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. PA66 material transformer bobbin. DIP bobbin.



8pin EF25 coil former from Hefei Mycoil Technology Co.,LTD. We manufacture and design all kinds electronic transformers, such as high frequency transformer, lan transformer, audio frequency transformer, toroidal transformer, SPMS transformer, etc. Welcome for inquiry.


Quick Details

Part No: MCT-EF2565

Brand Name: MCT

Material: PA66

Color: Black, Red

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: PCB Transformer EF25 Vertical Bobbin

Standard parts: Transformers, Inductor, Coils,current transformers, magnetic cores.

Applications: Consumer electronics, computer, TV parts, power supply. filters, etc.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air(TNT/Fedex/UPS/DHL/EMS), By ship, etc.

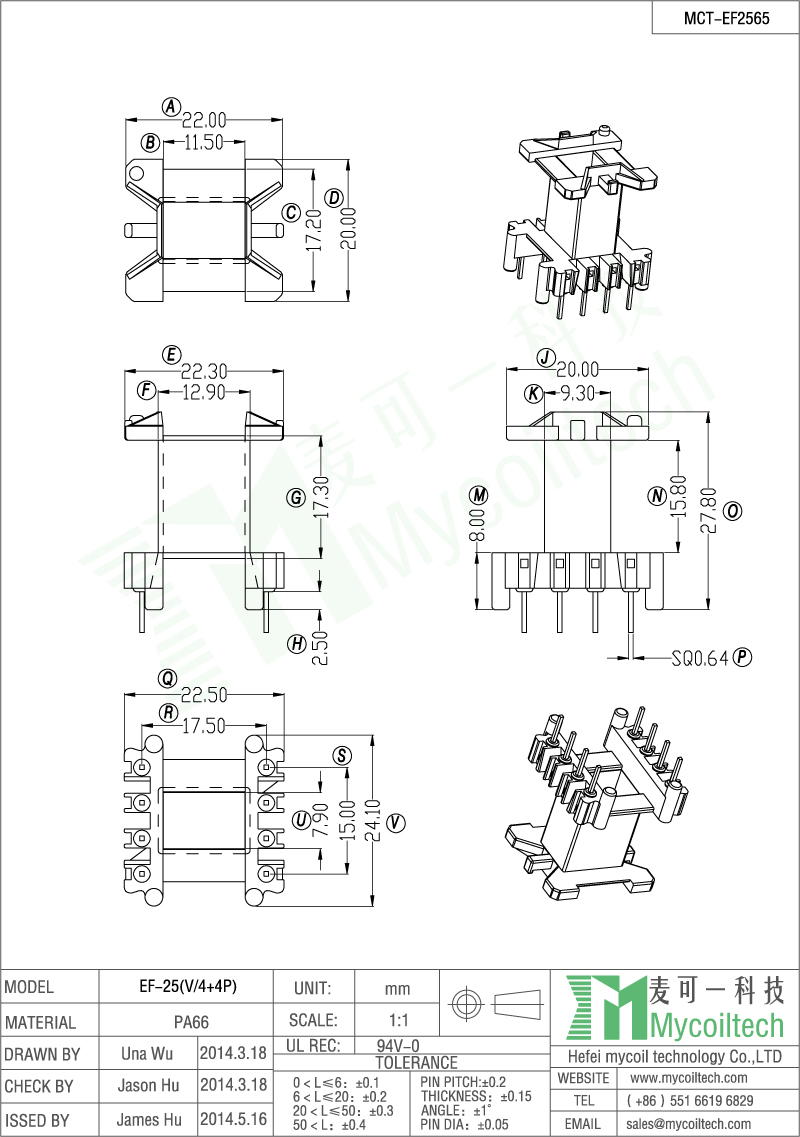

Product Specification

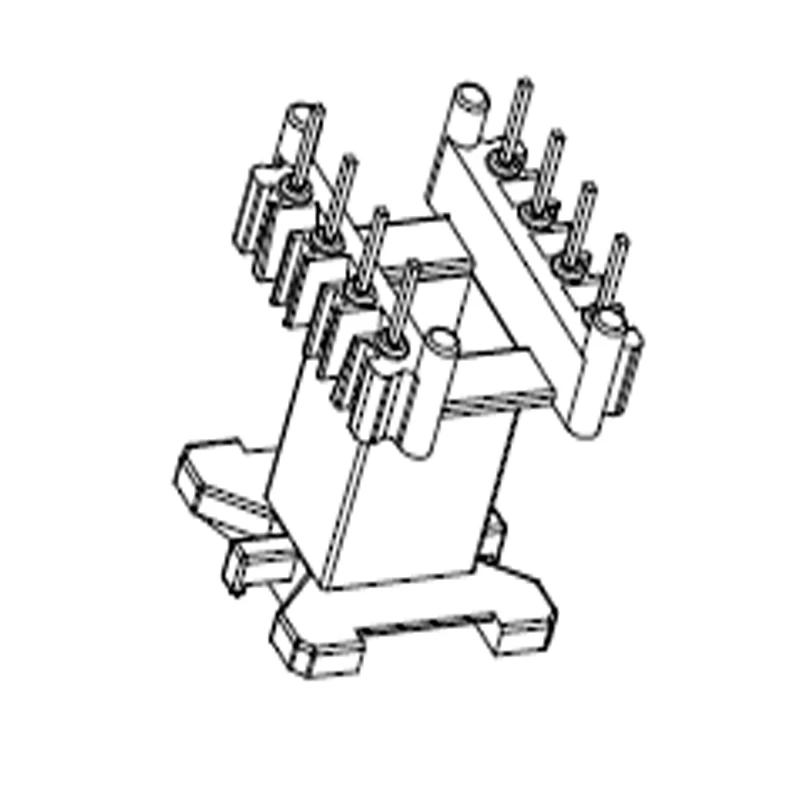

EF25 vertical coil bobbin
