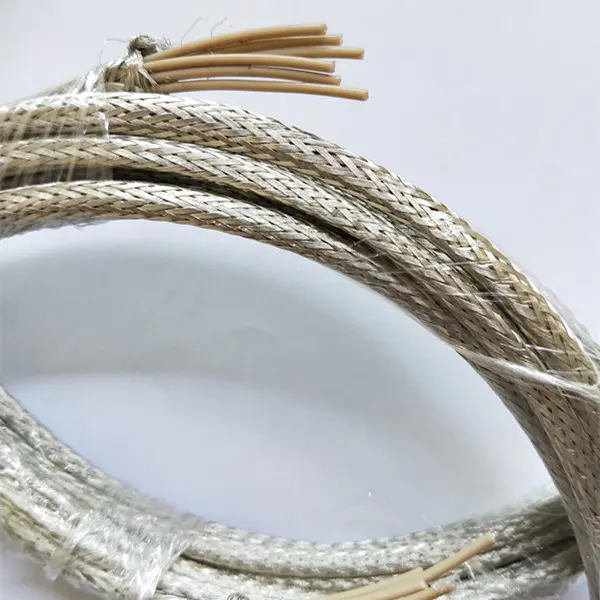

PEEK Control cable for nuclear industry

Key Properties

• High continuous operating temperature 500°F (260°C)
• Outstanding abrasion resistance
• Excellent dielectric strength
• High Radiation Resistance 109 Rad= 107 Gy
• Exceptional chemical resistance
• Protects against corrosion Technical Notes
• Can be spliced using PEEK   Annealed, solid, round bare copper wire  and others

20 AWG 3C*6 conductor Hi Temperature cables for use in the nuclear industry with the following specs:
Environmental conditions:
a)Temperature Up to 316°C (600°F)
b)(Moisture 95% relative humidity Liquid Present
c) Radiation rate:
Normal: up to 1 Gy/h (100 R/h)
[up to 263 kGy (26 Mrads)]
LOCA* up to 5 Gy/h (500 R/h)
(d) Atmosphere traces of ozone slightly Acidic
