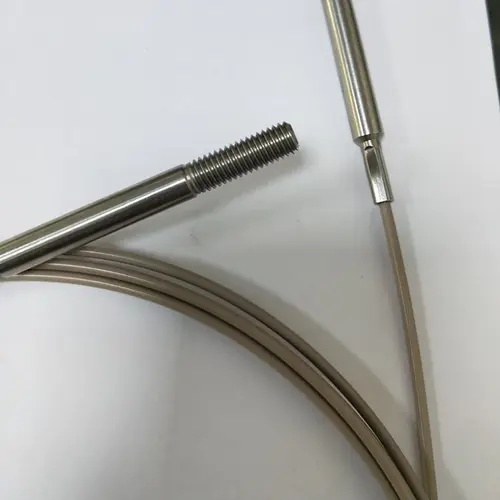

PEEK S304 Wire FOR LCD support

PEEK S304 Wire FOR LCD support (S304 OD:1.5 and 2.0mm)

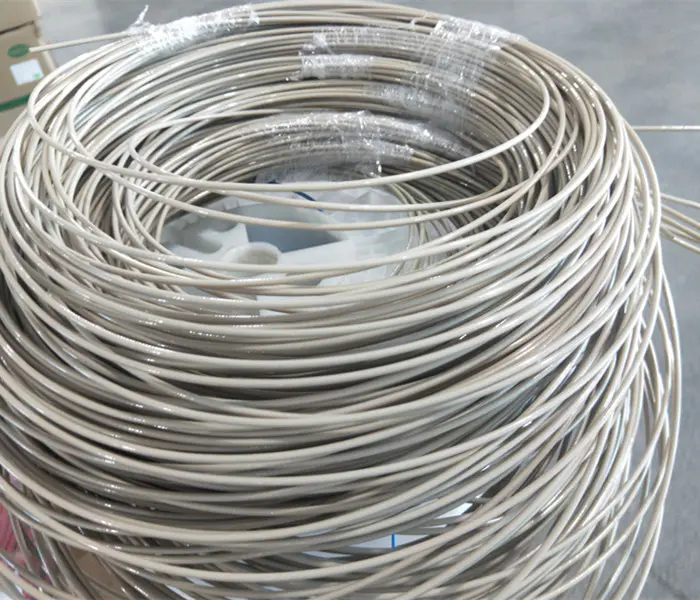

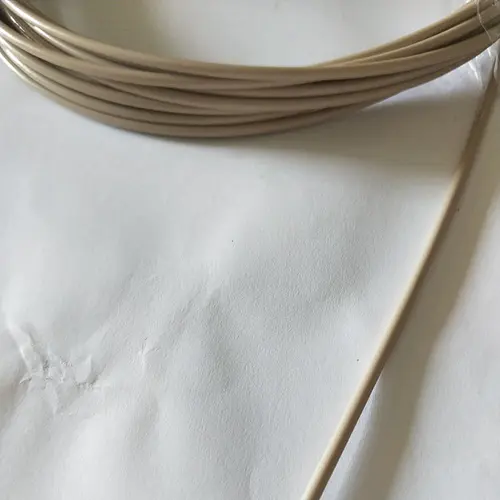

PEEK insulated wires with Silver-plated or Nickel-plated conductors

Conductor: 38awg to 6awg
PEEK insulated OD: 0.25—10.0mm

Key Features

1. Working temperature:-150℃---- +260℃ ( 500°F)
2. 300V.  600V rating or 50KV
3. Halogen free and low toxicity
4. Excellent radiation resistance
5. High Radiation Resistance 109 Rad= 107 Gy
6. PEEK cable outstanding and excellent abrasion resistance.  dielectric strength.  chemical resistance.  thermal endurance in long. protects against corrosion

Application

1. Military specification cables
2. High Temperature Sensor cables
3. Harsh Environment cables for extreme cold and/or heat
4. Control and Instrumentation cables
5. Thermocouple wire
6. Magnet wire peek insulation wire for Motor Class
7. Motor Rewind with peek insulation wire
8. PEEK lead wire
