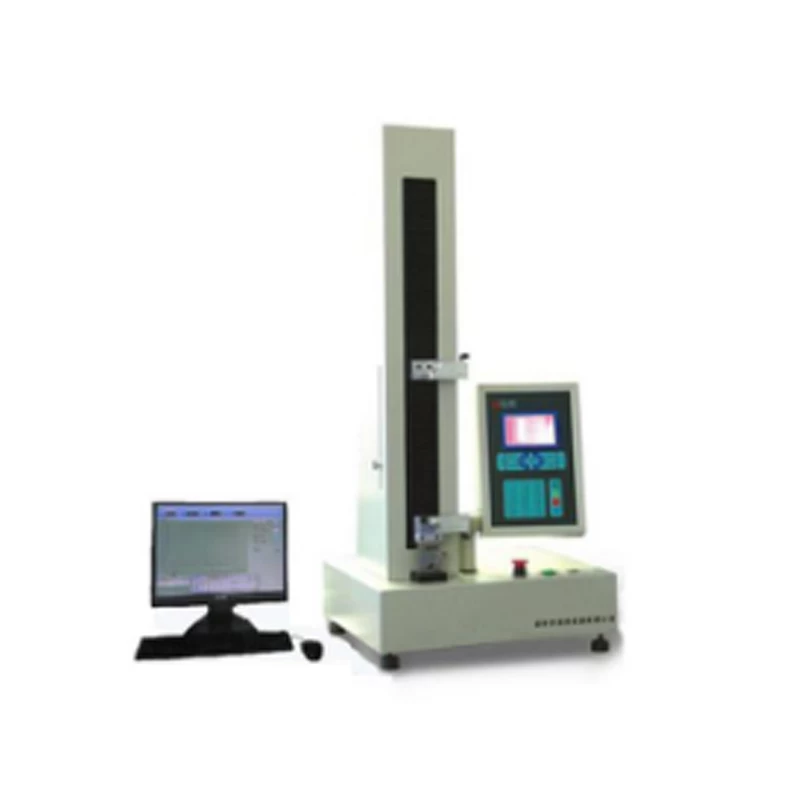

Plush Bundle Fiber Strength Tester GT-B03
Product Introduction
|
Application:
The plush bundle fiber strength tester is used to test the beam breaking force of wool, cony hair, cotton fibre, plant fiber and chemical fiber.
Standards:
GB/T14337, 14344, 9997, 13835.5, ISO 5079, 11566, ASTM D 3822, BS 4029
|

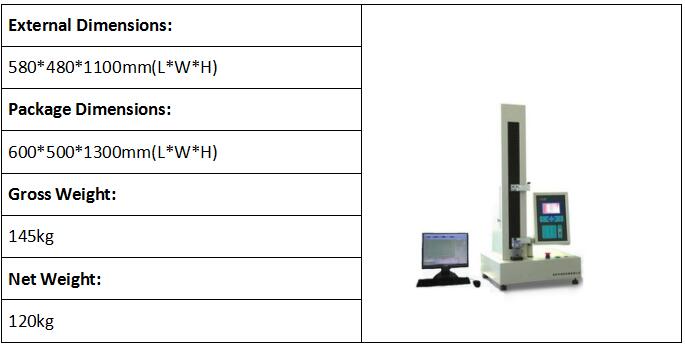

Dimensions
Feature
1.This machine equipped with AC servo system, low noise drive system, import high speed ball screw drive, ARM Cortex-M3 microprocessor(second generation), high speed bottom noise 24digit optical & electronic media converter(OEMC).
2.Testing speed: 1～20000mm/min
3.Sampling frequency: over 2000times/second
4.Test result will output automatically with the self-contained weighing system and printer .
5.The data will be analyzed by Professional software analysis system and the result can be saved into different form.
6.The machine and the software analysis system was connected by WiFi, which makes the wireless office into realization. The machine also can be controlled by tablet PC and computer.
7.This software adopt the Sqlite light database and zero-configuration operate, occupy low rate of computer resource and can response rapidly. Experimental data optimizing storage mechanism makes the data query, print and dispose convenient and efficient.
8.The software can update online.
9.Tensile curve of the raw wool pile and wool top under different speed.

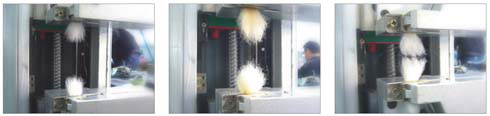

10.The pneumatic clamps won’t slip when during the high speed testing.

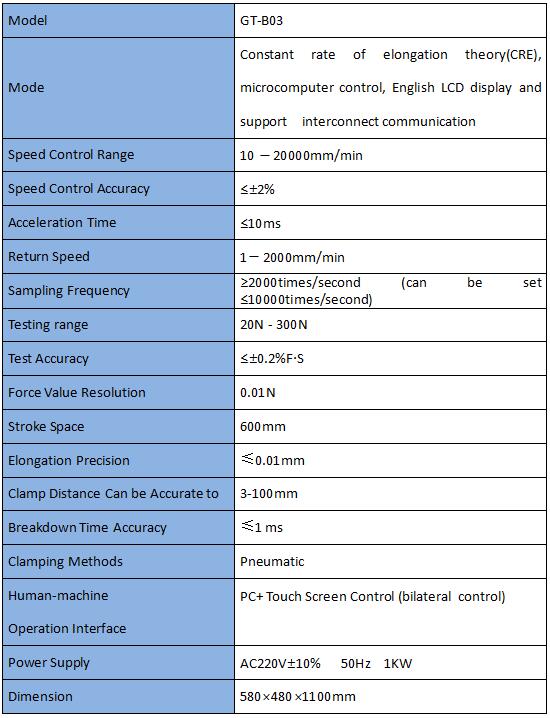

Key Specifications
