ⅠProduct features
Adopting ultra-high frequency broadband seamless interference technology.
Single switch technology controls power output.
8-channel output to counter more drone models.
Highly integrated shielding module, stable output, precise countermeasures.
High effective power (channel power) and long interference distance.
Effective segmentation, only interfering with drone control and video transmission frequencies, without causing interference to other frequencies.
Equipped with a built-in battery (plug-in design, detachable battery).
Two external high-power fans for better heat dissipation.
Imported components and slow start circuit design can avoid ignition caused by mechanical switches, with high integration and stable operation.

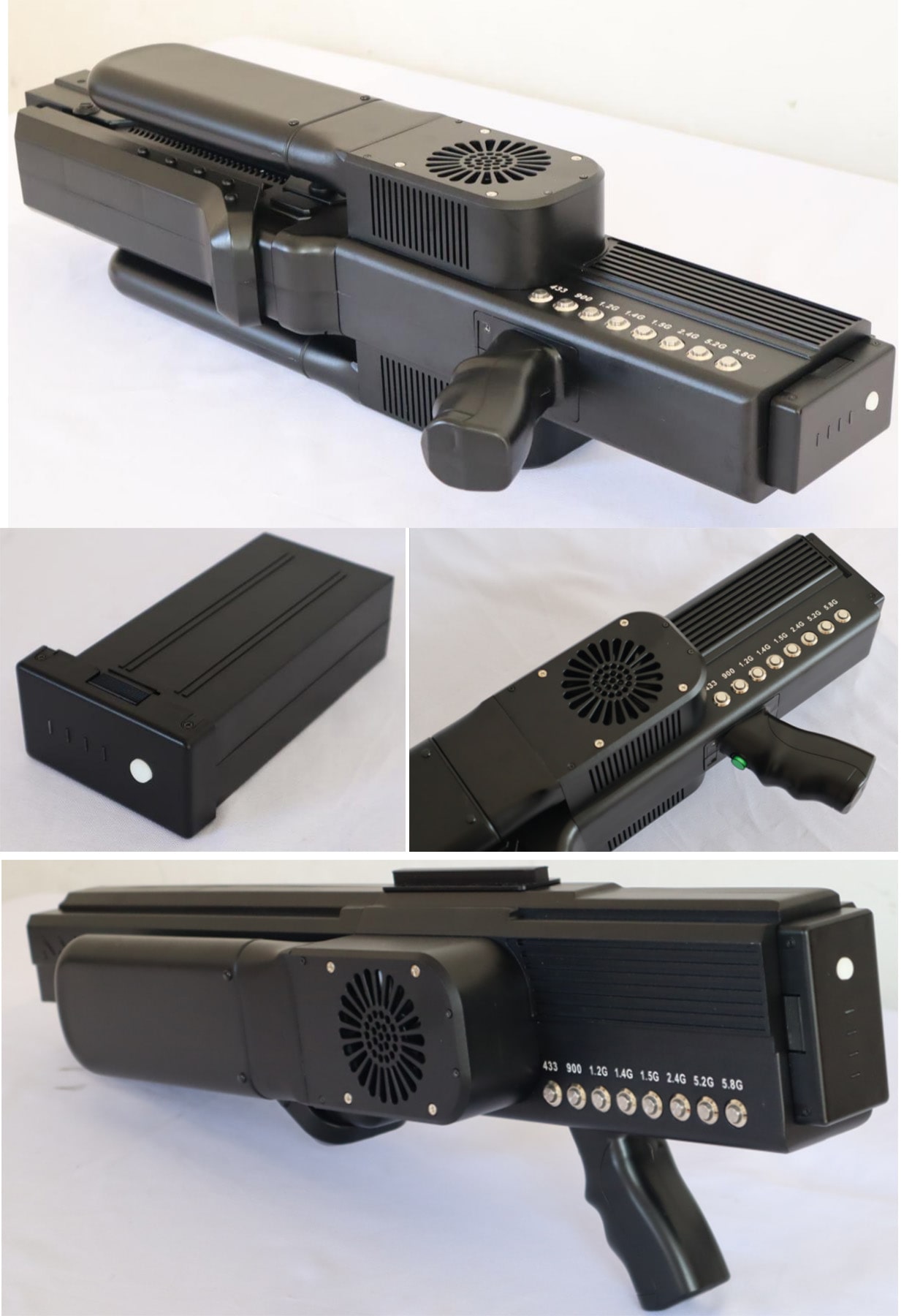

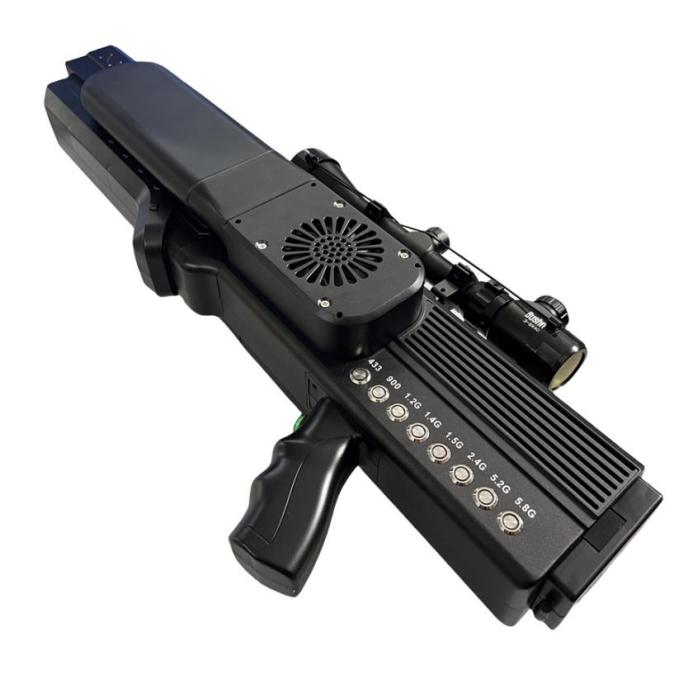

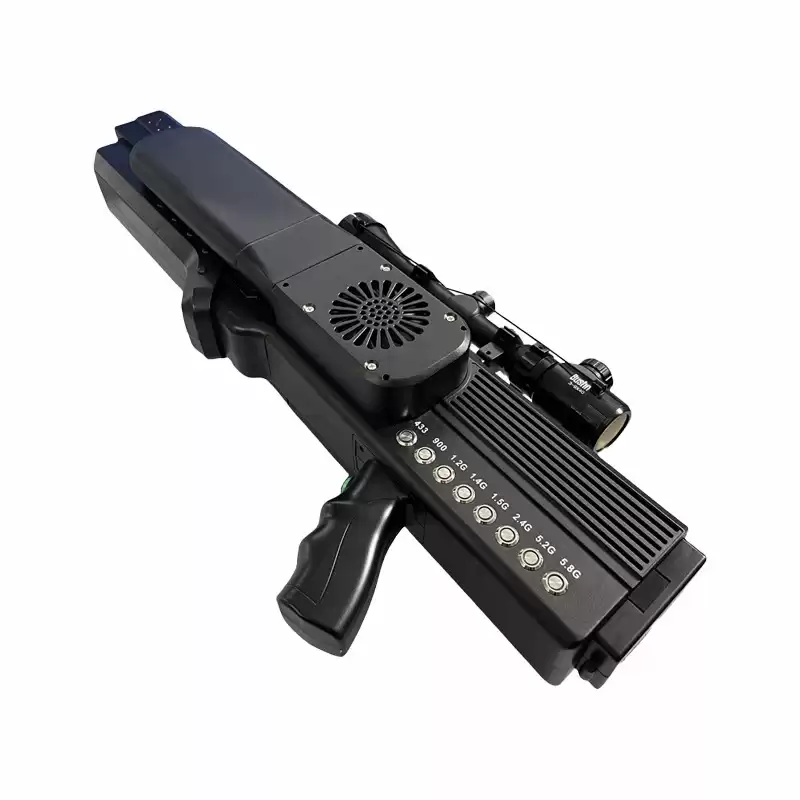

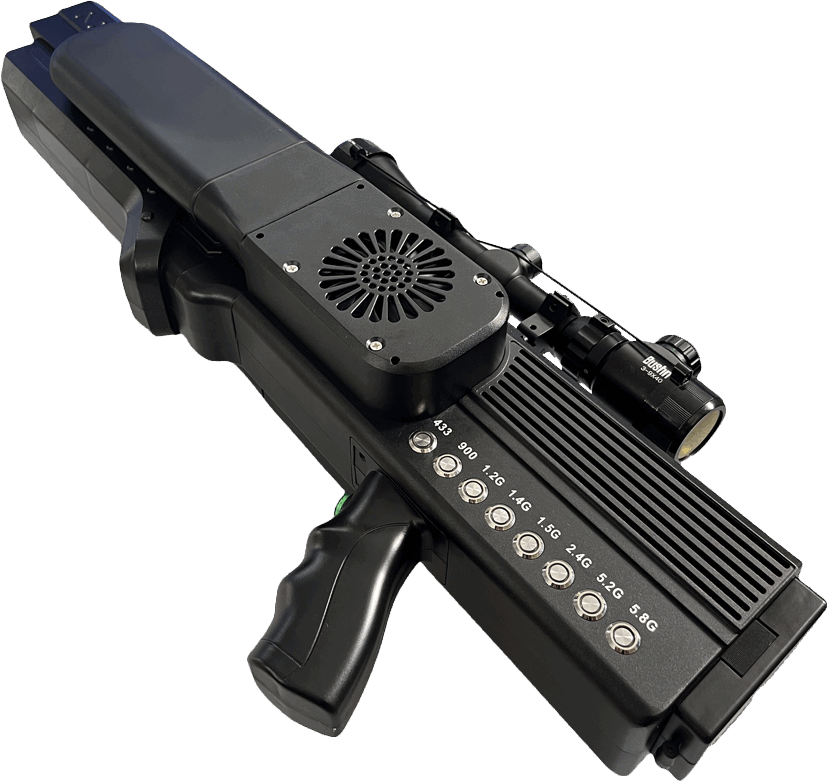

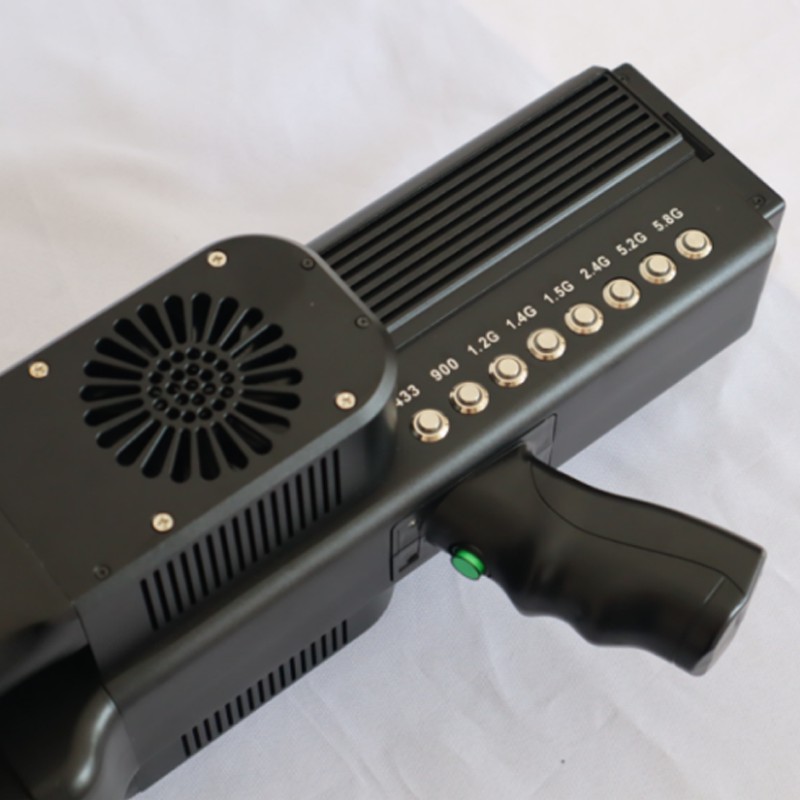

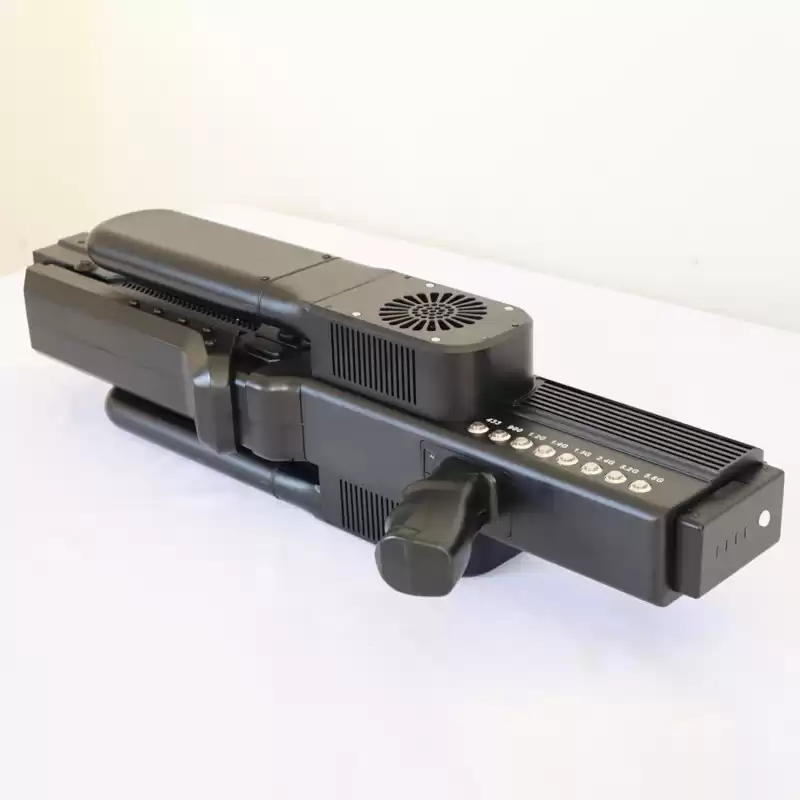

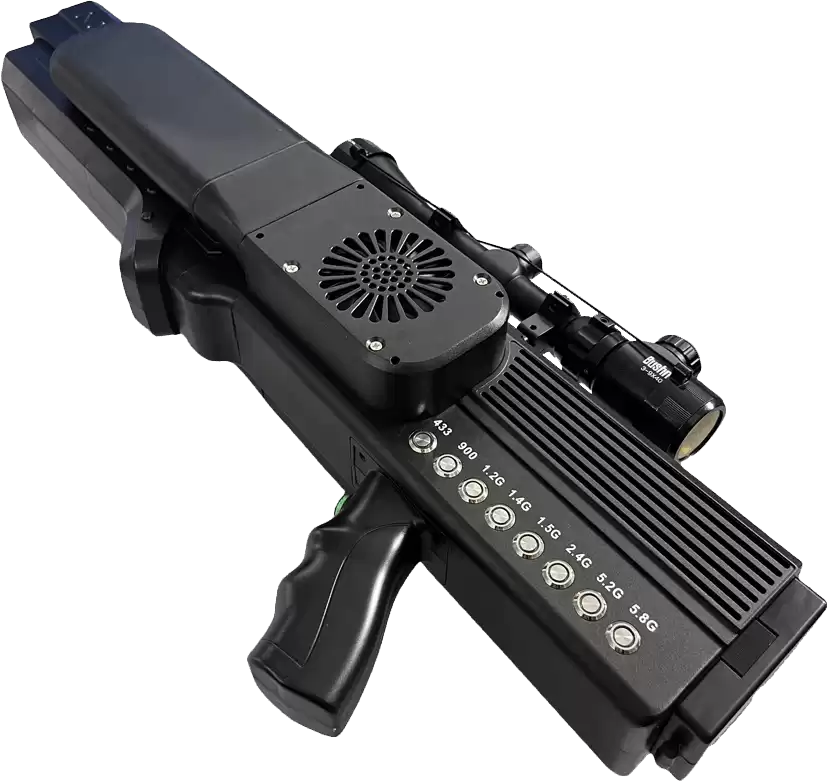

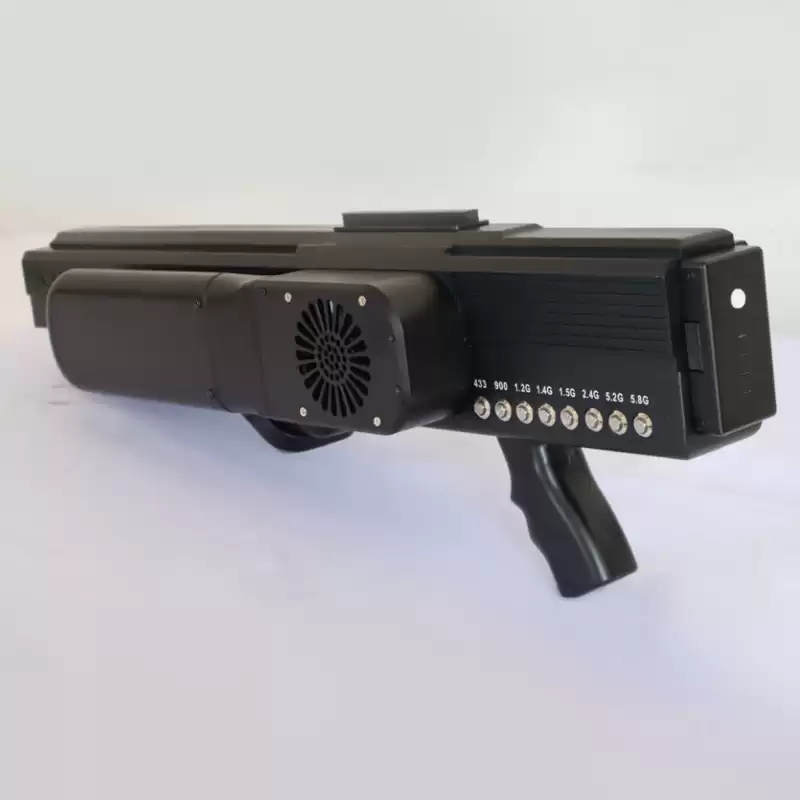

Ⅱ Product photo
Ⅲ Technical parameter
|
Output Terminal
|
Working Frequency
|
Output Power
|
|
433M
|
433MHz
|
40dBm
|
|
900M
|
860-930MHz
|
43dBm
|
|
1.2G
|
1180-1280MHz
|
40dBm
|
|
1.4G
|
1400-1450MHz
|
40dBm
|
|
1.5G
|
1550-1620MHz
|
40dBm
|
|
2.4G
|
2400-2500MHz
|
46dBm
|
|
5.2G
|
5150-5350MHz
|
45dBm
|
|
5.8G
|
5725-5850MHz
|
45dBm
|
|
Battery: 7A Power: 29.4V 2A
|
|
Host weight: around 6Kg Weight with package: around 13.5Kg
|
|
Size (width x height x length): 72.30.15 (host 7.5+fan 7.5) cm
Outer box size: 80 · 47 · 26cm
|
|

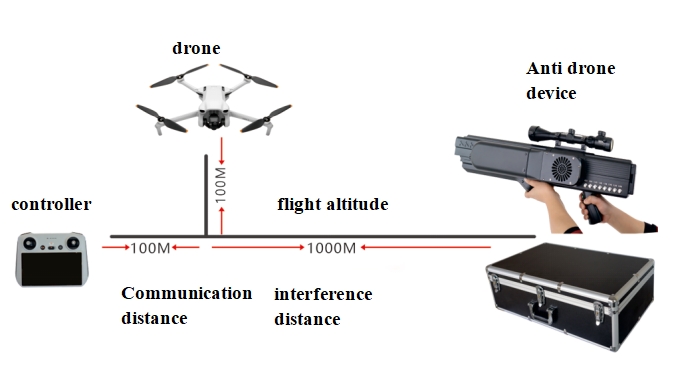

Interference distance: 500-1200M (depending on the model of the drone and the distance between the drone and the pilot)
|

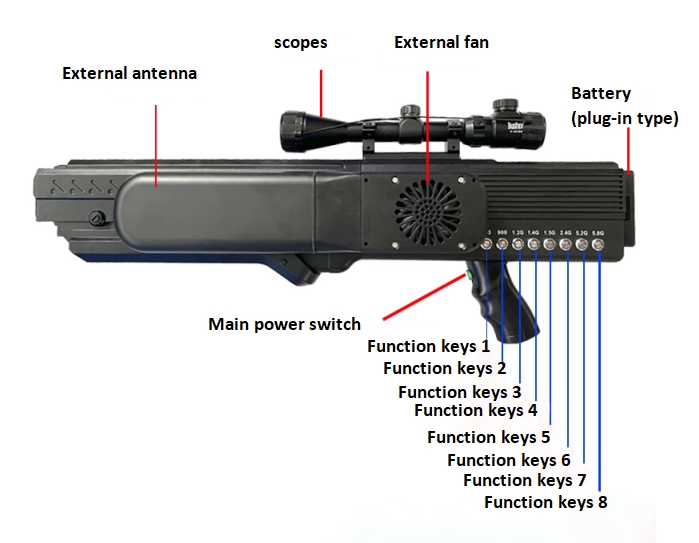

Ⅳ Usage
Equipment usage instructions:
1. Before using, check if the device is in good condition and the battery level, then fully charge the battery
2. Push the battery into the battery slot and confirm that the battery is securely fastened
3. Turn on the green main power switch
4. Open the function keys 1/2/3/4/5/6/7/8 in sequence, the indicator light will turn blue, and the device will start working.
5. Handheld device, aimed at the direction of the drone that needs to be countered, with the help of a sight.
ⅤRelated technologies
Wireless communication must ensure sufficient signal-to-noise ratio in order to effectively receive and complete communication. The communication signal jamming generates interference signals on the same frequency as the drone's reception to disrupt the drone's reception conditions, cut off the communication connection between the drone and remote control transmission, and achieve the effect of interfering with communication.
The interference power is constant, and the shielding radius of unobstructed space is determined by both path attenuation and the level of control remote control transmission signals.

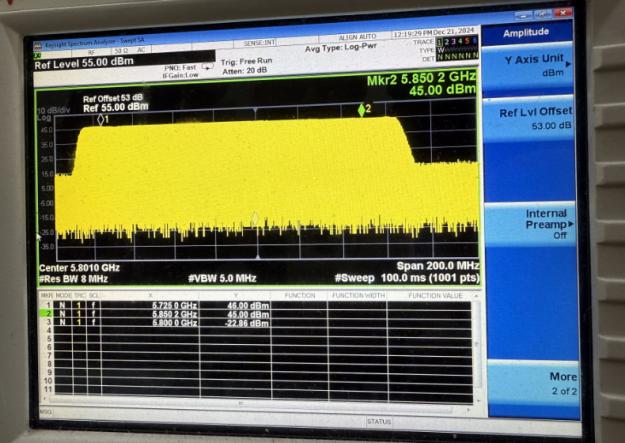

Ⅵ Testing tools
Spectrum instrument
(Test frequency and power: 9kHz-7.5GHz)
Ⅶ Use result show
Ⅷ Application scenes
1. Government departments: prisons, courts, police stations, other law enforcement agencies.
2. Infrastructure: gasoline stations, oil depots, natural gas stations, airports, drug enforcement departments, security departments, etc.
3. Public facilities: sports venues, important events, etc.
4. Transportation equipment: shipping docks, yachts, etc.
5. Detention centers, schools, libraries, examination centers, churches, hospitals, etc.
6. Private villas, various private places, etc.
Ⅸ Precautions
1. Due to the high power consumption when all frequency bands are turned on, please try to keep it open for 5 minutes to save power.
2. Please ensure that the device has sufficient battery before use to ensure normal operation.
3. Please ensure that the shielded frequency band is suitable for personal use purposes to improve product efficiency.
4. Please refrain from using the device while charging.
5. Please try to avoid obvious obstacles between drone countermeasures and drones.
