POT Series Soft Mn-Zn Magnetic Ferrite Core for Electronic Transformers and Chokes

POT Series Ferrite Core has small size,high inductance,easy winding,high inductance per unit space,magnetic shielding and cooling effect of a balanced.



Quick Details

Part Number: POT Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core

OEM: Available

Features: High-frequency,low power lossHigh Q value,high permeability

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: POT Series Soft Mn-Zn Magnetic Ferrite Core for Electronic Transformers and Chokes

Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.

Applications: High Sensitivity/Efficiency Sensor.Power Conversion Transformer. High frequency switching transformers.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

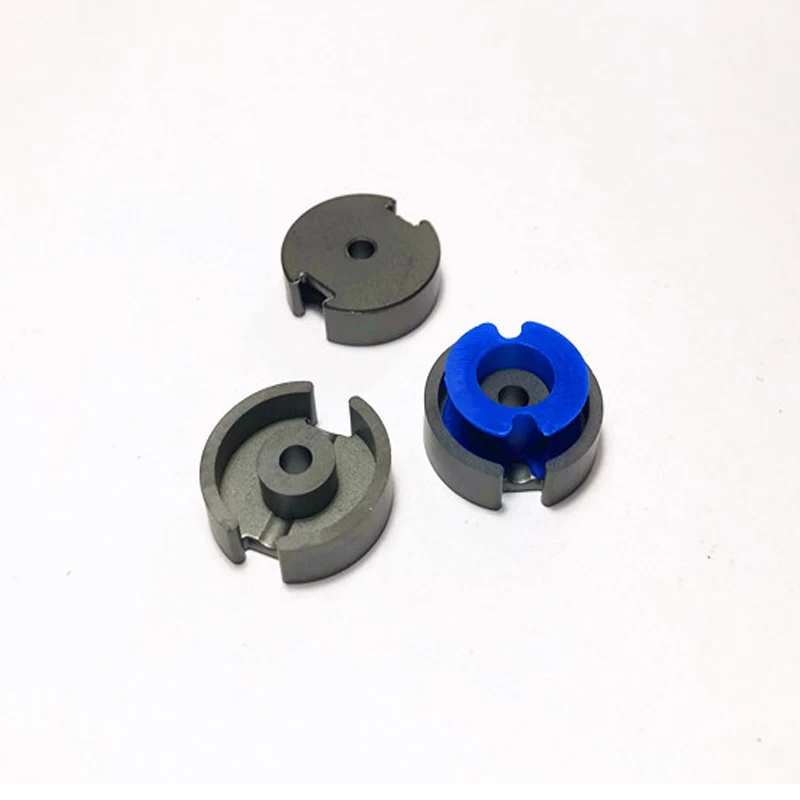

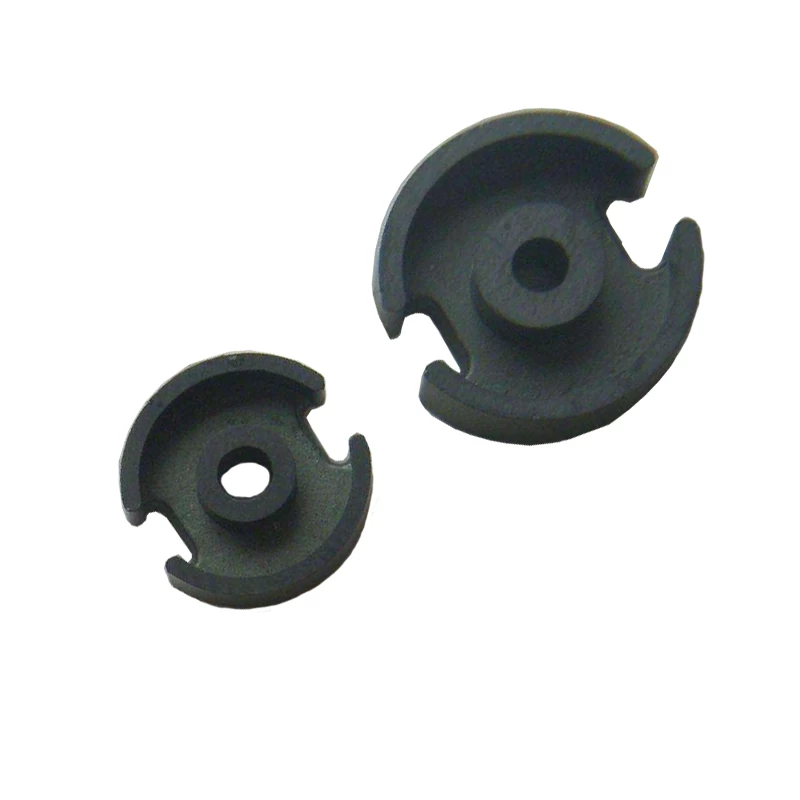

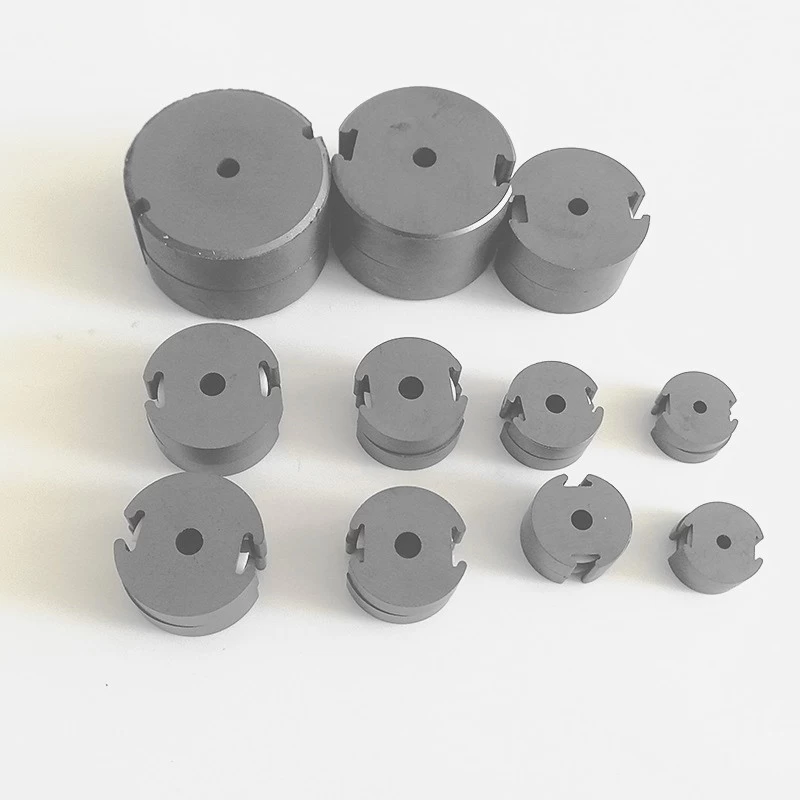

POT Series Power Core with High Frequenvy and Low Loss, High Permeability

Switching power transformer cores POT type core


TYPE

Dimension:mm

Weight:g

A

B

D1

D2

D3

D4

H1

H2

P0507

4.5±0.2

1.5±0.1

5.3-0.2

4.5+0.2

2.2+0.2

 0.9+0.2

7.2-0.2

5.4+0.2

P0704

5.5±0.5

1.6±0.3

7.4-0.4

5.8+0.25

3-0.2

1.4+0.1

4.2-0.2

2.8+0.2

P0905

6.5±0.25

2.0±0.2

9.3-0.3

7.5+0.25

3.9-0.2

2.1±0.1

5.4-0.3

3.6+0.3

1.0

P1107

6.8±0.25

2.2±0.3

11.3-0.4

9+0.4

4.7-0.2

2.1±0.1

6.6-0.3

4.4+0.3

1.7

P1408

9.5±0.3

2.7±1.2

14.3-0.5

11.6+0.4

6.0-0.2

3.1±0.1

8.2+0.3

5.6+0.4

3.5

P1811

13.4±0.3

3.8±0.6

18.4-0.8

14.9+0.5

7.6-0.3

3.1±0.1

10.6±0.2

7.2+0.4

8.0

P2213

15.0±0.4

3.8±0.6

22-0.8

17.9+0.6

9.4-0.3

4.4+0.3

13.4±0.2

9.2+0.4

14.0

P2616

18.0±0.4

3.8±0.6

25.5±0.5

21.2+0.8

11.5-0.4

5.4+0.2

16.1±0.2

11.0+0.4

23.2

P3019

20.5±0.5

4.3±0.6

30.0±0.5

25+0.8

13.5-0.4

5.4+0.3

18.8±0.2

13.0+0.4

39.0

P3622

26.2±0.6

4.9±0.6

36.2-1.2

29.9+1

16.2-0.6

5.4+0.2

21.7±0.3

14.6+0.4

64.0

P4226

32.0±0.7

5.1±0.6

42.4±0.7

35.6+1.4

17.7-0.6

5.4+0.2

29.4±0.1

20.3+0.4

108.0

P4830

8.0

48.5-2.1

39.6+2.2

20.2-1.0

5.2+0.5

29.8±0.6

20.3+0.6

147.0

P5936

59.0+1.5

50.0±1.0

24.4±0.3

5.5±0.3

36.4±0.3

25.0±0.6

220.0

P6928

10.5±0.5

4.8±0.8

69.0±1.0

58.4±0.8

29.0±0.5

8.65±0.3

28.0±0.5

18.6±0.6

286.0

P8060

80.0-3.3

69.0±1.4

33.0±0.5

9.0±0.5

60.0±0.3

44.6±0.6

P112/60

112±3.8

100±3.8

42.0±1.5

11.0±0.6

60.0±1.3

44.6±0.6


TYPE

Effective parameter

AL(nH/N2)(AL±25%)

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

P0704

1.43

7.0

10.0

70

 460min

P0905

1.25

10.1

12.5

126

820min

P1107

0.96

16.2

15.5

251

1070min

P1408

0.79

25.1

19.8

495

1390min

P1811

0.60

43.3

25.8

1120

1970min

P2213

0.50

63.4

31.5

2000

2340min

P2616

0.40

93.9

37.6

3530

2970min

P3019

0.33

137.0

45.0

6190

3840min

P3622

0.26

202.0

53.2

10700

5200min

P4226

0.259

265.0

68.6

18200

6000min

P4830

0.22

337.8

73.2

24730

6800min

P5936

0.18

485.0

88.0

42600

6900min

P6928

0.13

614

81.5

P8060

P112/60
