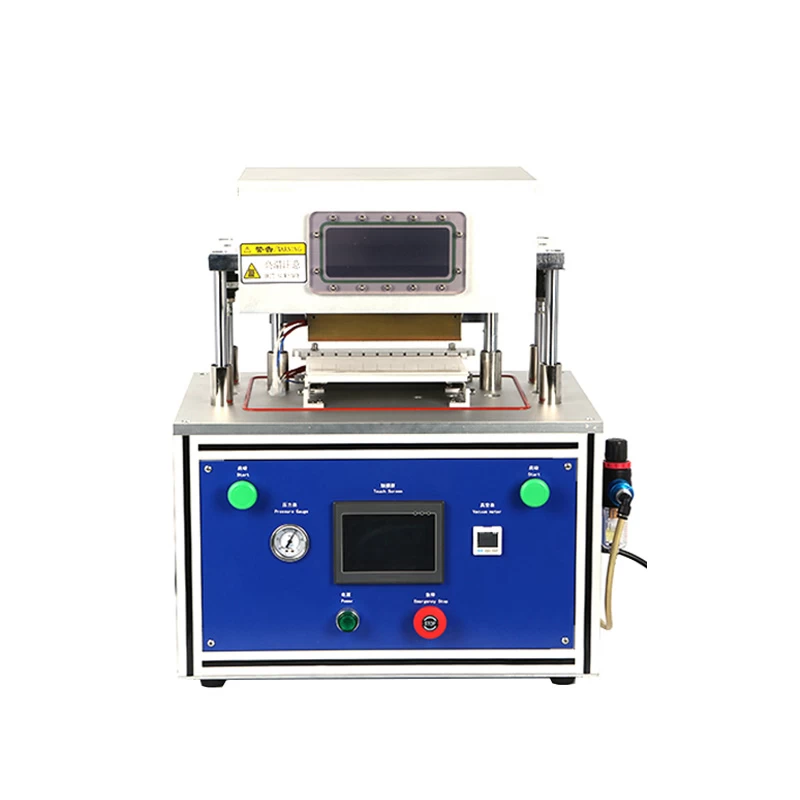

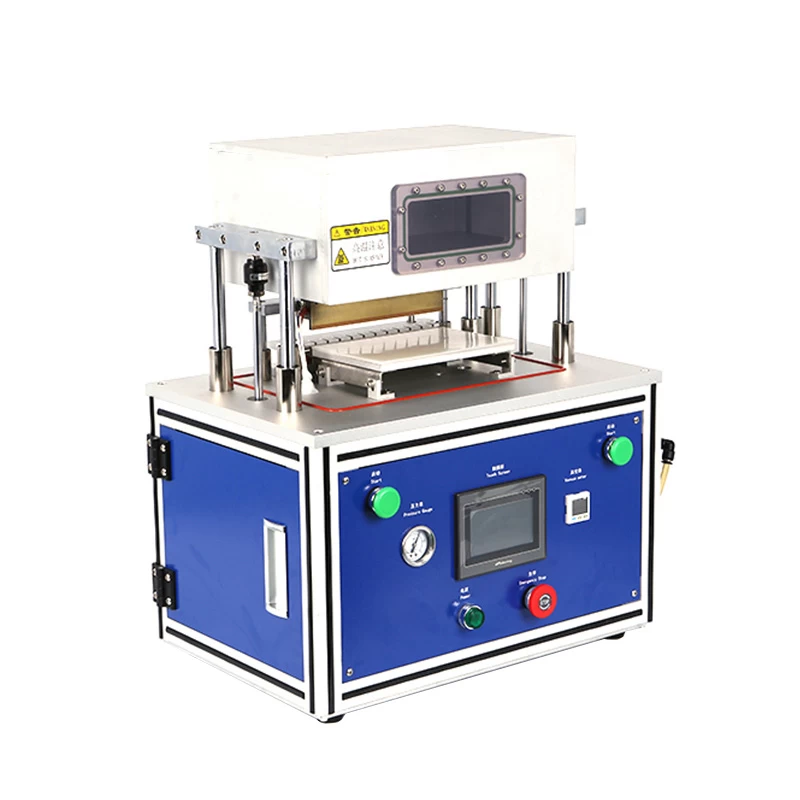

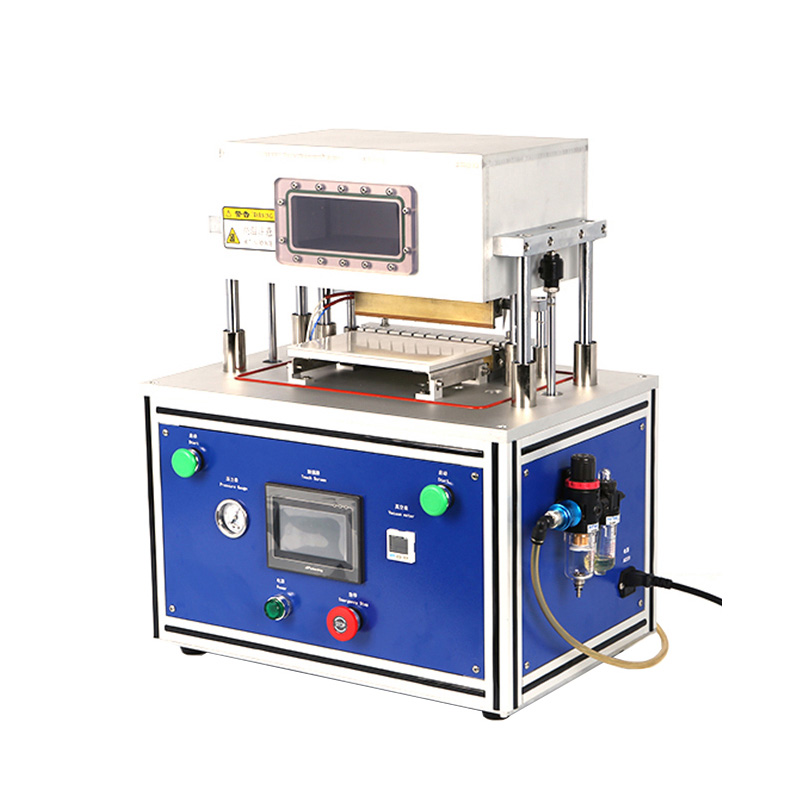

Pouch Cell Battery Secondary Vacuum Sealing Machine After Electrolyte Filling

This vacuum hot sealer machine is used for lithium pouch cell vacuumizing and final heat sealing after filling and electrolyte diffusion process.



Pouch Cell Battery Secondary Vacuum Sealing Machine After Electrolyte Filling


Features :

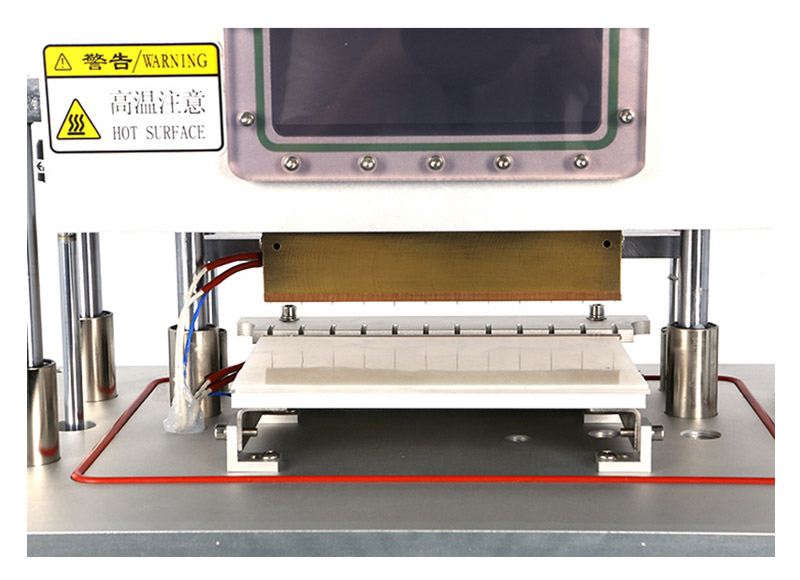

1. The sealing head is made of copper material so that the heat transfer effect is good to save
power consumption , improve work efficiency and more energy-saving than
other similar products.
2. Pressure of upper and lower sealing heads can be regulated by pressure regulating valve to meet different technological parameter demands.
3. The lower and upper sealing heads are driven by cylinder through two linear-guide bushes that makes them move up and down flexibly and ensures the parallelism demand after sealing.
4. It’s designed with puncture function.
5. The lid of chamber is driven by cylinder through linear-guide bushes that makes them flexibly and ensures the good sealing.
6. It can be used for different battery, easy adjustment.
7. Simple operation, nice appearance, small size, light weight

Specification:

Model

Vacuum Final Hot Sealing Machine for Pouch Cell

Chamber material

The chamber is made from Aluminum alloy, non-corrosive

Vacuum degree

≤-95Kpa (Buyer prepare vacuum pump)

Sealing head temp

RT-250℃, adjustable

Temp accuracy

±1.5℃

Heat sealing pressure

0~7Kg/cm2 (adjustable)

Heat sealing time

0~99s adjustable

Sealing width

5mm, Can be customized

Max sealing size

200mm

Sealing head flatness

Test by triple carbon carbonless paper, set the head air pressure at 0.6MPa, the temperature at 200 degrees, the extrusion of the seal evenly

Air compressor working speed

≥180 tims/h

Power

300W heating pipe, the power consumption around 600W when heating .

Power supply

AC220V/50Hz or Customized.

Compressed air

0.5~0.7Mpa

Max battery size

200mm*180mm*15mm (Please contact us for large size )

Dimension(L*W*H)

515mm*350mm*505mm

Weight

56KG

Pouch cell battery vacuum pre-sealing machine for lab research used in glove box

Battery Vacuum Heat Sealing Sealer Machine Used For Pouch Cell Second Final Sealing

Simple Vacuum Packaging Machine Vacuum sealer for Pouch Cell Sealing

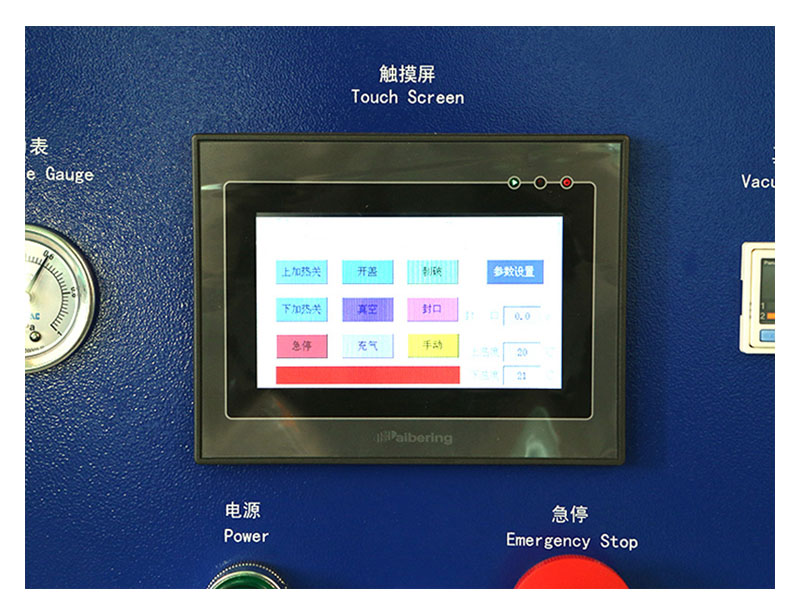

Note: This Control Panel Has English Version.(We will set it before Equipment ship out)
