Power Supply Transformer EC28 Horizontal Bobbin

EC28 6+6 pins horizontal transformer bobbin. EC/ER28 coil inductor bobbin. Bobbin Size=29.0mmX28.0mmX24.0mm. Parallel Distance=25.0mm. Pin pitch=5.0mm. Phenolic material transformer Bobbin. DIP transformer bobbin. UL REC:94V-0.



2018 new design ER/EC28 horizontal coil bobbin, 6+6 pins coil former ER28, we accept small order and OEM service. Samples can be sent in 5 days.

Quick Details

Part Number: MCT-EC2853

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: Power Supply Transformer EC28 Horizontal Bobbin

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

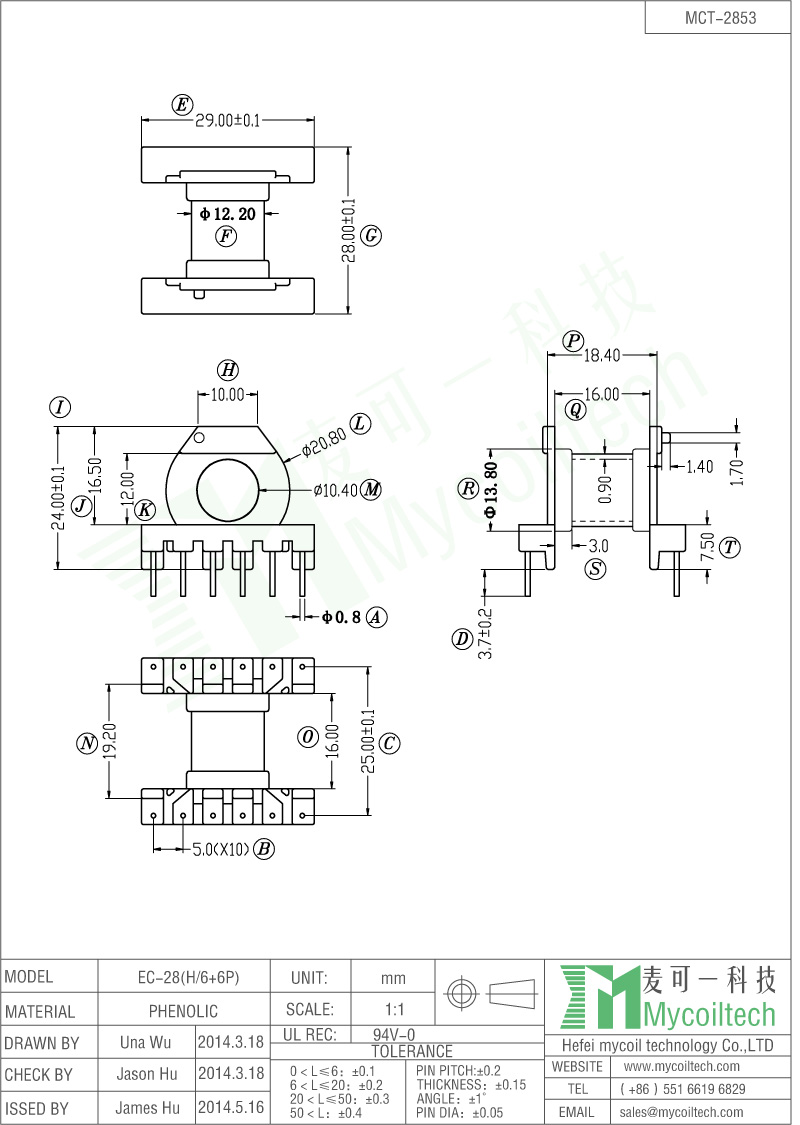

Product Specification

EC28 horizontal transformer bobbin wholesale
