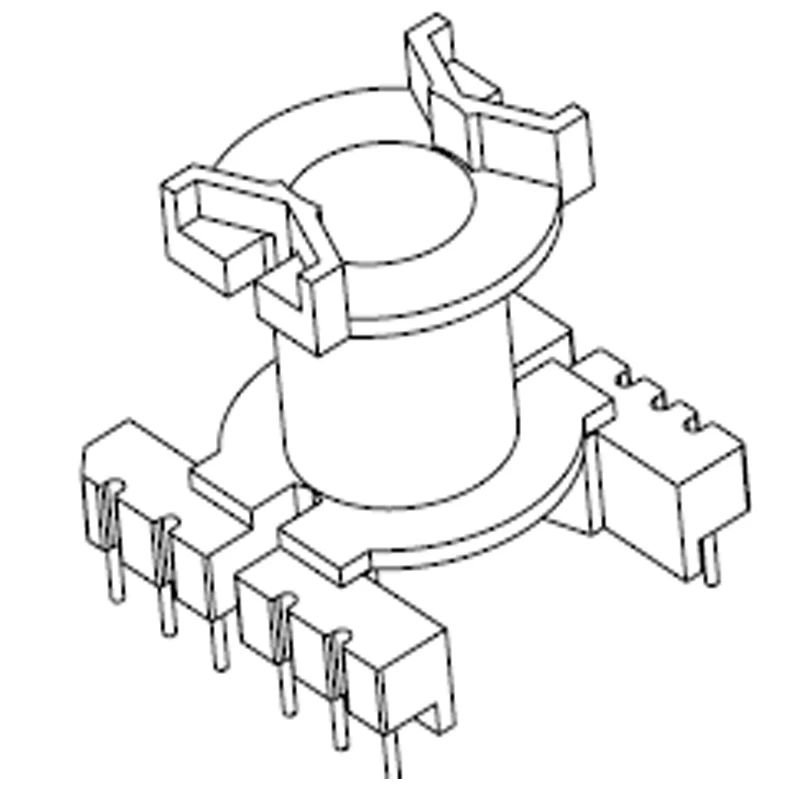

PQ20 Power Supply Transformer Vertical Bobbin 6+8 Pins

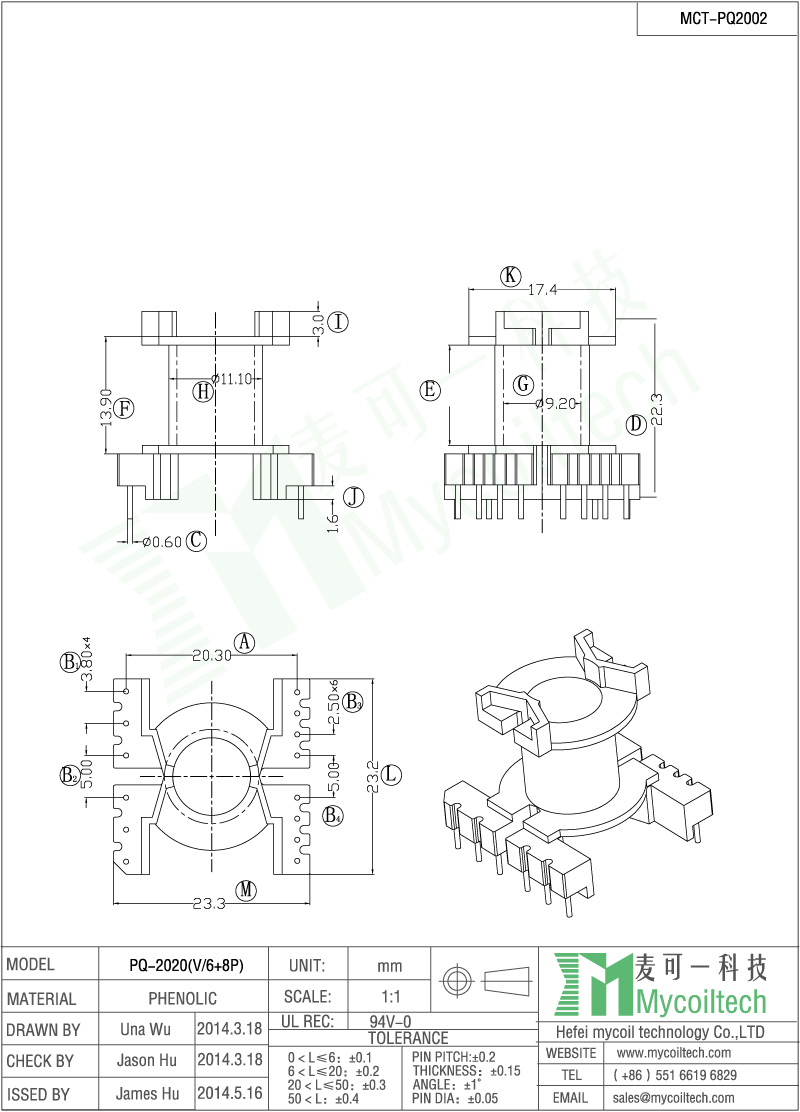

PQ20 vertical transformer bobbin. PQ20 coil former made of phenolic material. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Parallel Distance=20.3mm. Size=23.3mmX23.2mmX22.3mm. We can make bobbin tooling.



We are professional transformer bobbin factory, we use modern machinery to manufacture our bobbin products. If you are looking for competitive price PQ20 phenolic transformer bobbin, welcome to contact us.


Quick Details

Part No: MCT-PQ2002(V6+8P)

Brand Name: MCT

Material: Phenolic

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: PQ20 Power Supply Transformer Vertical Bobbin 6+8 Pins

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: switching power supply transformers, toroidal inductors, choke coils, high frequency transformers, filters.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.

Advantages: Professional transformer winding bobbin factory, complete specifications.

Our Factory is made up of 500 people, huge output can be finished every day.

All materials are environmental protected. We accept custom made and design service.



Any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu



Product Specification

PQ20 bakelite transformer bobbin 6+8 pin
