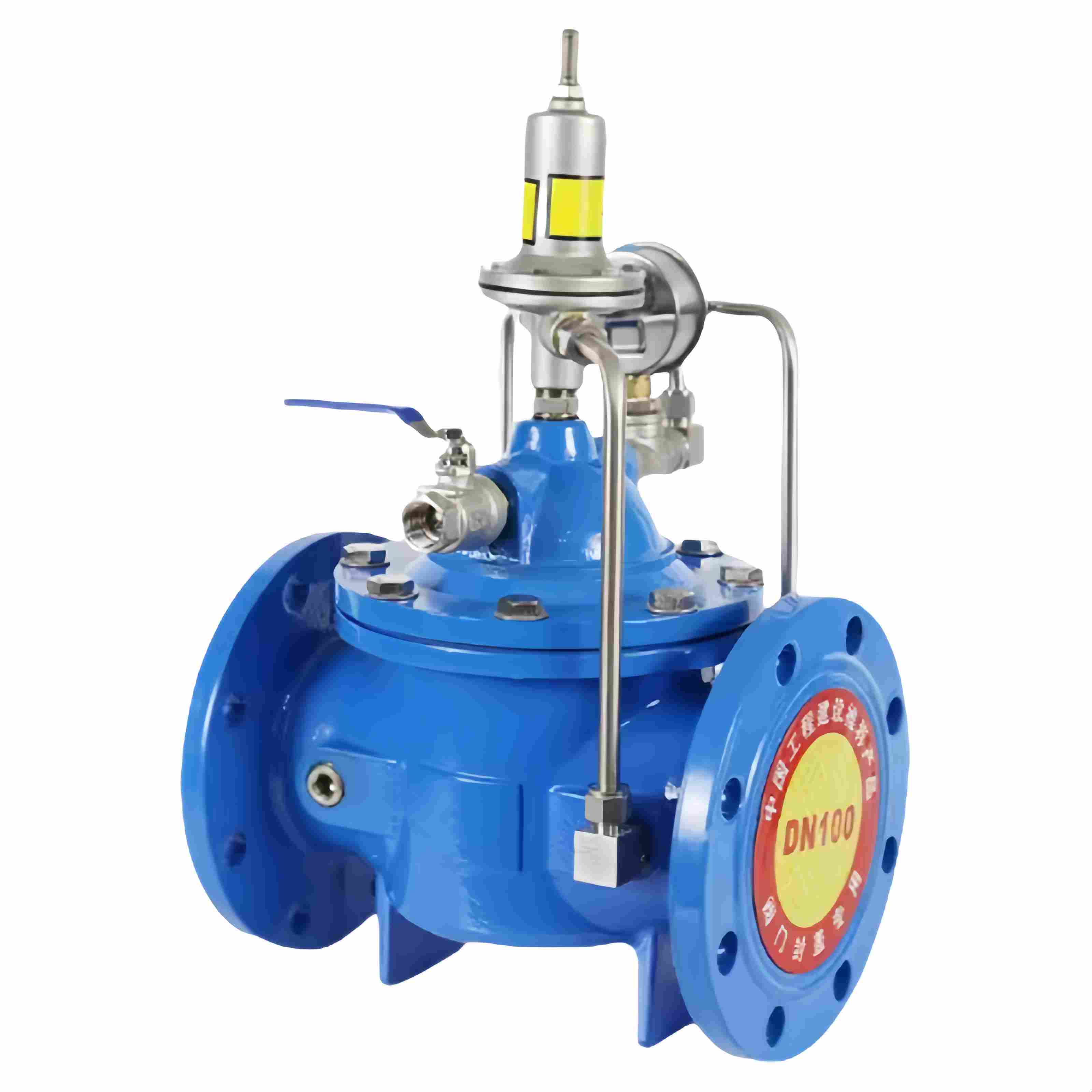

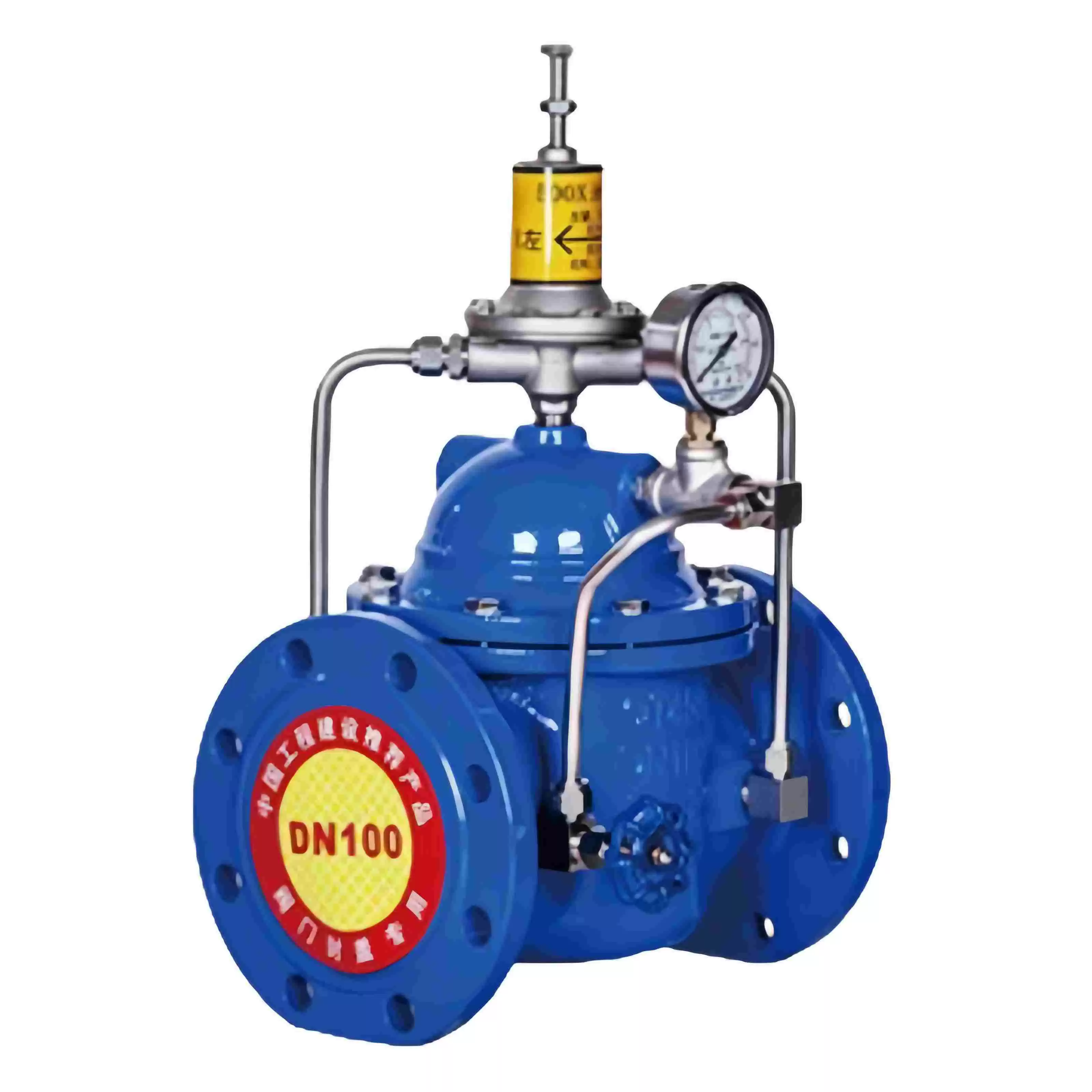

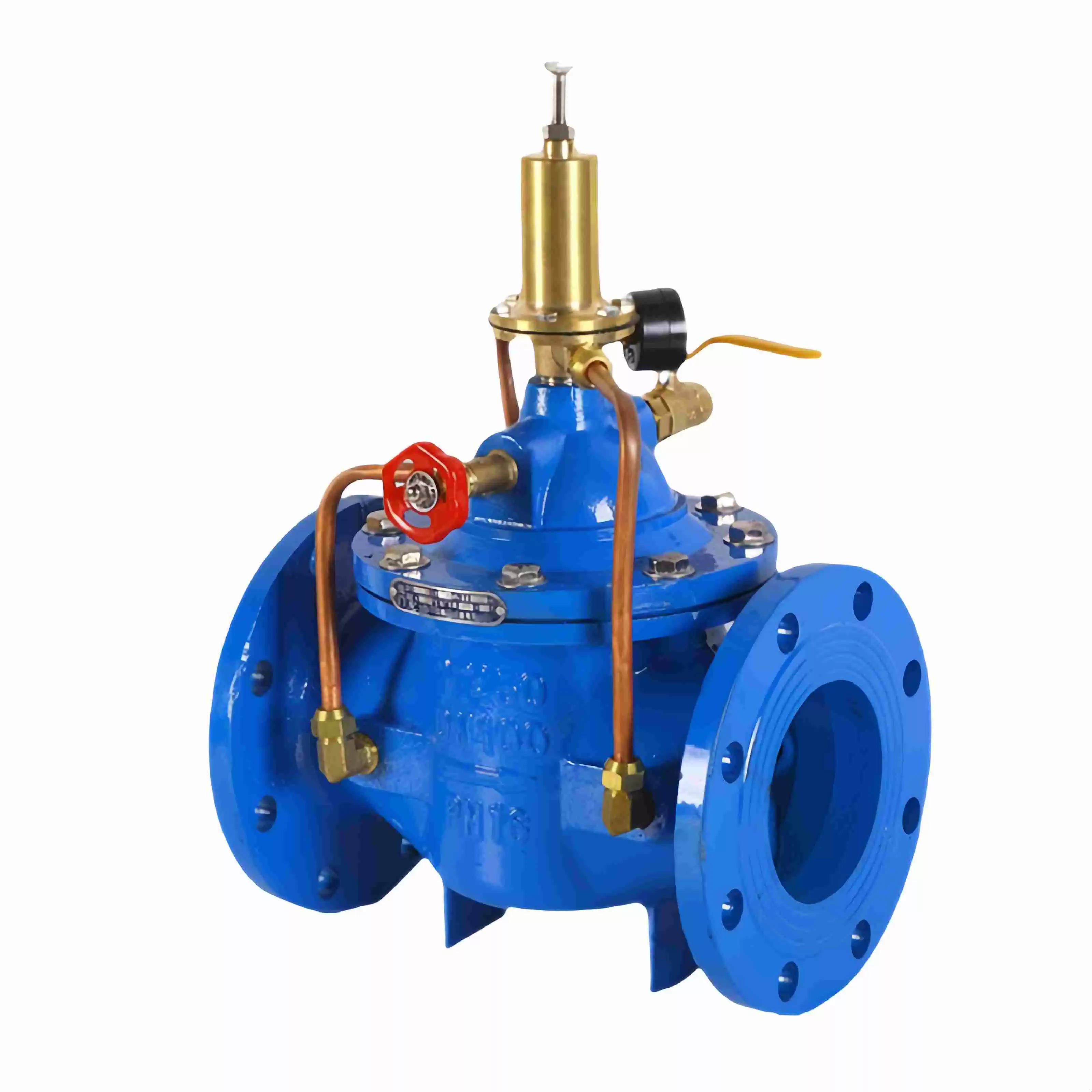

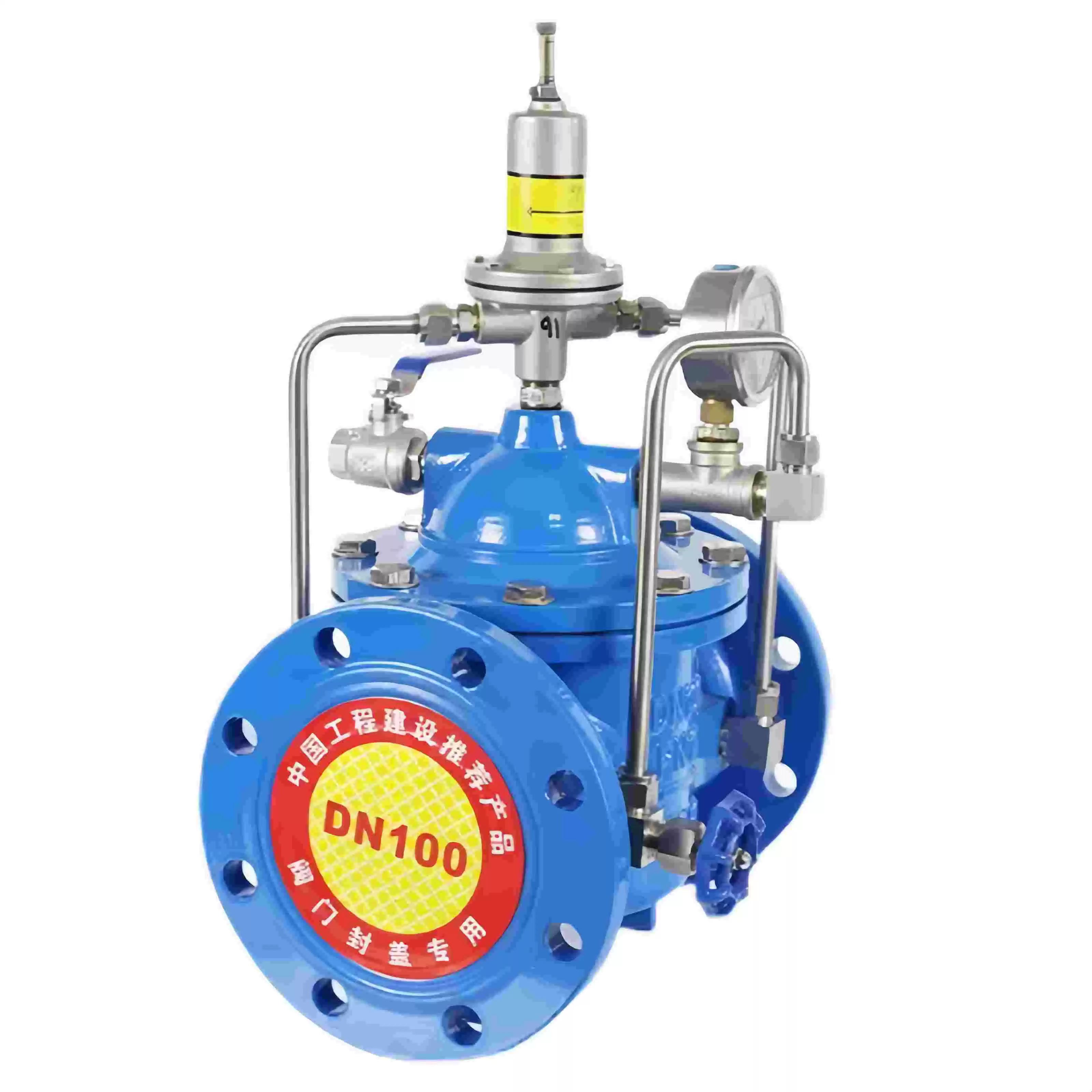

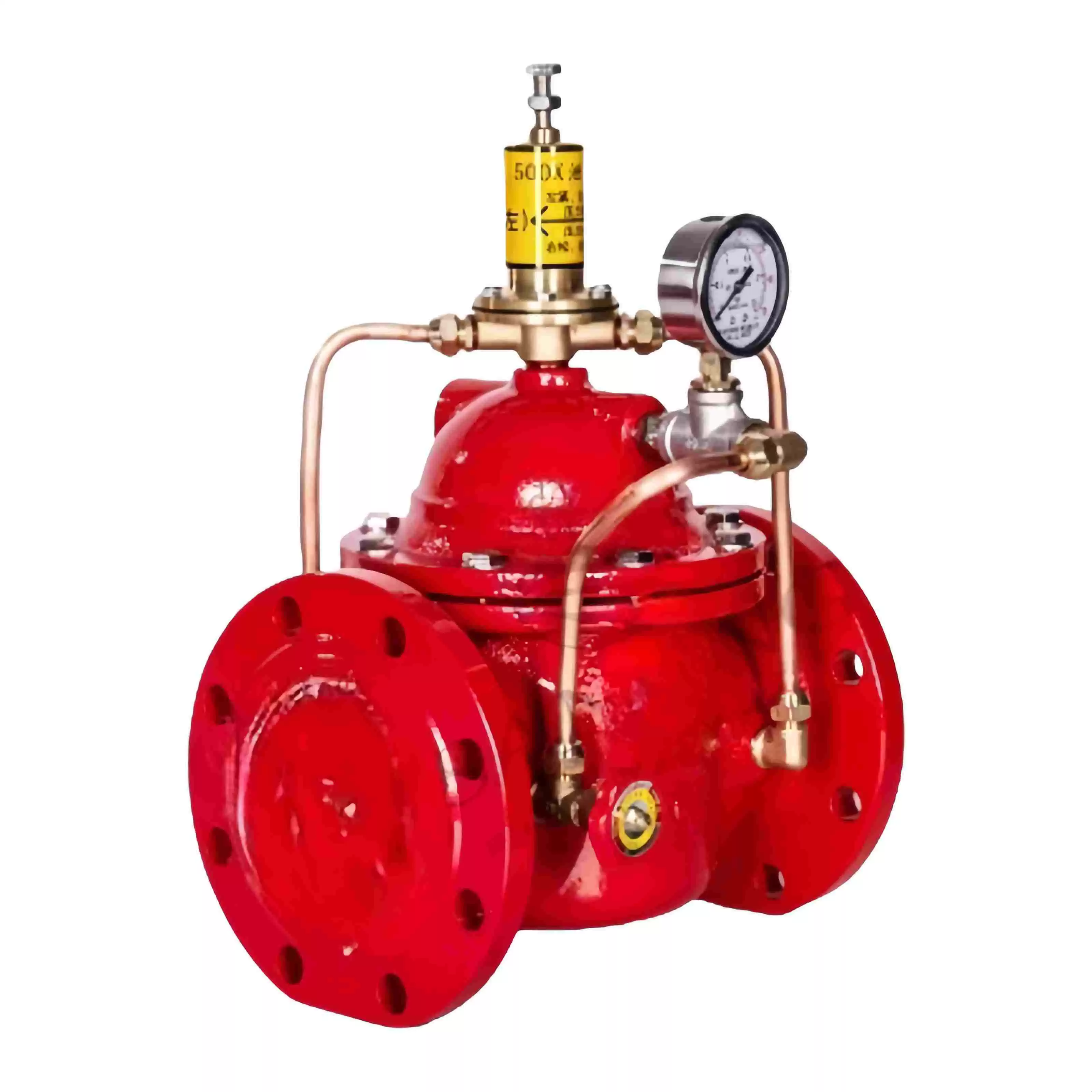

Pressure Relief Valve for Fire Fighting Systm

The 500X pressure relief/pressure holding valve is mainly used in fire protection or other water supply systems to prevent system overpressure or maintain the pressure of the fire protection water supply system. Ensure the unobstructed circulation of the system to enable the valves to operate safely and reliably



Product Description

The 500X pressure reducing valve is a pilot-operated, diaphragm type pressure reducing valve. Its core function is to reduce and stabilize the fluctuating high inlet pressure at a set, lower and stable outlet pressure, regardless of how the inlet pressure changes or how the downstream flow demand alters.

The 500X pressure relief/pressure holding valve is composed of a main valve, a pressure relief/pressure holding pilot valve, a needle valve, a ball valve, and a pressure gauge. It is automatically operated by a hydraulic control connection system and can be used as both a pressure relief valve and a pressure holding valve. When used as a pressure relief valve, it can maintain the pressure of the water supply line below the set safety value. It can be used as a pressure-holding valve to maintain the water pressure upstream of the main valve above the set value and keep the water supply pressure upstream of the main valve. It is an upgraded and replaced product of the spring-loaded safety valve.

Features

 • High-precision control

 • Wide pressure reduction ratio: Capable of handling high inlet pressure and reducing it to a very low outlet pressure

 • Flow independence: Within a certain range of flow variation, it can automatically adjust the opening degree to maintain the outlet pressure basically constant.

 • Reduce pressure without reducing flow

 • Convenient for maintenance

Product Parameter

Material Body Ductile Iron
Butterfly plate Ductile Iron
Stem Stainless Steel
Valve Clack Ductile Iron
Sealing  Ring Rubber
Working Pressure 1.0 Mpa 1.6 Mpa
Medium Temperature -10℃~80℃
Applicable Medium Fresh water etc

FAQ

Q:What’s the MOQ for pressure relief valve?

A:For standard sizes, our MOQ is usually 10 units. For large sizes or special requirements, the MOQ can be one unit. We are always willing to provide customers with flexible solutions.



Q:Can OEM services be provided? For example, putting on our brand Logo?

A:Of course! As a factory, we warmly welcome OEM/ODM cooperation.



Q:What is your payment terms?

A:Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.



Q:What is the delivery time?

A:The production usually takes 15 to 30 days. For large or special orders, it may take 60 days or longer. We will provide you with an accurate production plan after placing your order.



Q:Why choose us?

A:With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
