QTOUR  New Racing Carbon Road Integrated Frame R04

ADVANTAGES:

1, Material: Toho carbon fiber.

2, EPS foam molding process, inner smoothly, better strength.

3, Customized painting / Decals is acceptable.

4, Strict develop test and mass production test. (exceed 30% of ISO4210)

PRODUCTS DESCRIPTION:

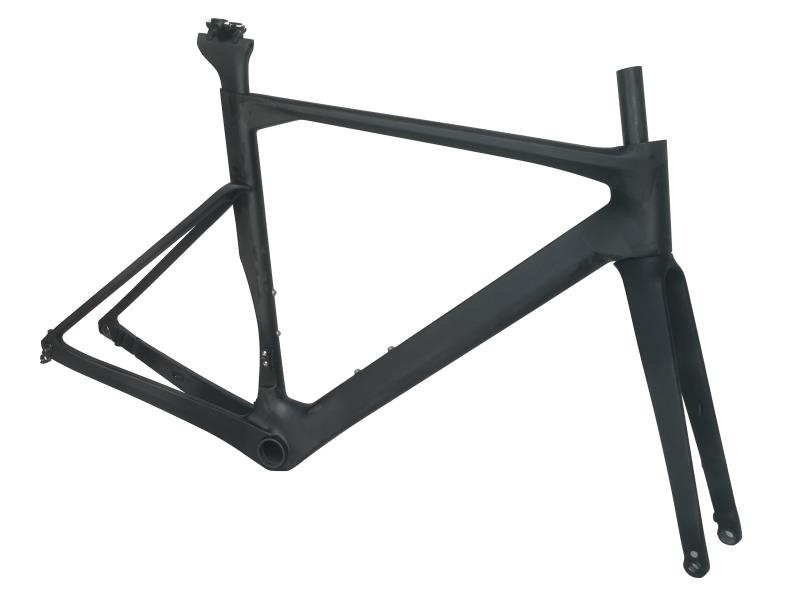

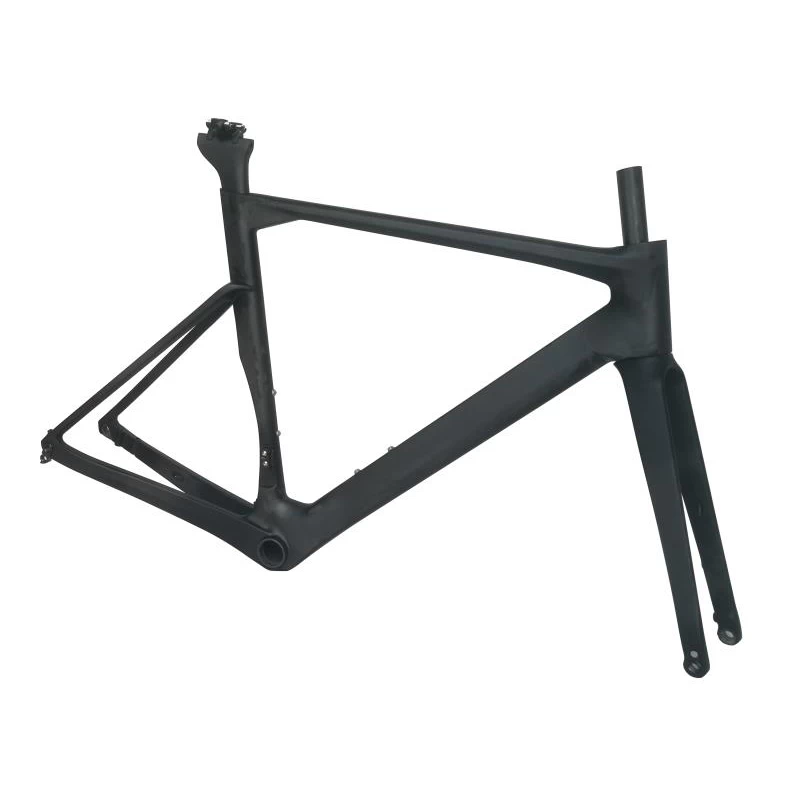

Light weight carbon fiber racing bike frame;

With two types, one is disc brake version, another is caliper brake version;

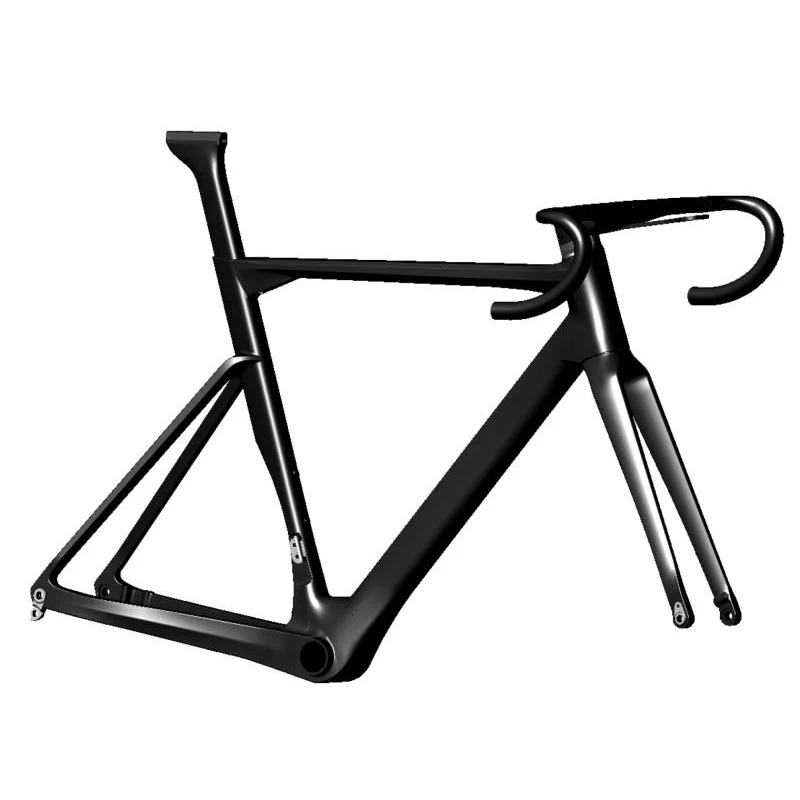

With aero design, it has specify setback adjustable seat post, with a integreate handlebar.

PRODUCT DETAIL:

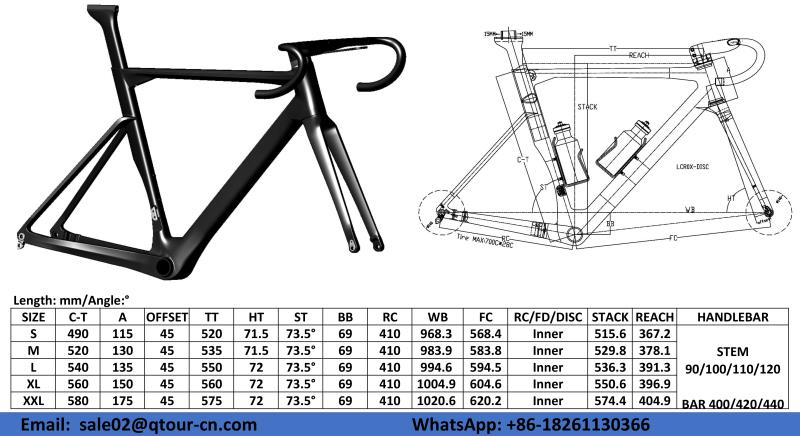

Frame: QTOUR 700C full carbon aero racing bike frame                              Model: R04 + F06 + P04 +HR03

Brake: Disc Brake (flat mount) / Caliper brake                                           Size: 490mm / 520mm / 540mm / 560mm /580mm

Headtube: straight 1-1/2''                                                                     Seatpost: Specify setback adjustable seatpost

Bottom Bracket: BB86 press fit                                                               Weight: Frame 1150g±50g

O.L.D (Frame): 142mm*φ12mm / 130mm*φ10mm                                   Test Standards:ISO4210

O.L.D (Fork): 100mm*φ12mm / 100mm*φ9mm                                        Warranty: 2 years

Finish: UD matt / glossy (customized painting acceptable)

OUR FACTORY:
1, QYH Carbon frame (QTOUR) position ourself as the high end carbon frame manufacturer.
    Our plant covers 8.5 acres, 42,000m2 workshop, 450m2 testing room.
2, Production Capacity per year：
120,000 sets Carbon Bicycles Parts,
(Include Carbon Frame, carbon e-bike frame, carbon Rim, carbon Fork, carbon Handlebar ect)
3, We have over 10 years production experience in carbon fibre business.
4, We have the creative carbon fibre stress calculation model, and in the mean time applied the xpoxy resin ratio,
    laser cutting tech, EPS foam molding, monocoque and robot painting equipments.
5, We covers the whole production process: design resin formulation, make pregpreg cloth, molding, painting.
6, Small order and sample order are accepted, OEM & ODM avilable too.

Test Standards: ISO4210. In order to make our products more stiff and strong we have raised up 30% for strict test.
