Construction Conductor Tin Plated Copper (TPC) Silver Plated Copper (SPC) Silver Plated Copper Covered Steel (SCCS) Copper Covered Steel (CCS)
Dielectric PEEK Frequency range Up to 200 MHz
Screen Multi-layered composite braids and foils
Sheath PEEK
Vp 56%
Colour code Natural Sheath Natural

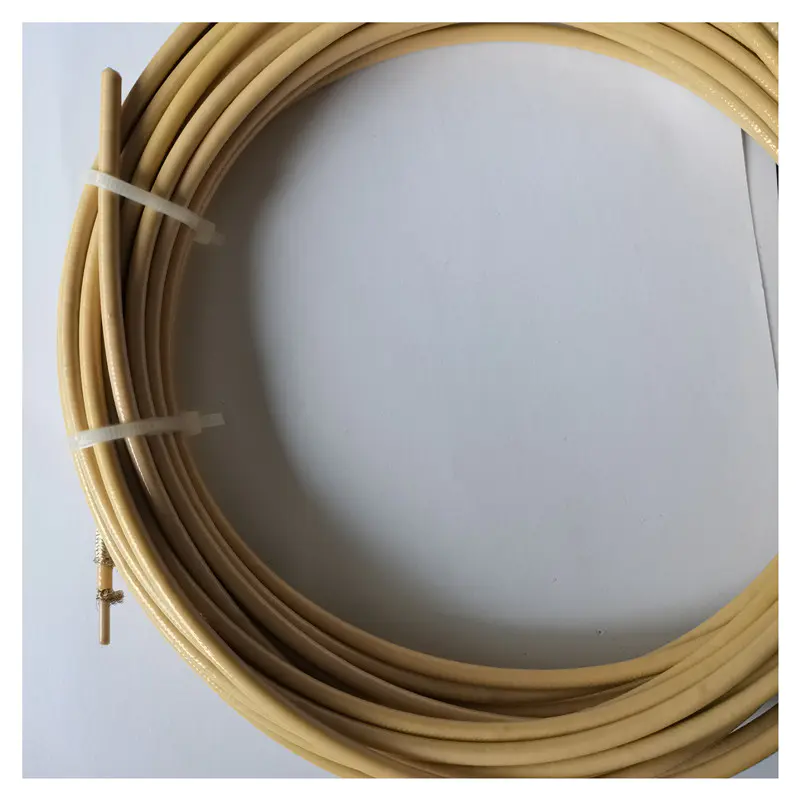

Product Construction:
Dimension similar to RG174（OD：2.2mm）,RG178（OD：1.5mm) or others
PEEK insulated wires with Silver-plated or Nickel-plated conductors
High Radiation Resistance 109 Rad= 107 Gy
Communication systems 33ohm, 50oh, 75ohm RF cable, and upt/stp 100ohm, 120ohm 150ohm cable, and peek Armored Fiber Oifer cable
Key Properties:
• High continuous operating temperature 500°F (260°C)
• Outstanding abrasion resistance
• Excellent dielectric strength
• Exceptional chemical resistance
• Protects against corrosion Technical Notes
• Can be spliced using PEEK Annealed, solid, round bare copper wire and others
