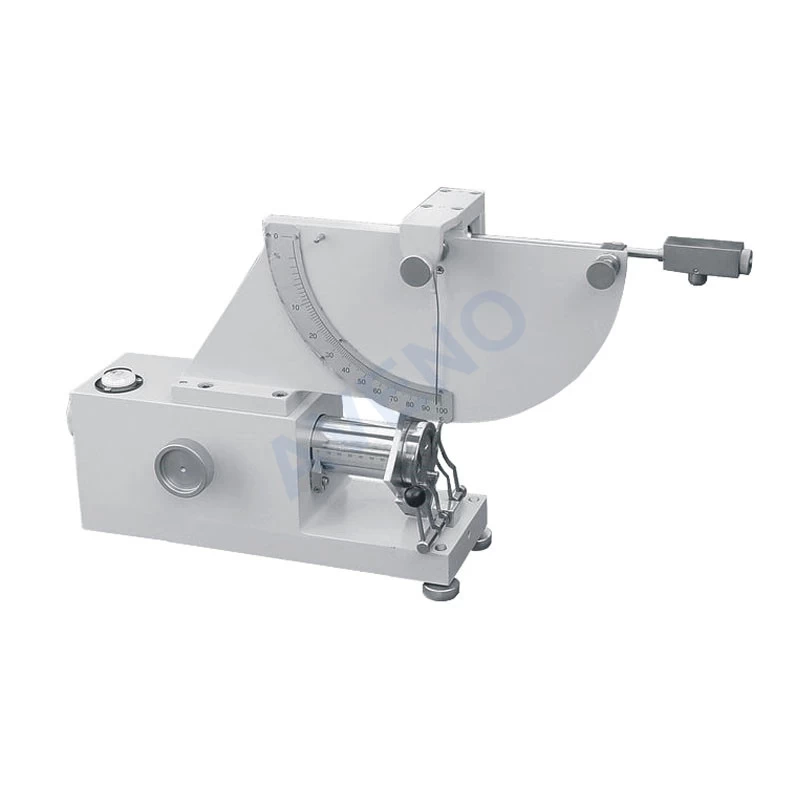

AF54-Resilience Elasticity Tester
Application Of Resilience Elasticity Tester
Resilience Elasticity Tester is used to test the elastic resilience of elastic and foamed materials.
Principle Of Resilience Elasticity Tester
The elastic resilience is the deformation specimen ratio of output energy to input energy when recovering quickly and fully.
Feature Of Resilience Elasticity Tester
-
Equipped with elastic and foamed material devices for testing of different materials
-
Display with arc dial, 100 equal parts, higher precision than vertical scale
-
can display the Max. rebound value, manually reset the pointer after the test is completed.
-
The clamping thickness of the test piece can be adjusted within the range to meet the clamping of different thickness materials.
Standards Of Resilience Elasticity Tester
DIN 53512-2000，ADIDAS CE-12, DIN53573, ISO 4662, GB/T 1681
Key Specification Of Resilience Elasticity Tester
|
Model
|
AF54 Resilience
Elasticity Tester
|
|
Impact
energy
|
0.5J, 0.2J
|
|
Display
range
|
0~100%
|
|
Minimum
mark scale
|
1%
|
|
Impact
angle
|
90°
|
|
Pendulum
length
|
200mm
|
|
Impact
speed
|
1.40 ~ 2.04 m/sec
|
|
Specimen
thickness adjustable range
|
0 ~ 60 mm
|
|
Moving
axis min.scale
|
1mm
|
|
Device
to test elastic material
|
Impact
energy: 0.5J
Sphere Dia. 15mm
|
|
Device
to test foamed material
|
Impact energy: 0.2J
Shape A spherome Dia. 30mm
Shape B cylinder Dia. 40mm,
round top radius 40mm
|
|
Dimension
|
62×12×33 cm
|
|
Weight
|
38 kg
|
Accessories Of Resilience Elasticity Tester
|
Standard Accessories
|
Sharp A (0.2J)
|
1pc
|
|
Sharp B (0.2J)
|
1pc
|
|
Striker (0.5J)
|
1pc
|
