RG series Coaxial Cable

PRODUCTS KEYWORDS

RG series coaxial cable, RG 6 coaxial cable, RG 11 coaxial cable, RG 59 coaxial cable, 75 ohms coaxial cable, 75 Ω coaxial cable.

PRODUCTION APPLICATION

Hante brand RG series coaxial cable, includes RG 6 coaxial cable, RG 11 coaxial cable, RG 59 coaxial cable, their resistant is 75 ohm. RG series coaxial cable complies with standard of GY/T 135-1998, GB/T 14864-2013, BS EN 50117-1, MIL-C-17, it is suitable for many different uses, including; data, video, telecom, signal, CATV, CCTV, RF signal and broadcast transmissions.

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, solid or strand.

---Insulation Material

    RG 6 / RG 11: FPE (Foam Skin Polyethylene)

    RG 59: PE (Polyethylene)

---Shielded Material

    Aluminum foil

---Braid Material

    Plain copper wire or tinned copper wire

---Sheath Material

    PVC (polyvinyl chloride) or LSZH (low smoking zero halogen)

---Sheath Colour

    Black, white, or as per customer requirement.

---Core Number

    Single core, 1C.

---Voltage Rating

    30V

---Working Temperature

    -20℃～+75℃.

---Installation Temperature

    0℃ ～+40℃

---Minimum Bending Radius

    20 x Overall Diameter.

---Production Standard

    GY/T 135-1998, GB/T 14864-2013, BS EN 50117-1, MIL-C-17

    Flame retardant according to BS EN 60332-3-10, BS EN 60332-1-2.

---Product Packing

    100 meters per roll.

---Product MOQ

    5000 meters.

---Production Delivery

   Within 10-15 working days as soon as we received the deposit.

PRODUCTS STRUCTURE

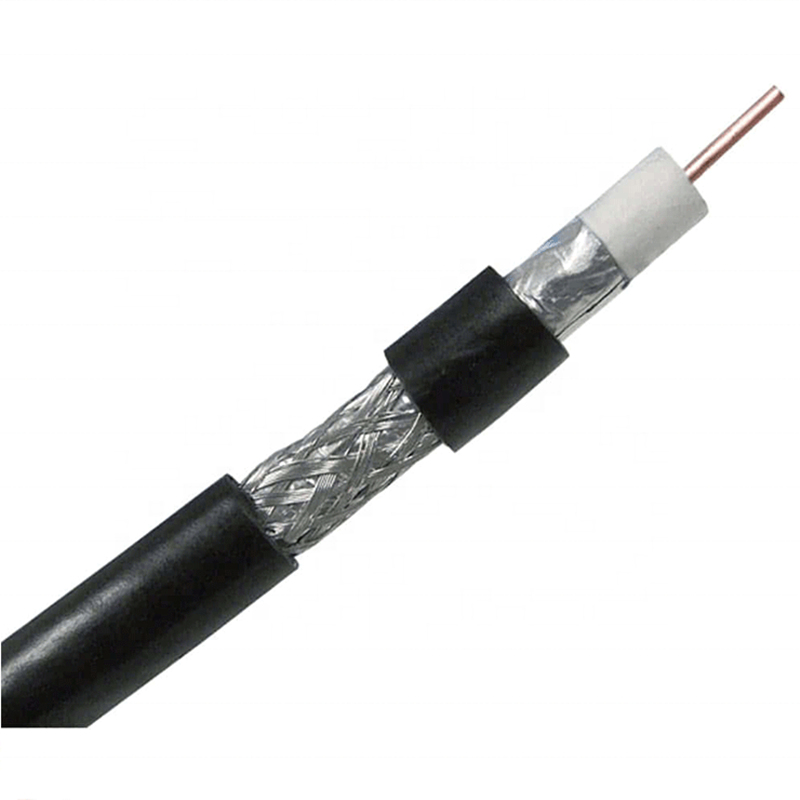

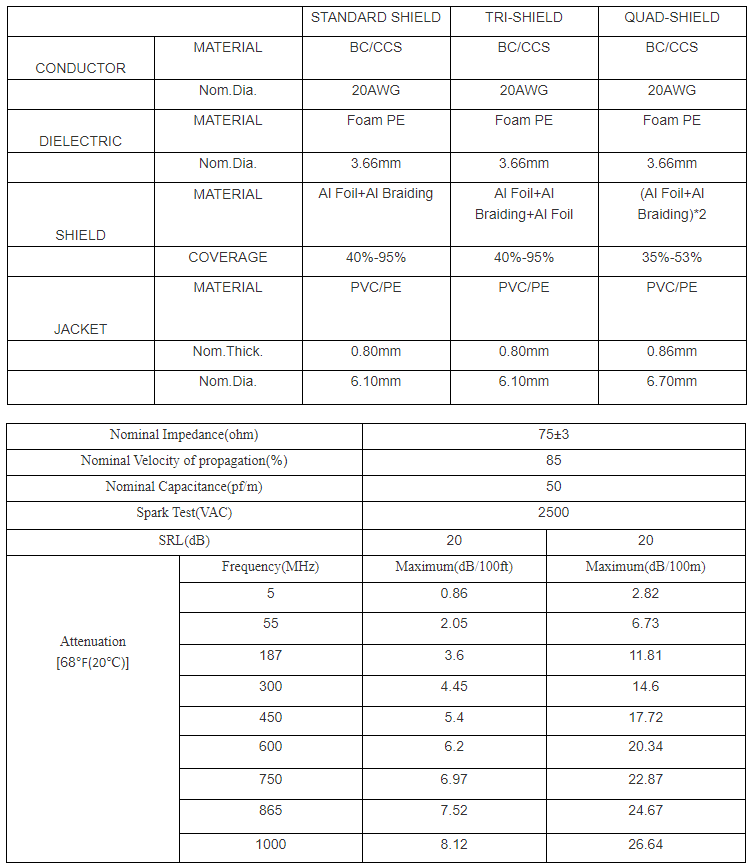

  1. RG 6 coaxial cable

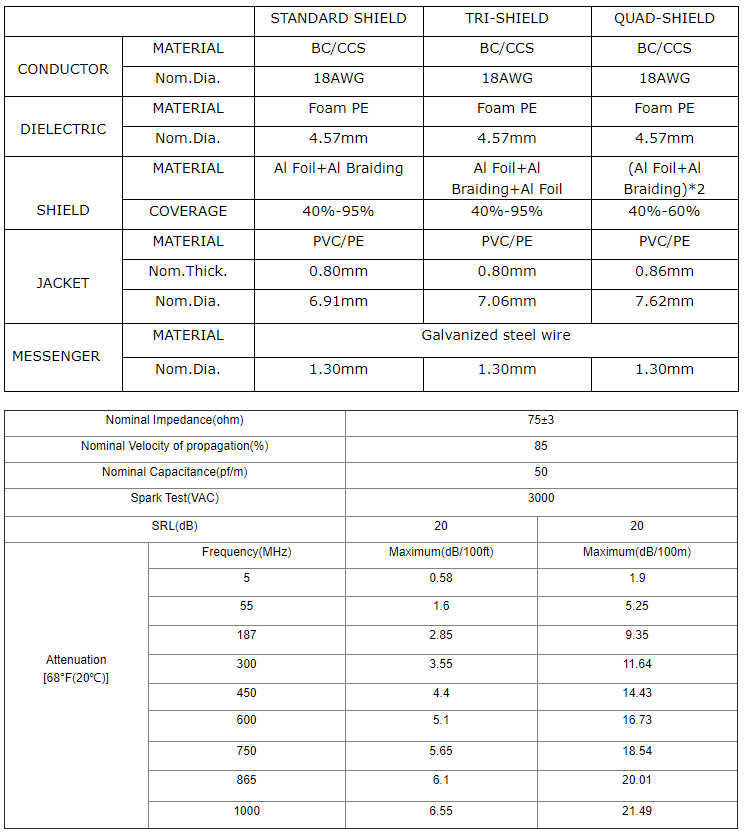

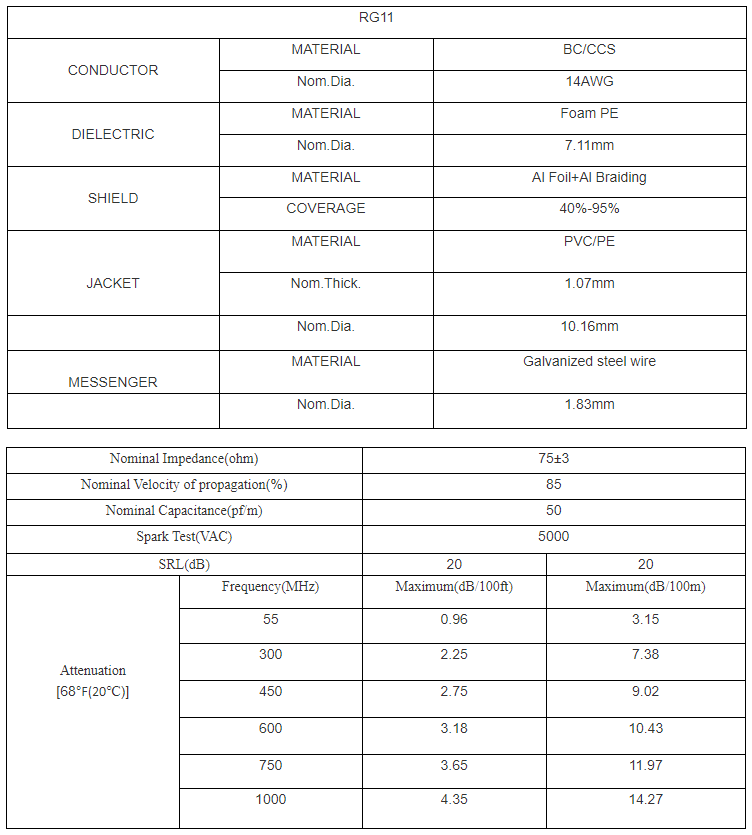

   2. RG 11 coaxial cable

    2. RG 59 coaxial cable

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

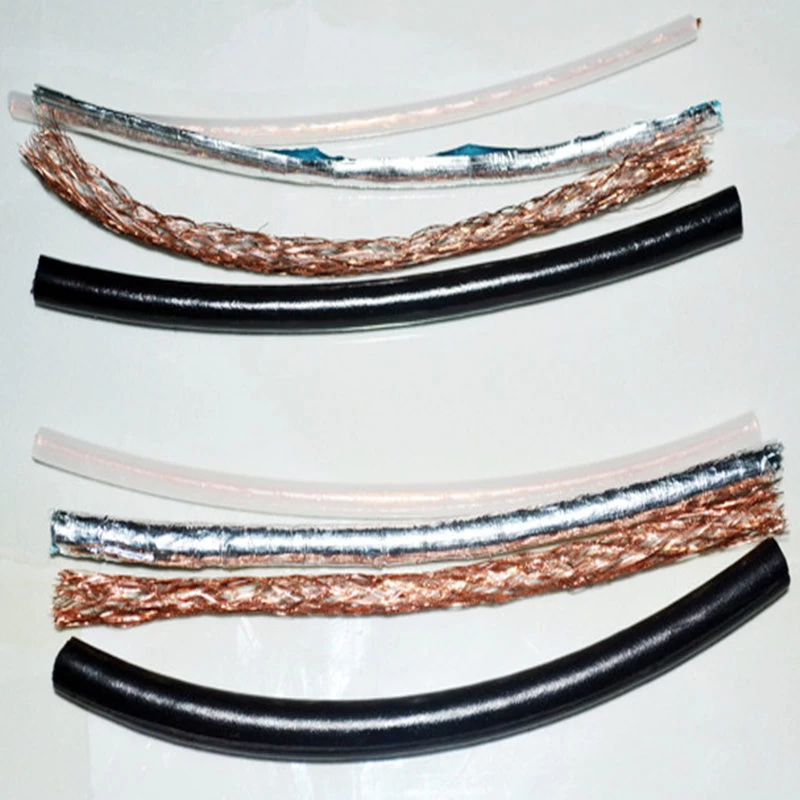

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
