RM10 High Frequency Transformer L Pin Bobbin

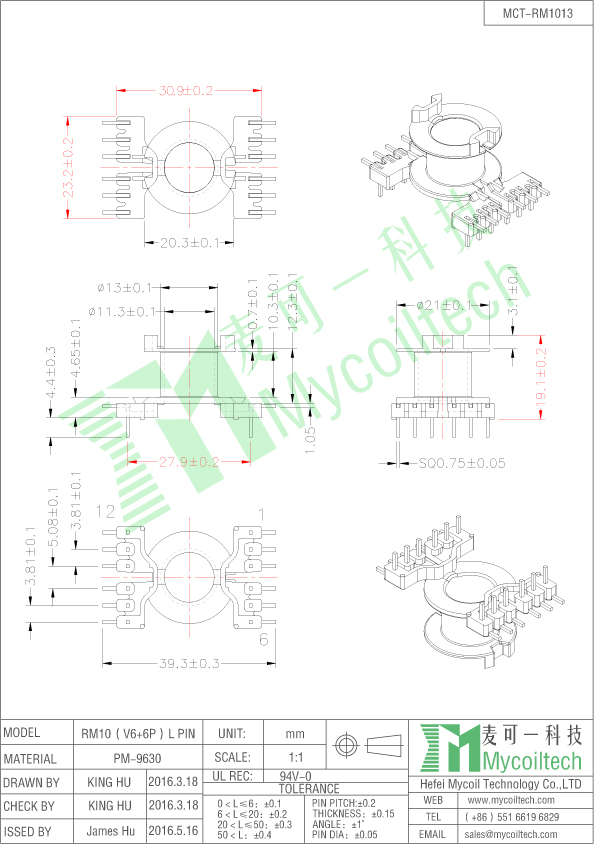

Telecom transformer RM10 bobbin. Vertical 6+6 pin RM10 L pin bobbin. MP4/MP44/MP95 material RM10 ferrite cores. Bobbin Size=39.3mmX23.2mmX19.1mm. Parallel Distance=27.9mm. Pin Pitch1=5.08mm. Pin Pitch2=3.81mm. RМ10 transformer used in switching power supply and kinds of high-frequency circuit board, it has small volume and light weight

Facebook Twitter Pinterest LinkedIn 分享

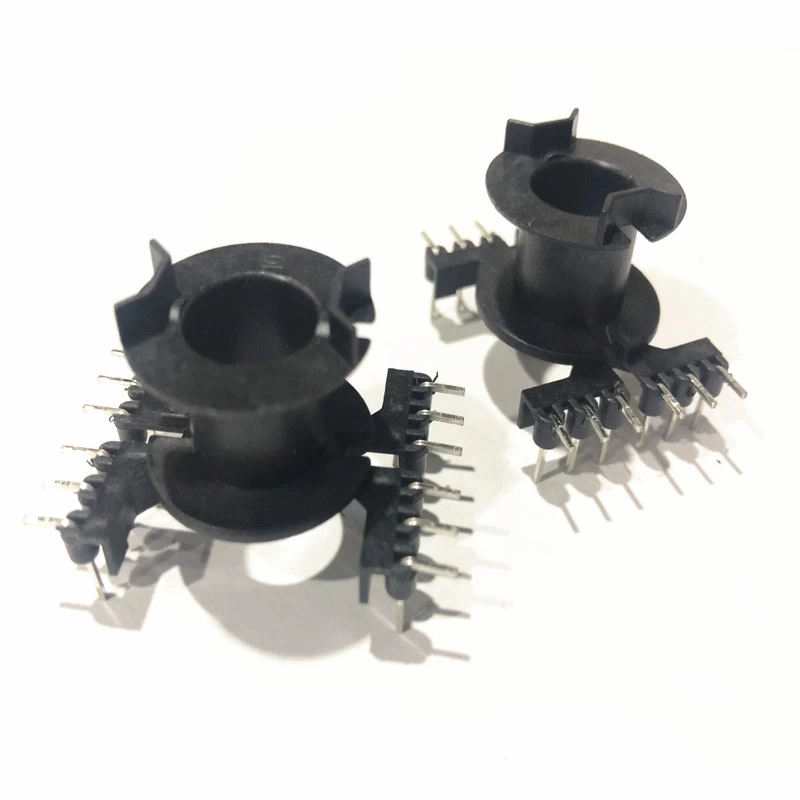

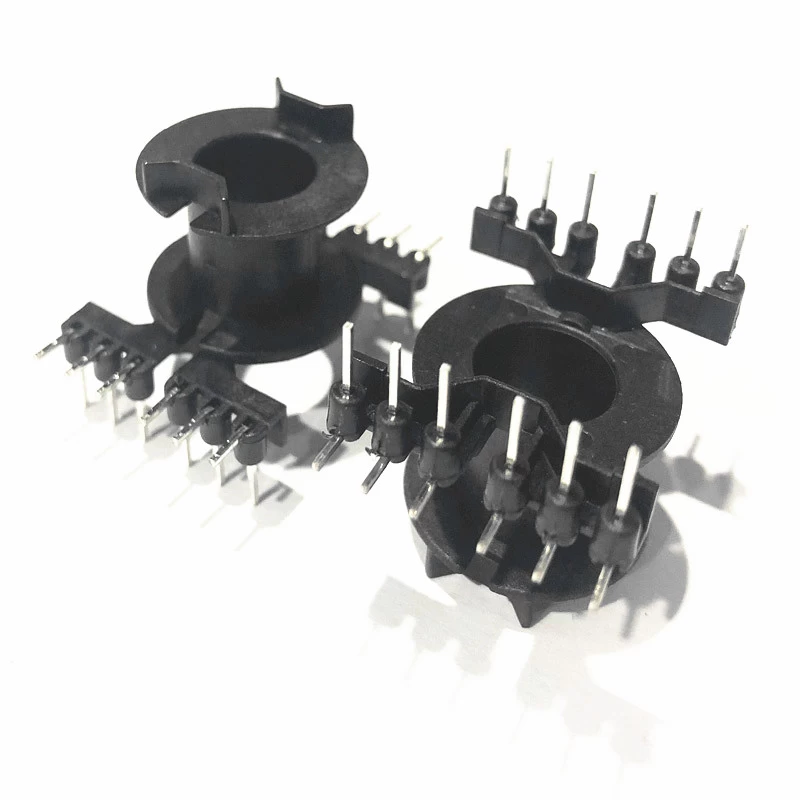

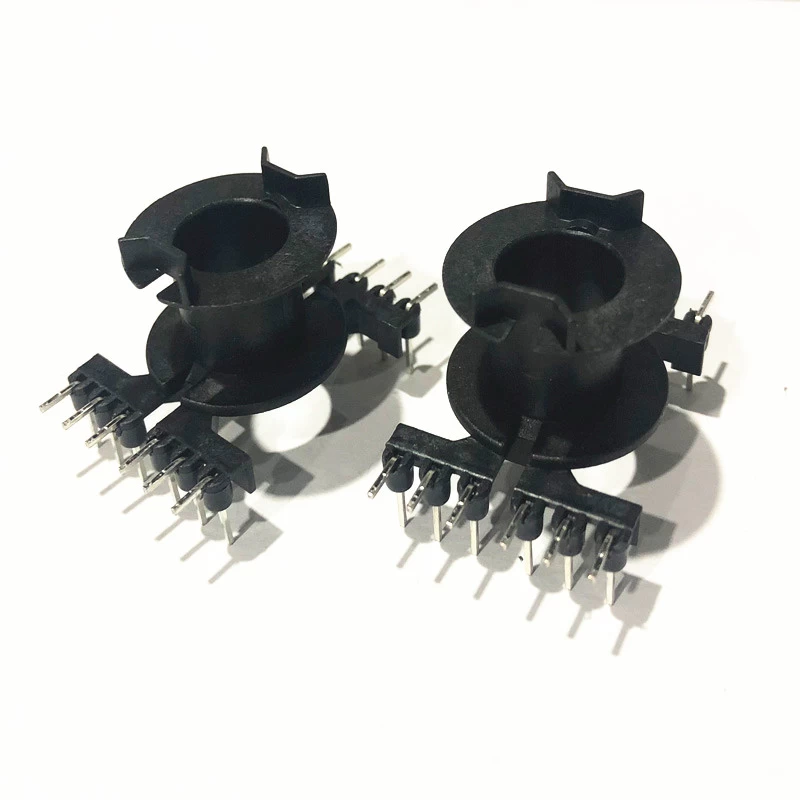

New transformer bobbin, L pin RM10 12 pin coil bobbin, vertical RM10 ferrite transformer, samples are available for testing.


Product Specification

RM10 power transformer bobbin
