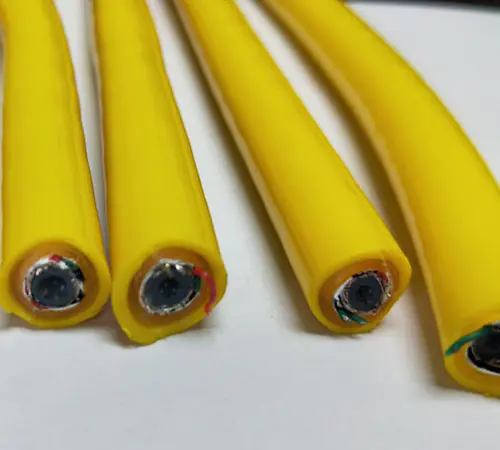

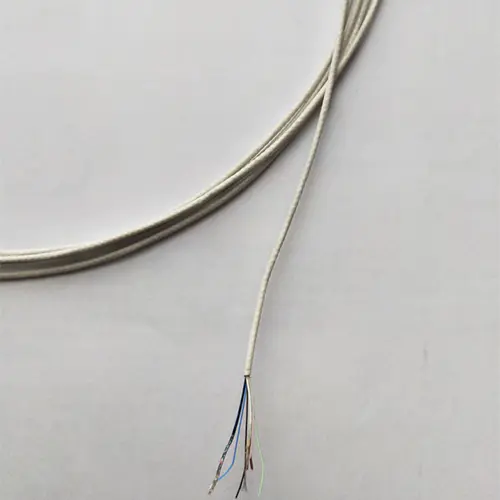

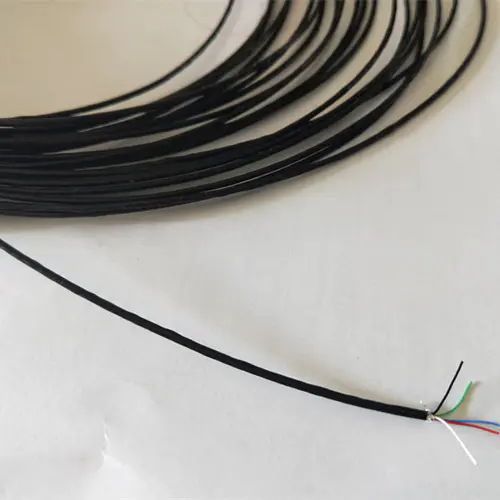

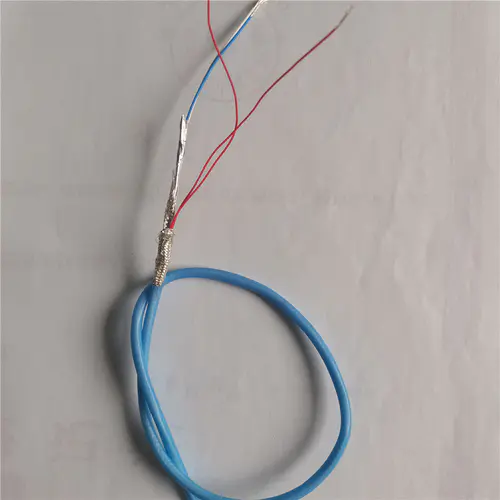

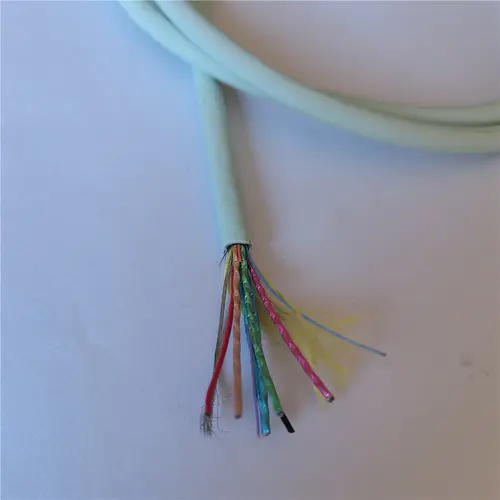

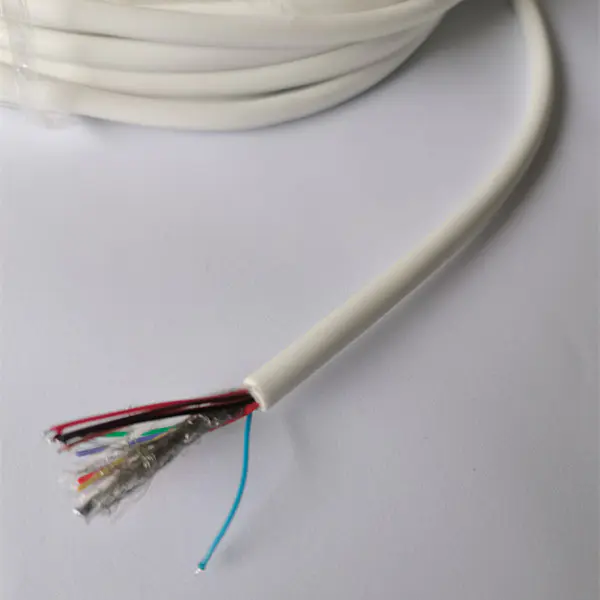

CITCable can manufacture custom cables in configurations that High Temperature Cable include power wires, signal wires, coaxes, strength members, vent tubes, and other unique components.
CITCable extrudes all types of PEEK,PEI,TPI,PI,FEP,PFA,PTFE,ETFE,PVDF,Viton/FKM/FPM, SILICONE and Wrap PI,PTFE,others, CITCABLE can accommodate large power cables as well as miniature control cables.
Characteristics:
1,Excellent mechanical properties and chemical resistance.
2,Outstanding Oil resistance, etching.
3,Environmentally friendly,Compliant with ELV & RoHS regulation per EU directives
4,More flexible than PTFE, FEP wires
5,Flame retardant according to UL VW-1 – Vertical Flame Test
CITCable manufactures custom cable for many different industries and applications, including:
High Temperature Sensor Cable
Energy (Oil & Gas, Nuclear)
Medical Cable
Commercial & Industrial Cable
Robotic Cable (Bend 2000 thousand times )
Harsh Environment Cable
Flexible cable
Defense System & Mil Spec Cable
Motor Winding & Motor Lead Wire
Industrial Cable
High Temperature Cable
Testing Cables, Aircraft Simulator
Low Smoke, Zero Halogen Cables
Operating temperature range:
-100 °C to +260°C for PEEK
-100 °C to +260°C for PTFE
-60 °C to +250°C for Fluoroelastomer, VITON
-100 °C to +250°C for PFA
-60 °C to +200°C for FEP
-60 °C to +200°C for XL ETFE
-60 °C to +175°C for ETFE
-40 °C to +150°C for PVDF
