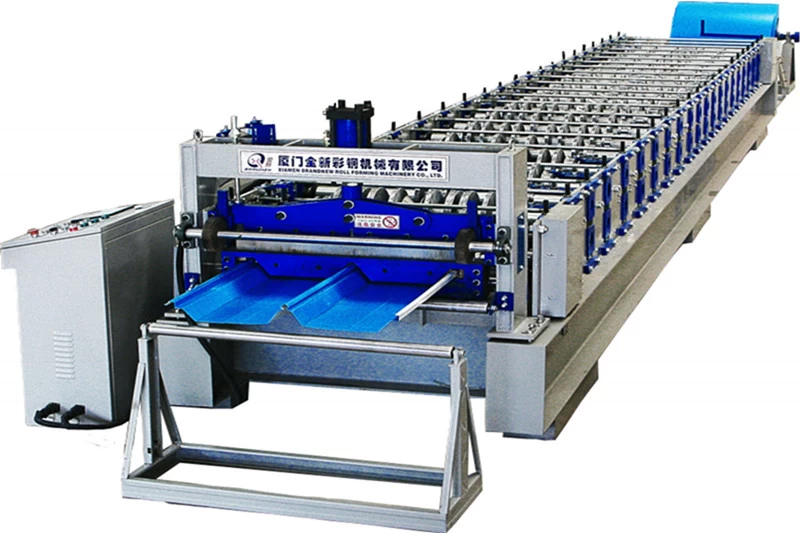

The advantage of roof panel machine are as follows:
1.We are the first and only factory to have a whole Baking Finishing Line to treat the spare parts
2.Low cost, light weight but high strength, short building period, and re-cycle use
3.With computer controlled system which easy to operate and save time and material
4.Metal roof panel or sheeting features light weight, durability, recyclability, etc.
All the parameters are just for reference. We offer customized size.

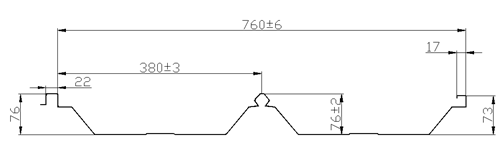

Profile drawing
Main Technical Parameters:
|
Technical Parameter
|
Description
|
|
Material Thickness
|
0.4-0.8mm
|
|
Material Width
|
1000mm
|
|
Effective Width
|
760mm
|
|
Forming Station
|
22 steps
|
|
Motor power
|
11 Kw
|
|
Weight
|
9500KG
|
Machine parts

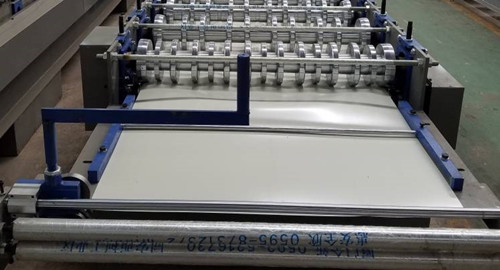

1.Roof panel machine pre-cutter
In order to save material, each of our roof machine have a pre-cutter which is easy to cut the material.
2.Roof panel machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, heat treatment.
With black treatment or hard-chrome coating for options
Body frame made from 400#Htype steel by welding.

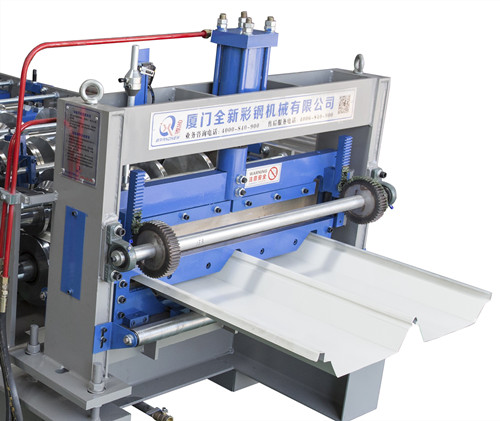

3.Roof panel machine post cutter
Hydraulic post cutter made by high quality mold steel Cr12 with heat treatment
Cutter material is high quality 20mm steel plate by welding
Hydraulic motor: 3.0KW
Hydraulic pressure range: 1-16Mpa
4.Roof panel machine protection cover
5.Uncoiler
Manual uncoiler: 1 set
This uncoiler is un-powered with manually control steel coil inner bore shrinkage and stop
Max.feending width: 1200mm, coil id range 508mm±30
With hydraulic uncoiler for option
6.Exit rack
Un-powered, three units
