Roofing Roll Forming Machine For YX25-190-760(Taiwan Type)

Taiwan type roofing roll forming machine




Roofing Panel Roll Forming Machine For YX25-190-760(Taiwan Type)



roofing panel roll forming machine


Profile



roofing sheet roll forming machine



Material

Effective width: 760mm
Feeding width: about 914mm
Material Thickness: 0.35-0.8mm
Applicable material:Galvanized Steel(GI)
Cold roll steel(CRC)with yield strength 235-550Mpa


Work follow

Decoiler→Manual Pre-Cutter→Guide Feeding →Roll Forming System→Hydraulic Post Cutter →Exit Rack


roofing sheet roll forming machine


Machine Components


1) Manual Decoiler: one set


Un-powered, Manually control steel coil inner bore shrinkage and stop
Max Feeding width: 1000mm,coil ID range 508mm±30mm
Capacity: Max. 5 Ton

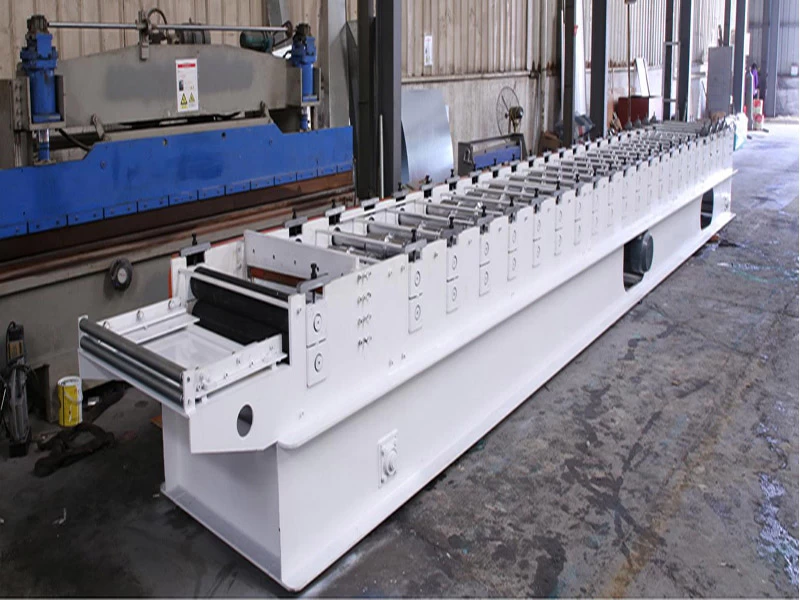

2) Main Machine(Can Choose The Pre-Cutter)

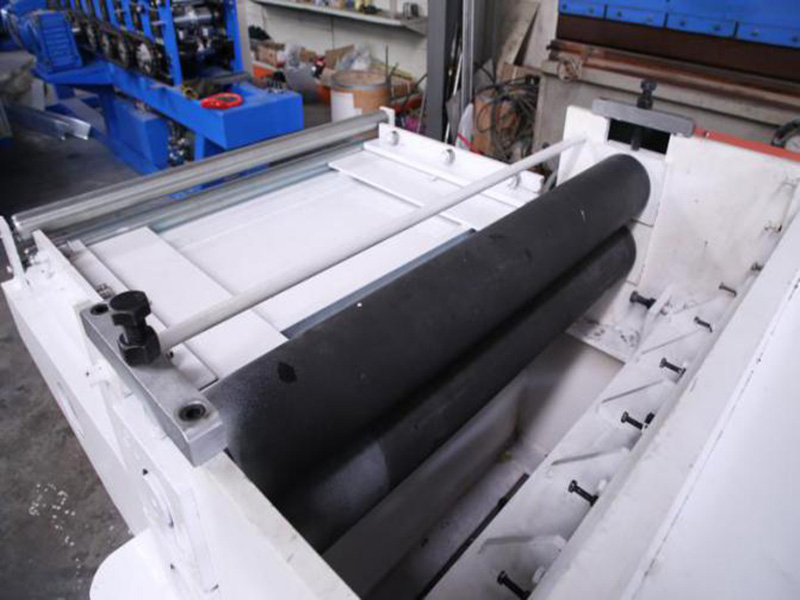

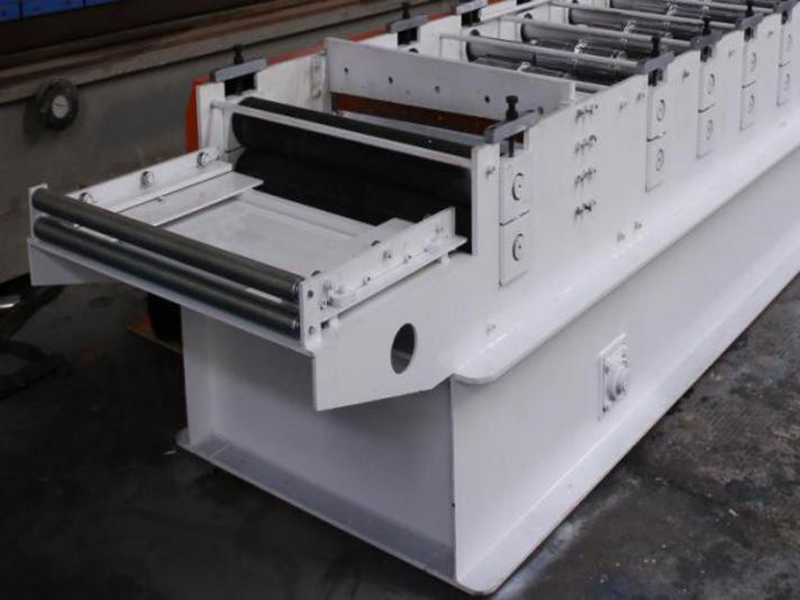

With feeding material guide, body frame made from H500 type steel by welding
Side wall thickness: Q235 t20mm

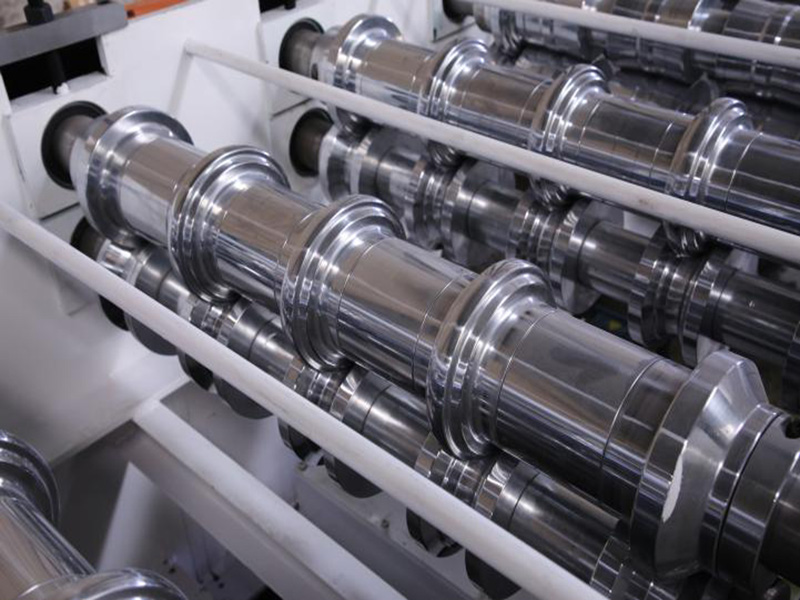

Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)
Shafts Diameter=ф80mm Round steel,precision machined
Main Motor=11KW,Frequency speed control
Gear/Sprocket driving,about 24-step to fo


roofing panel roll forming machine


roofing panel roll forming machine


roofing panel roll forming machine

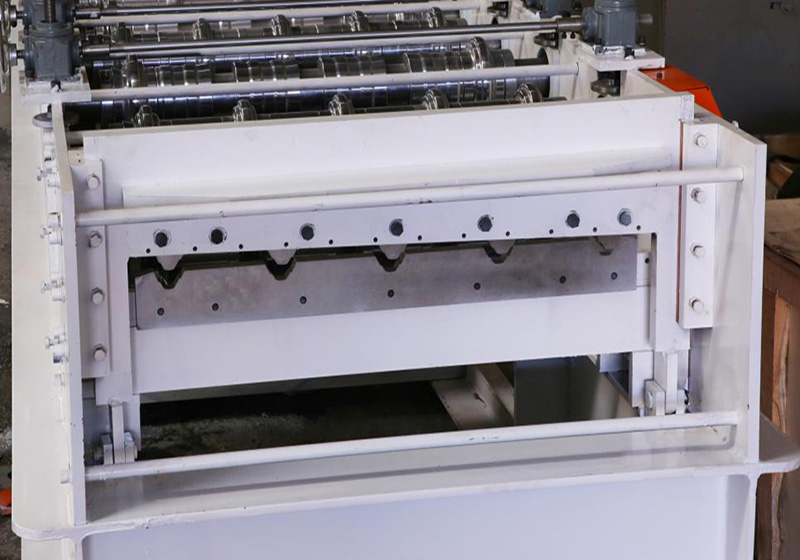

4) Post Hydraulic Cutting Device

Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station


roofing panel roll forming machine

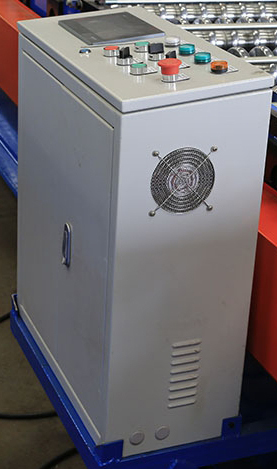

5) PLC Control System

Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen
It Can Finish The Production Automatically
Combined With: PLC, Inverter, Touch Screen, Encoder, etc


roofing sheet roll forming machine


6)Exit Rack

Un-powered, Three units,with rollers on it for easy movement





Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.





After-Sale Service

1. The warranty is 24 months after the client receives the machine.
   Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
