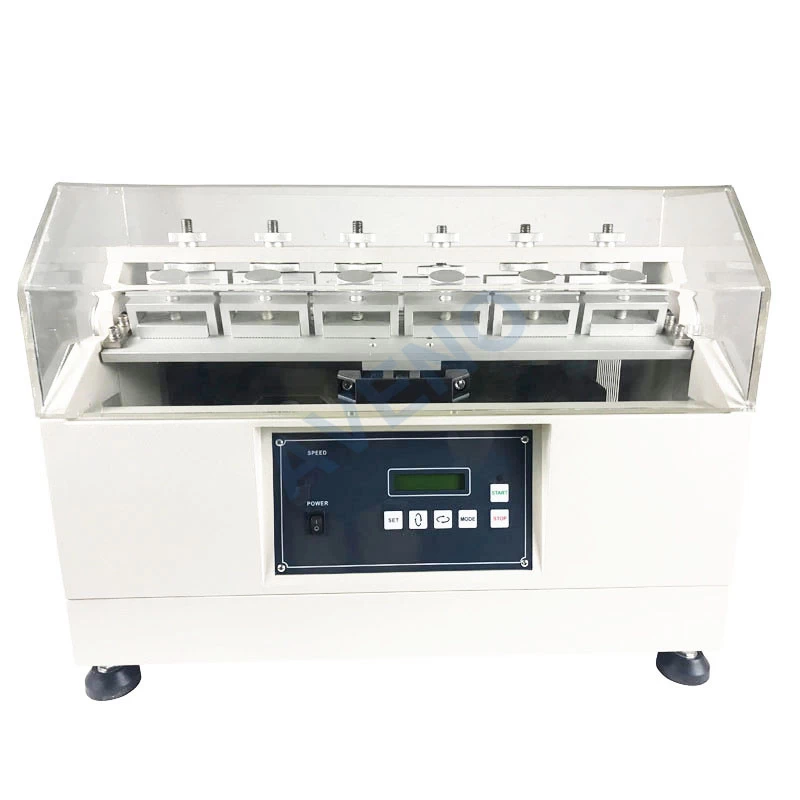

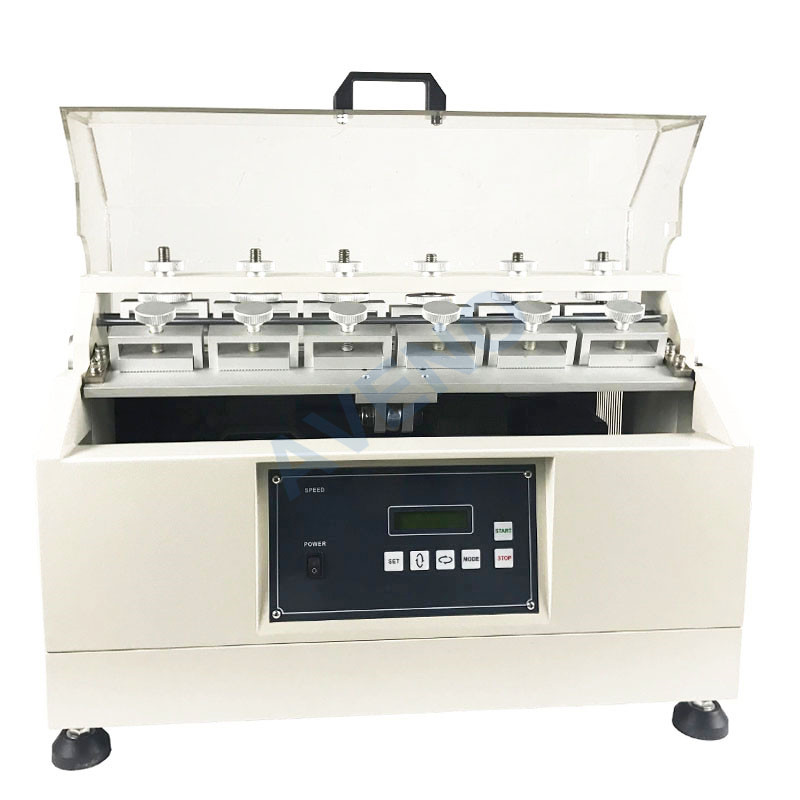

AF23 ROSS Flexing Tester
Application Of ROSS
Flexing Tester
ROSS
Flexing Tester is used to test the vertical flex resistance of rubber products,
sole of shoes, and Foamed material suce PU、PVC、TPR.
After flexing a certain times, then check the attenuation, damage and cracking
degree to get the flexing resistance of the sample.
Standards Of ROSS Flexing Tester
ASTM-D1052, ISO5423 4643, HG/T2411, BS513, ASTRA
TM60
Key Specification Of ROSS Flexing Tester
|
Model
|
AF23
ROSS Flexing Tester
|
|

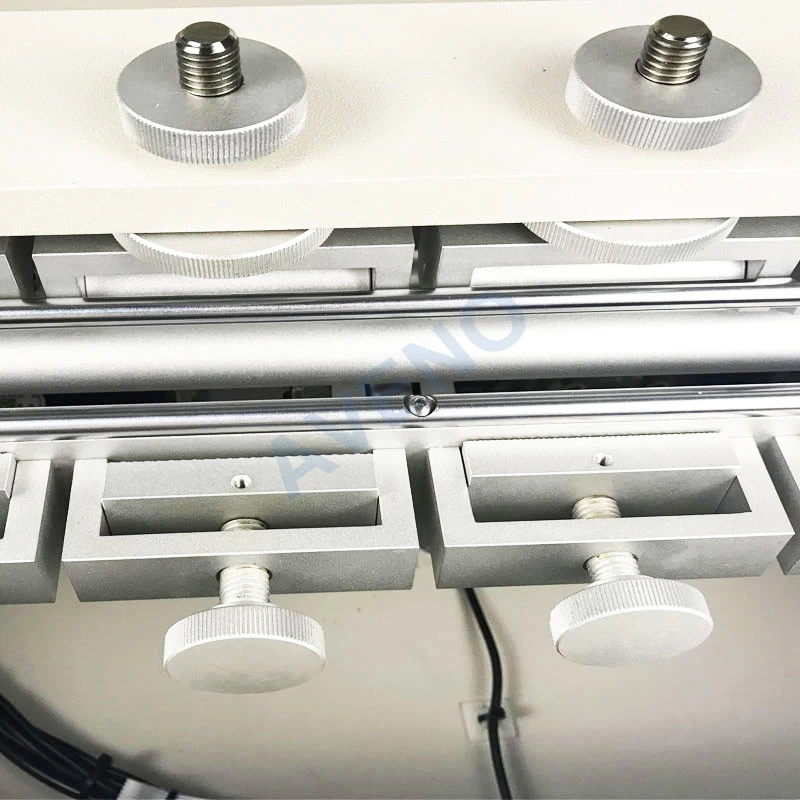

Fixture
|
6
sets, can test 12pcs sample at the same time
|
|
Bending
speed
|
100±5
cpm(ASTM)
60±5
cpm(HG,BS,ISO,SATRA,HG)
|
|
Bending
angle
|
90±2°
|
|

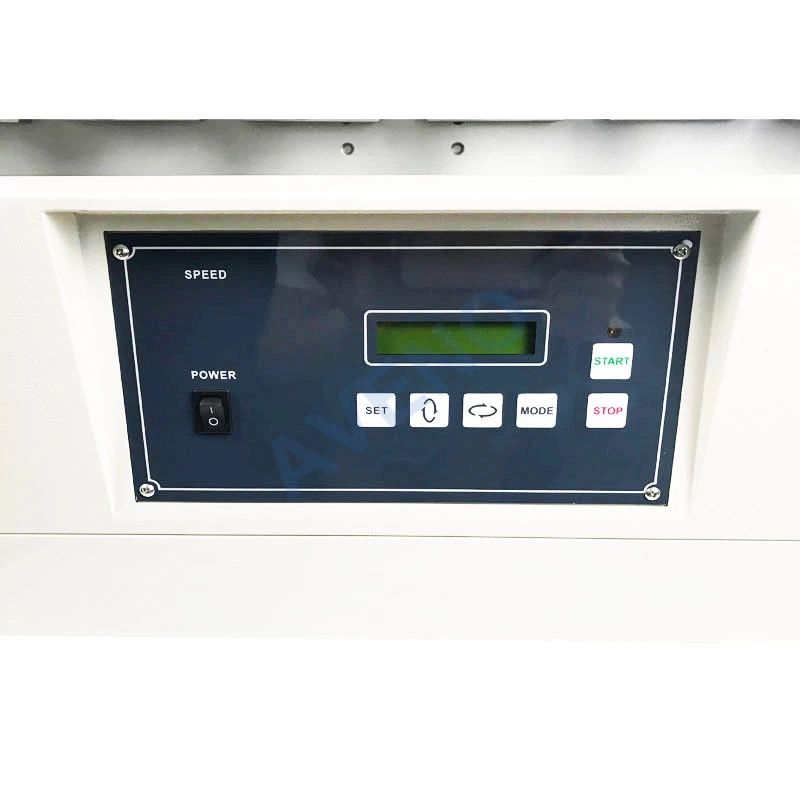

Counter
|
LCD,
0~99,999,999
|
|
Dimension
|
62 × 54 × 45 cm
|
|
Weight
|
60
kg
|
Accessories Of ROSS Flexing Tester
|
Standard
Accessories
|
2.5mm sample
Chisel cutter
|
1pc
|
|
2mm sample
Chisel cutter
|
1pc
|
|
Power line
|
1pc
|
