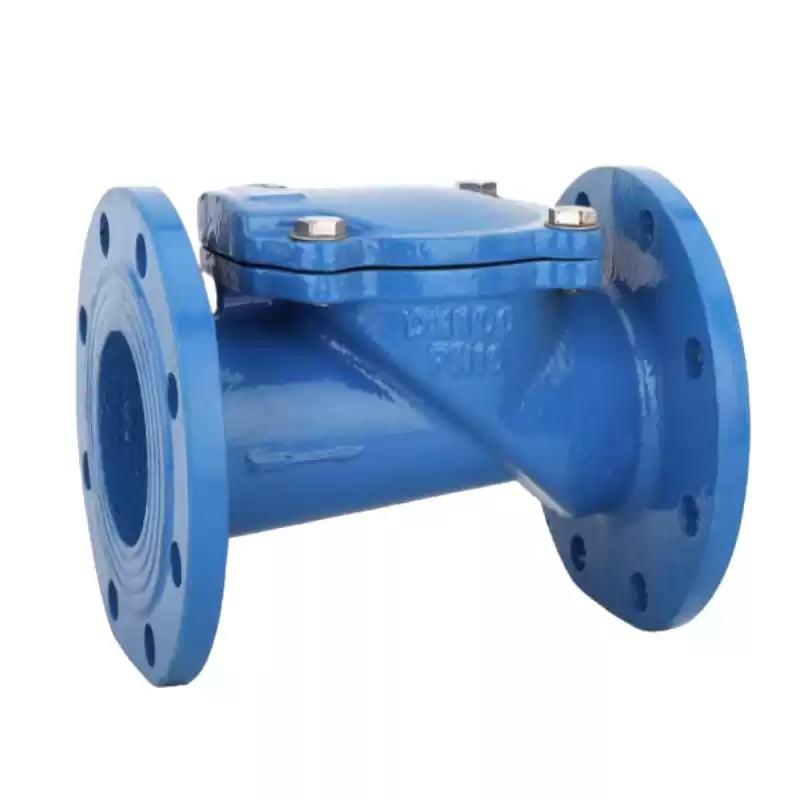

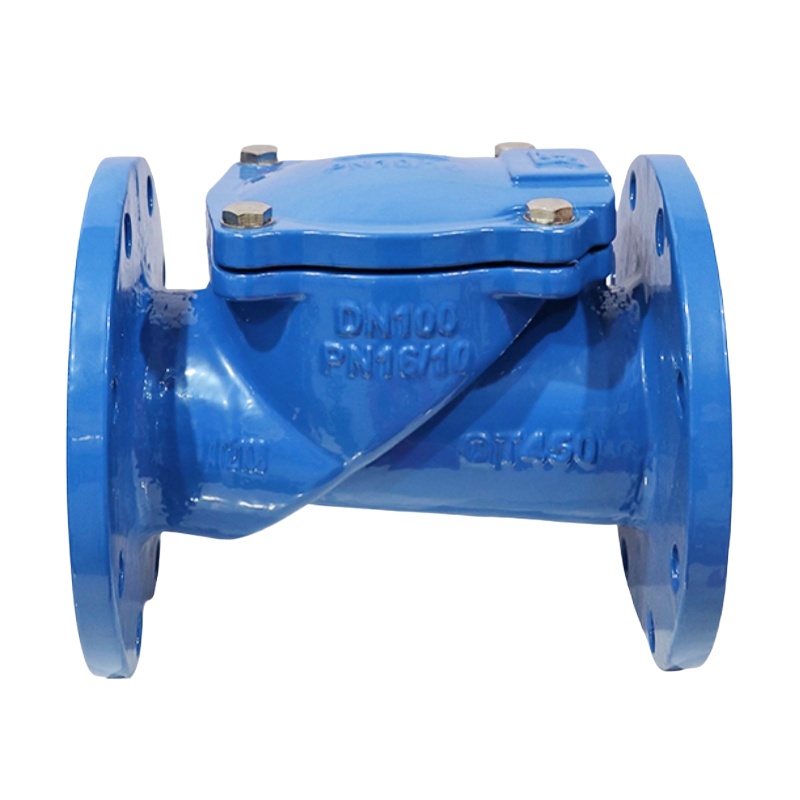

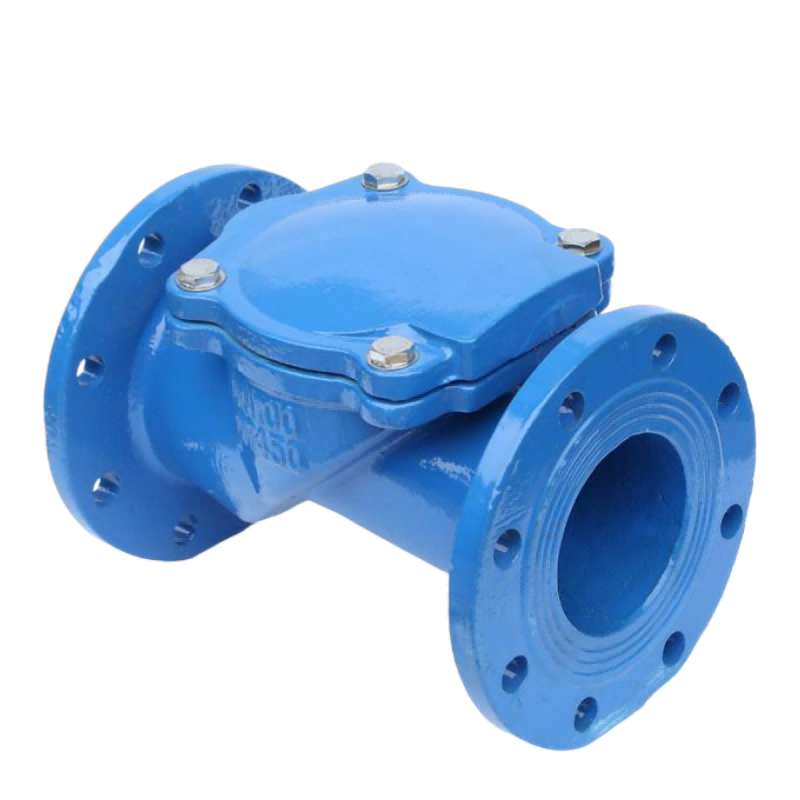

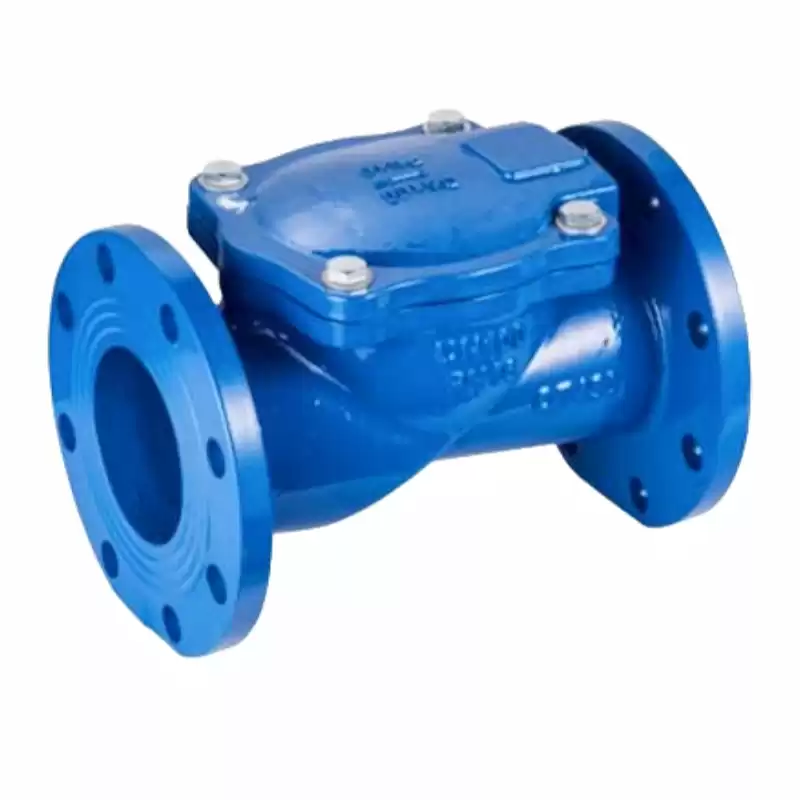

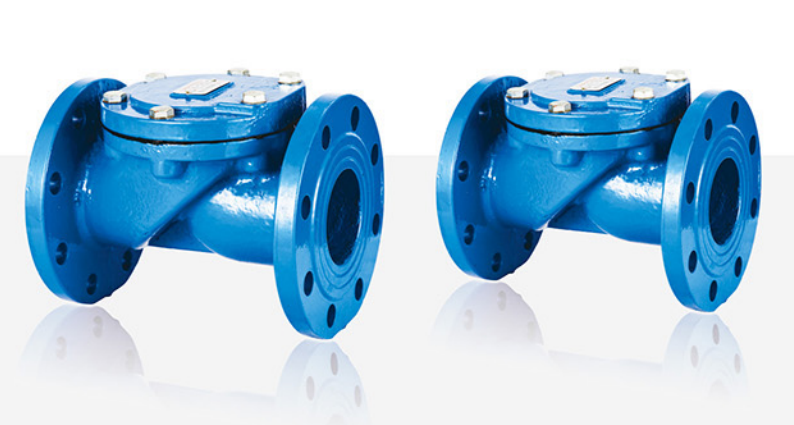

Rubber Flap Check Valve

Rubber flap check valves are automatic valves specially designed for pipeline systems transporting liquids, slurries or gases.

Facebook Twitter Pinterest LinkedIn 分享

Product Description

It is a check valve that uses a rubber-coated valve disc as the opening and closing part. One end of the valve disc is fixed to the valve body pin and can rotate freely (like a hinged door). When the medium flows in the forward direction, the fluid pressure pushes open the valve disc and the channel opens. When the flow stops or backflows occur, the valve disc rapidly closes under the influence of its own gravity, the backflow medium and back pressure, and adheres to the sealing surface of the valve seat to form a seal.

Its core mission is to allow the medium to flow in one direction and effectively prevent the backflow of the medium, thereby protecting the upstream equipment. Due to its simple structure, low cost and good sealing performance, it is widely used in water treatment, drainage, fire protection and mining fields.

Features

 • The short closing time can reduce the water hammer pressure

 • It is resistant to erosion, has good sealing performance and a simple product structure

 • The structure is simple and maintenance is convenient

 • Wide range of applicable media

Product Parameters


Diameter（DN） 50 65 80 100 125 150 200 250 300
Valve Length（mm） 205 217 238 292 332 360 492 620 700
Sheel Test Pressure 1.5~2.4Mpa
Seeling Test Pressure 1.1~1.76Mpa
Normal Pressure 1.0~1.6Mpa
Temperature 0~80℃
Applicable Media water, mud, particulate matter etc.

FAQ

Q：Why must it be installed horizontally?

A：The key to achieving the closing function is for the valve disc to fall back by its own gravity. If installed vertically, gravity cannot cause the valve disc to fall back, and the valve will fail.

Q：What’s the MOQ for your rubber flap check valve?

A：10 Sets.

Q：What is your payment terms？

A：Payment supports T/T, L/C, etc. We also support payment via wechat or Alipay.

Q：Why choose us？

A：With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
