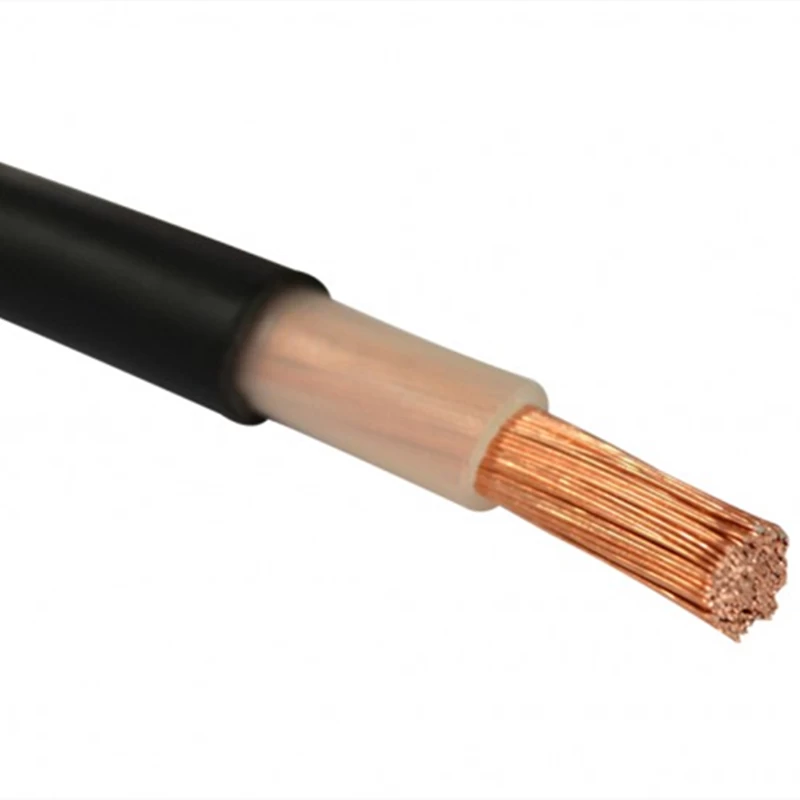

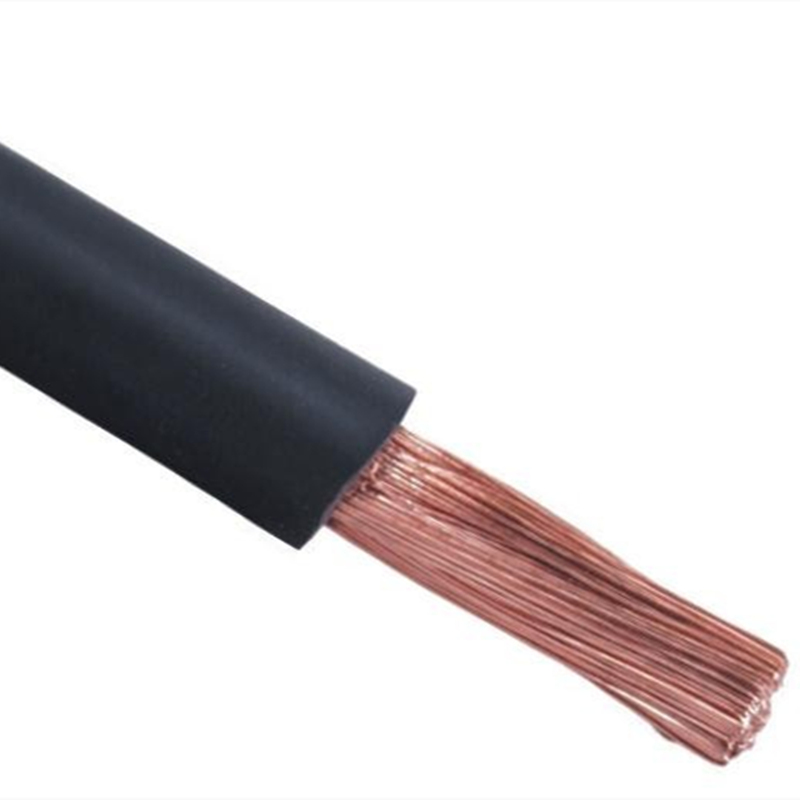

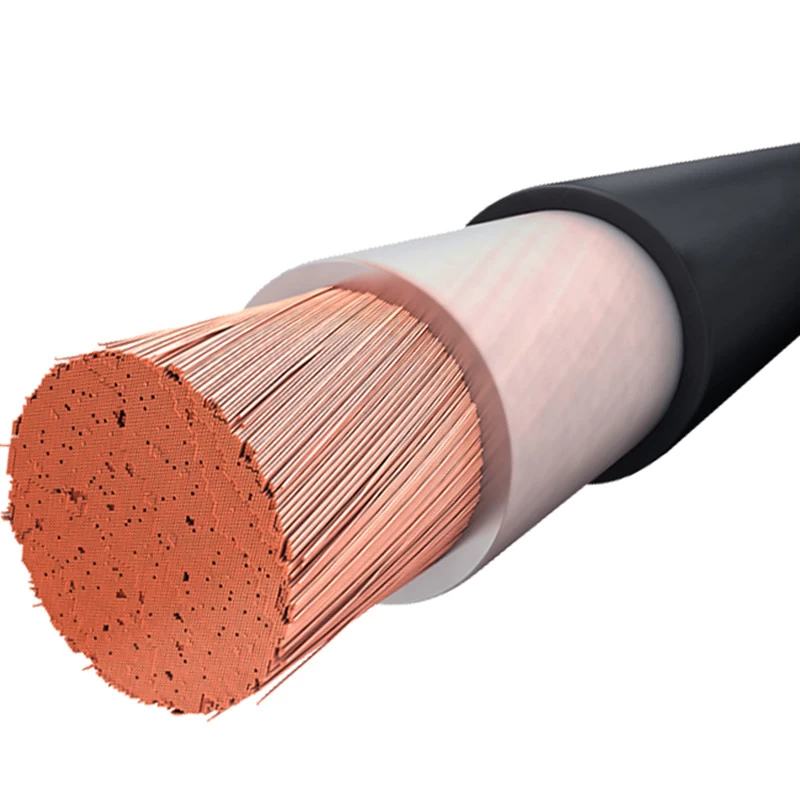

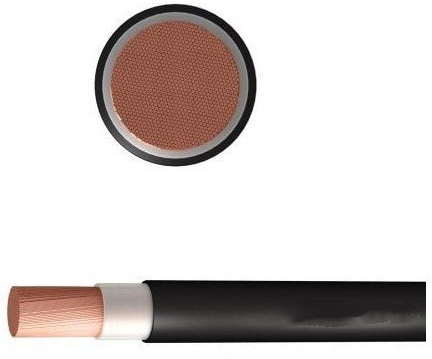

RV-K xlpe insulated pvc sheath YJV power cable
MAIN KEYWORDS
RV-K flexible cable, RV-K power cable, xlpe insulated power cable, PVC sheath power cable, BS EN 60502 RV-K power cable.
PRODUCTS APPLICATION
Hante@ brand RV-K XLPE insulated PVC sheath YJV power cable, it is for power distribution and can be used for
all types of low voltage industrial-type connections, building
installations, in urban grids, etc. This cable is particularly
suitable for use in challenging layouts because of its high
flexibility, also making the installation process substantially
easier. It can be buried or installed in a tube as well as
outdoors without requiring additional protection. The RV-K
cable withstands damp conditions.
PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed copper wire, strand, class 5.
---Insulated Material
XLPE (cross-linked polyethylene)
---Core Identification
1 core: natural or other colours
2 cores: brown, blue.
3 core: green/yellow, blue, brown
4 core: green/yellow, brown, black, grey
5 core: green/yellow, blue, brown, black, grey
7 core and above: black with white numbers.
---Conductor Cross-section
2.5～240 mm2
---Voltage Rate
0.6/1kV, 600/1000V
---Temperature Rating
-15～+90 °C
---Minimum Bending Radius
6 x overall diameters
---Production Standard
GB/T 12706, IEC 60502, BS EN 60502-1.
---Production Delivery
Within 5-7 working days as soon as we
received the 30% deposit before the shipment.
---Packing Type
Plywood
drum, wooden pallet, wooden drum or others.
REMARK
---The information contained within this
datasheet is for guidance only and is subject to change without notice or
liability.
---All the information is provided in good
faith and is believed to be correct at the time of publication; when selecting
cable accessories, please note that actual cable dimensions may vary due to
manufacturing tolerances.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable:
Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
---Hante Cable: it is
your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable
industry.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
