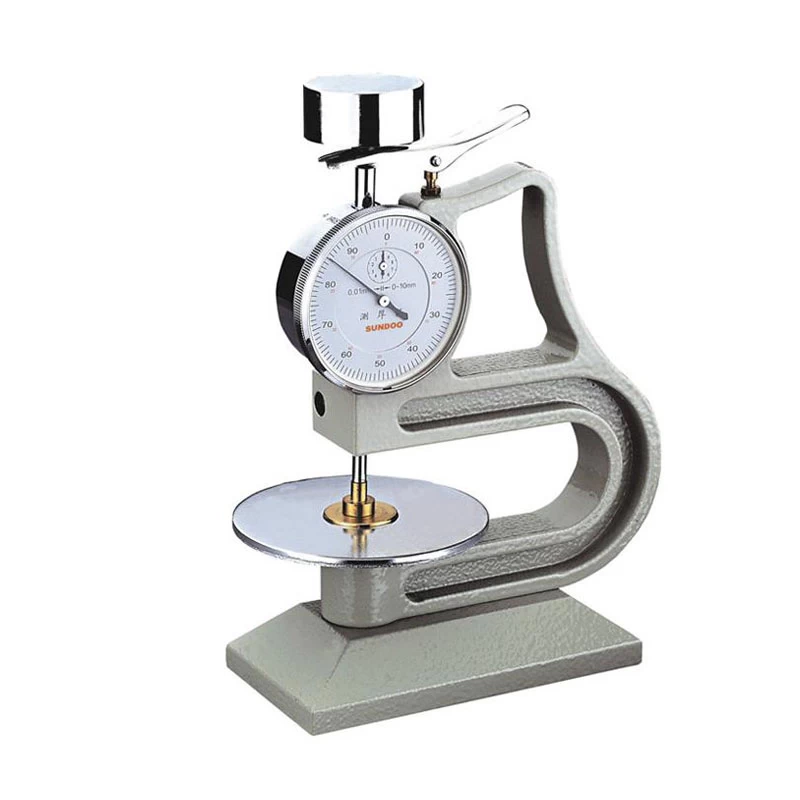

AF14 Thickness Gauge
Application Of Thickness Gauge
Thickness Gauge is used to measure the thickness of leather and rubber.
Standards and require test pressure Of Thickness Gauge
|
BS903 A38,
ISO 4648:
|
10±2
and 22±5Kpa
|
|
ASTM
D1813, ISO2589:
|
49.1±1Kpa
|
|
SATRA
TM48:
|
62±1Kpa
|
Key specification Of Thickness Gauge
|
Model
|
AF14 Thickness Gauge
|
|
Test range
|
0.01mm-10mm
|
|
Diameter of the head
|
φ10mm
|
|
Test pressure
|
10±2,
22±5, 49.1±1, 62±1Kpa(option)
|
|
Dimensions
|
145mm×195mm×80mm
|
|
Weight
|
0.9kg
|
