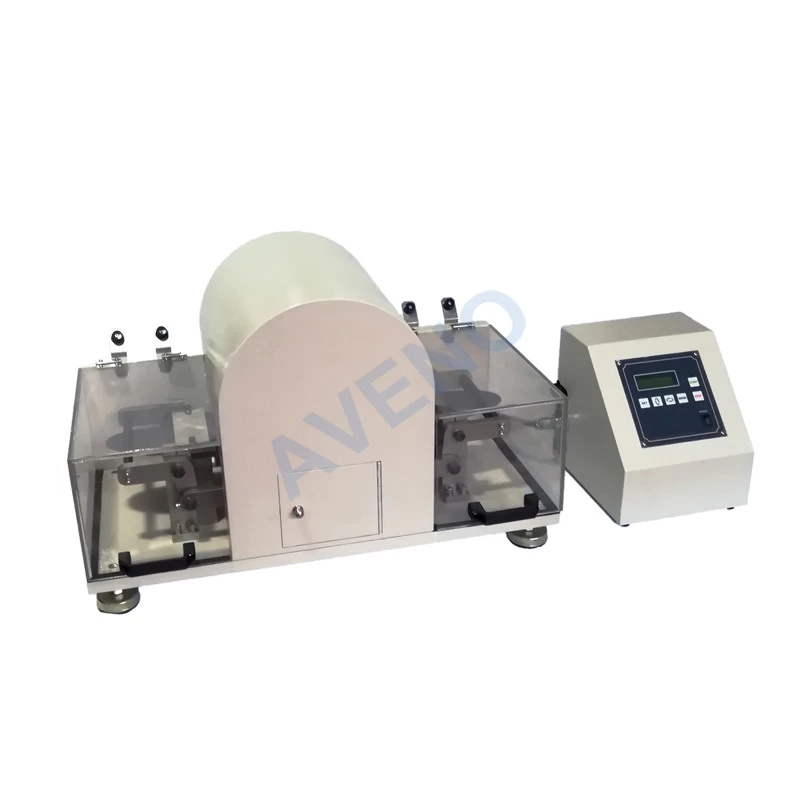

AF06 Safety shoes Inserts Flexing Tester
Application Of Safety shoes Inserts Flexing Tester
Safety shoes Inserts Flexing Tester is designed for determining the resistance of insoles for safety shoes to flex. The middle part of the specimen is fixed and then flexed repeatedly using the stationary bar. It can stop automatically. This machine is equipped with a safety cover to protect operator against injury during operation.
Standards Of Shoe Lining Leakproofness Tester/Shoes lining seepage tester
EN ISO 20344, AS/NZS 2210.2, GB/T 20991
Key Specification Of Shoe Lining Leakproofness Tester/Shoes lining seepage tester
|
Model
|
AF06 Safety shoes Inserts Flexing Tester
|
|
Test position
|
2
|
|
Max bending vertica height
|
33mm
|
|
Distance of guide rode Fixture
|
70mm
|
|
Bending frequency
|
16±1 times/s
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
70x37x35cm(main box), 23x26x25cm(control cabin)
|
|
Weight
|
85kg
|
