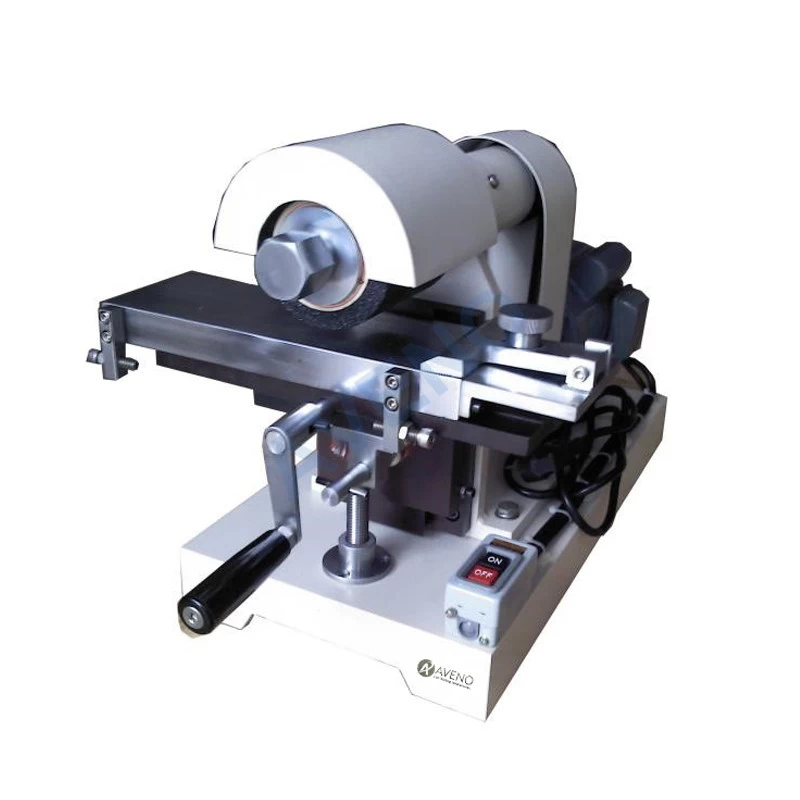

AF49-Sample Buffing Machine
Application Of Sample Buffing Machine
Sample Buffing Machine is used to grind, thin, or grind the test material to the required thickness for testing requirement.
Wrench control, can be left/right, up/down and front/rear movement, safe and easy to use.
Standards Of Sample Buffing Machine
UL1581
Key Specification Of Sample Buffing Machine
|
Model
|
AF49 Sample Buffing
Machine
|
|
Test
table size
|
300 x 67mm
|
|
Left/right
adjustment stroke
|
0 ~ 210 mm
|
|
Front/rear
adjustment stroke
|
0 ~ 29 mm
|
|
Up/down
adjustment stroke
|
0 ~ 18 mm
|
|
Granularity
of grinding wheel
|
36#, 38mm×φ6
|
|
Power
supply
|
AC220V, 50/60HZ
|
|
Dimension
|
45*55*30
|
|
Weight
|
60kg
|
