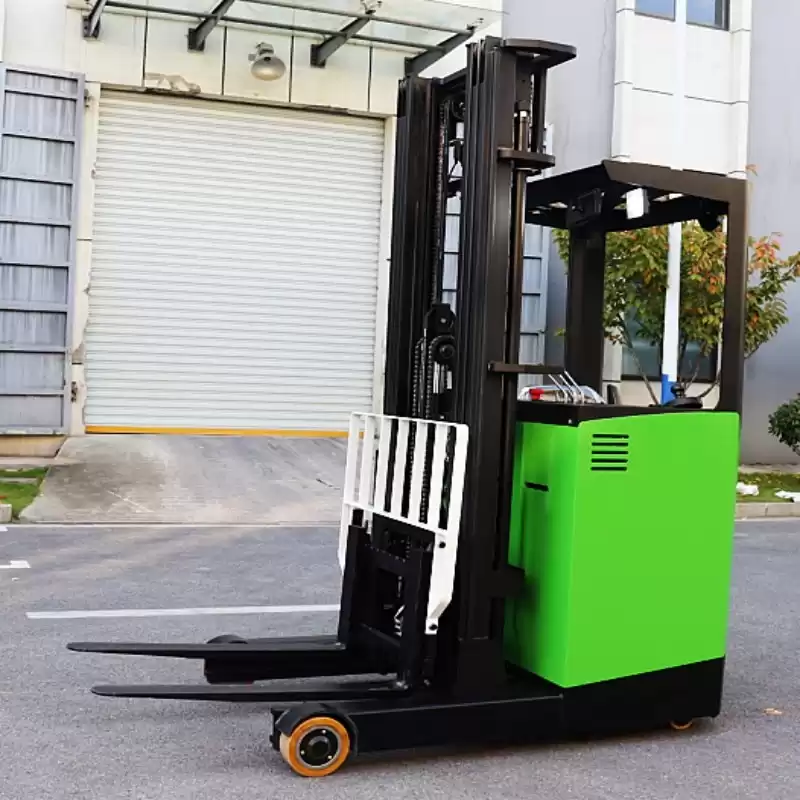

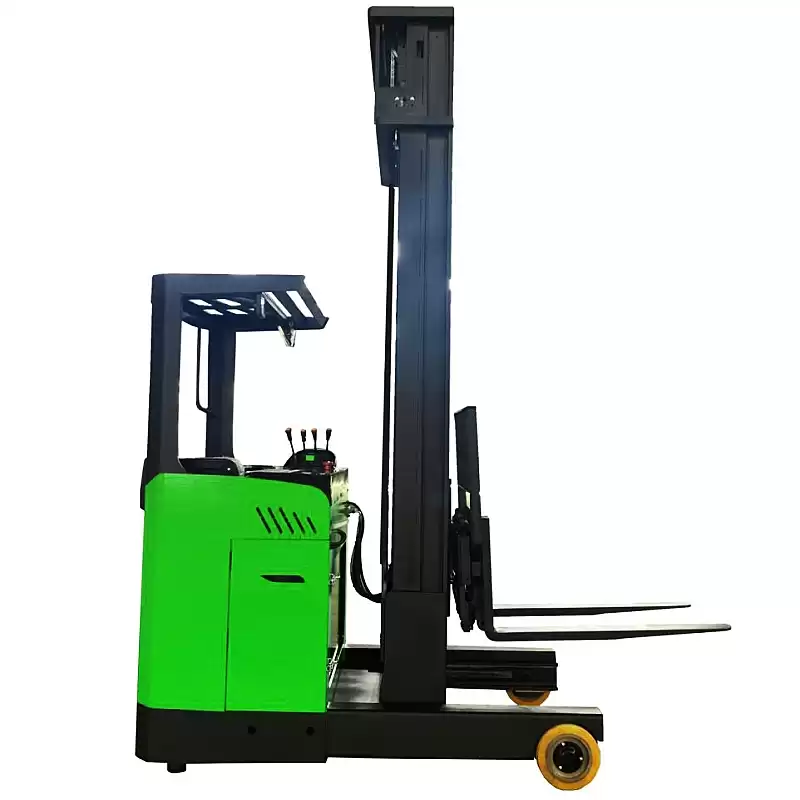

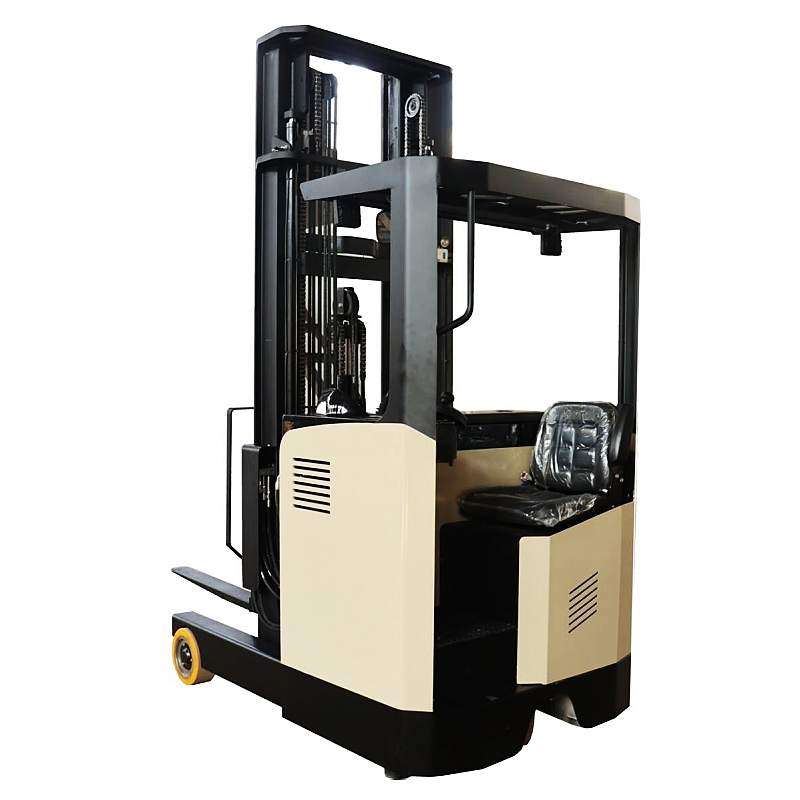

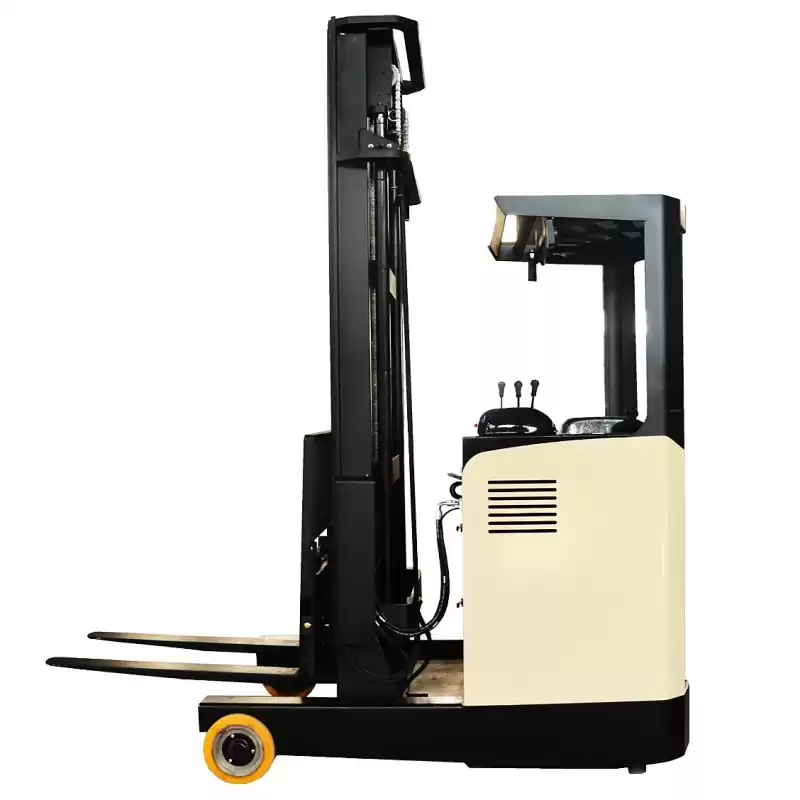

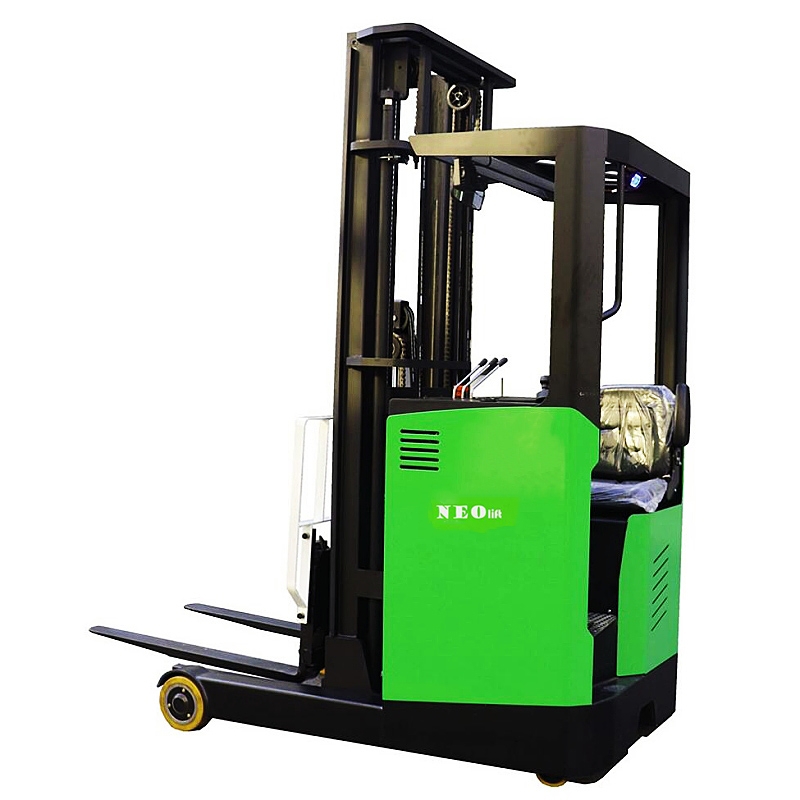

Seated Type Electric Battery Powered Reach Truck
Seated type electric reach truck is a new-design reach truck, with loading capacity from 1.6 to 2.5 tons. The mast can be moved forward or backward as a whole, which has a smaller body, turning radius and higher efficiency.It is widely used in the intensive storage industry and can greatly improve the storage capacity.
Features:
1.Four Wheel Braking
Equipped with front and back wheel braking, with a better braking performance, which is suitable for using on the wed and frozen ground. All this can guarantee operator safety;

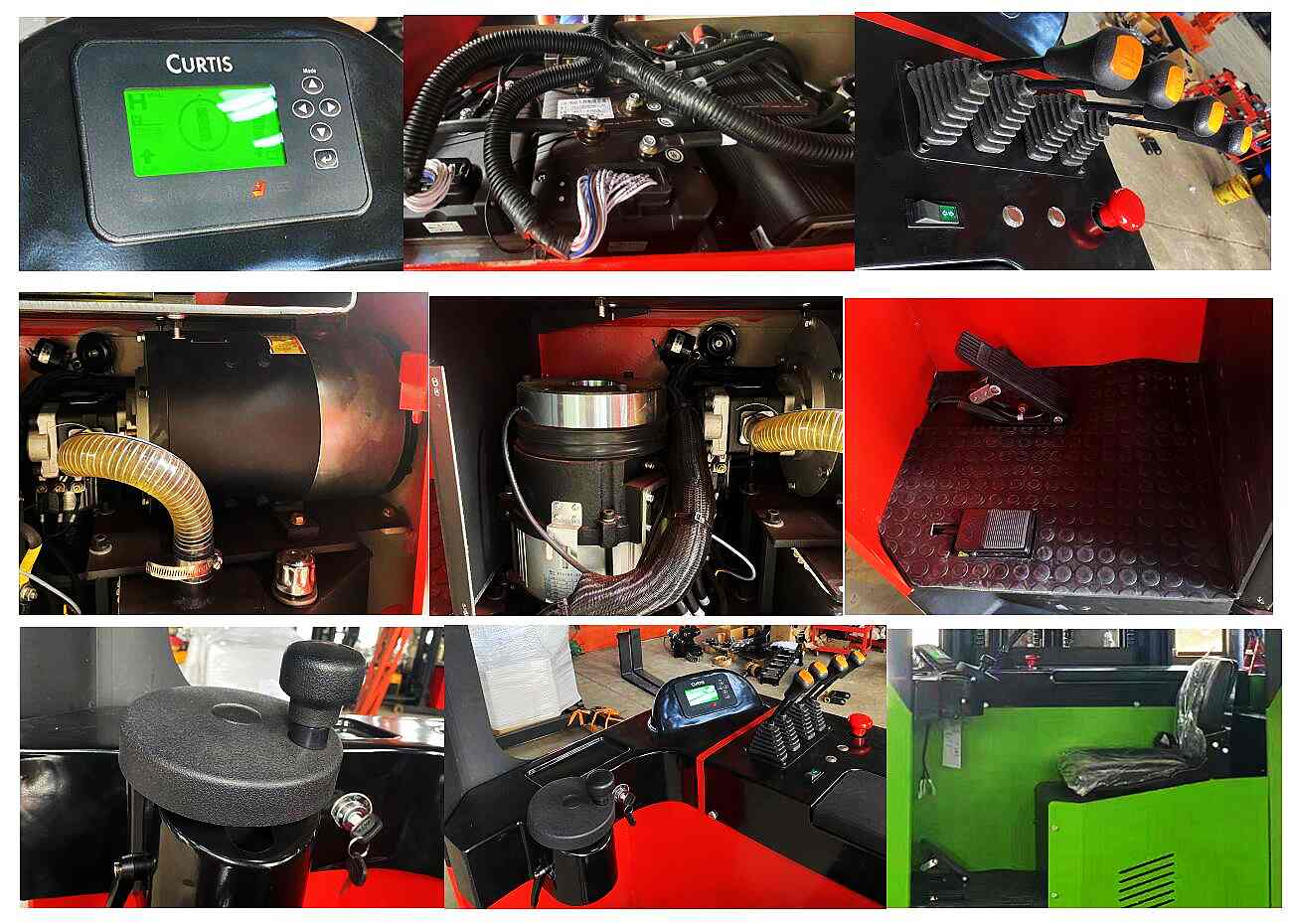

2.Ergonomics Design
Easy operation joystick design and multi-function display with wheel position, which can makes operation more comfortable and convenient;
Adjustable seat can provide operator with the most comfortable operation environment;
3.Excellent Weight-bearing Mast
No loading capacity loss within 6000mm, and excellent loading performance at super-high position;
4.Strong Endurance
Full AC system design, high-efficiency and energy-saving motors without carbon brush can meet multiple operation requirements under heavy working conditions.

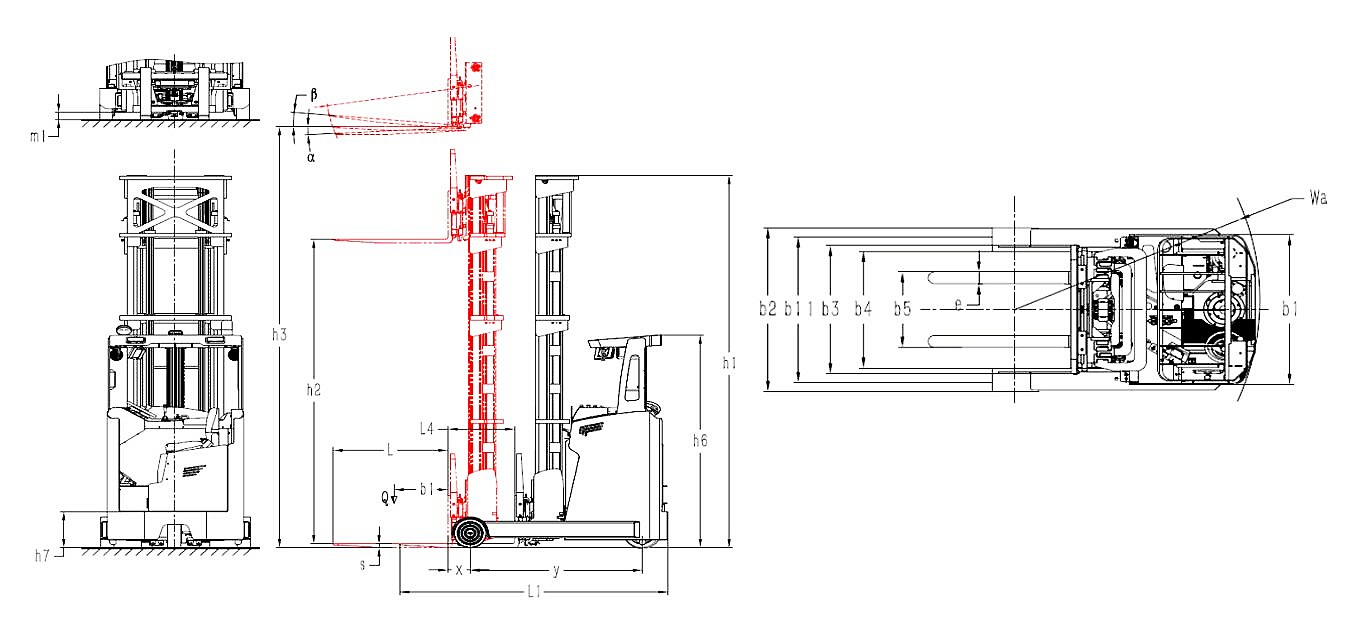

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NRS16 |
NRS20 |
| Power type |
|
Battery |
Battery |
| Rated capacity |
kg |
1600 |
2000 |
| Service weight(incl. battery) |
kg |
3320 |
3600 |
| Lift height |
mm |
7500 |
7500 |
| Overall length |
mm |
2440 |
2500 |
| Overall width |
mm |
1270 |
1270 |
| Fork size |
mm |
1070×100×35 |
1070×122×40 |
| Brake type |
|
Electromagnetic |
Electromagnetic |
| Driving Motor(S2-60min) |
kw |
4.5 |
6.5 |
| Lifting Motor(S3-15%) |
kw |
6.3 |
8.6 |
| Battery voltage/capacity |
V/Ah |
48/400 |
48/460 |
| Battery weight |
kg |
700 |
800 |
| Steering system |
|
EPS |
EPS |
| |

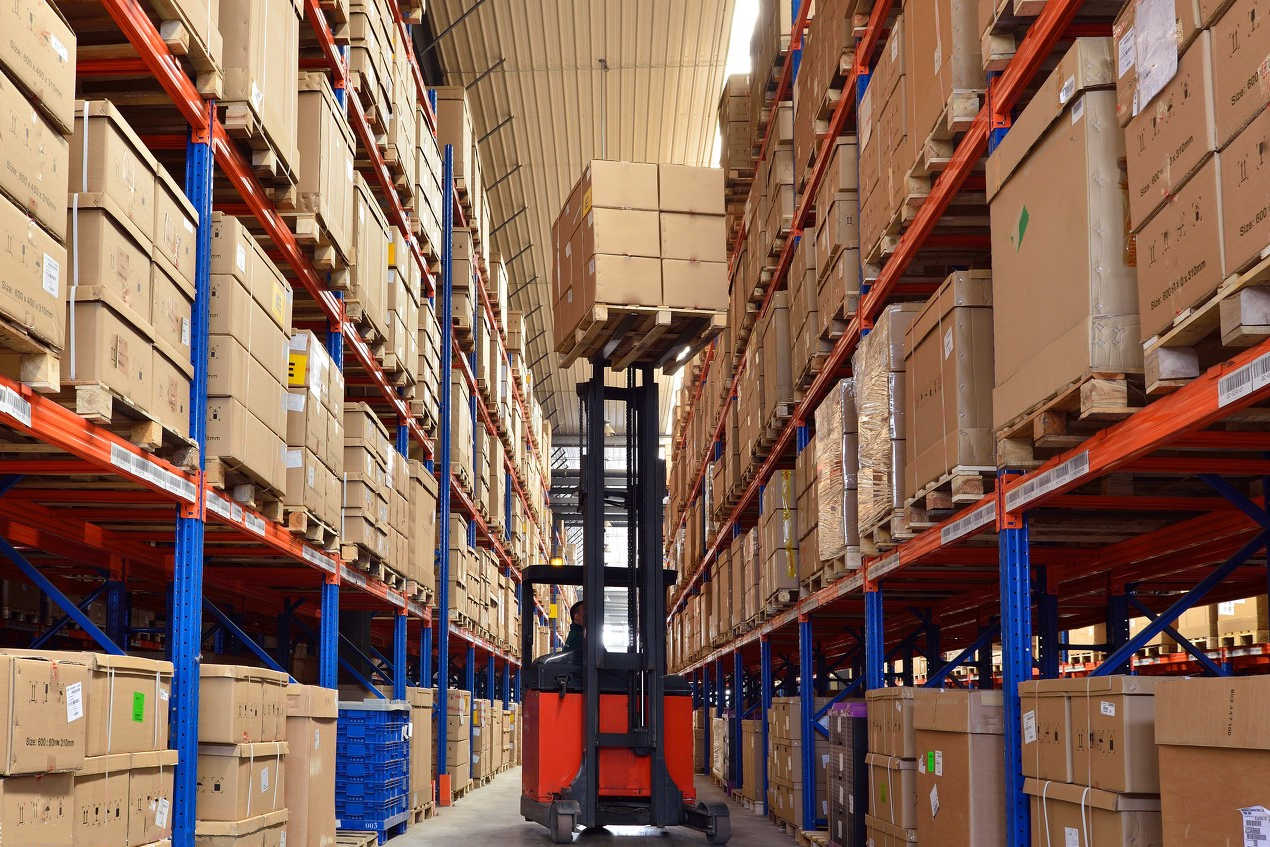

Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
