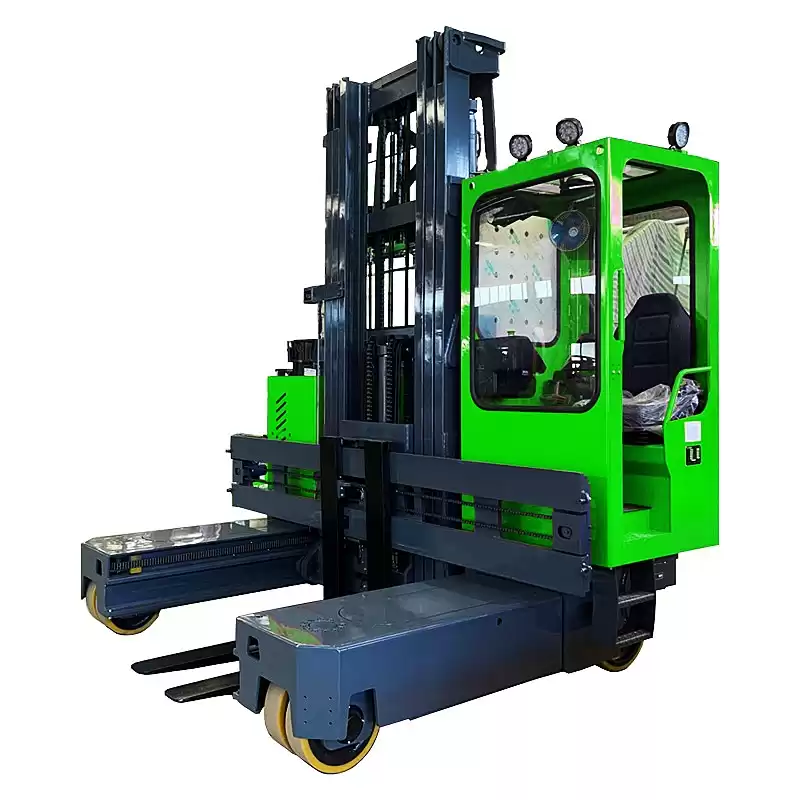

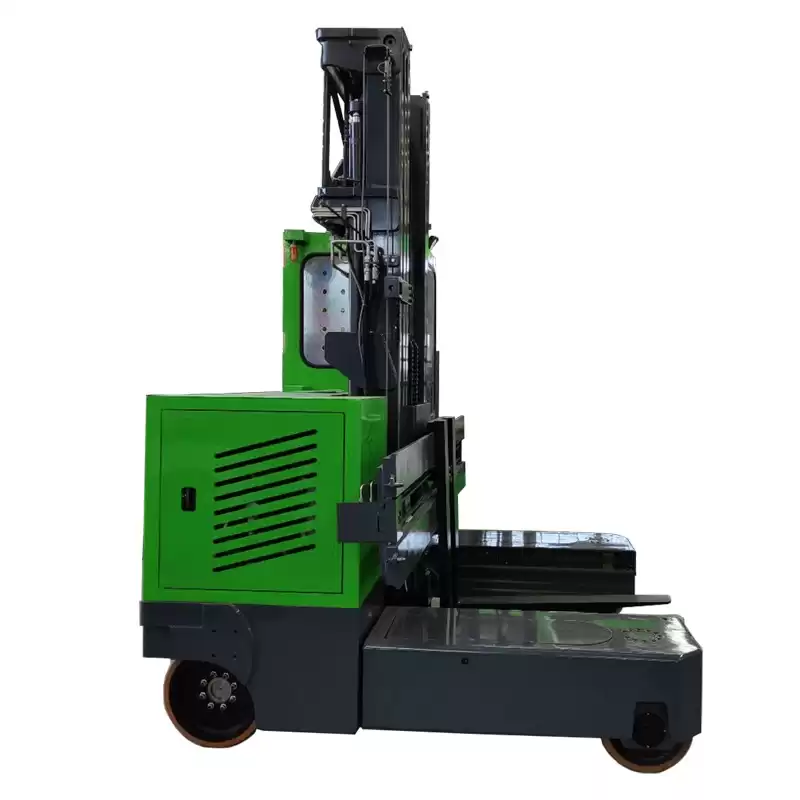

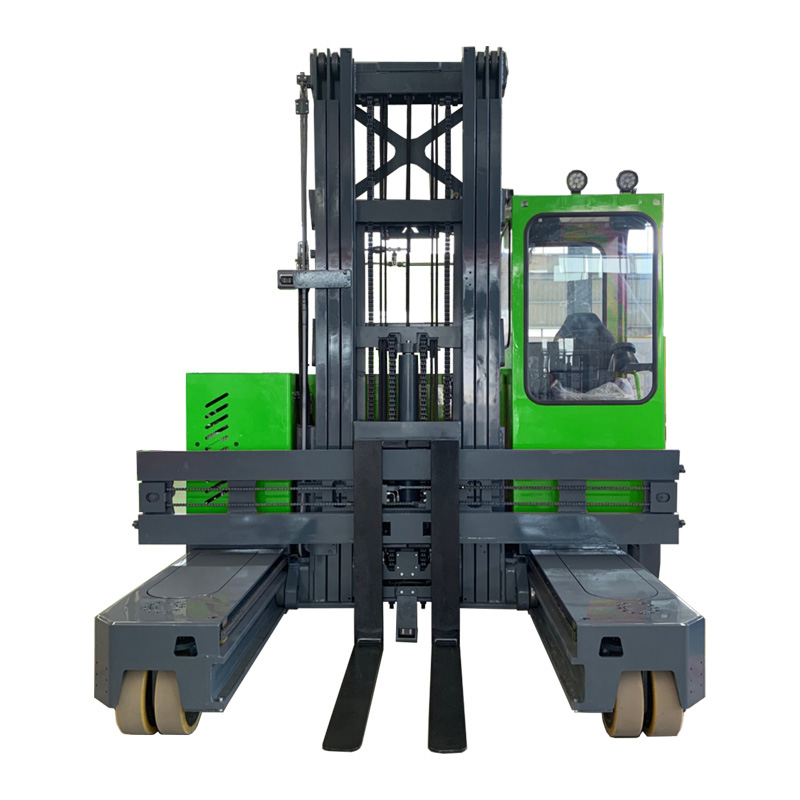

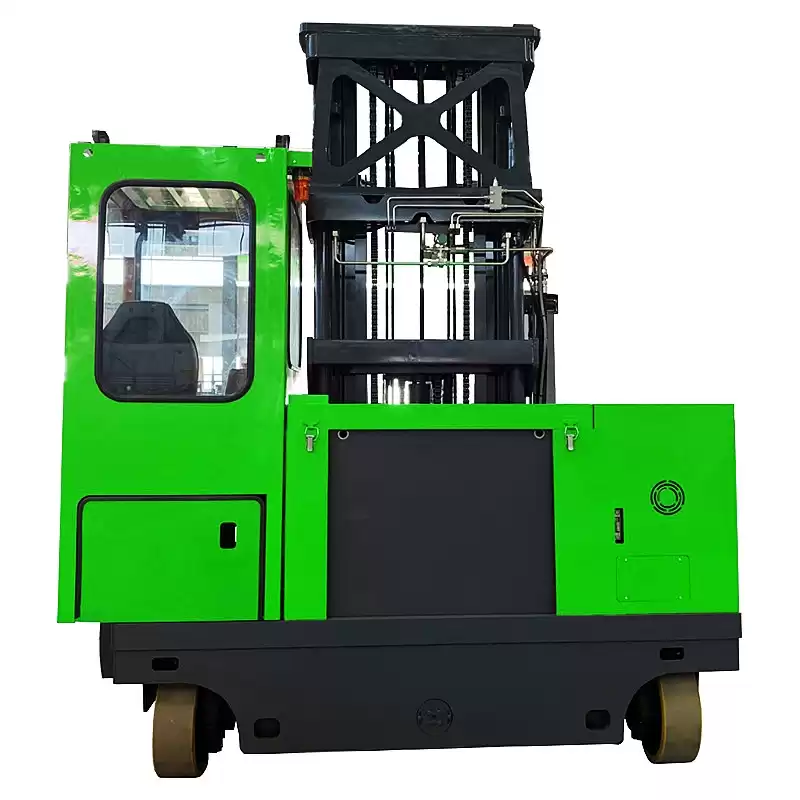

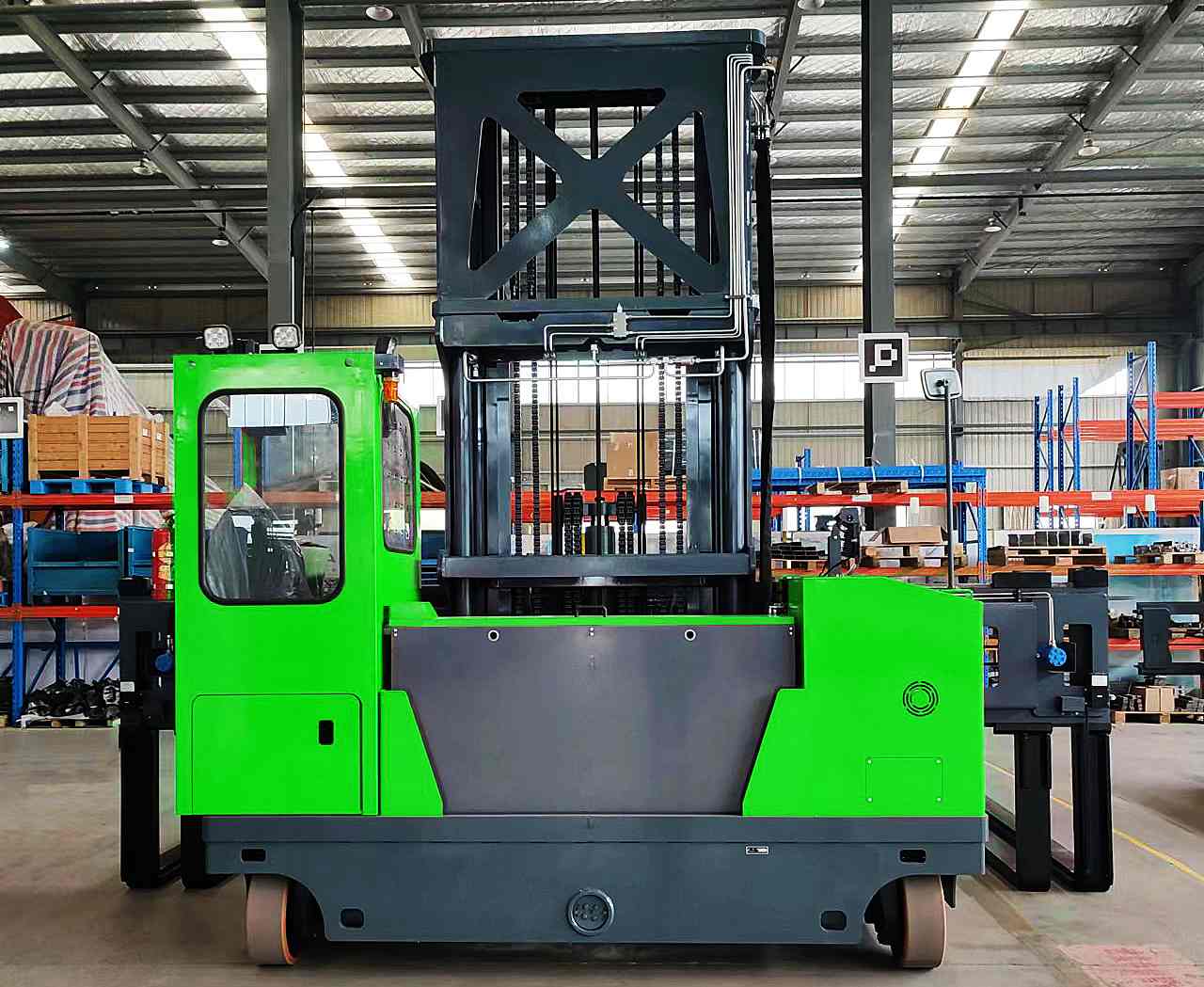

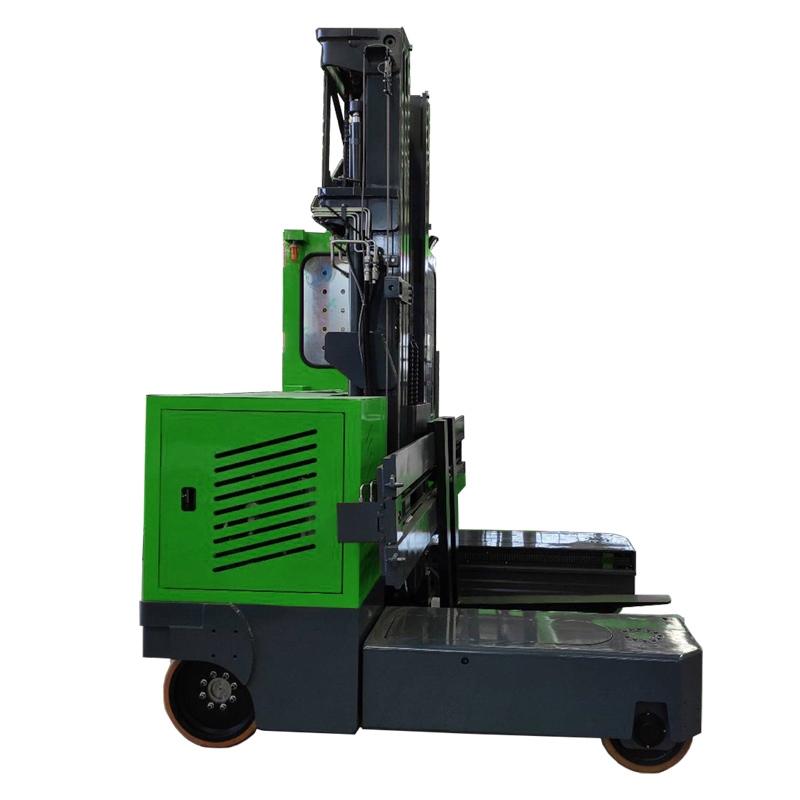

Seated type multi-directional reach truck
The Multi-directional Forklifts allow movement for long and awkward loads in all four directions, and you get all the benefits of counterbalanced forklifts, sideloader forklifts and narrow aisle lift trucks in one vehicle.
A multi-directional reach truck quickly moves in all directions to easily maneuver long loads through narrow aisles and doorways. It handles long loads safely and efficiently. It also effortlessly carries loads along the side of the machine which helps reduce fleet and product damage.
Designed to be three forklifts in one, the forklift acts as a side loader forklift, counterbalance forklift and narrow aisle forklift. Fitting down narrow aisles with long heavy loads is a breeze, the aisle only needs to be the width of the machine.
Features:
1. Four-way driving and can turn 360 degrees in situ, suitable for very narrow passages and long material handling;

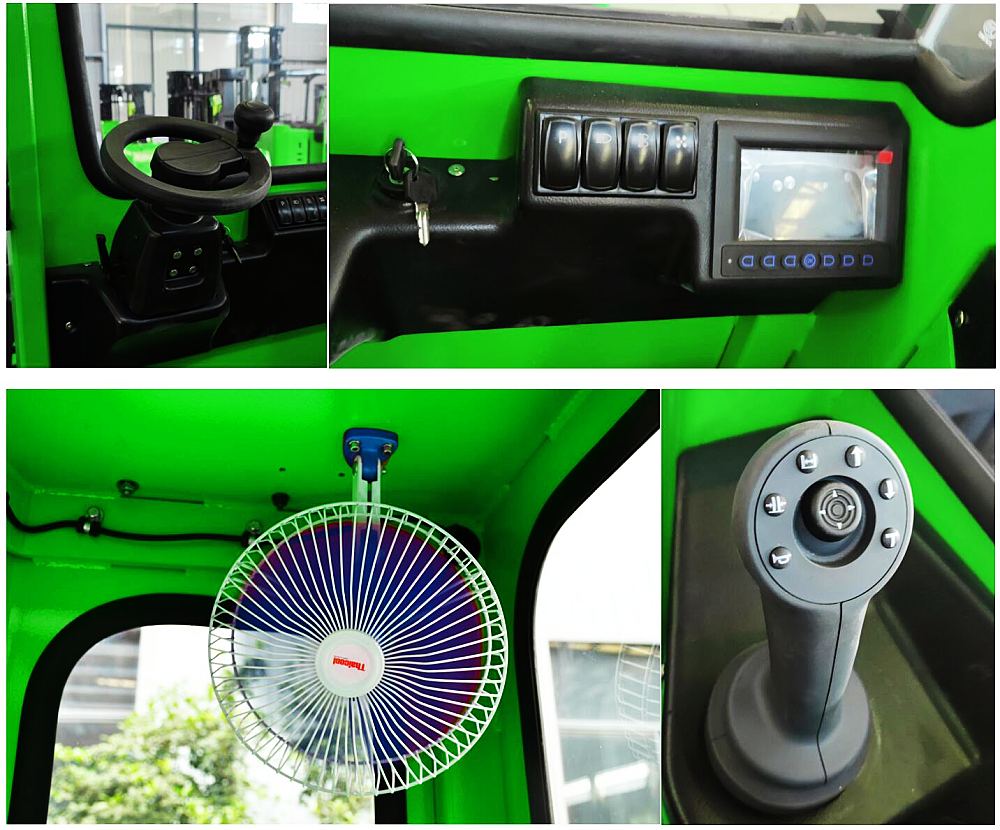

2. Full AC system, electric steering, long service life and low energy consumption;
3. Imported controller, high control precision, convenient electronic control setting, high performance and low failure;
4. High-strength PU or Rubber tires, stable driving and reliable braking;

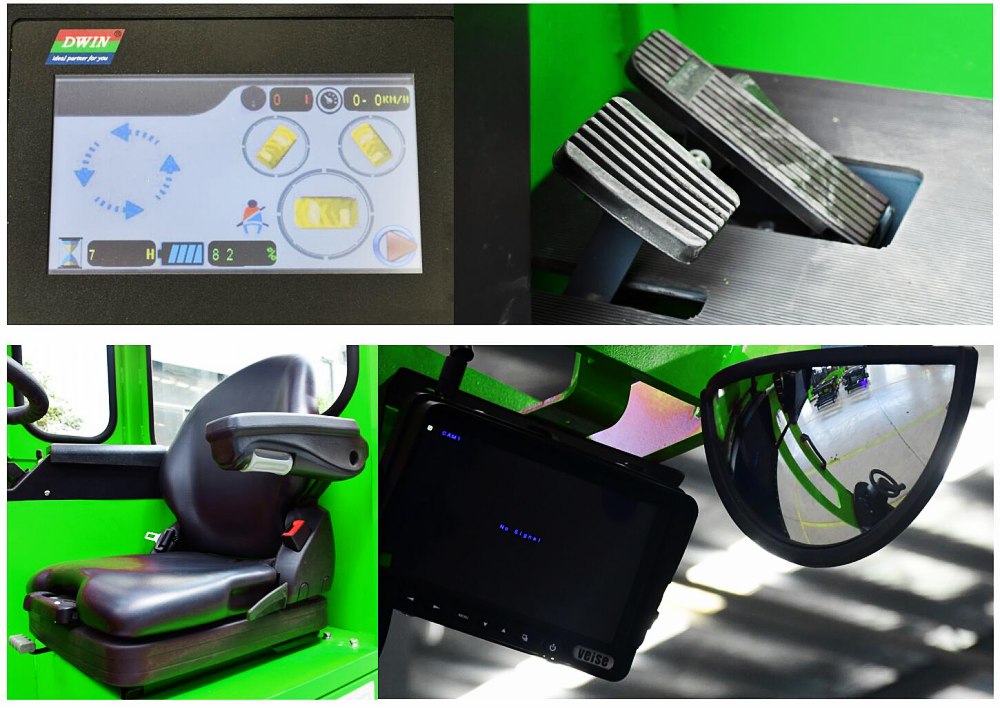

5. HD drive wheel display;
6. Large capacity battery.
7. Lithium battery is optional.

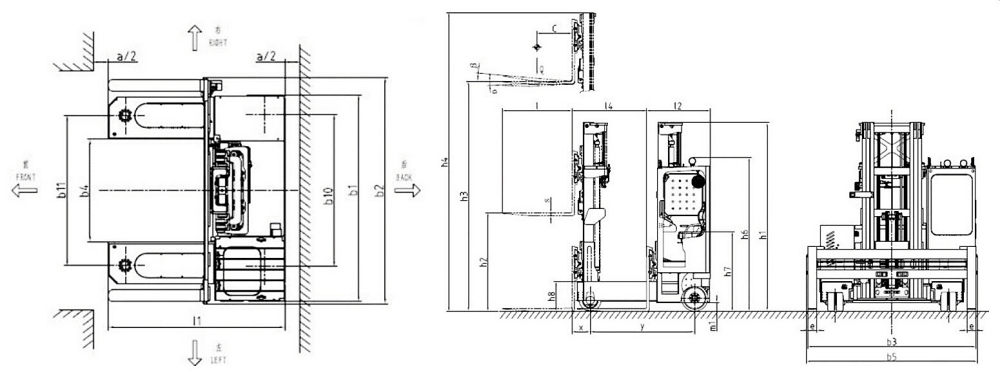

Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NRQS35 |
| Power type |
|
Battery |
| Rated capacity |
kg |
3500 |
| Load center |
mm |
600 |
| Lift height |
mm |
6000 |
| Overall length |
mm |
2300 |
| Overall width |
mm |
2435/2860 |
| In situ rotating radisu |
mm |
3210 |
| Reach stroke |
mm |
1300 |
| Driving motor(S2-60min) |
kw |
8AC |
| Lifting motor(S3-15%) |
kw |
15AC |
| Battery voltage/capacity |
V/Ah |
48/560 |
| Steering type |
|
Electric power steering |
| Battery replacement |
|
Hoisting |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
